KKSB Arduino DIN Rail Clip Bracket

Name: KKSB Arduino DIN Rail Clip Bracket
Brand: KKSB Cases
SKU: 7350001161709
Price: 13.9 EUR
Availability: InStock

€13,90

SKU 7350001161709

The KKSB Arduino DIN Rail Clip Bracket offers a versatile mounting solution tailored for Arduino UNO Q, Arduino UNO R4 WiFi, UNO R3, Arduino Mega, and Arduino Giga.

In stock.

Quantity Liquid error (snippets/product-form line 68): include usage is not allowed in this context

Technical Details

Compatible board: Arduino UNO Q, Arduino UNO R4 WiFi and UNO R4 Minima, Arduino UNO R3, Arduino Mega 2560 Rev3, Arduino Giga R1 WiFi, and most clones with the same screw hole pattern
Mounting: For 35 mm DIN rail; clip can be placed in 6 positions (3 on the side and 3 under the bracket)
Material: Steel bracket with black textured powder coat; DIN rail clip made of aluminium with a steel spring
Expansion: Open design leaves room for add-on boards, heatsinks or coolers
Package dimensions: 150 × 90 × 20 mm; shipping weight 80 g
In the box: Bracket, DIN rail clip, screws
Not included: DIN rail, Arduino board, electronics
EAN: 7350001161709

User Manuals

Worldwide shipping
EU delivery: ~ 3-8 days,
Outside the EU: ~ 7-15 days.

Pay using Paypal or Bank Card
We also accept bank payment for larger orders

AI-generated backgrounds are used in some images · Learn more

3D model / Dimensions

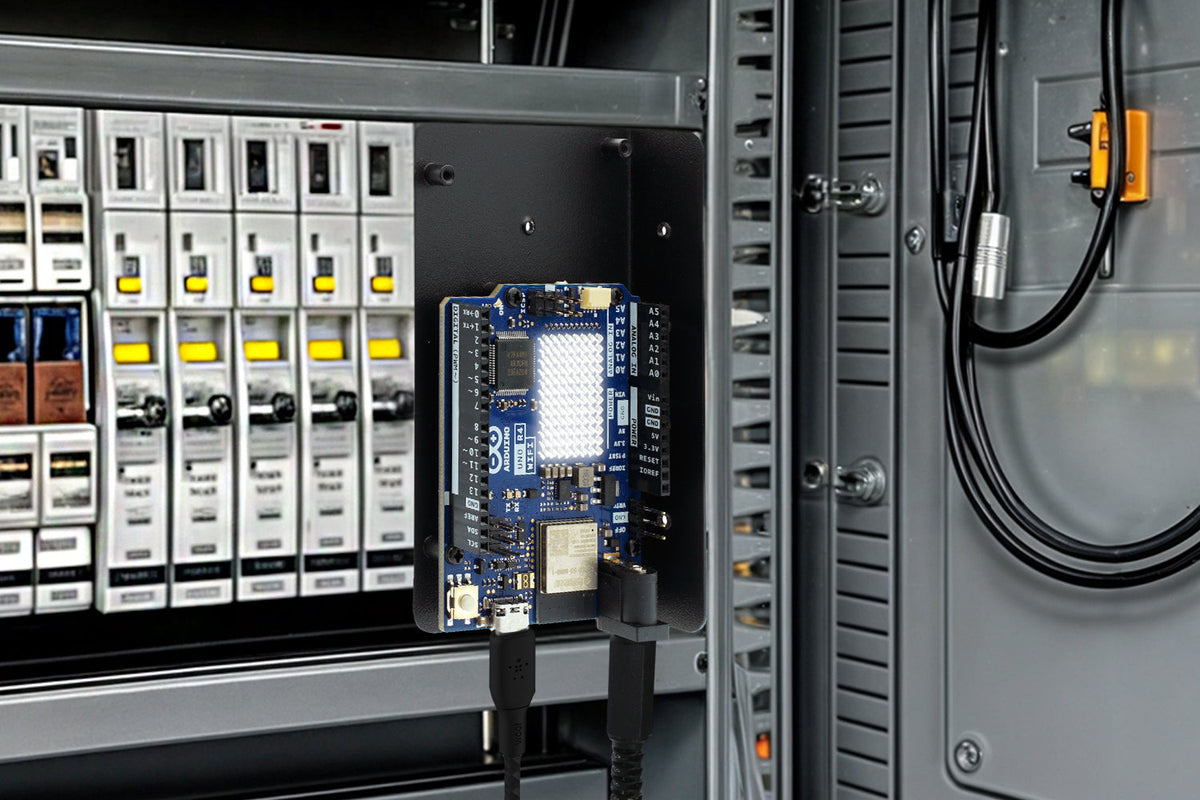

KKSB Arduino DIN Rail Clip Bracket – Arduino mounted in a control cabinet next to circuit breakers

KKSB Arduino DIN Rail Clip Bracket – Arduino Giga R1 WiFi mounted on a DIN rail

KKSB Arduino DIN Rail Clip Bracket – bracket with clip in a side position

KKSB Arduino DIN Rail Clip Bracket – bracket with clip mounted underneath

Durable and Adaptable Design

Designed to simplify installation while ensuring adaptability and durability across various environments, this bracket is crafted from robust steel and coated with a black textured powder finish for long-lasting protection without compromising aesthetics. Its space-saving design makes it an ideal fit for diverse settings, ensuring stability and reliability superior to non-metal DIN Rail Brackets.

Minimalist Design

Featuring an open-ended design, this bracket allows easy mounting of addon boards, heatsinks, or coolers onto your Arduino board without hindrance or obstruction. This design enhances setup versatility while preserving functionality.

KKSB Arduino DIN Rail Clip Bracket – Arduino Mega on the bracket, close-up

Adaptable Fixing Positions

Equipped with six adjustable fixing positions for the clip, users can effortlessly optimize placement within cabinets, ensuring efficient space utilization. This DIN Rail Bracket with Clip caters to industrial, home automation, IoT, and embedded computing applications, providing a robust and adaptable mounting solution.

Some Examples of Possible Applications

Industrial Automation: Securely mounts Arduino in industrial settings, ideal for automation and control systems.
Smart Home Systems: Facilitates organized and space-efficient installations within smart home setups.
IoT Projects: Provides a reliable mounting platform for Arduino in IoT applications, including sensor networks and data logging.
Embedded Computing: Ensures stable and secure mounting of Arduino in diverse environments, suitable for robotics, education, or DIY projects.

Effortless Assembly

The simple assembly process streamlines mounting the Arduino onto the bracket and attaching the DIN rail clip, facilitating seamless installation on the DIN rail and minimizing setup time.

Compatibility

Compatible with a 35mm DIN Rail, this bracket perfectly aligns with the screw patterns and spacing of Arduino UNO Q, Arduino UNO R4 WiFi, UNO R3, Arduino Mega, and Arduino Giga WiFi, offering a secure and stable mount.
