KKSB Arduino UNO R4 Project Case for UNO R4 Minima and UNO R4 WiFi

Name: KKSB Arduino UNO R4 Project Case for UNO R4 Minima and UNO R4 WiFi
Brand: KKSB Cases
SKU: 7350001161617
Price: 20.9 EUR
Availability: InStock
Rating: 5.0 (2 reviews)

€20,90

SKU 7350001161617

KKSB Arduino UNO R4 Project Case, a sturdy metal protective case designed to protect and support the functionality of your Arduino UNO R4 Minima and Arduino UNO R4 WiFi microcontrollers.

In stock.

Quantity Liquid error (snippets/product-form line 68): include usage is not allowed in this context

Technical Details

Compatible board: Arduino UNO R4 WiFi and Arduino UNO R4 Minima
Compatible HATs: Arduino Ethernet HAT and many other HATs (one at a time)
Port access: 1 × USB-C (labelled “USB C (Programming)”), DC power jack (labelled “6–24 V”), Qwiic connector opening (labelled “Qwiic”), GPIO header openings in the lid and cable passthrough openings in the removable front and rear walls
Display: Clear lid keeps LEDs, the LED matrix and printed pin descriptions visible
Material: Sandblasted black anodized aluminium walls with laser-engraved labels; rigid powder-coated black steel bottom; clear crack-resistant polycarbonate lid
Mounting: Compatible with KKSB DIN Rail Clip and KKSB UNC Thread Bracket for tripod mounting (sold separately); rubber feet
Package dimensions: 105 × 55 × 77 mm; shipping weight 125 g
In the box: Case and all fasteners needed
Not included: Arduino UNO R4 WiFi/Minima, HATs, KKSB DIN Rail Clip, KKSB UNC Thread Bracket
EAN: 7350001161617

User Manuals

Worldwide shipping
EU delivery: ~ 3-8 days,
Outside the EU: ~ 7-15 days.

Pay using Paypal or Bank Card
We also accept bank payment for larger orders

AI-generated backgrounds are used in some images · Learn more

3D model / Dimensions

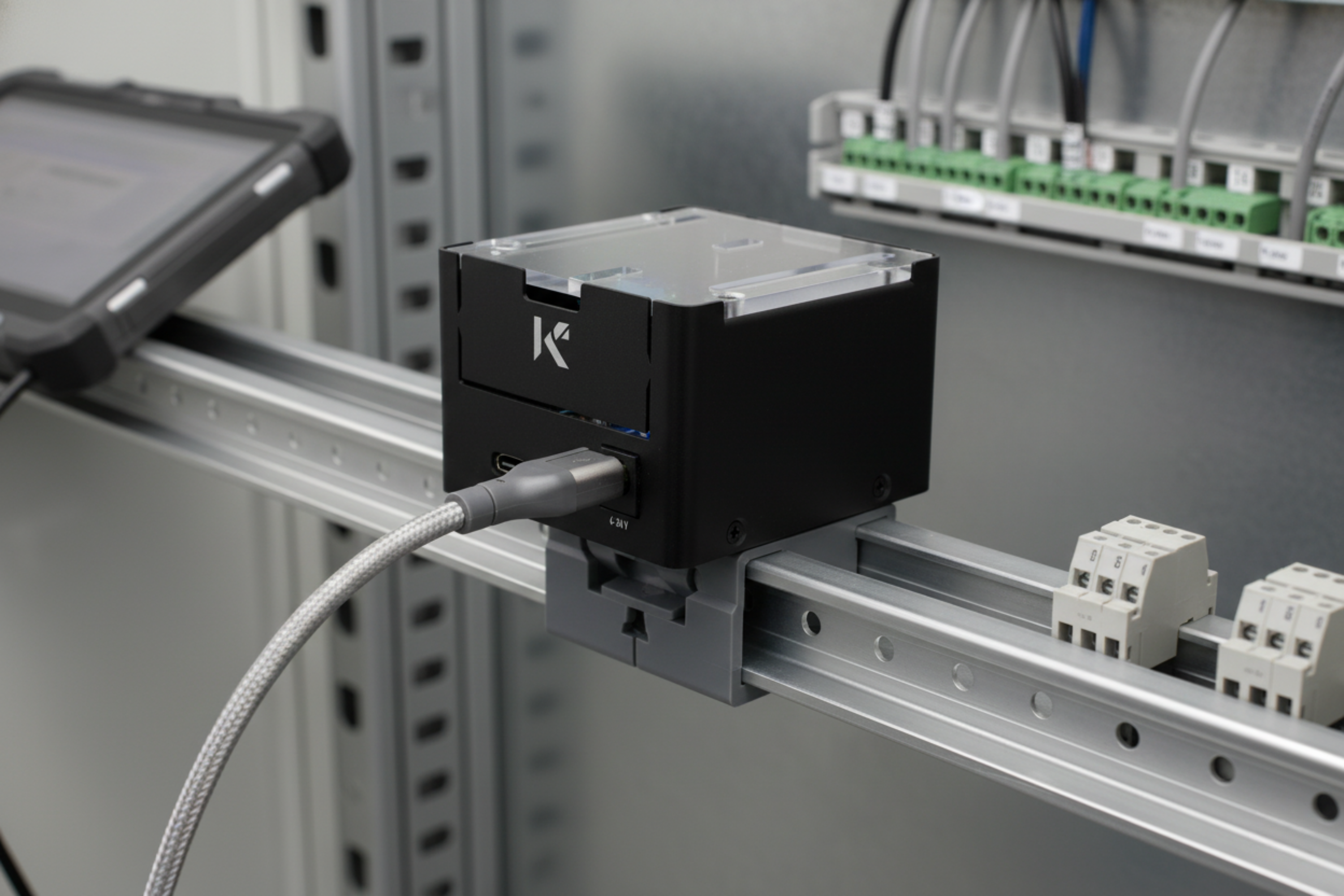

KKSB Arduino UNO R4 Project Case – mounted on a DIN rail in a cabinet with a cable

KKSB Arduino UNO R4 Project Case – rear with removable wall on a dark background

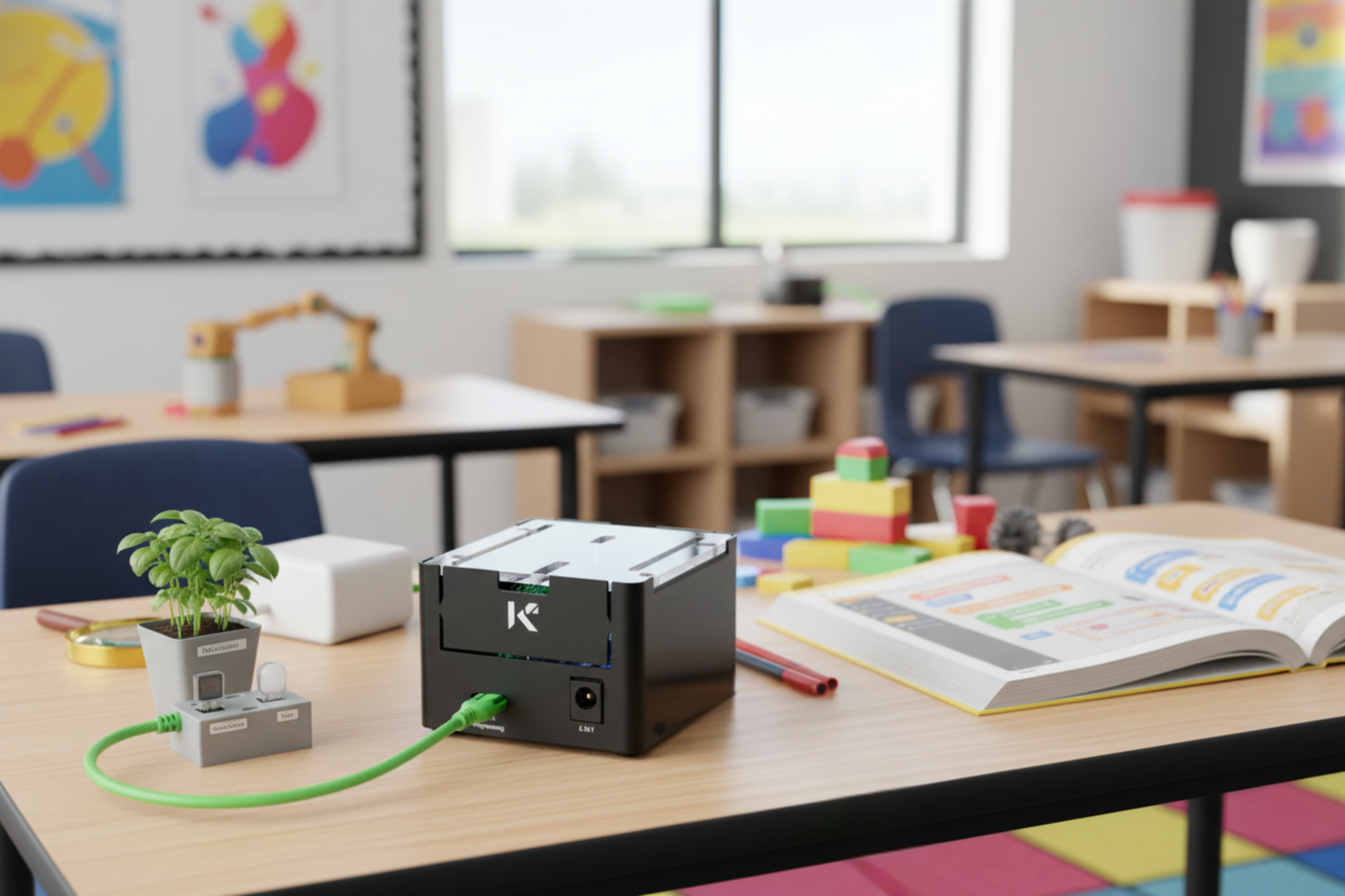

KKSB Arduino UNO R4 Project Case – on a classroom table

KKSB Arduino UNO R4 Project Case – mounted upside down on a DIN rail

KKSB Arduino UNO R4 Project Case – two cases with clear lids, dark background

Protective yet Adaptable Design

The KKSB Arduino UNO R4 Project Case is specifically crafted to house Arduino UNO R4 Minima and UNO R4 WiFi with additional space for HATs, such as the Ethernet HAT. The case's adaptability extends to industrial environments with compatibility for the KKSB DIN Rail Mount Clip and the KKSB UNC Tripod Mount Bracket, ensuring secure and flexible mounting options. This protective case is engineered with versatility in mind, providing a range of features suitable for diverse applications.

KKSB Arduino UNO R4 Project Case – two opened cases with boards, dark background

Robust Build Quality

Crafted with durability in mind, this metal case for Arduino UNO R4 features a crack-resistant polycarbonate cover, allowing optimal wireless signal passthrough for WiFi and Bluetooth connectivity. The transparent cover facilitates visual inspection of the board, LEDs, and connections without the need for lid removal. The walled structure is constructed from sandblasted anodised black aluminium, while the bottom is made from rigid, powder-coated black steel, providing stability and longevity.

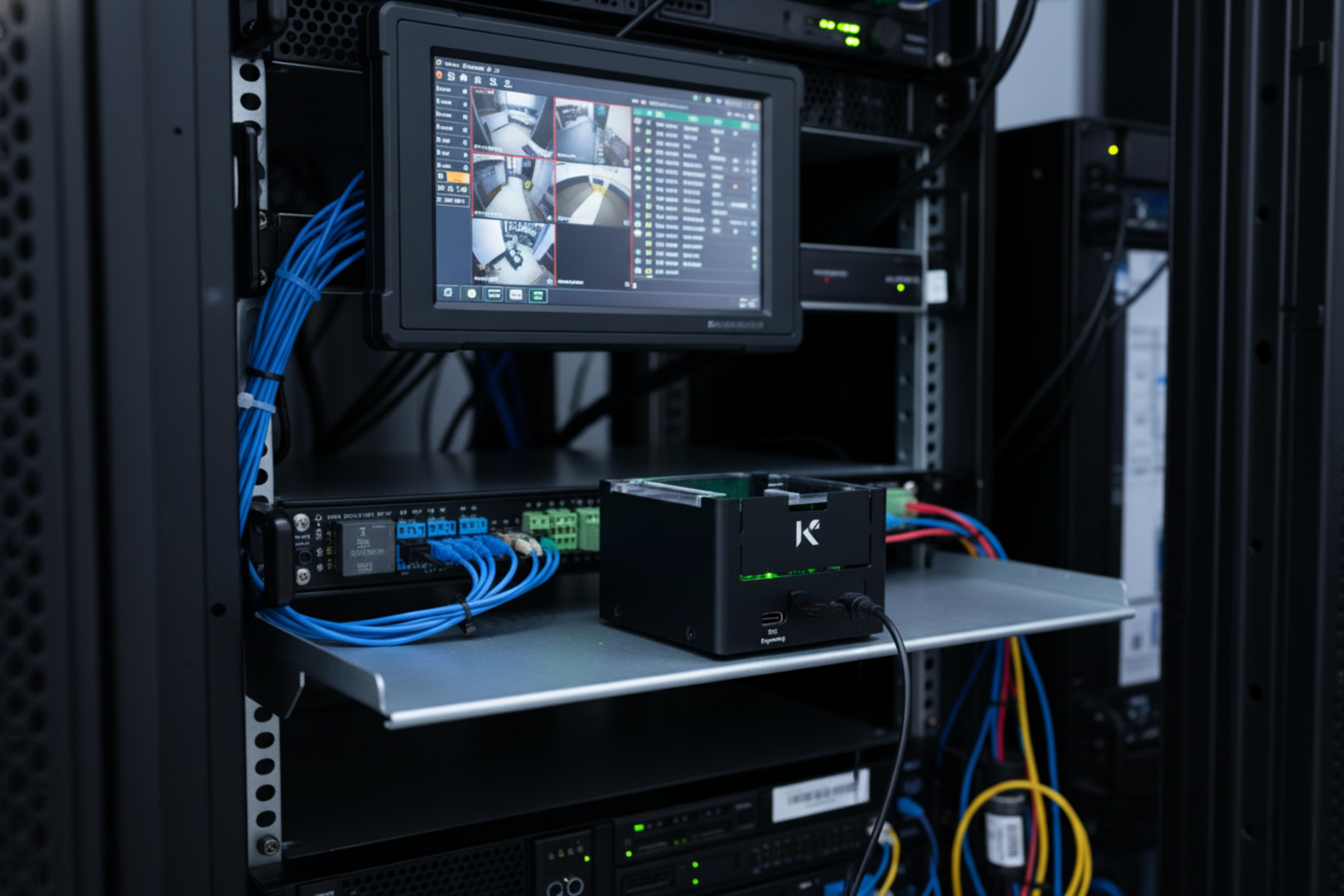

KKSB Arduino UNO R4 Project Case – in a server rack next to a display

Some Examples of Possible Applications

Industrial Environments: Ideal for use in industrial settings due to compatibility with the KKSB DIN Rail clip and robust steel bottom.
Home Projects: Suitable for DIY enthusiasts and hobbyists working on Arduino Uno R4 projects at home.
Custom Electronics: Extra tall design allows room for custom electronics, making it versatile for various applications.
Wireless Projects: Clear lid ensures wireless signals pass through without signal loss, suitable for wireless projects with Arduino Uno R4 WiFi.

The KKSB Arduino UNO R4 Case offers a pragmatic and functional housing solution, striking a balance between practicality and functionality for your Arduino UNO R4 and its accessories in a variety of environments.

KKSB Arduino UNO R4 Project Case – front with port openings on a dark background

Features

Transparent Polycarbonate Cover: Facilitates visual inspection without lid removal, enabling a quick overview of pin descriptions and LED status.
Removable Walls: Front and back walls are removable to accommodate connectors on HATs, with cable passthrough openings for versatile wiring configurations.
Extra Tall Design: Provides additional height for HATs or custom electronics, enhancing adaptability to various applications.
GPIO Pin Openings: Thoughtfully designed openings for easy access to GPIO pins, simplifying wiring and experimentation.
Simple Assembly: Straightforward, self-instructed assembly process for a hassle-free experience, suitable for users with varying technical expertise.
Minimalistic Design: Clean, minimalistic rectangular shape with rounded corners blends seamlessly in both industrial and home environments.
Rubber Feet: Equipped with rubber feet for stability, ensuring the case remains firmly grounded on various surfaces.
