KKSB Arduino Uno Q Project Case

Name: KKSB Arduino Uno Q Project Case
Brand: KKSB Cases
SKU: 7350001162195
Price: 18.8 EUR
Availability: InStock

€18,80

SKU 7350001162195

The KKSB Arduino Uno Q Project Case is a tall, flexible enclosure designed for advanced Arduino projects that require additional space, expansion boards, and custom wiring.

In stock.

Quantity Liquid error (snippets/product-form line 68): include usage is not allowed in this context

Technical Details

Compatible Board: Arduino Uno Q
Compatible Expansion Boards: Ethernet HAT and many other Arduino HATs
(Compatibility depends on board size and connector placement)
Compatible Accessories: KKSB DIN Rail Clip, KKSB UNC Thread Bracket for Tripod Mounting (Accessories not included)
Top Cover Material: Clear, crack-resistant polycarbonate (wireless-friendly)
Base Material: Sandblasted black anodized aluminum with laser-engraved connector labels
Bottom Plate: Rigid powder-coated black steel with cutouts for high-speed headers
Color: Matte black base with transparent top

User Manuals

Assembly Instruction KKSB Arduino Uno Q Project Case DE-USER_MANUAL_AND_SAFETY_DATASHEET-7350001162188_25160d48-4ef5-47da-ba8b-6798103ef437.pdf
Deutsch EN-USER_MANUAL_AND_SAFETY_DATASHEET-7350001162188_07df911e-8502-4e57-b722-0a32716dcbdd.pdf
English ES-USER_MANUAL_AND_SAFETY_DATASHEET-7350001162188_720ac3f6-7998-49e7-8fa3-a7cdbe900eb8.pdf
Español FR-USER_MANUAL_AND_SAFETY_DATASHEET-7350001162188_52802f26-3c3e-477d-8832-dab2a193d84e.pdf
Français IT-USER_MANUAL_AND_SAFETY_DATASHEET-7350001162188_057fde1a-9908-4c3c-ad11-78fd8738f681.pdf
Italiano JP-USER_MANUAL_AND_SAFETY_DATASHEET-7350001162188_88f55305-5b01-4c8e-a06a-593900cc1e88.pdf
日本語 (Nihongo) NL-USER_MANUAL_AND_SAFETY_DATASHEET-7350001162188_997d5704-7a39-4a58-88ac-eba6c5425d76.pdf
Nederlands

Worldwide shipping
EU delivery: ~ 3-8 days,
Outside the EU: ~ 7-15 days.

Pay using Paypal or Bank Card
We also accept bank payment for larger orders

AI-generated backgrounds are used in some images · Learn more

Tall and Flexible enclosure

The KKSB Arduino Uno Q Project Case is a tall, flexible enclosure designed for advanced Arduino projects that require additional space, expansion boards, and custom wiring. With a clear polycarbonate lid and a robust metal construction, the case is ideal for both industrial installations and home or development environments. Its extra internal height and modular wall design make it especially suitable for projects using HATs, Ethernet boards, or custom electronics.

Industrial-Grade Materials and Precise Labeling

The base of the enclosure is made from sandblasted black anodized aluminum, with laser-engraved labels for all connectors to ensure clear identification. The bottom plate is constructed from rigid powder-coated black steel and includes cutouts for high-speed headers, supporting reliable connectivity and expansion.

Precision cutouts provide access to GPIO pins and the most important connectors and functions.

Some Examples of Possible Applications

The KKSB Arduino Uno Q Project Case is designed for advanced and expandable Arduino projects, including:

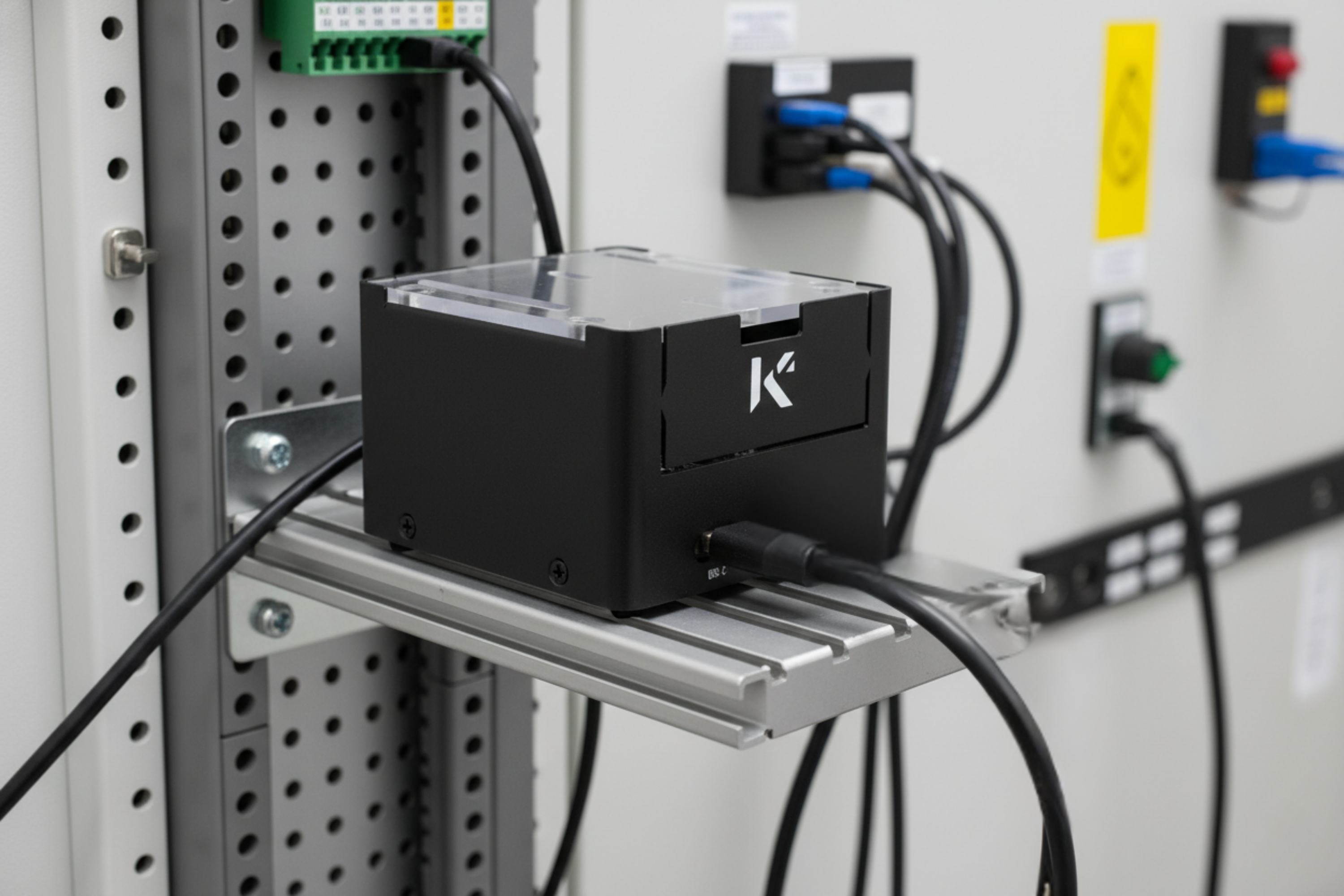

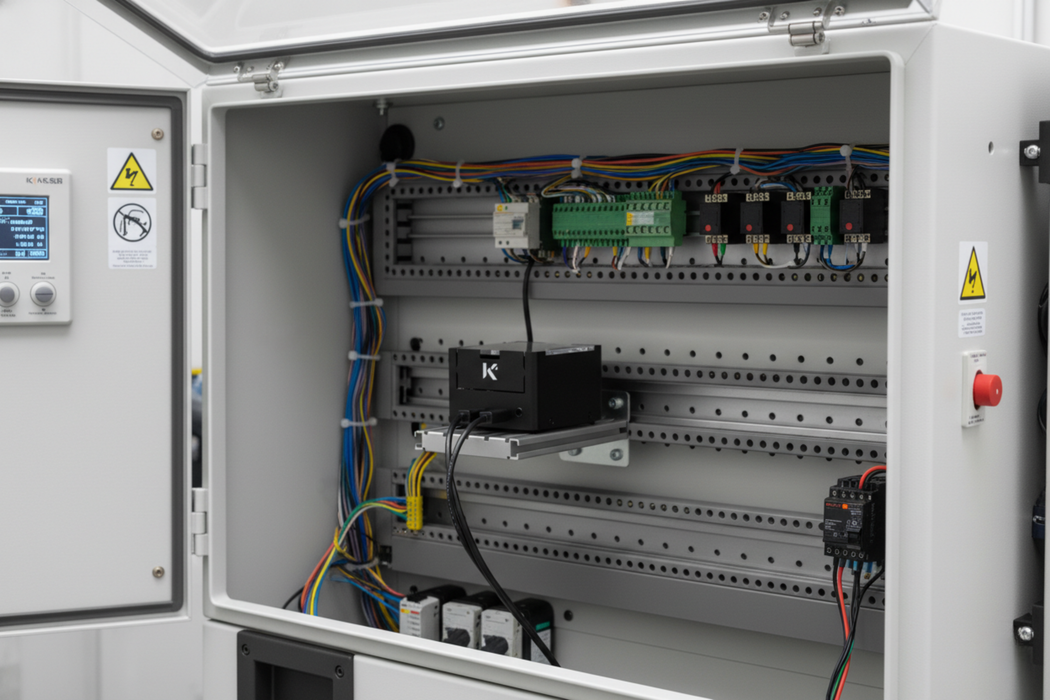

Industrial automation and control systems: DIN rail–mounted controllers with Ethernet or additional I/O boards inside control cabinets.
IoT gateways and edge devices: Projects combining wireless connectivity, wired networking, and custom electronics in a single enclosure.

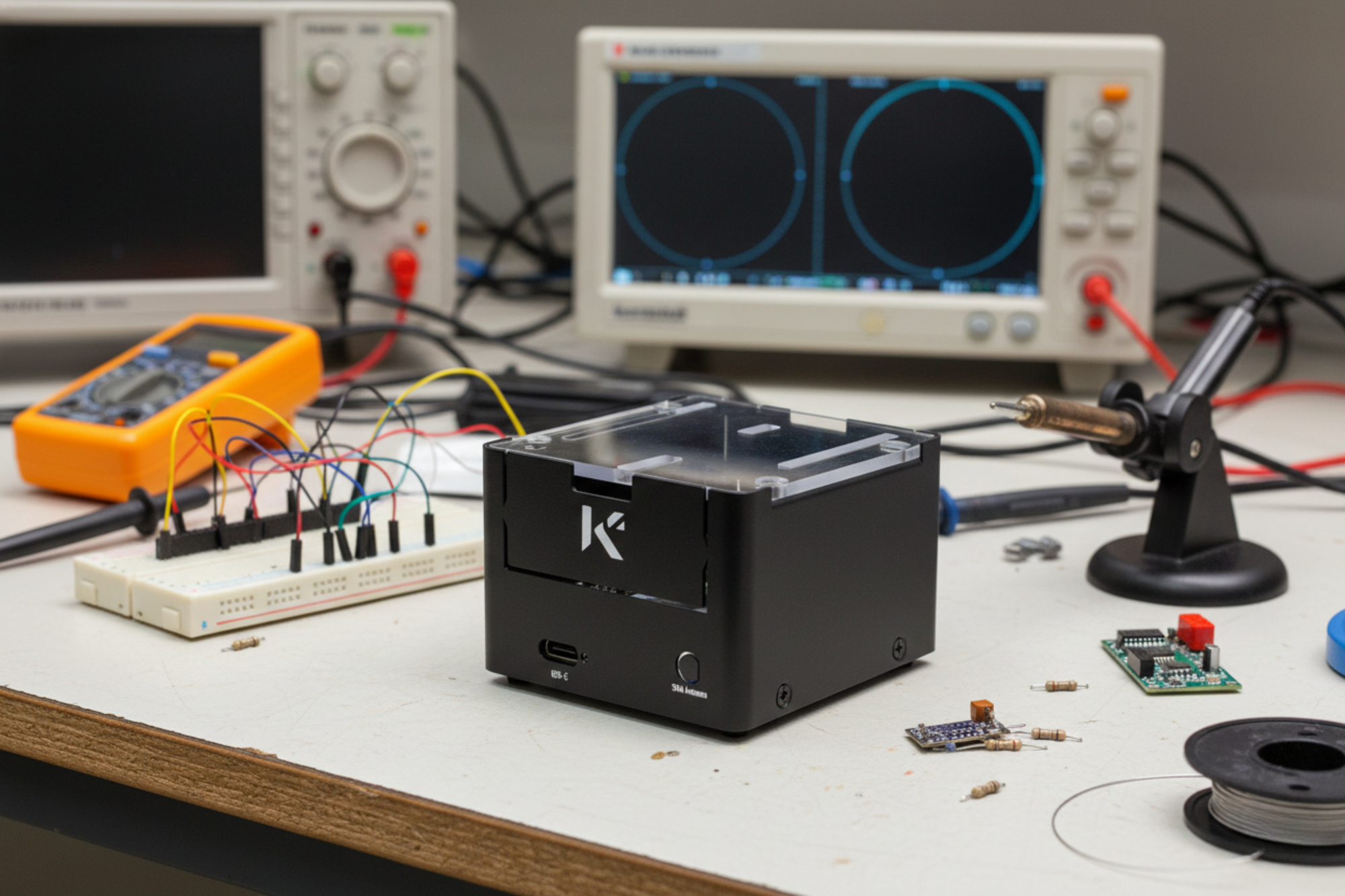

Prototyping and development platforms: Ideal for engineers and makers building and testing complex Arduino-based systems.
Data acquisition and monitoring systems
Enclosures for sensors, logging hardware, and communication modules requiring flexible cable routing.
Custom electronics and embedded projects: Extra internal height supports stacked boards and custom circuitry.
Portable test and demonstration setups: When combined with the optional tripod mounting bracket, suitable for mobile demos and temporary installations.
Educational and laboratory environments: Well suited for teaching, experimentation, and project-based learning where visibility and expandability are important.

Extra-Tall Design for Expansion and Custom Electronics

This project case is extra tall, providing ample space for:

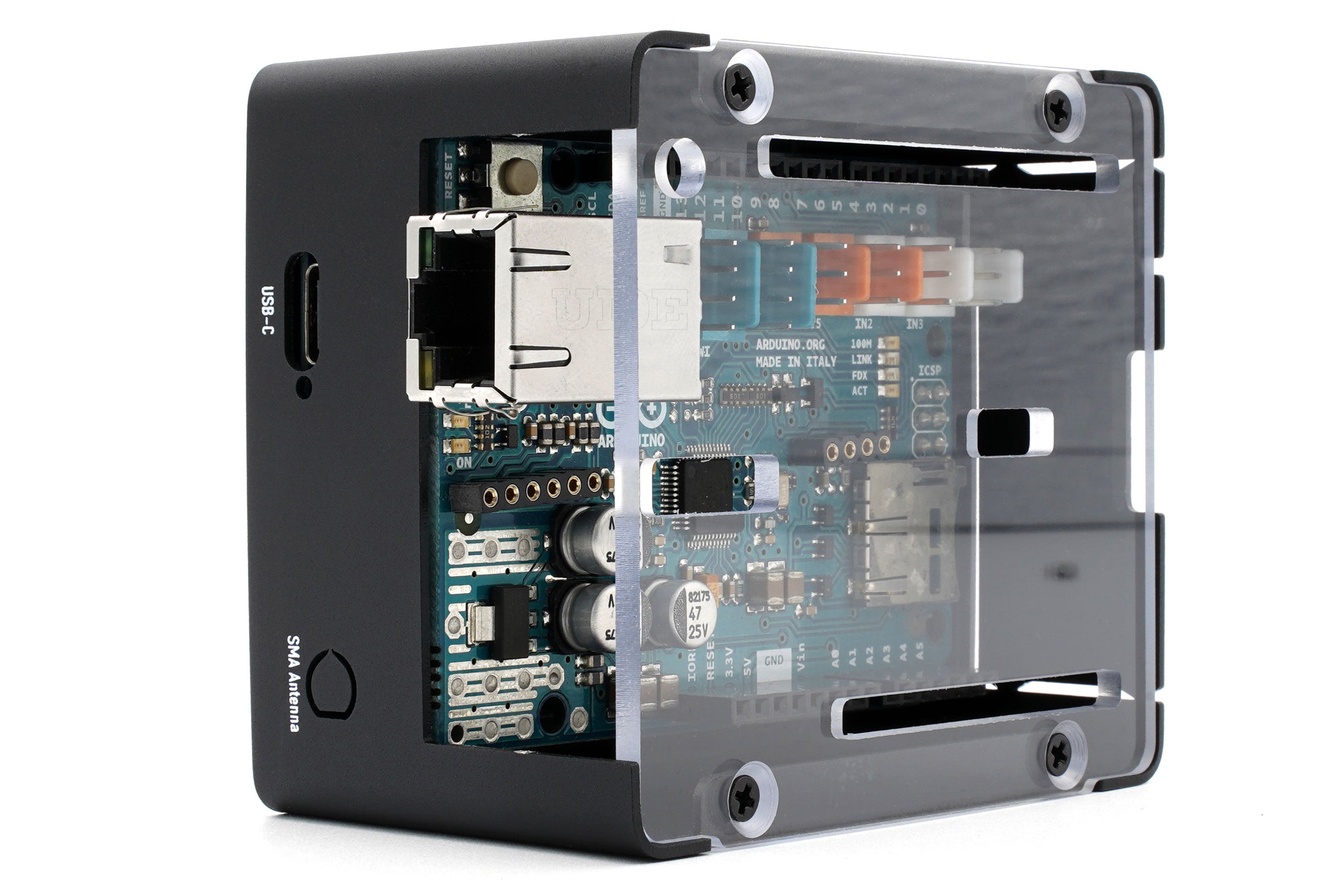

Ethernet HATs
Additional Arduino HATs
Custom electronics and wiring

The increased internal volume makes it ideal for more complex projects that go beyond a basic controller setup.

Multiple Mounting Options

The case is compatible with:

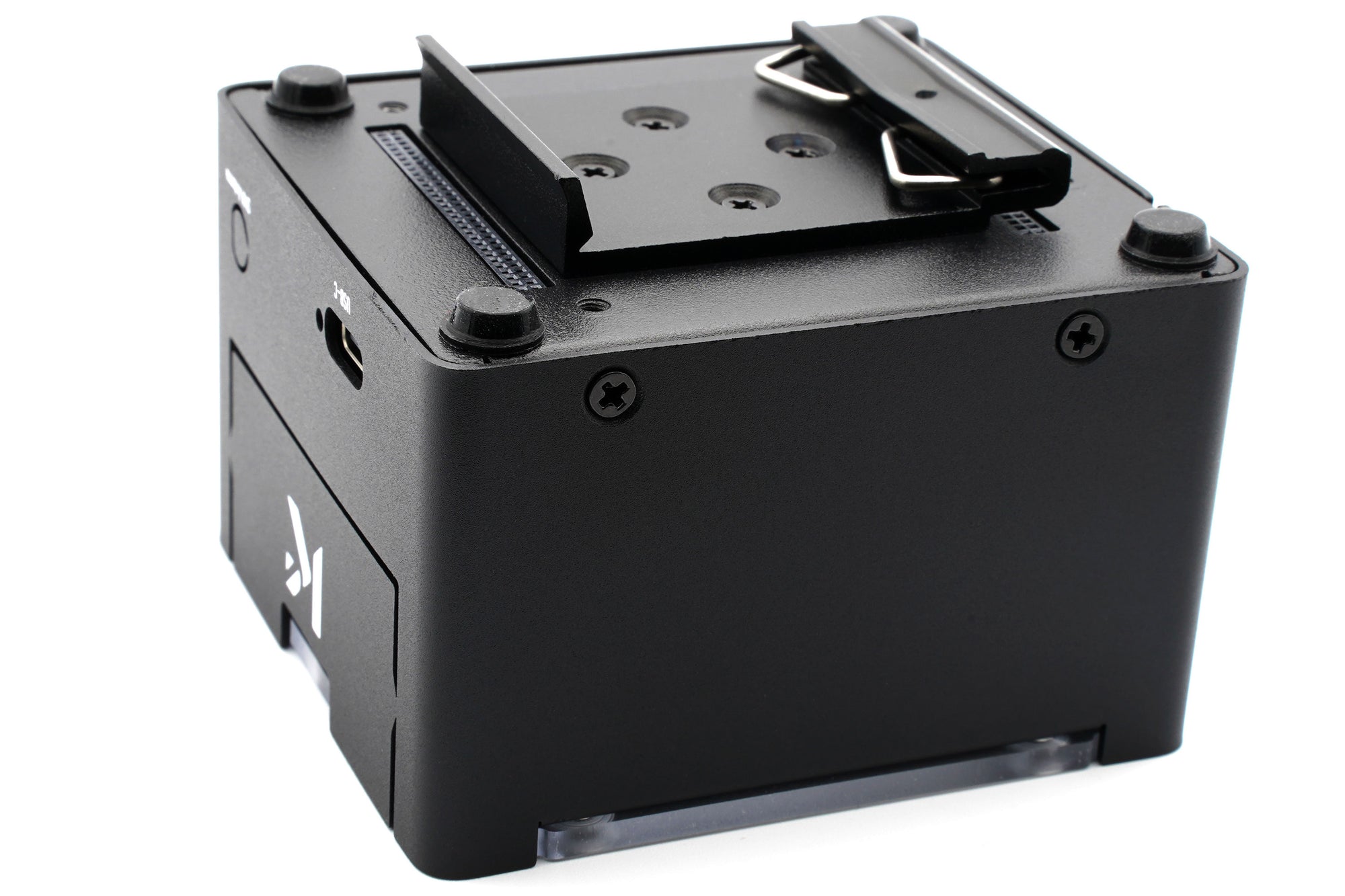

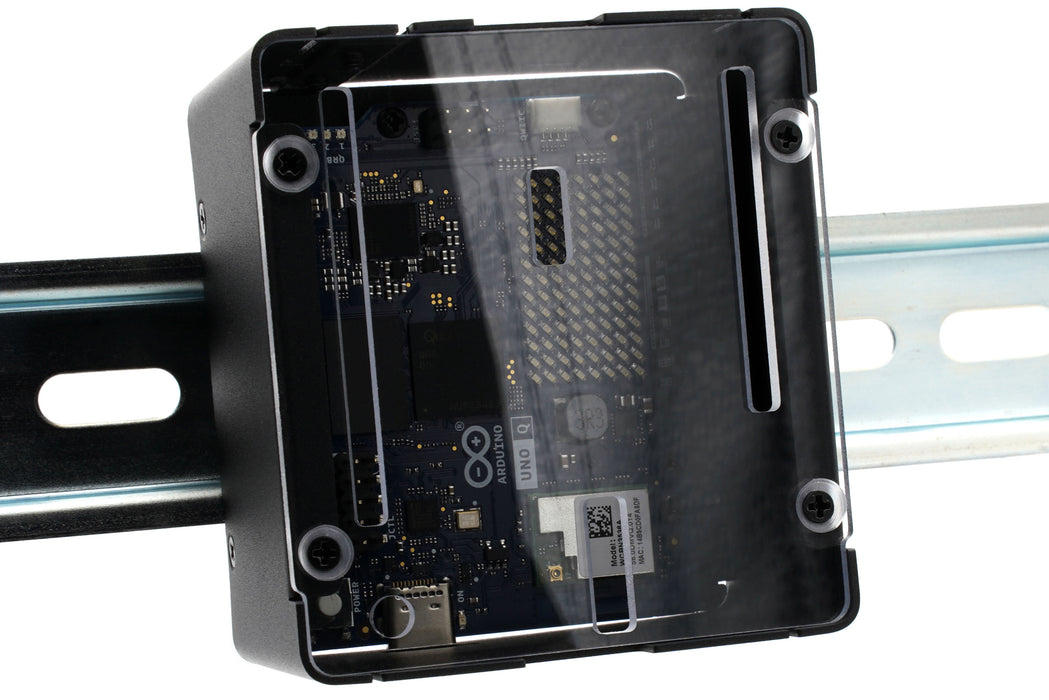

KKSB DIN Rail Clip for industrial cabinet installations
KKSB UNC thread bracket for tripod mounting

(Mounting accessories are not included.)

Rubber feet are included for stable placement on desks and work surfaces.

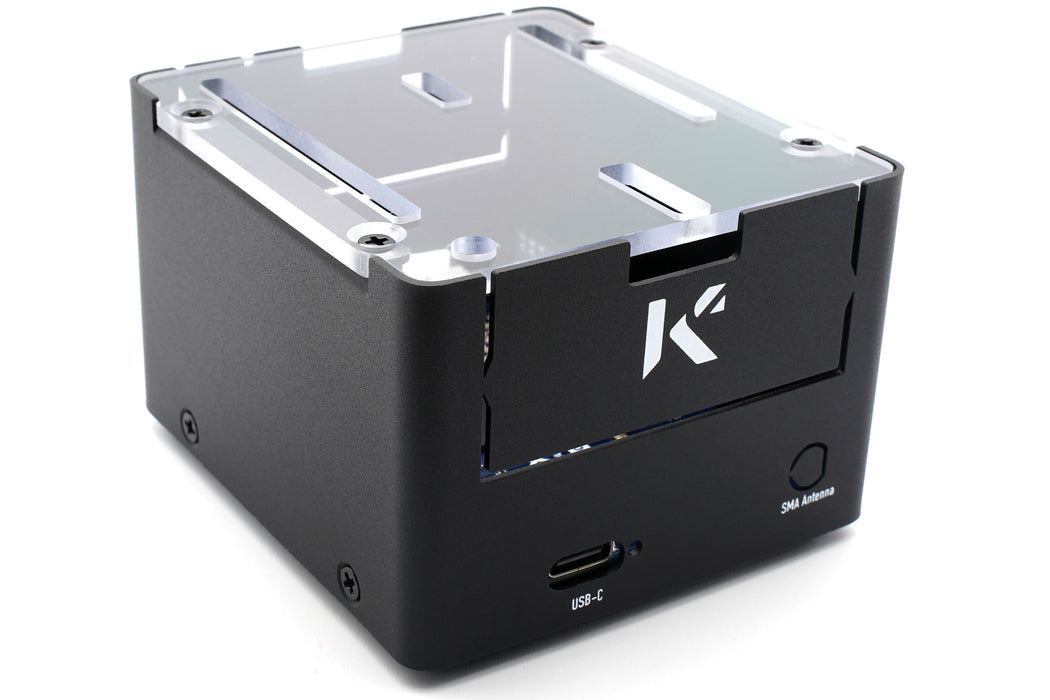

Clear Polycarbonate Lid for Visibility and Wireless Performance

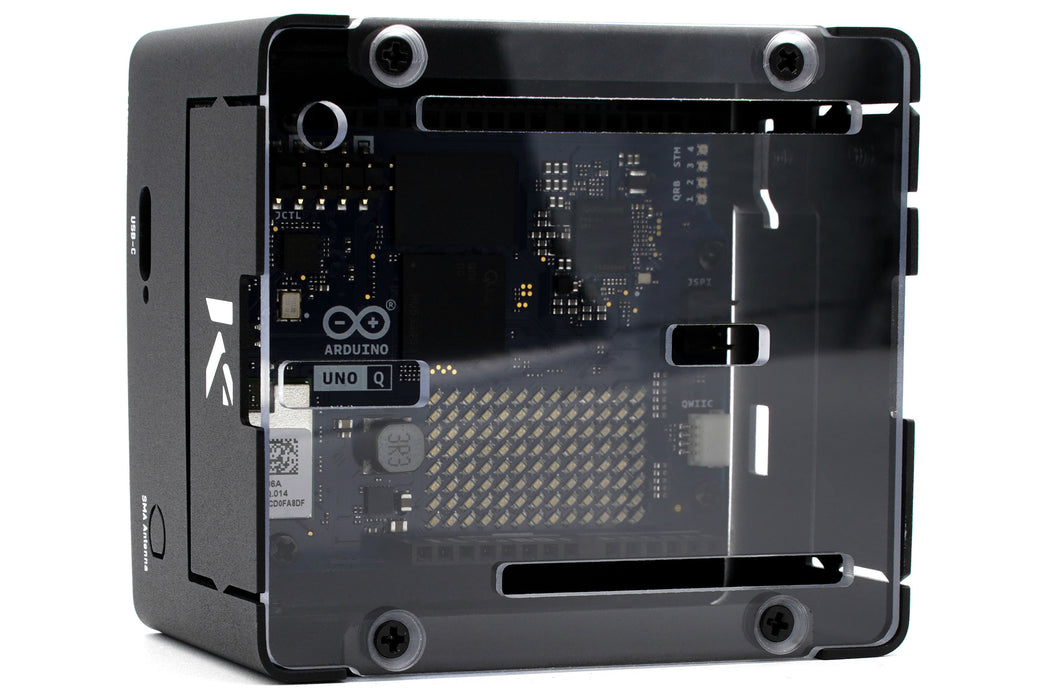

The case features a clear, crack-resistant polycarbonate top that allows full visibility of the Arduino Uno Q board, LEDs, and pin headers without removing the lid. Printed pin descriptions remain readable through the transparent cover, simplifying development, inspection, and troubleshooting.

The polycarbonate lid is optimized for Wi-Fi and Bluetooth signal passthrough, ensuring reliable wireless performance. When used with Wi-Fi-enabled boards, LED indicators and displays remain clearly visible.

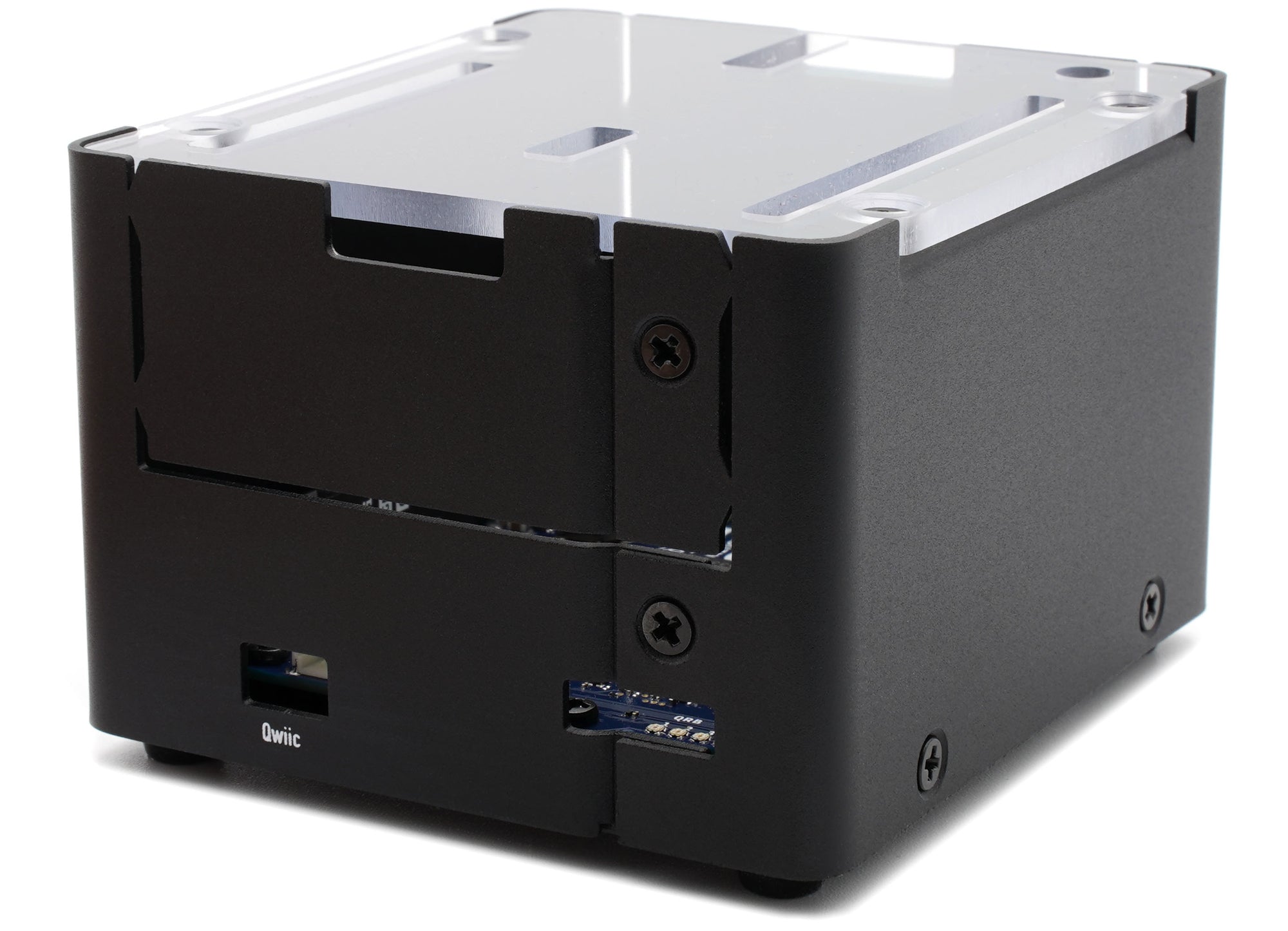

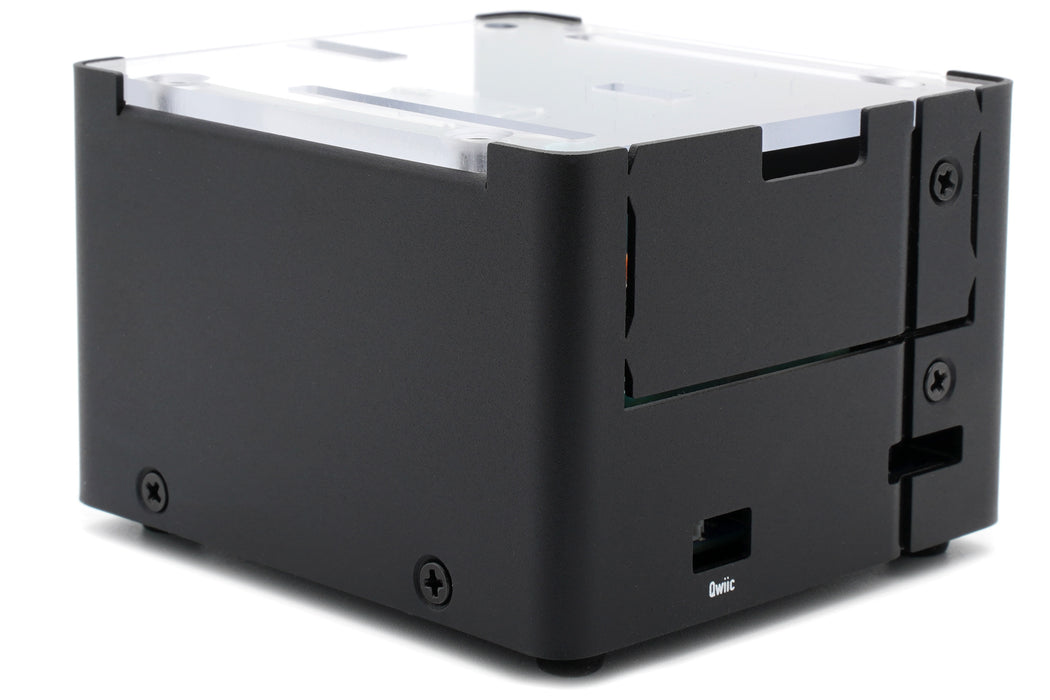

Removable Walls and Flexible Cable Routing

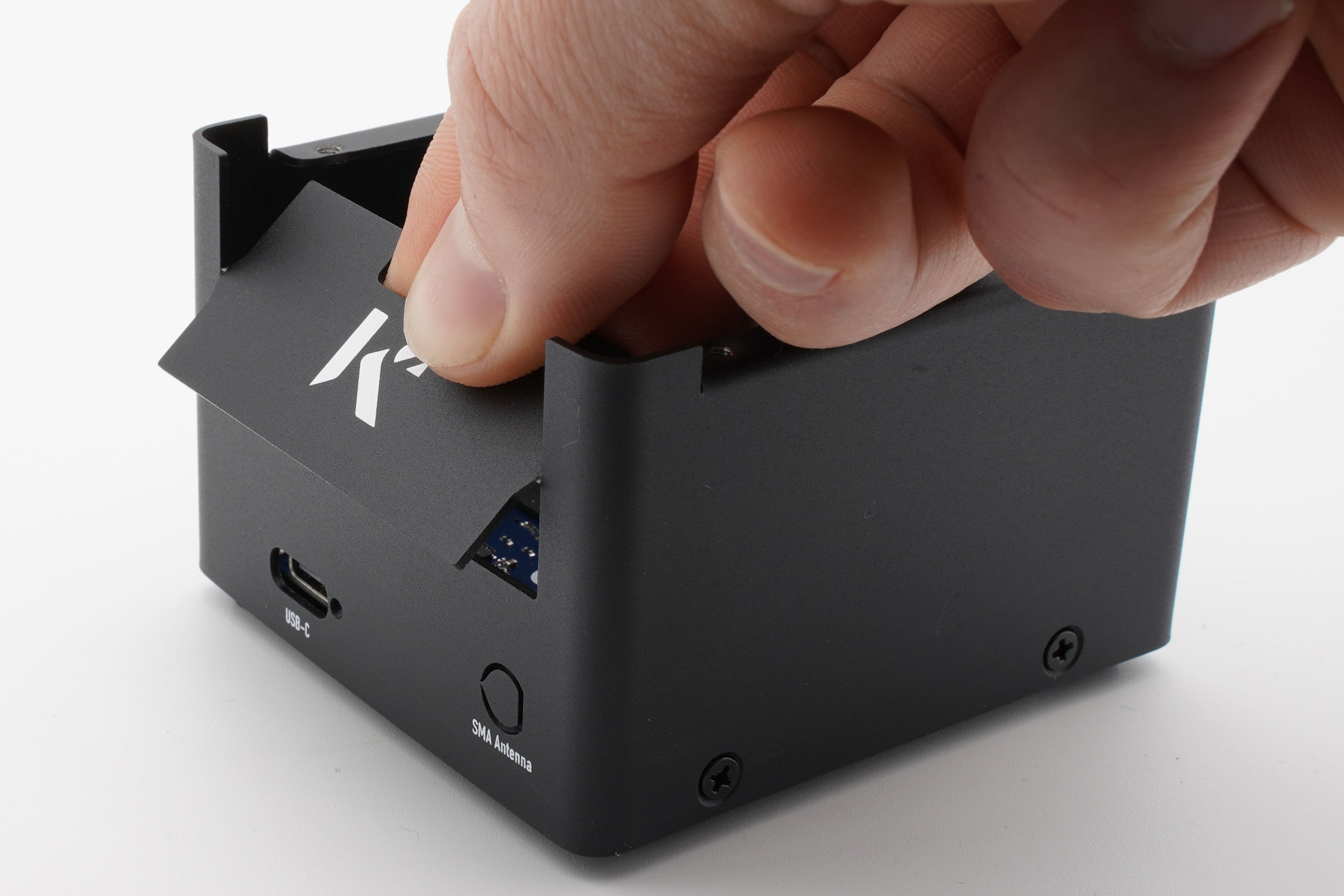

Both the front and rear walls are removable, allowing connectors on HATs or custom boards to extend outside the enclosure when needed. These walls also feature cable passthrough openings, enabling flexible routing for power, data, and signal cables.

Depending on the application, cables can be routed:

Through openings in the clear lid
Through the front or rear wall openings

This makes the case highly adaptable to different project requirements.

Compatibility

Compatible Board: KKSB Arduino Uno Q
Compatible Expansion: Ethernet HAT and many other HATs (compatibility depends on size and connector placement)
Compatible Accessories (Not Included): KKSB DIN Rail Clip, KKSB UNC Thread Bracket for Tripod Mounting

Simple Assembly and Clean Design

Assembly is simple and self-instructed, requiring no special tools. The enclosure features a clean, minimalistic rectangular design with rounded corners, suitable for both professional and personal projects.
