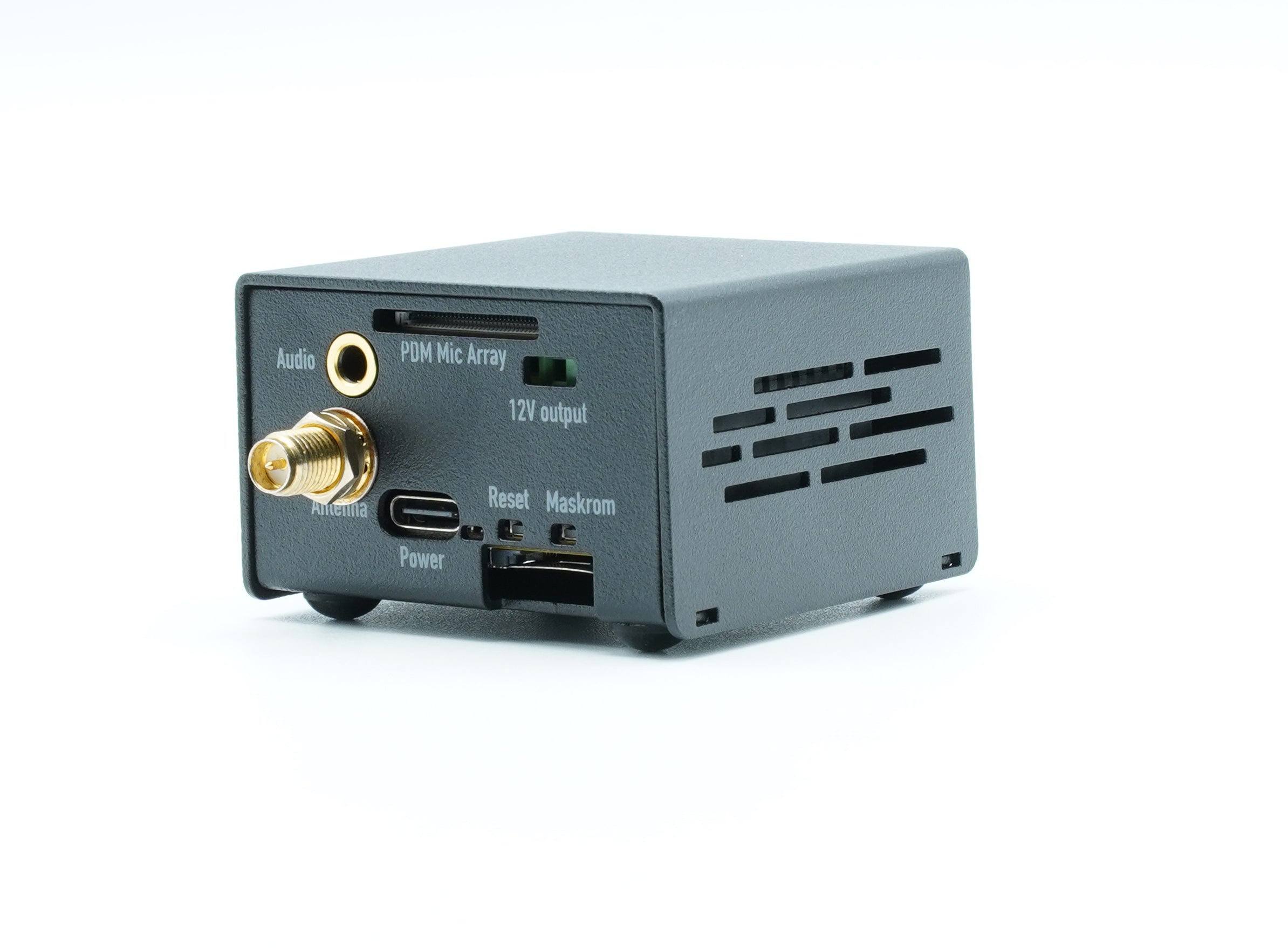

KKSB ROCK Pi S Case – front with audio, SMA antenna, USB-C power, PDM mic array and Reset/Maskrom

KKSB ROCK Pi S Case - Space for Radxa ROCK Pi S PoE HAT - SMA Antenna Support

Name: KKSB ROCK Pi S Case - Space for Radxa ROCK Pi S PoE HAT - SMA Antenna Support
Brand: KKSB Cases
SKU: 7350001161099
Price: 7.9 EUR
Availability: InStock
Rating: 4.5 (2 reviews)

€7,90

SKU 7350001161099

The KKSB Rock Pi S Case is a high-quality, durable enclosure designed to protect and enhance the performance of your Rock Pi S board. Made of powder-coated steel and featuring a sleek black finish, it's suitable for personal or commercial use.

In stock.

Quantity Liquid error (snippets/product-form line 68): include usage is not allowed in this context

Technical Details

Compatible board: Radxa ROCK Pi S
Compatible HATs: Radxa ROCK Pi PoE HAT (space inside the case)

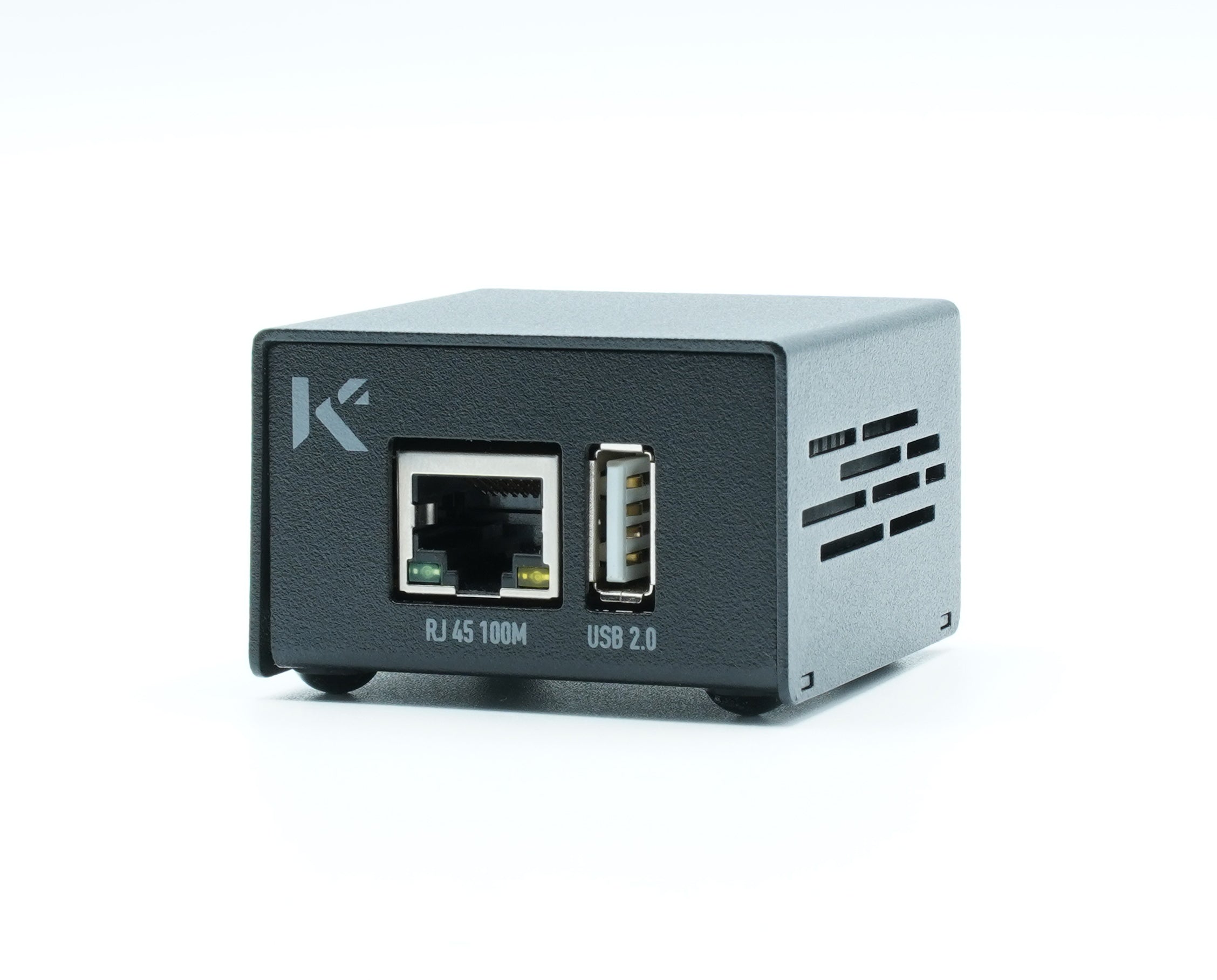

Port access: Front: USB-C (power), audio jack, SMA antenna hole, PDM mic array slot, 12V output, Reset and Maskrom button holes, opening at the lower edge. Rear: 1 × RJ45 100M Ethernet, 1 × USB 2.0
Buttons: Small holes for the Reset and Maskrom buttons, designed to prevent accidental presses
Antenna: Precut hole for an SMA antenna connector, marked “Antenna” (SMA connector not included)
Cooling: Ventilation slots in the side walls
Material: Steel, black powder coating
Mounting: 2 keyholes in the base for wall mounting; 4 rubber feet
Assembly: Board is screwed into the bottom half; lid slides down and snaps into the base without screws
Package dimensions: 70 × 50 × 60 mm; shipping weight 130 g
In the box: Case, rubber feet, fasteners
Not included: ROCK Pi S, ROCK Pi PoE HAT, SMA antenna connector, antenna
EAN: 7350001161099

User Manuals

Worldwide shipping
EU delivery: ~ 3-8 days,
Outside the EU: ~ 7-15 days.

Pay using Paypal or Bank Card
We also accept bank payment for larger orders

AI-generated backgrounds are used in some images · Learn more

3D model / Dimensions

KKSB ROCK Pi S Case – on a shop counter next to a payment terminal and tablet

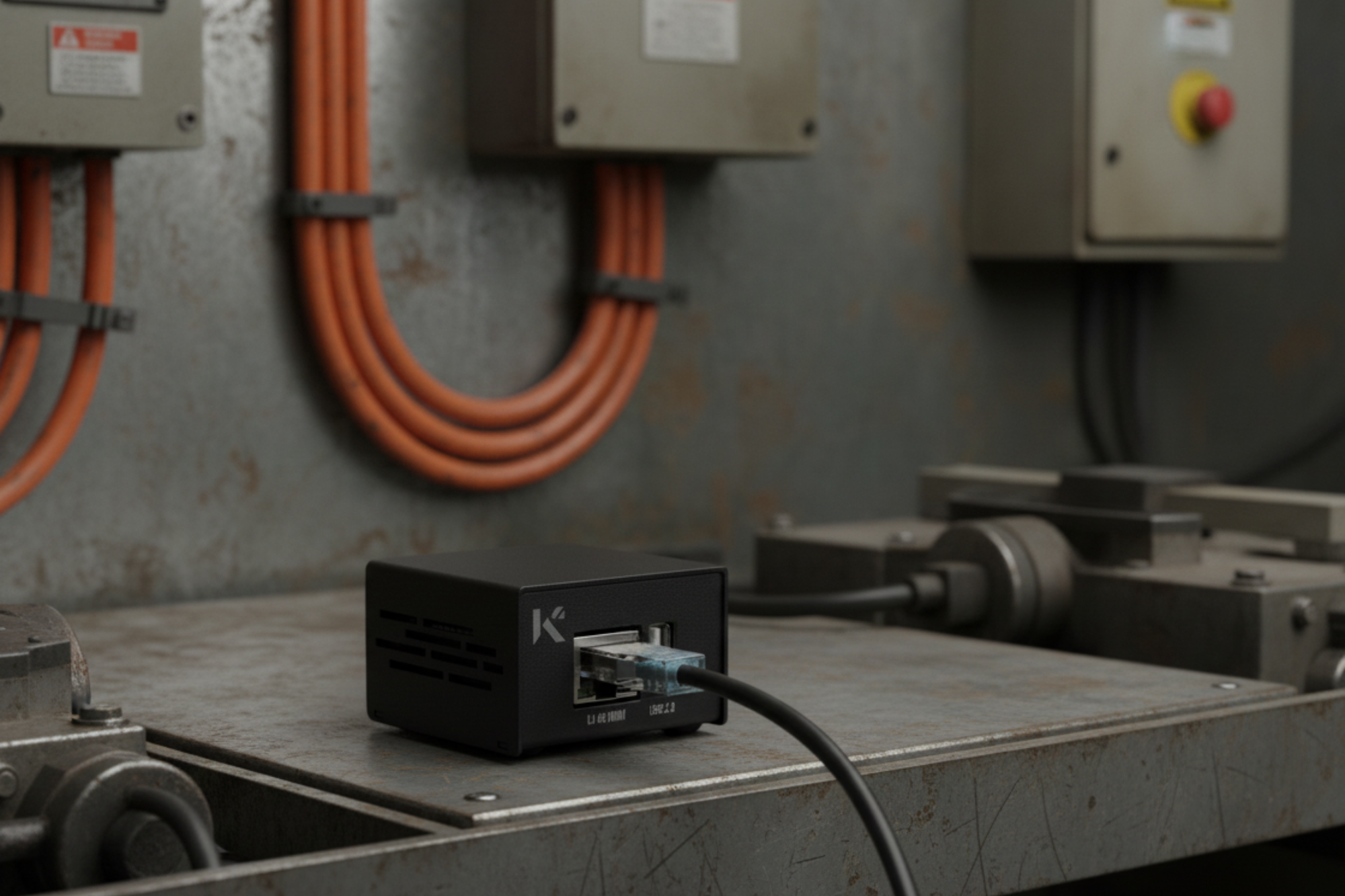

KKSB ROCK Pi S Case – on a machine next to industrial cabling

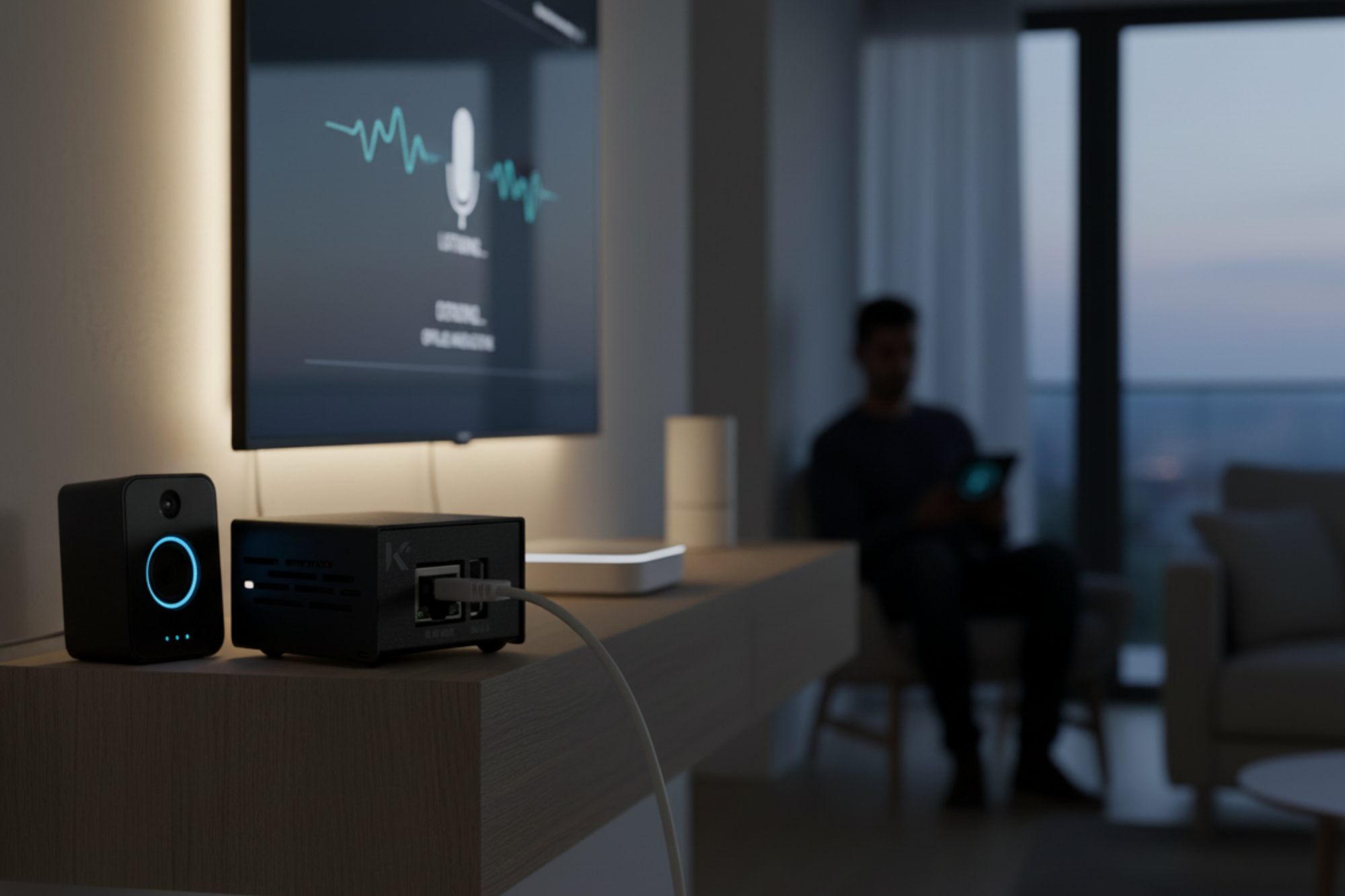

KKSB ROCK Pi S Case – on a TV bench in a living room at dusk

Practical And Reliable Protection

KKSB ROCK Pi S Case is a practical and reliable solution for protecting and enhancing the performance of your ROCK Pi S board. With its durable construction, labeled cutouts, mounting options, and easy assembly, it's a versatile and cost-effective solution for a wide range of projects.

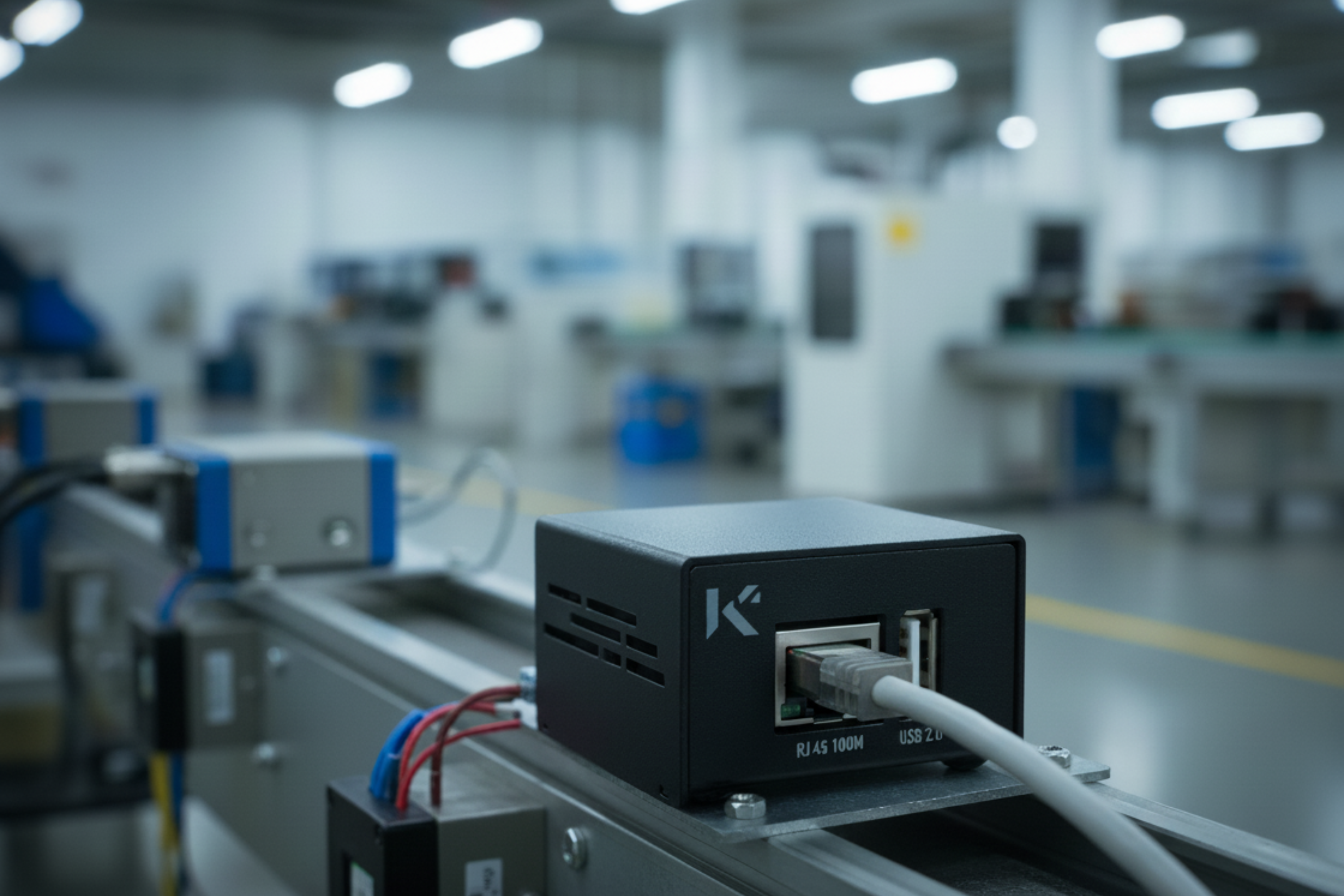

KKSB ROCK Pi S Case – on a factory production line

Mounting Options

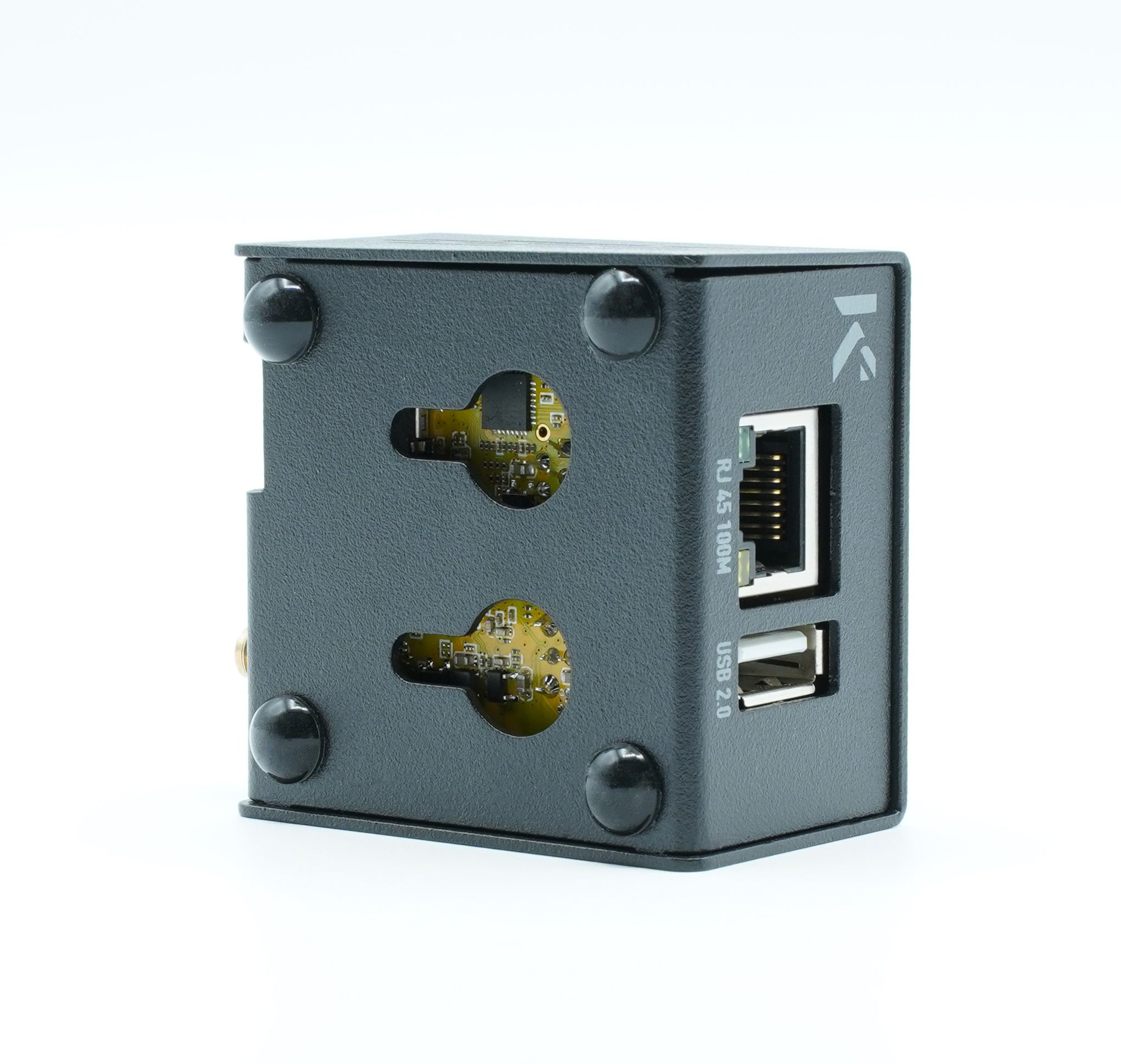

The base of this ROCK Pi S steel case has two keyholes for wall mounting, so you can install it in a variety of settings. The box also includes 4x rubber feet, allowing you to use the case on a desktop without scratching the surface.

Ventilation Support

The walls of the case are designed with air vents to support uninterrupted airflow and ventilation, ensuring that your Rock Pi S board stays cool and runs smoothly.

Some Examples of Possible Applications

Industrial automation: The durable steel construction and wall-mounting options make it ideal for use in industrial settings, where it can be used to control and monitor automated equipment.
Home automation: The case can be used to create a DIY home automation system, controlling lights, temperature, and other devices around your home.
Media center: The ROCK Pi S board can be used to create a media center, streaming movies, music, and other content. The case can be used to house and protect the board, making it a more attractive and professional-looking solution.
Surveillance: The case can be used to build a surveillance system, using the ROCK Pi S board to process video feeds and send alerts when motion is detected.
Robotics: The ROCK Pi S board can be used to control robots and other types of automated machinery. The case can be used to protect and mount the board, making it more durable and stable.
Gaming: The ROCK Pi S steel board can be used to create a portable gaming device, using the case to house and protect the board and the necessary components like power supply, keyboard, and display.
Internet of Things: With the ROCK Pi S board and the case, you can build a variety of IoT devices, such as smart thermostats, sensor networks, and more.
Digital Signage: The KKSB ROCK Pi S case can be used to build a digital signage system. It can be used to power an electronic display, control the content and schedule the display.

These are just a few examples of the many potential applications for the KKSB ROCK Pi S Case. With its durable construction, labelled cutouts, and easy assembly, it's a versatile and reliable solution for a wide range of projects.

Why Should You Choose This Case?

Durable construction: Made of powder-coated steel, this case is built to last and can withstand the wear and tear of regular use.
Perfect fit: The case is specifically designed to fit the ROCK Pi S board, ensuring a snug and secure fit, which will also protect the board from dust and other environmental factors.
Labeled cutouts: The case is equipped with labeled cutouts for all the essential interfaces and connectors, making it easy to access and connect peripherals and accessories.
Mounting options: The case has two keyholes for wall mounting and 4 rubber feet for desktop orientation, giving you the flexibility to install it in a variety of settings.
Airflow and ventilation: The walls of the case are designed with air vents to support uninterrupted airflow and ventilation, keeping your ROCK Pi S board cool and running smoothly.
Easy assembly: The case is easy to assemble and disassemble, making it convenient to use and transport.
Space for Rock Pi PoE HAT: The case has an additional accommodation for Rock Pi PoE HAT which makes it easy to add more functionality to your board.

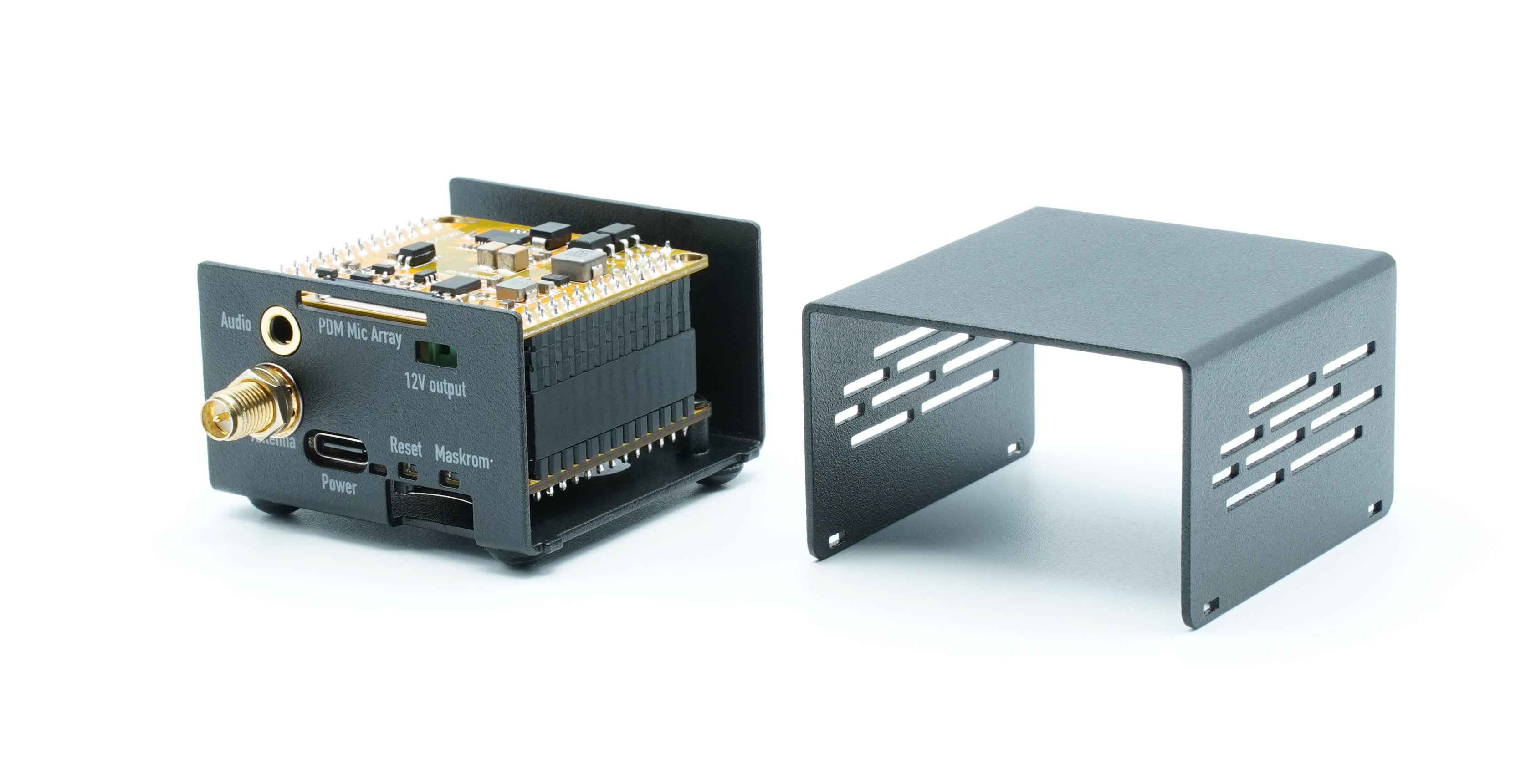

Easy Assembly

Fix the rubber feet to the bottom half of the case
Insert Rock Pi S inside the bottom half. Make sure to properly align the board with interface cutouts.
Use screws to secure Rock Pi S inside the case
Align the case cover with the base and slide downwards until the holes of the lid snap into the base (no screws are required to fit the case cover and base)

Optimal Compatibility

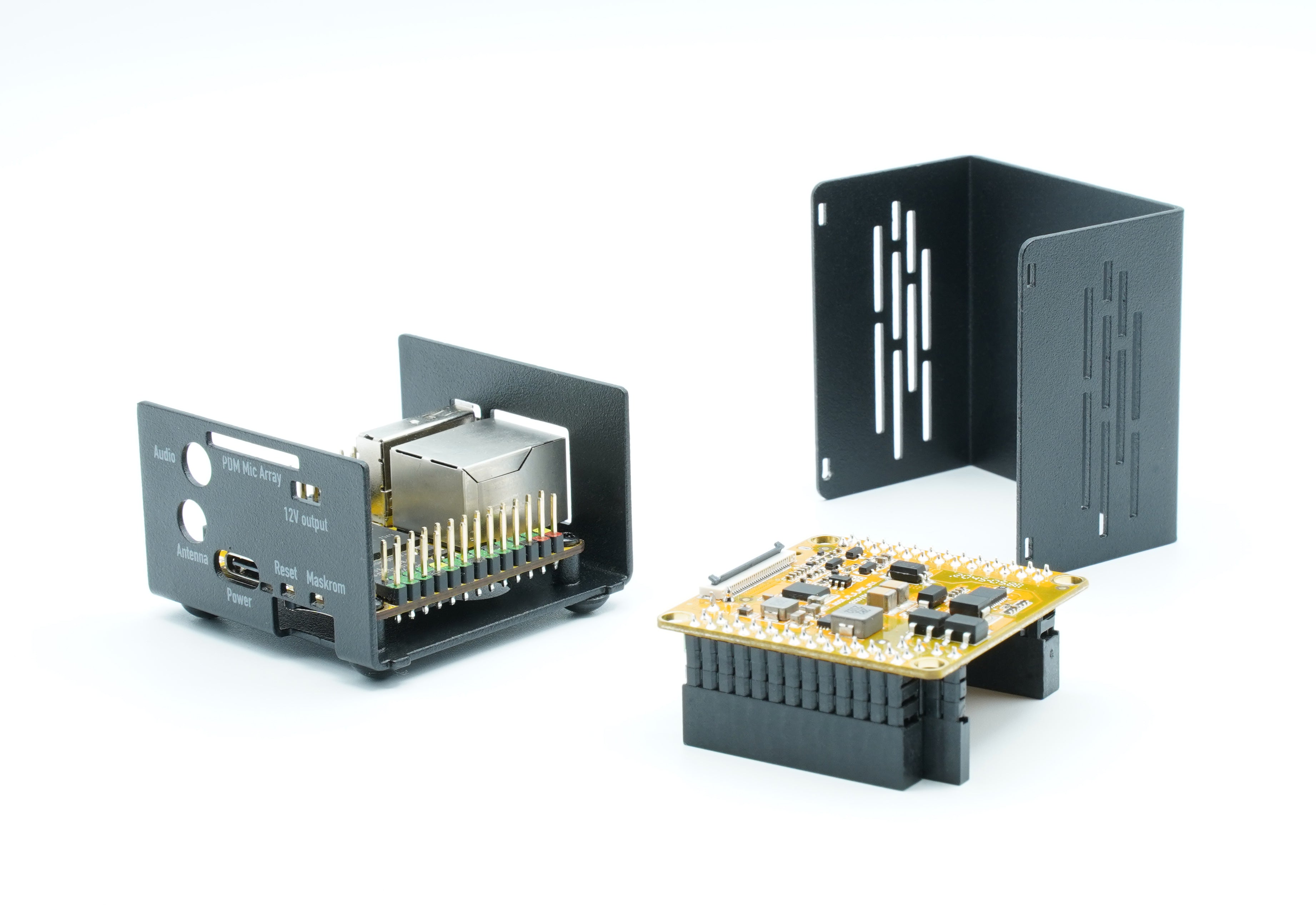

This ROCK Pi S protective case is designed specifically to fit the Rock Pi S board, ensuring a snug and secure fit. It also has space for the Rock Pi PoE HAT, so you can add even more functionality to your board.

Cutouts for Convenient Connectivity

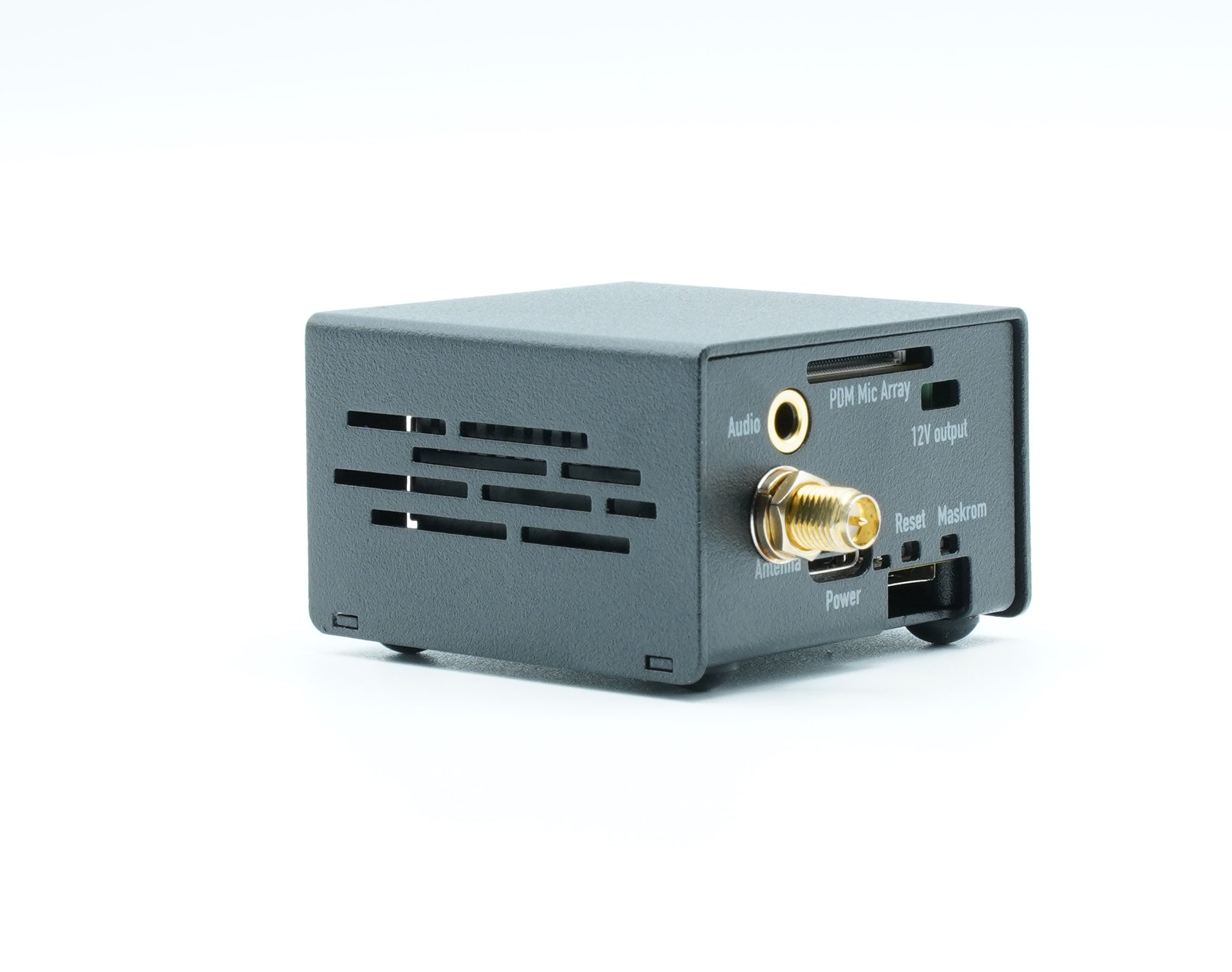

The KKSB ROCK Pi S enclosure features labelled cutouts for all the essential interfaces and connectors, including the PDM mic array, USB power, 12V power, audio jack, SMA antenna connector, USB 2.0, and RJ45 Ethernet. The case also has cutouts for the MaskROM and Reset buttons, which are designed to prevent an accidental or unintended push.
