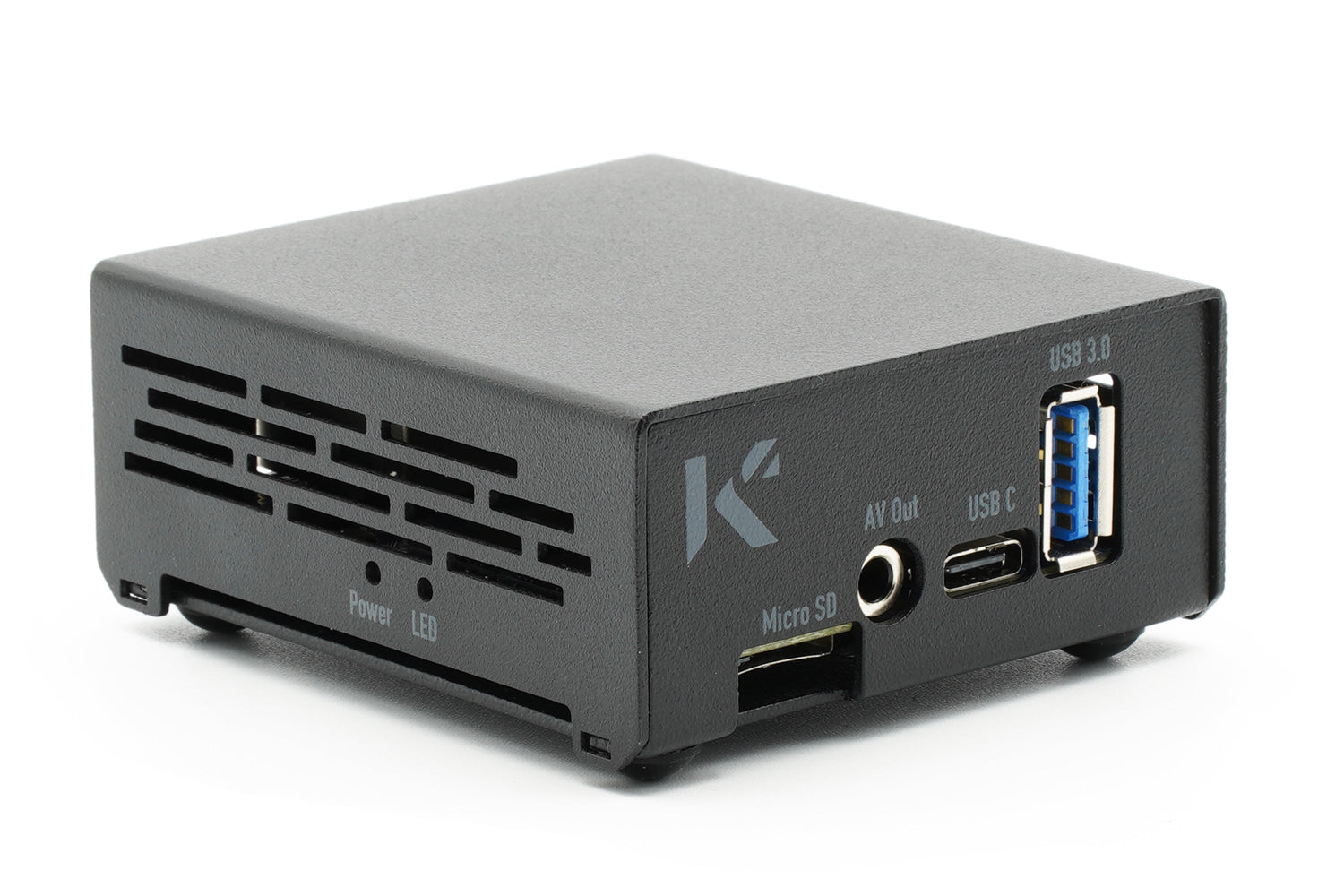

KKSB ROCK Pi E Case – front with microSD, AV out, USB-C and USB 3.0, side Power and LED windows

KKSB Rock Pi E Case - Radxa ROCK Metal Enclosure

Name: KKSB Rock Pi E Case - Radxa ROCK Metal Enclosure
Brand: KKSB Cases
SKU: 7350001161075
Price: 8.9 EUR
Availability: OutOfStock
Rating: 5.0 (3 reviews)

€8,90

Sold out

SKU 7350001161075

The KKSB Rock Pi E Case is a durable and functional enclosure for the Rock Pi E board, made from powder-coated steel and it is built to withstand even the toughest of conditions.

Sold-out

Technical Details

Compatible board: Radxa ROCK Pi E

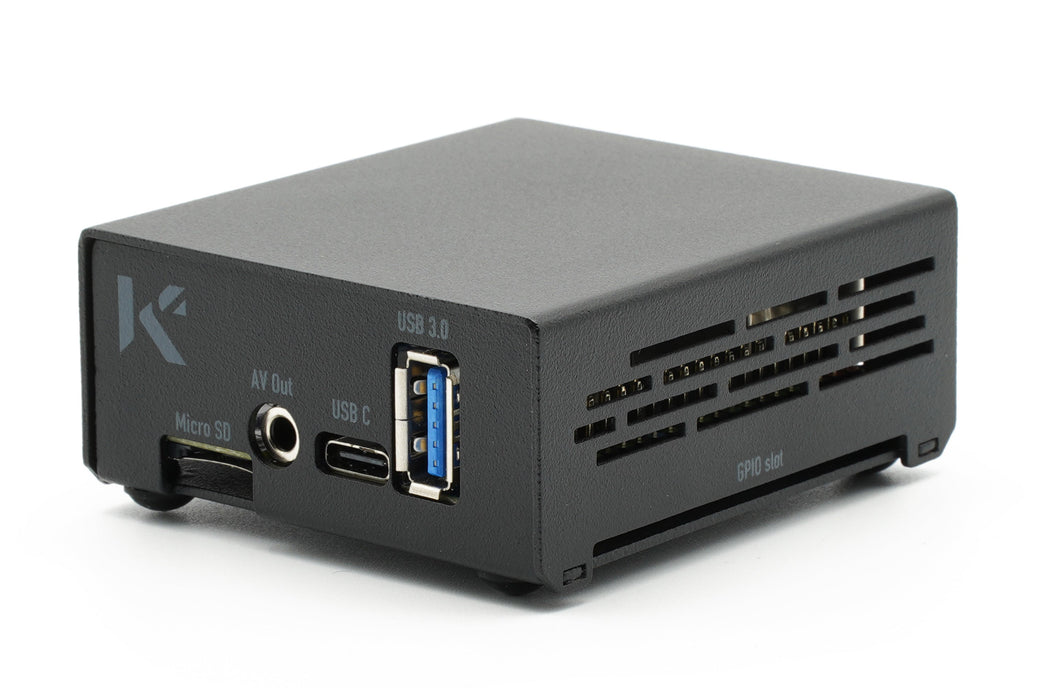

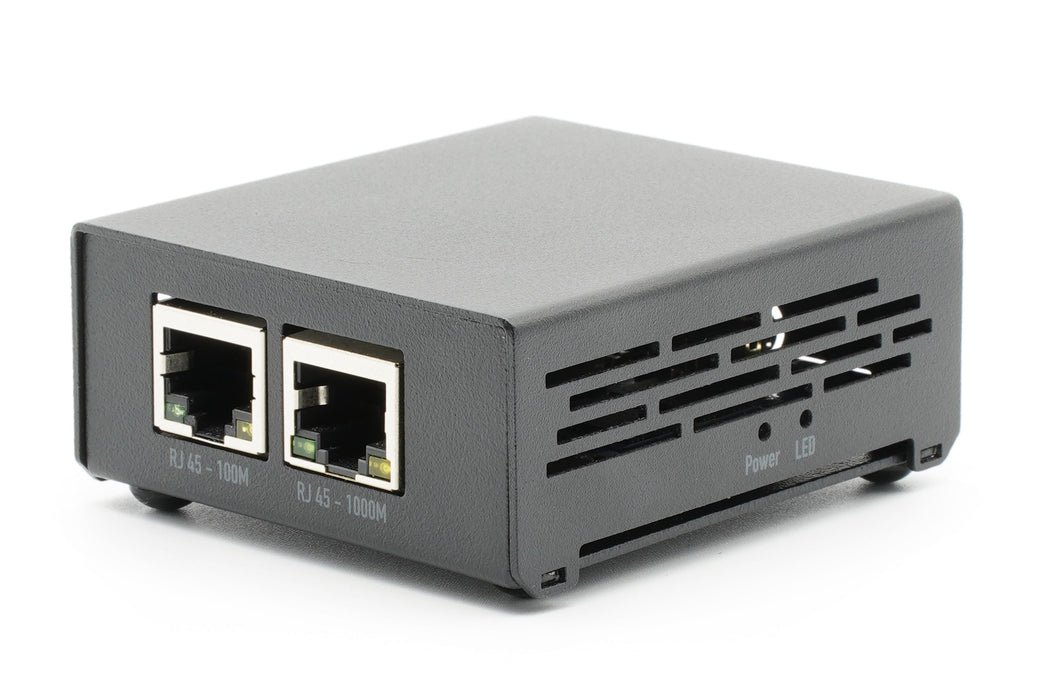

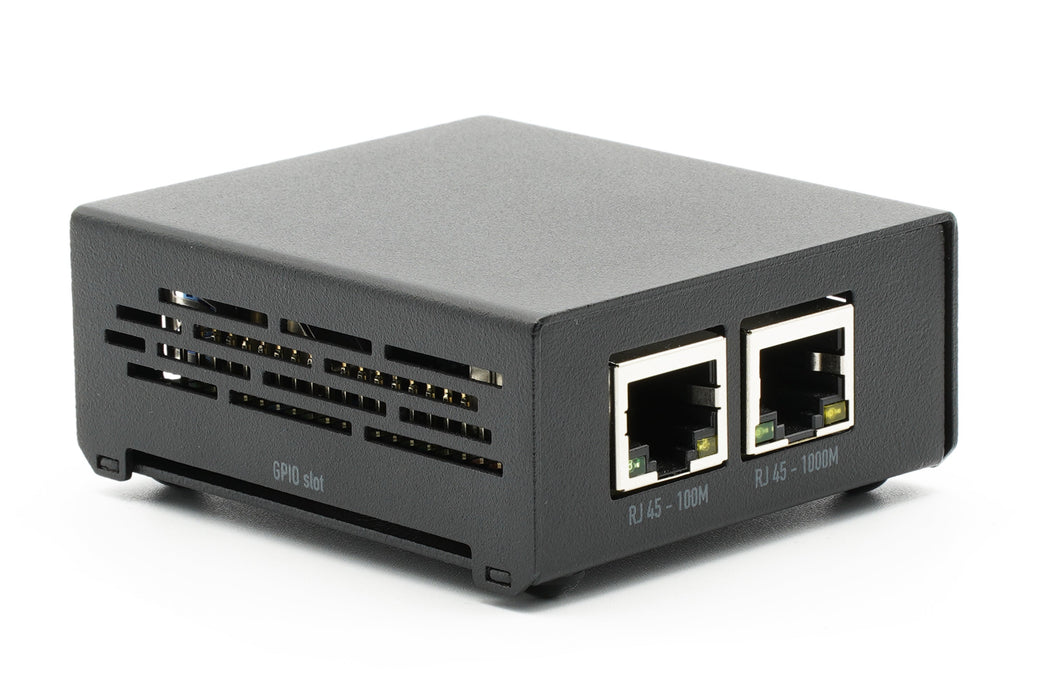

Port access: Front: microSD slot, AV out (3.5 mm), 1 × USB-C, 1 × USB 3.0. Rear: 2 × RJ45 Ethernet (labelled 100M and 1000M). Side: Power LED and LED windows. Opposite side: GPIO cable slot
GPIO: Slot marked “GPIO slot” for cables to the pin header
Cooling: Ventilation slots in the side walls
Material: Steel, black powder coating

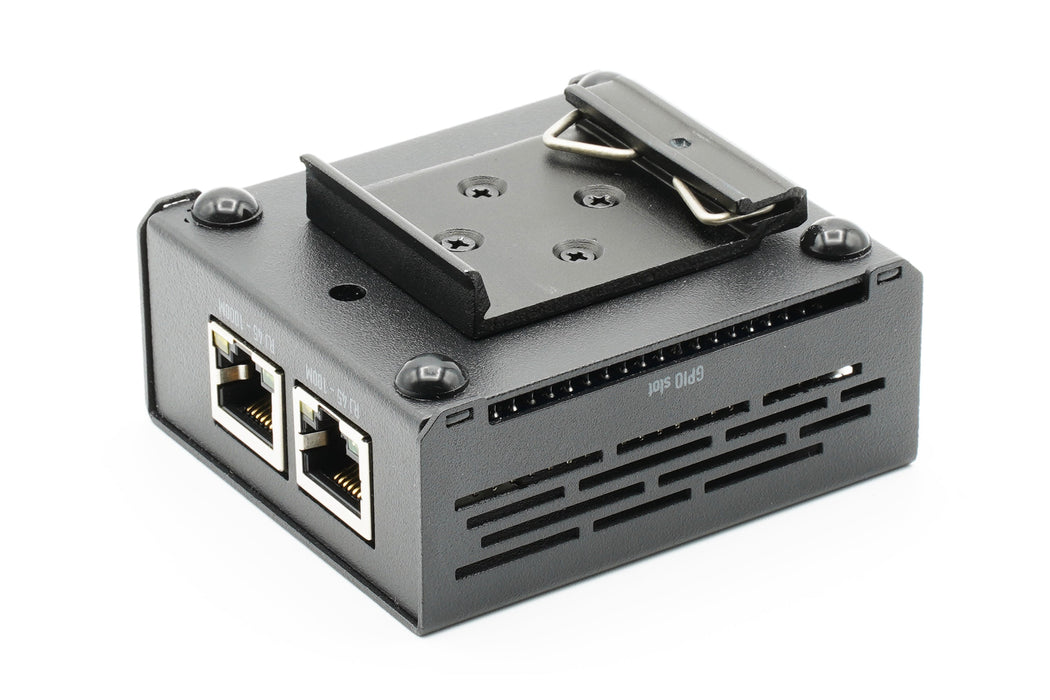

Mounting: 2 pre-cut mounting holes and 4 tapped holes in the base for the KKSB DIN Rail Clip (sold separately)
Assembly: Two-part case that snaps together without screws
Package dimensions: 105 × 75 × 40 mm; shipping weight 132 g
In the box: KKSB Rock Pi E Case
Not included: ROCK Pi E, KKSB DIN Rail Clip
EAN: 7350001161075

User Manuals

Worldwide shipping
EU delivery: ~ 3-8 days,
Outside the EU: ~ 7-15 days.

Pay using Paypal or Bank Card
We also accept bank payment for larger orders

AI-generated backgrounds are used in some images · Learn more

3D model / Dimensions

KKSB ROCK Pi E Case – on a desk next to a router and a monitor with charts

KKSB ROCK Pi E Case – inside an outdoor enclosure on a pole in a field with a solar panel

KKSB ROCK Pi E Case – mounted inside an electrical control cabinet

Compact Yet Practical Design

One of the standout features of the KKSB ROCK Pi E enclosure is its compact design, which includes labeled cutouts for all of the Rock Pi E's ports, making it easy to use and understand the board's functions without having to remove the case. Additionally, the case has a dedicated GPIO cable access to the pin header, allowing you to easily connect your peripherals and accessories.

Designed for Proper Ventilation

The side walls of the KKSB ROCK Pi E protective case feature air vents to support heat dissipation, ensuring that your Rock Pi E board stays cool and performs at its best. The exterior of the case is also designed to be snapped together without screws, making it easy to assemble and disassemble as needed.

KKSB ROCK Pi E Case – on a shelf next to a smart home display and speaker

Some Examples of Possible Applications

Some of the applications of this KKSB ROCK Pi E Steel Case are:

IoT Edge device
Home Automation
Media Center
Network Attached Storage
Industrial Automation

Why Should You Buy This Case?

Durable construction: Made of powder-coated steel, the KKSB ROCK Pi E protective case is built to last and can withstand the wear and tear of everyday use.
Perfect fit: The ROCK Pi E steel case is specifically designed to fit the ROCK Pi E SBC, ensuring a snug and secure fit, which will also protect the board from dust and other environmental factors.
Labeled cutouts: The KKSB ROCK Pi E steel case is equipped with labelled cutouts for all the essential interfaces and connectors, making it easy to access and connect peripherals and accessories.

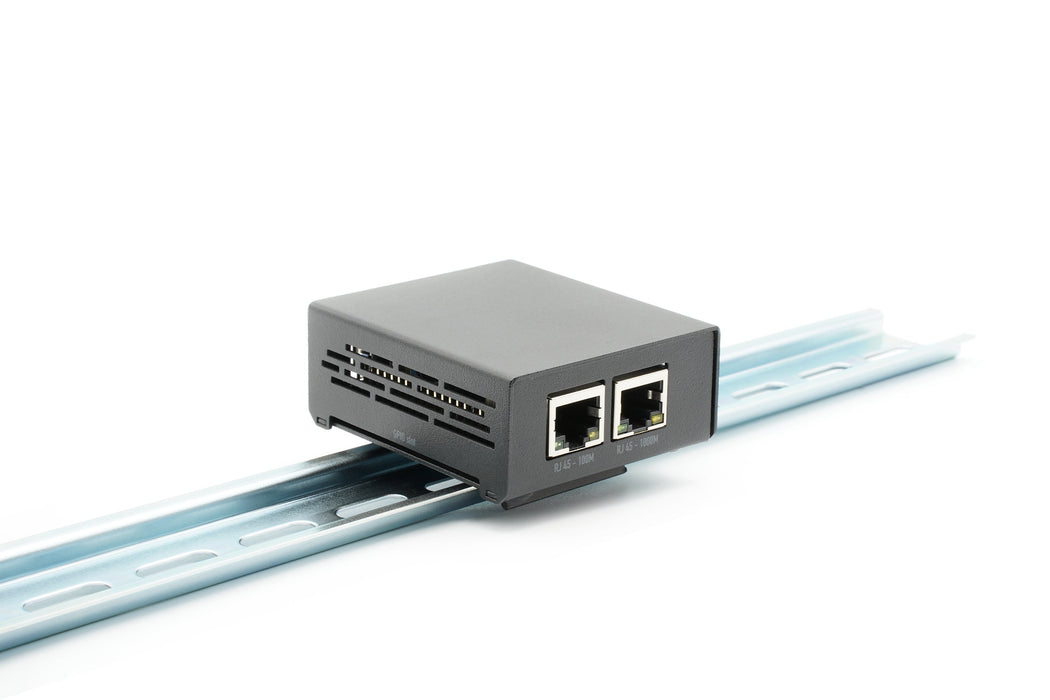

Mounting options: The KKSB ROCK Pi E case has precut surface mounting holes and is also compatible with the KKSB DIN Rail Clip for DIN Rail mounting for industrial use.
Airflow and ventilation: The walls of the KKSB ROCK Pi E case are designed with air vents to support uninterrupted airflow and ventilation, keeping your ROCK Pi E board cool and running smoothly.

Supports Multiple Mounting Options

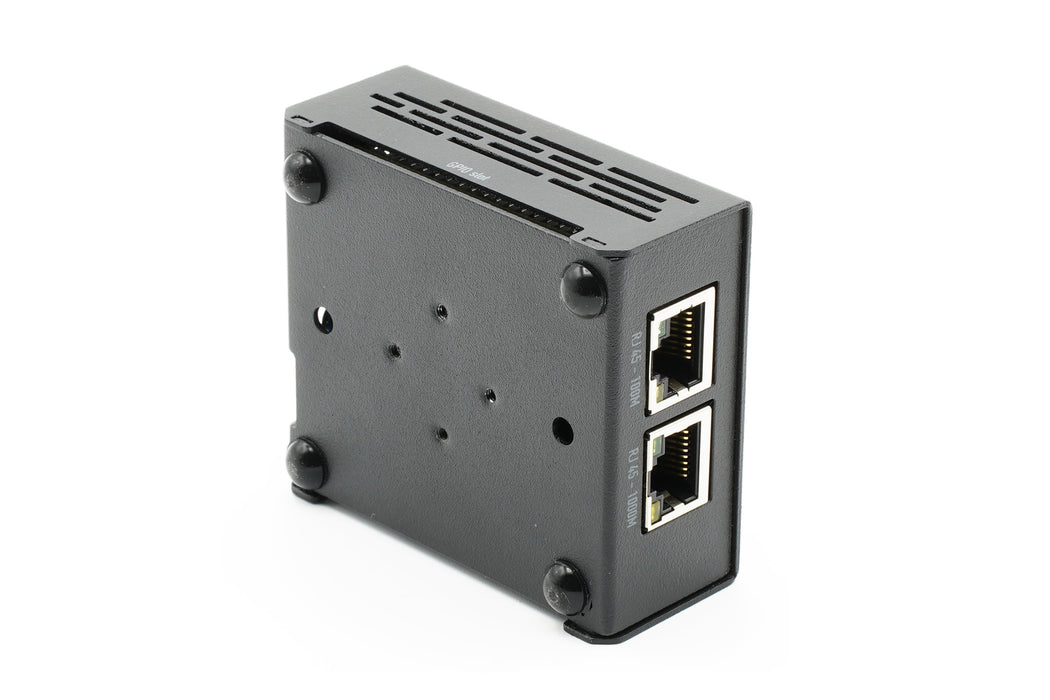

The base of the KKSB ROCK Pi E case features 2x precut mounting holes and 4x tapped holes for the KKSB DIN Rail Clip, making it easy to mount the case on a wall or a desk. This makes the KKSB Rock Pi E Steel Case suitable for most environments, whether you're using it in a home, office, or industrial setting.
