KKSB Raspberry Pi DIN Rail Clip Bracket

Name: KKSB Raspberry Pi DIN Rail Clip Bracket
Brand: KKSB Cases
SKU: 7350001161716
Price: 13.9 EUR
Availability: InStock

€13,90

SKU 7350001161716

The KKSB Raspberry Pi DIN Rail Clip Bracket presents a flexible mounting option designed for Raspberry Pi 5, Raspberry Pi 4B, 3B, and other Single Board Computers that share a similar screw hole pattern.

In stock.

Quantity Liquid error (snippets/product-form line 68): include usage is not allowed in this context

Technical Details

Compatible board: Raspberry Pi 5, Raspberry Pi 4B, Raspberry Pi 3B and other SBCs with the same screw hole pattern
Rail standard: 35 mm DIN rail
Mounting: DIN rail clip in 6 positions: 3 on the side and 3 under the bracket
Material: Steel bracket with black textured powder coat; DIN clip in aluminium with steel spring
Package dimensions: 130 × 90 × 20 mm; shipping weight 70 g
In the box: Bracket, DIN rail clip, screws
Not included: DIN rail, Raspberry Pi, electronics
EAN: 7350001161716

User Manuals

Worldwide shipping
EU delivery: ~ 3-8 days,
Outside the EU: ~ 7-15 days.

Pay using Paypal or Bank Card
We also accept bank payment for larger orders

AI-generated backgrounds are used in some images · Learn more

3D model / Dimensions

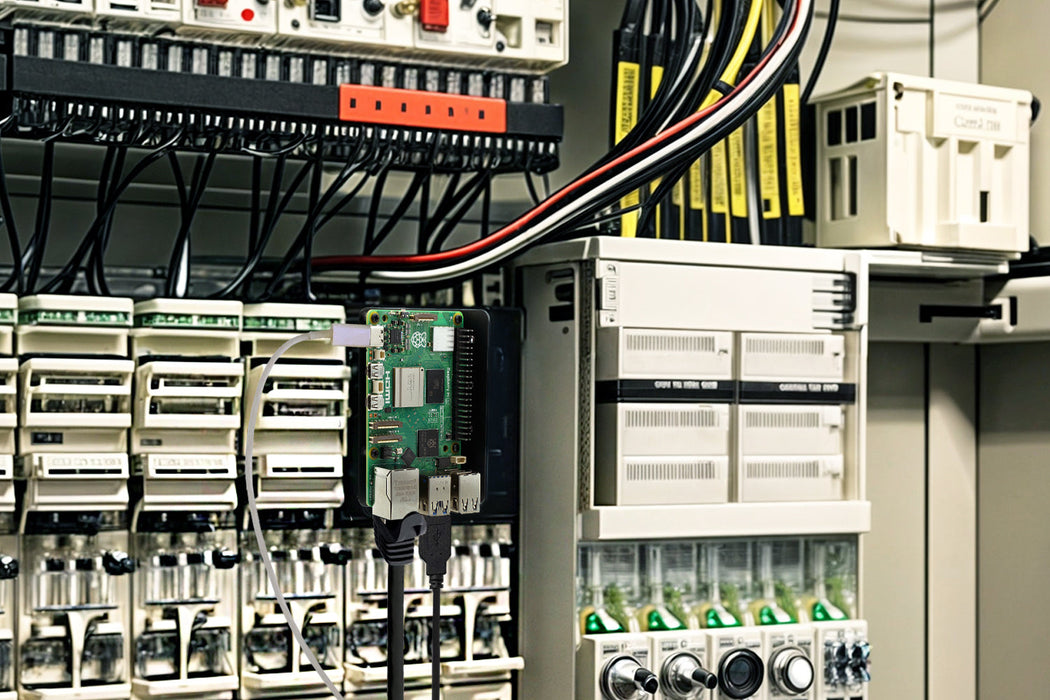

KKSB Raspberry Pi DIN Rail Clip Bracket – installed in an electrical control cabinet

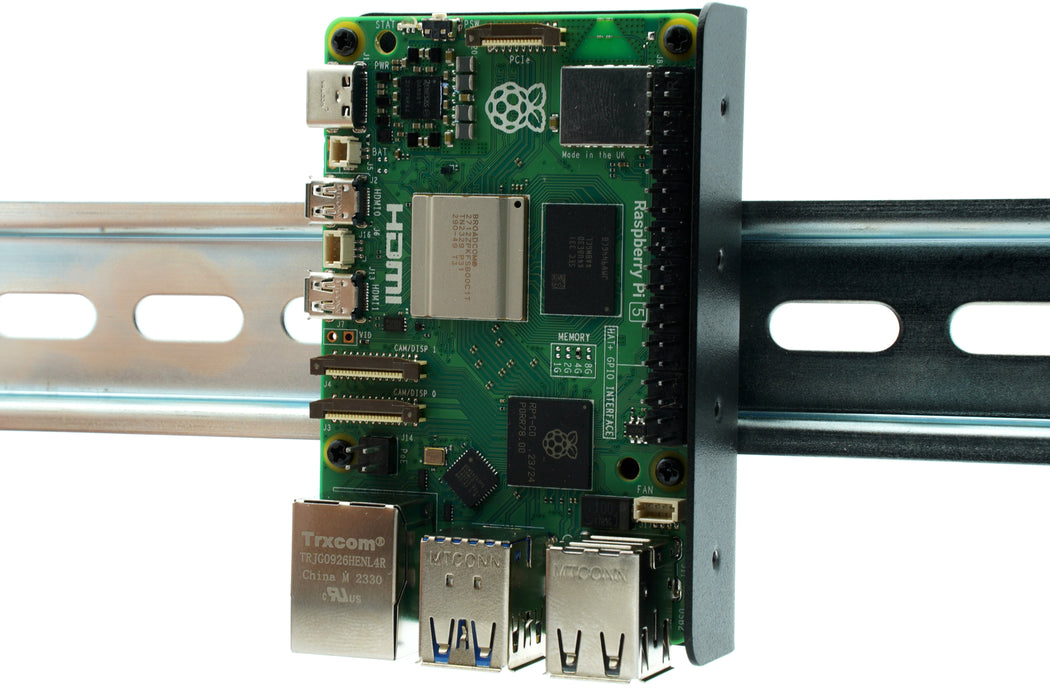

KKSB Raspberry Pi DIN Rail Clip Bracket – Raspberry Pi 5 on the bracket hanging on a DIN rail

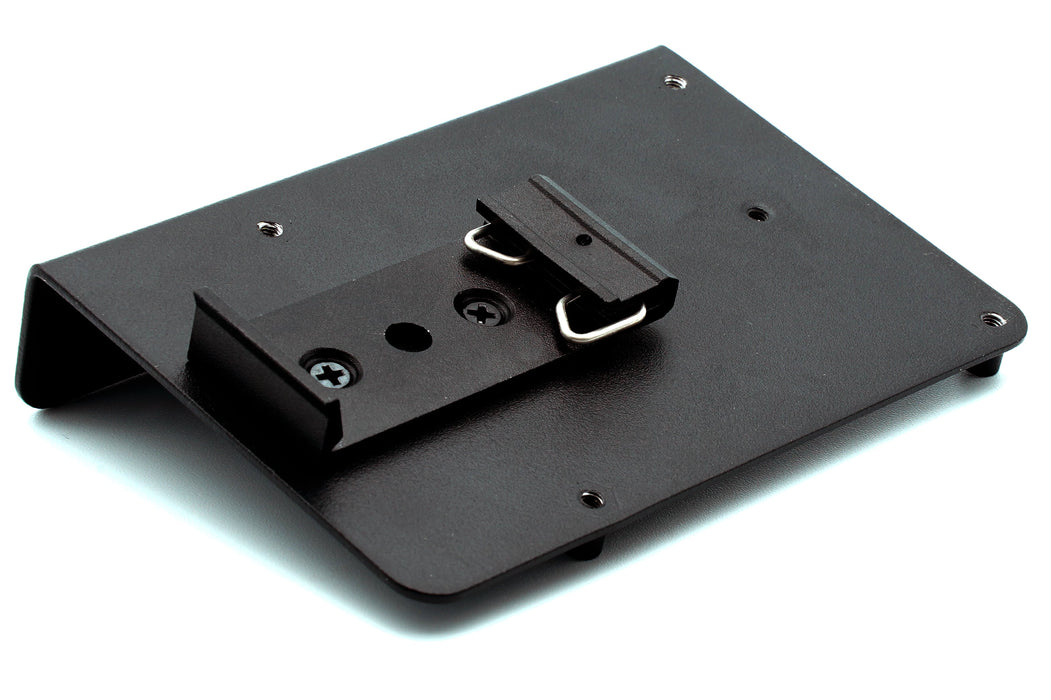

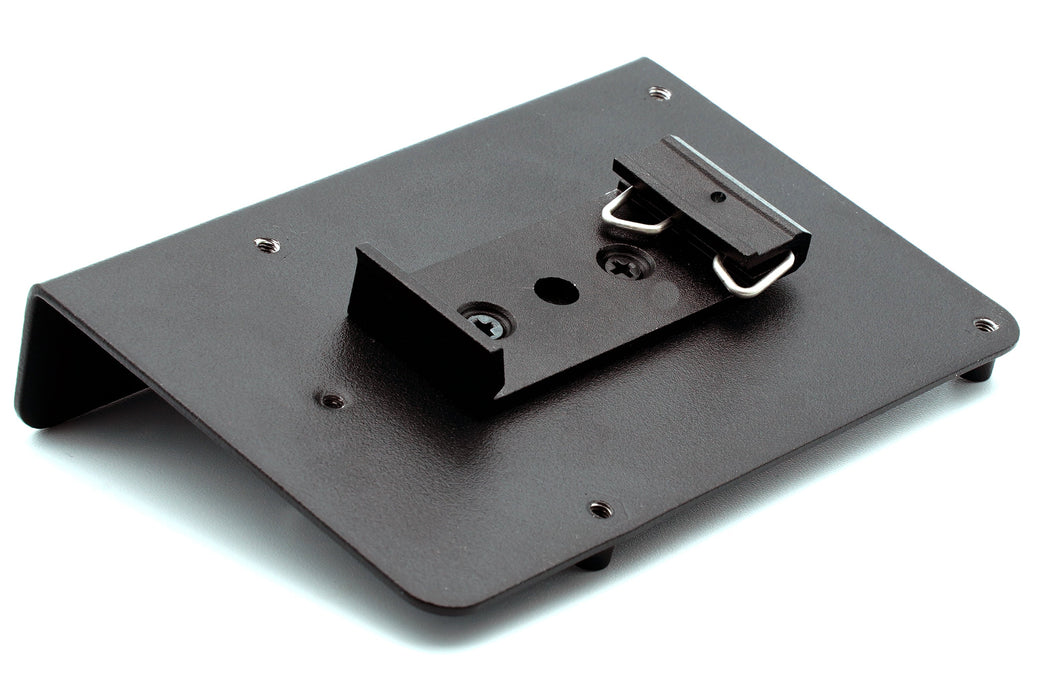

KKSB Raspberry Pi DIN Rail Clip Bracket – bracket with clip mounted underneath

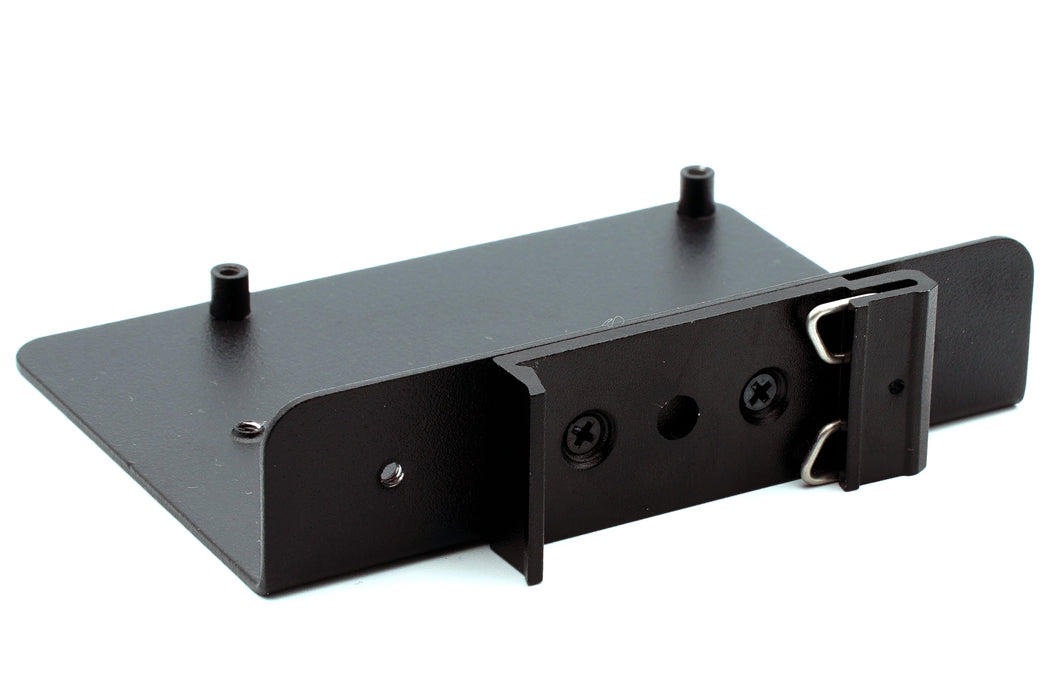

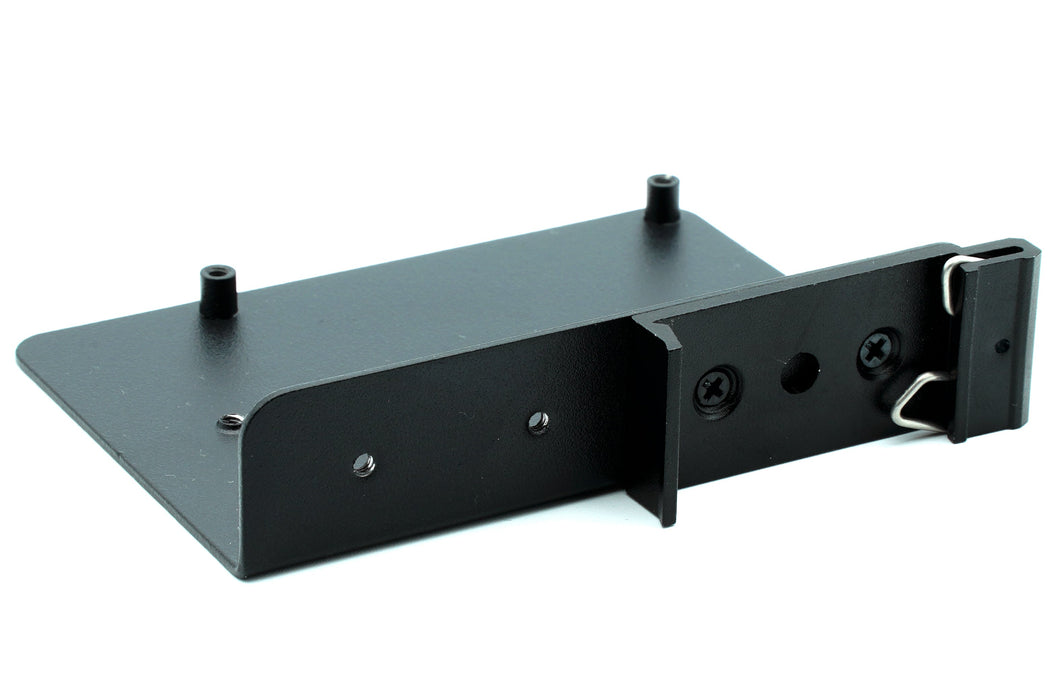

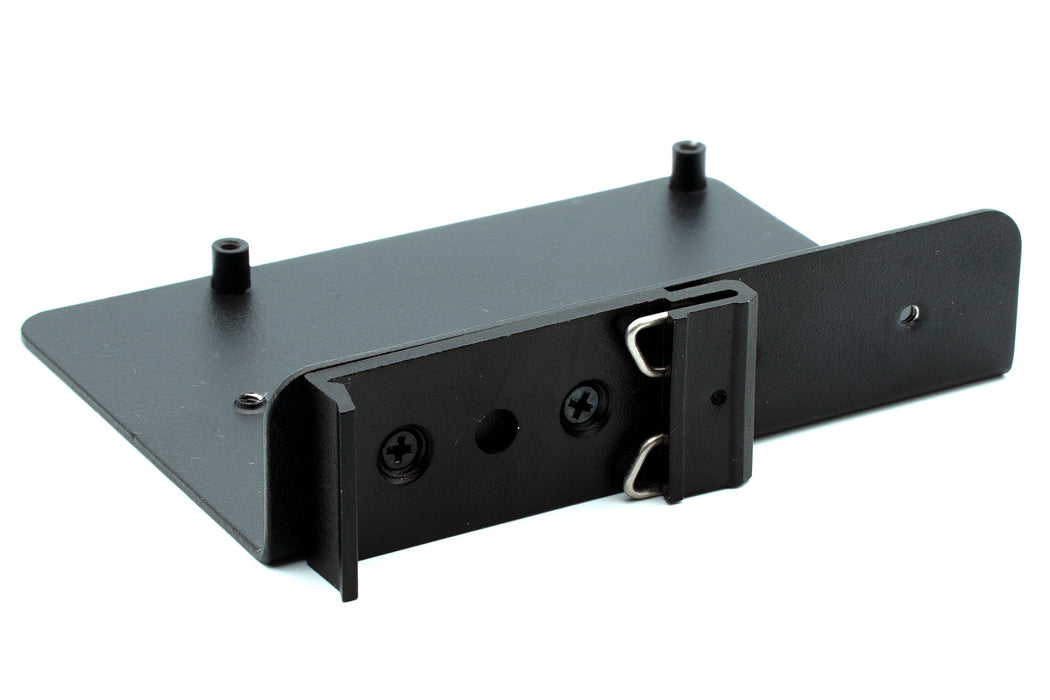

KKSB Raspberry Pi DIN Rail Clip Bracket – bracket with clip mounted on the side

Adaptable yet Durable Design

Simplifying installation while ensuring adaptability and durability across various environments, this bracket is constructed from robust steel and coated with a black textured powder finish for lasting protection without compromising aesthetics.

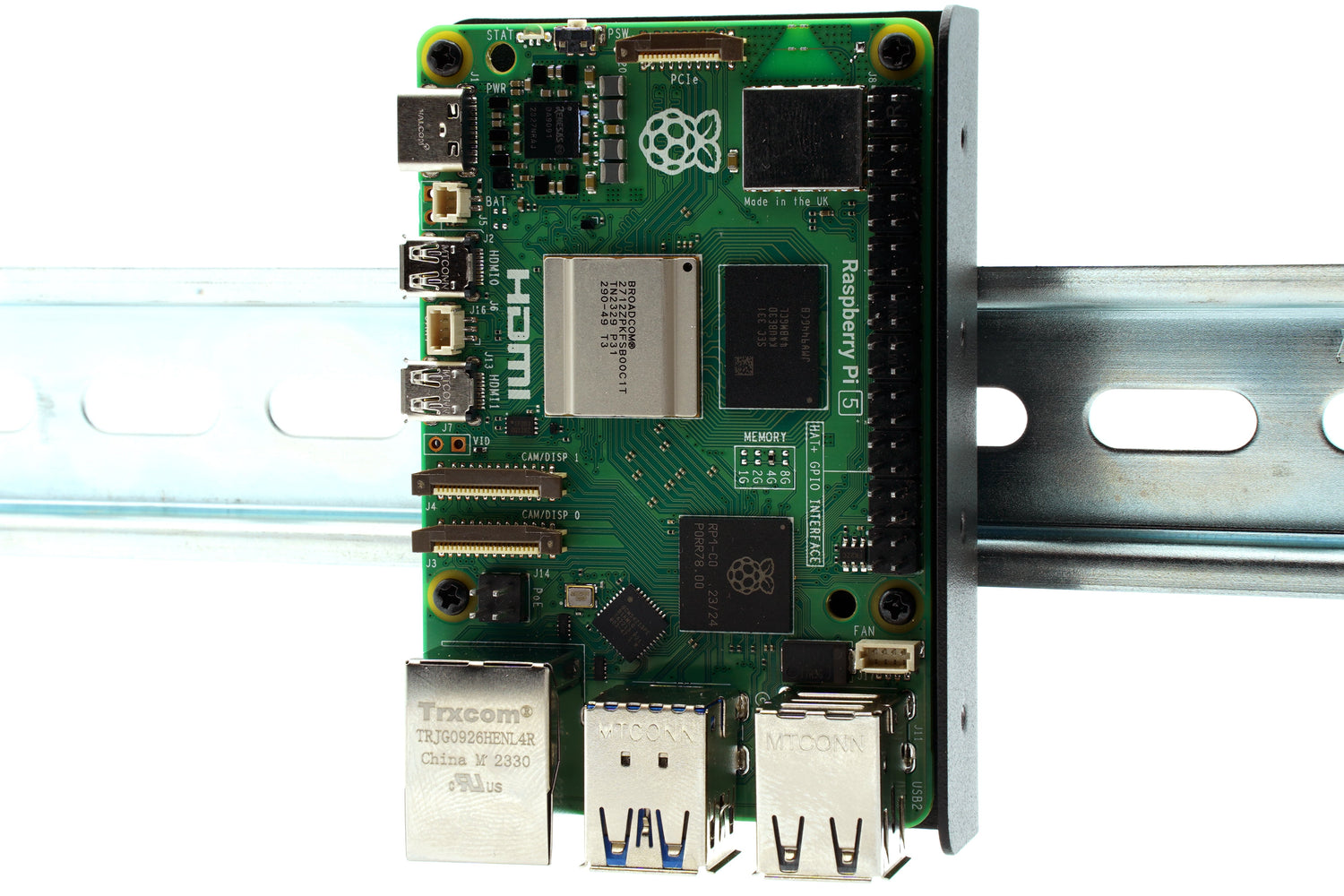

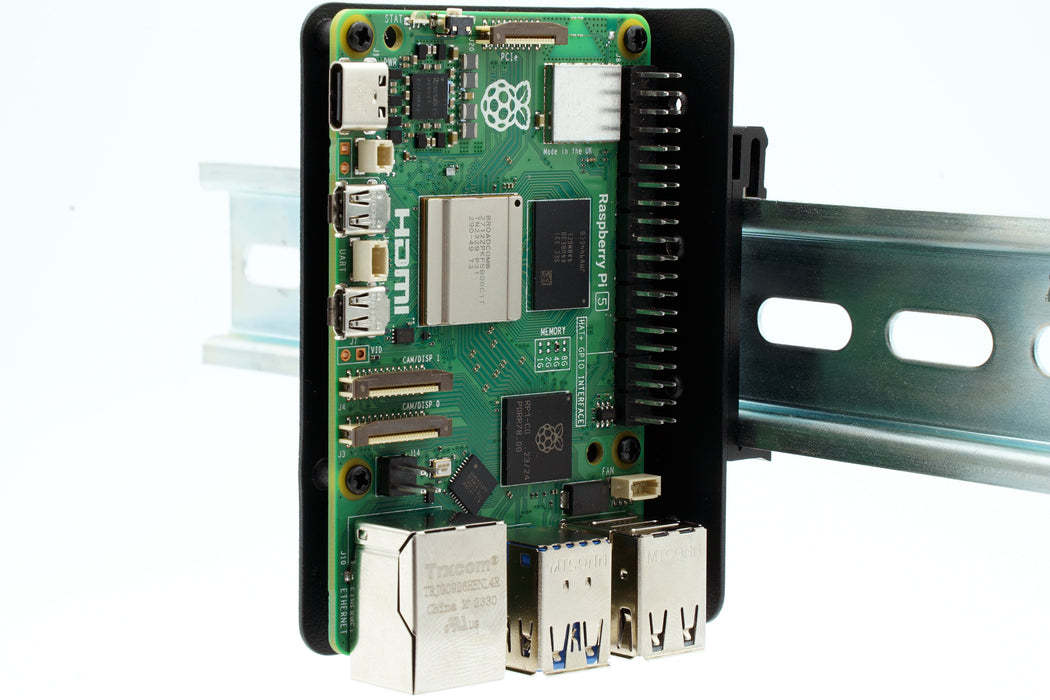

KKSB Raspberry Pi DIN Rail Clip Bracket – Raspberry Pi 5 mounted vertically on a DIN rail

Adaptable Fixing Positions

Featuring six possible fixing positions for the clip on the bracket, users can effortlessly customize placement within cabinets or setups, optimizing available space efficiently. This adaptable solution caters to industrial, home automation, IoT, and embedded computing applications, ensuring secure mounting with ease.

Some Examples of Possible Applications

Industrial Automation: Provides secure mounting solutions for SBCs in industrial settings, particularly in automation and control systems.
Smart Home Systems: Facilitates convenient and secure installations within smart home setups, ensuring organized and space-efficient placements.
IoT Projects: Ideal for IoT applications, offering a reliable platform for SBCs in sensor networks, data logging, and more.
Embedded Computing: Suitable for embedded computing applications in fields like robotics, education, or DIY projects, ensuring stable and secure mounting in diverse environments.

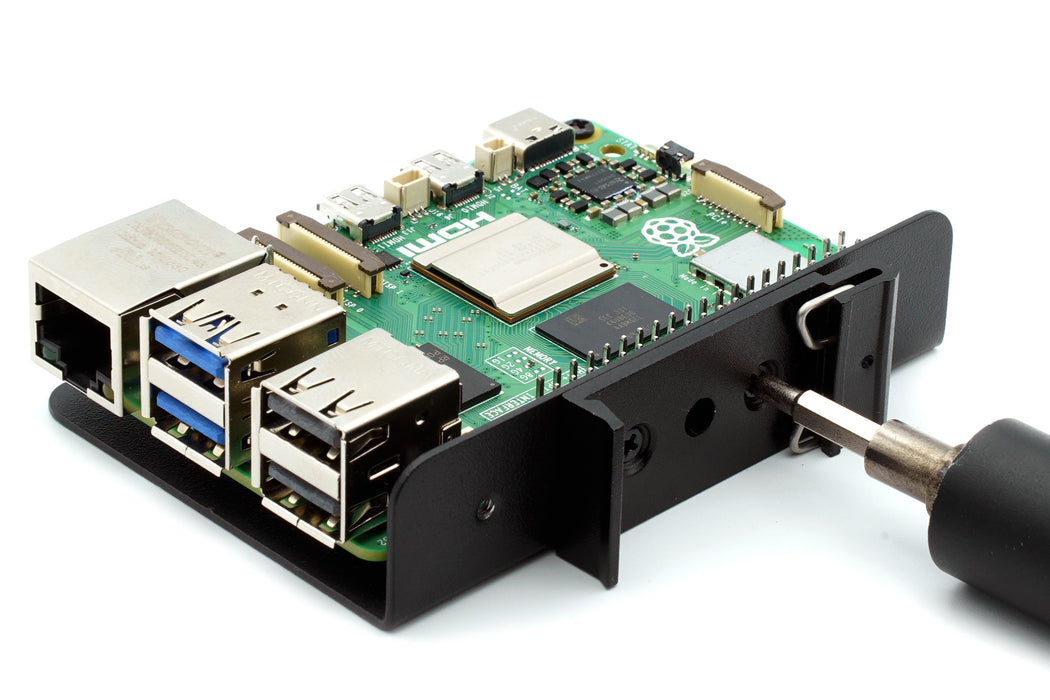

KKSB Raspberry Pi DIN Rail Clip Bracket – DIN clip being screwed onto the bracket

Quick and Easy Assembly

With a straightforward assembly process, mounting the Raspberry Pi onto the bracket and attaching the DIN rail clip becomes hassle-free, reducing setup time significantly.

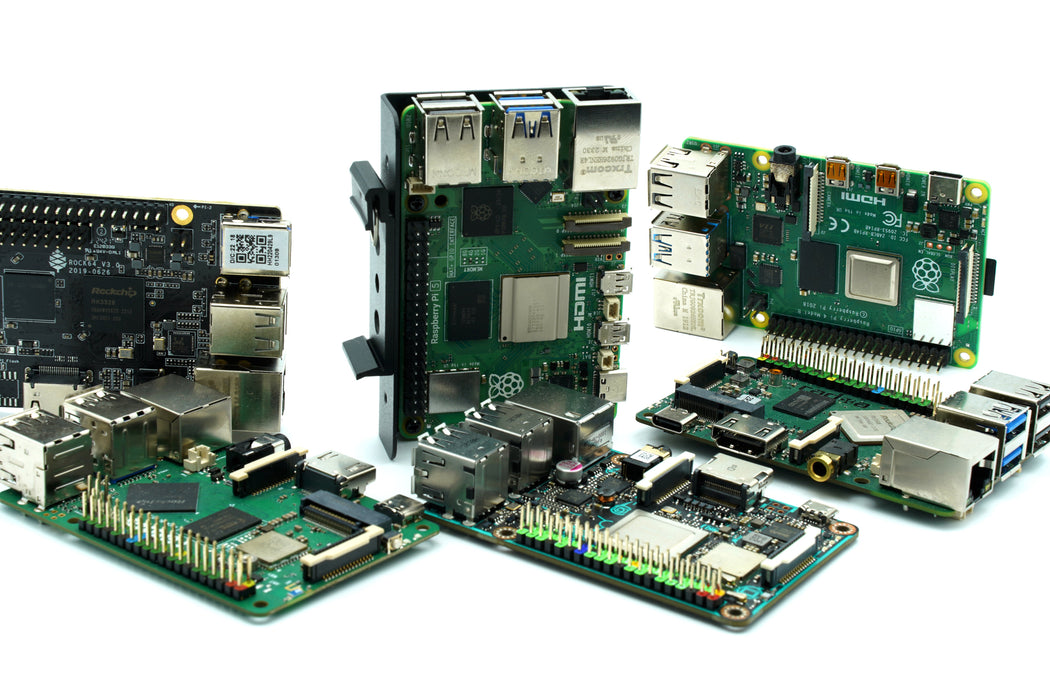

KKSB Raspberry Pi DIN Rail Clip Bracket – several single-board computers on brackets

Compatibility

Crafted to fit a 35mm DIN Rail, this bracket aligns flawlessly with the screw patterns of Raspberry Pi 5, 4B, 3B boards. Notably, it accommodates more SBCs with the same screw spacing and pattern such as some ASUS Tinker Boards.

Its minimalist design allows for addon boards, heatsinks, or coolers to be mounted on the Raspberry Pi board without obstruction, enhancing setup versatility while maintaining functionality.
