KKSB Raspberry Pi 5 M.2 HAT Case

Name: KKSB Raspberry Pi 5 M.2 HAT Case
Brand: KKSB Cases
SKU: 7350001162126
Price: 16.5 EUR
Availability: InStock

€16,50

SKU 7350001162126

The KKSB Raspberry Pi 5 M.2 HAT Case is a robust and practical enclosure designed to protect and enhance your Raspberry Pi 5 setup.

In stock.

Quantity Liquid error (snippets/product-form line 68): include usage is not allowed in this context

Technical Details

Compatible board: Raspberry Pi 5
Compatible HATs: Raspberry Pi M.2 HAT+, Raspberry Pi AI Kit and many NVMe HATs; other third-party HATs may work but are not guaranteed
Port access: 1 × USB-C (power), 2 × micro-HDMI, 2 × USB 3.0, 2 × USB 2.0, 1 × Gigabit Ethernet, microSD card opening and 40-pin GPIO cable access through the top
Power button: External button in the case that operates the Raspberry Pi 5 power button
Cooling: Ventilation slots in both side panels; fits the official Raspberry Pi 5 Active Cooler (included 40-pin stackable header leaves an airflow gap between cooler and HAT)
Material: Sandblasted black anodized aluminium
Mounting: 2 keyhole-shaped wall-mounting holes on the bottom; rubber feet
Package dimensions: 100 × 74 × 45 mm; shipping weight 80 g
In the box: Case, set of spacers, 40-pin stackable header, 4 rubber feet
Not included: Raspberry Pi 5, M.2 HAT+/NVMe HAT, AI HAT, cooler/heatsink
EAN: 7350001162126

User Manuals

Worldwide shipping
EU delivery: ~ 3-8 days,
Outside the EU: ~ 7-15 days.

Pay using Paypal or Bank Card
We also accept bank payment for larger orders

AI-generated backgrounds are used in some images · Learn more

3D model / Dimensions

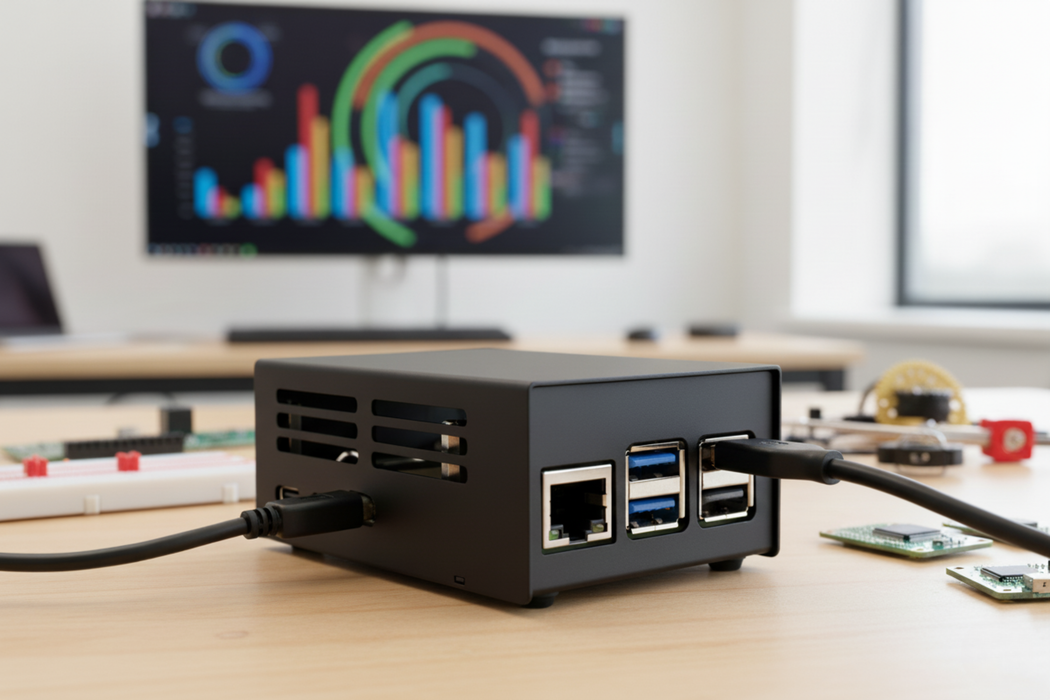

KKSB Raspberry Pi 5 M.2 HAT Case – on a desk under a wall-mounted data screen

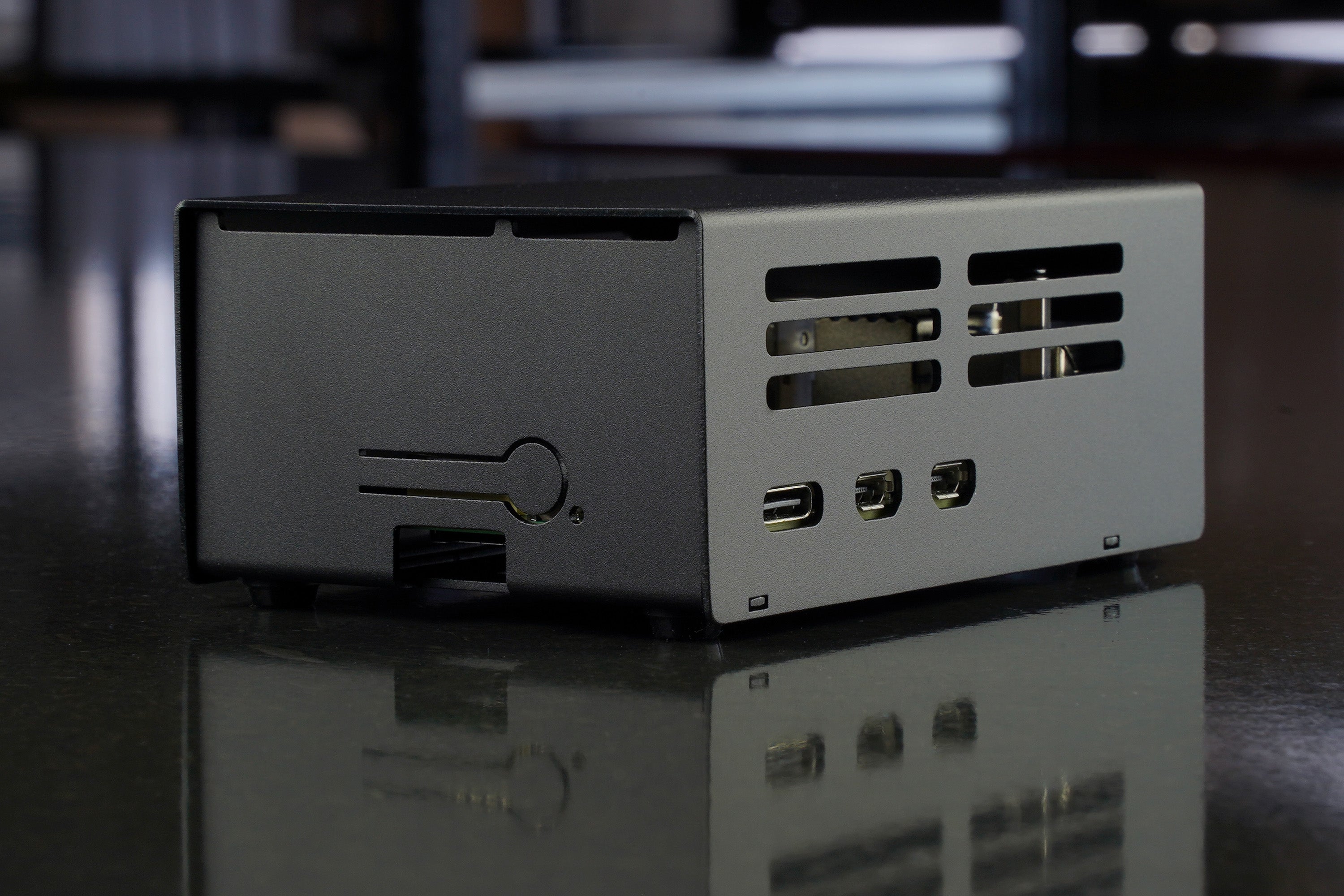

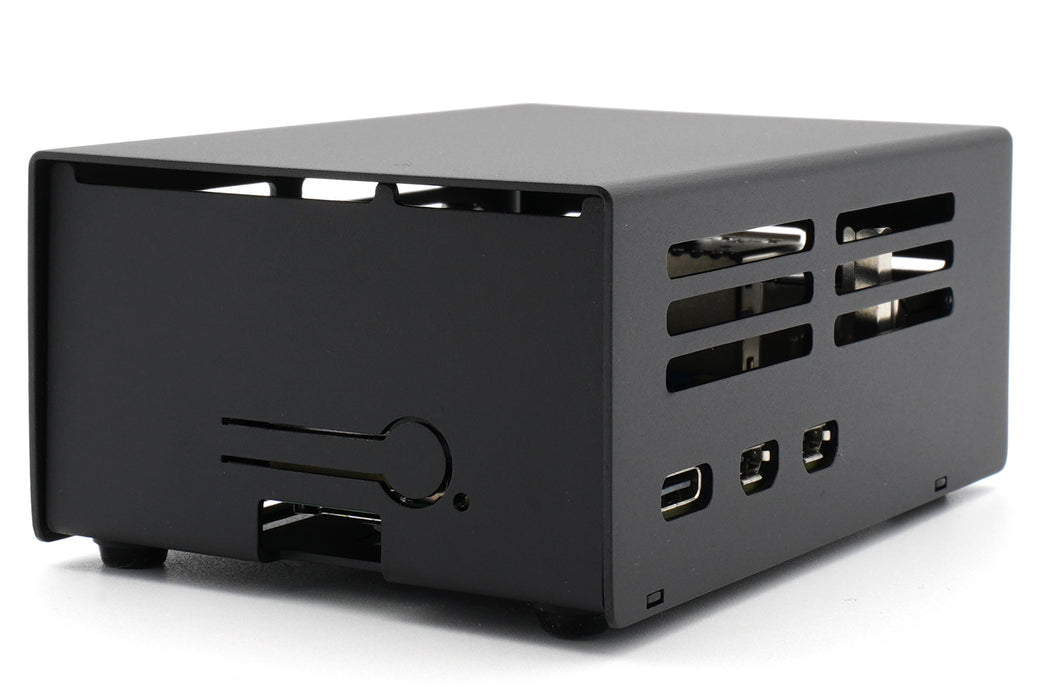

KKSB Raspberry Pi 5 M.2 HAT Case – end view with power button on a dark surface

KKSB Raspberry Pi 5 M.2 HAT Case – on an industrial workstation next to a robot arm

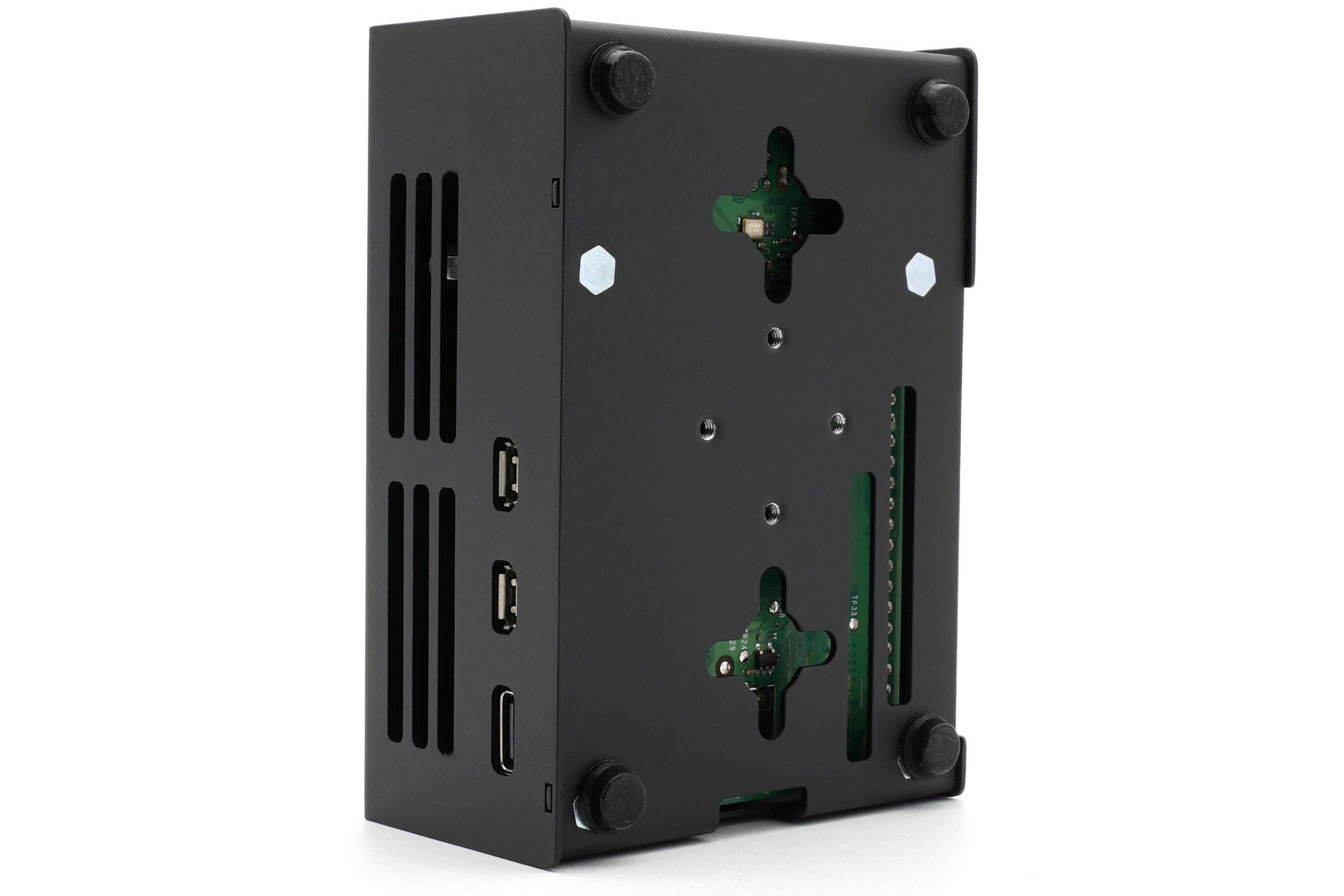

KKSB Raspberry Pi 5 M.2 HAT Case – bottom view with keyhole wall-mounting holes

KKSB Raspberry Pi 5 M.2 HAT Case – on a workbench with electronics

Durable Sandblasted Aluminum Build

The KKSB Raspberry Pi 5 M.2 HAT Case is a robust and practical enclosure designed to protect and enhance your Raspberry Pi 5 setup. Made from sandblasted, black anodized aluminum, it combines durability with a clean, modern design for reliable long-term use.

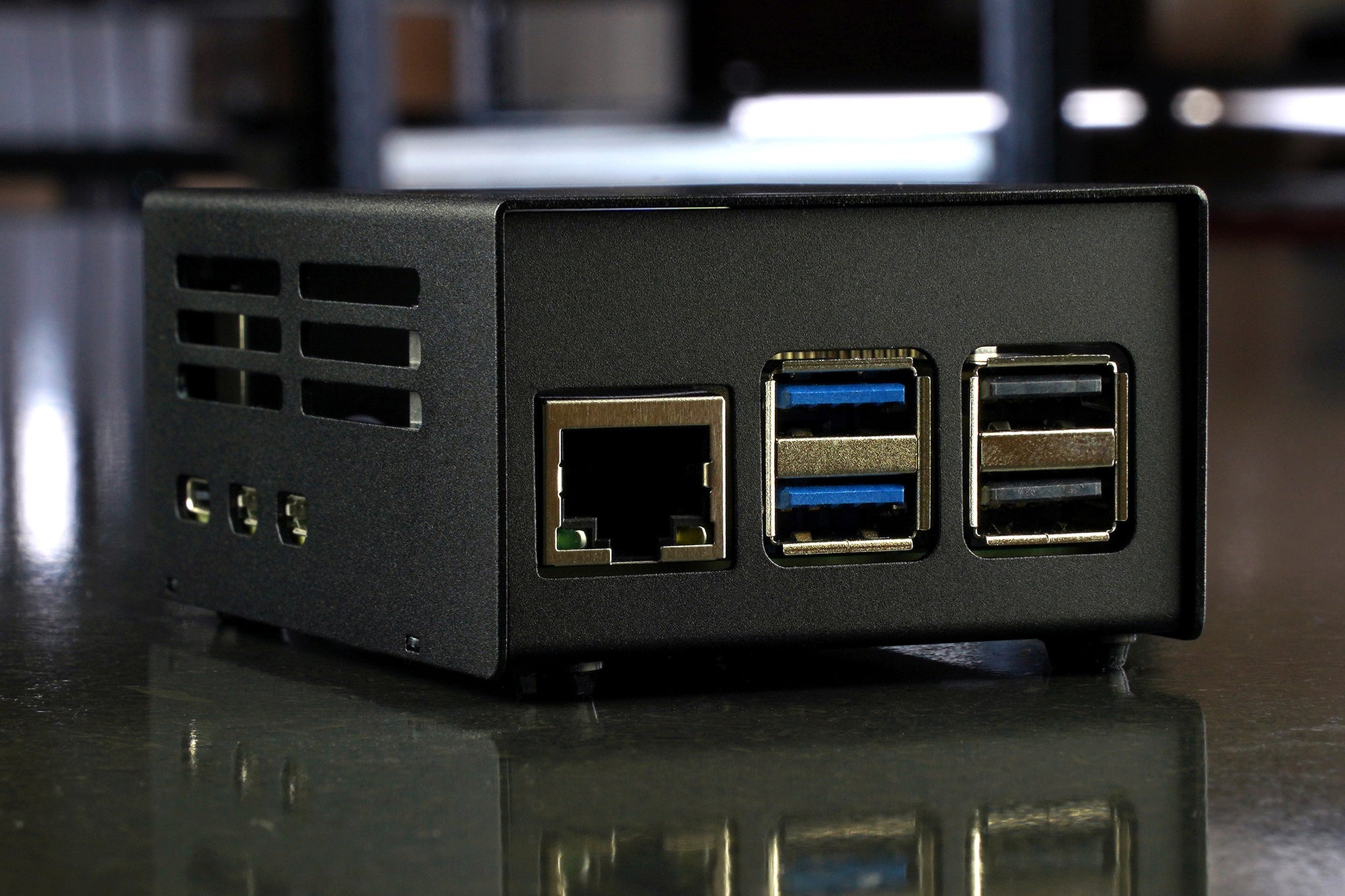

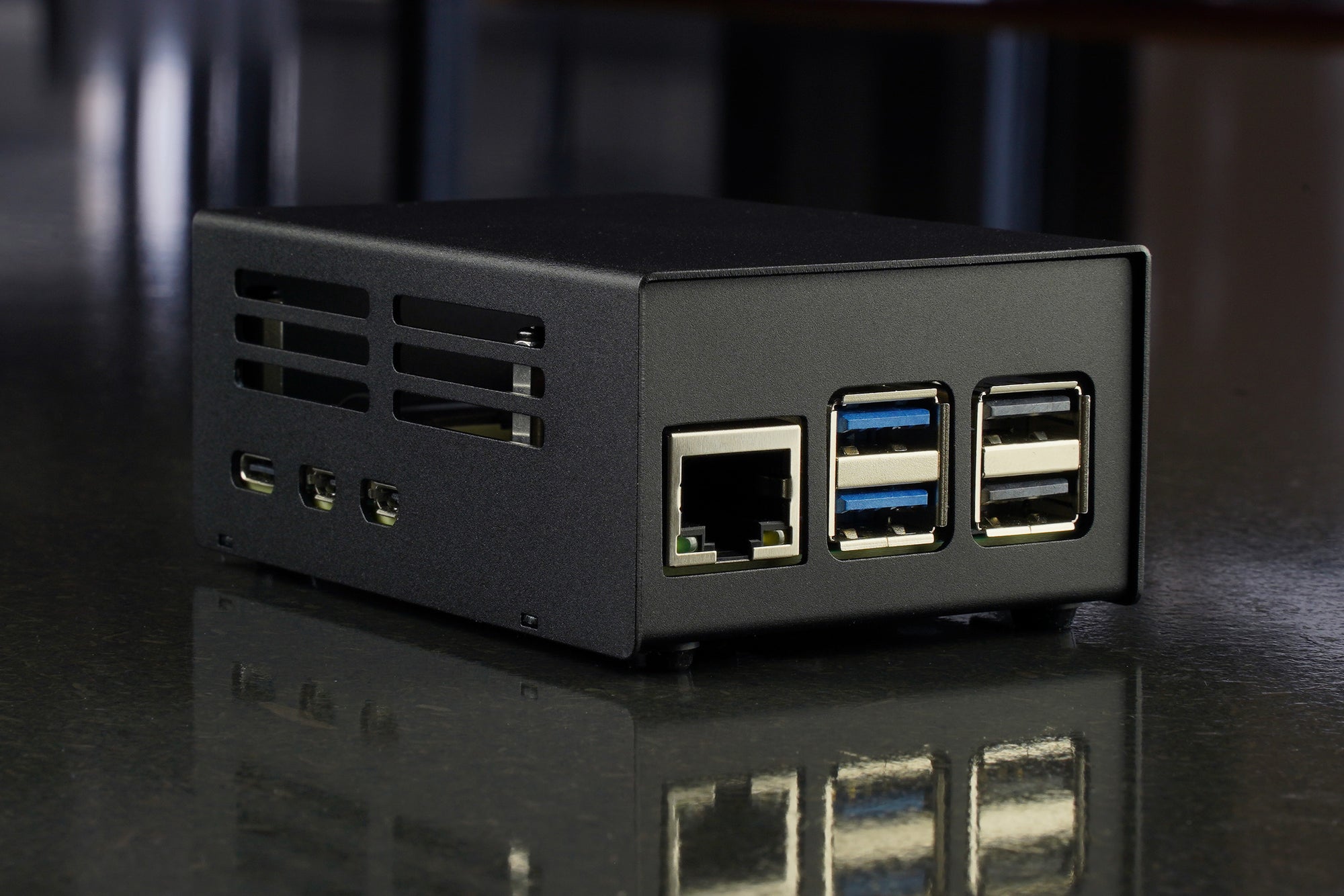

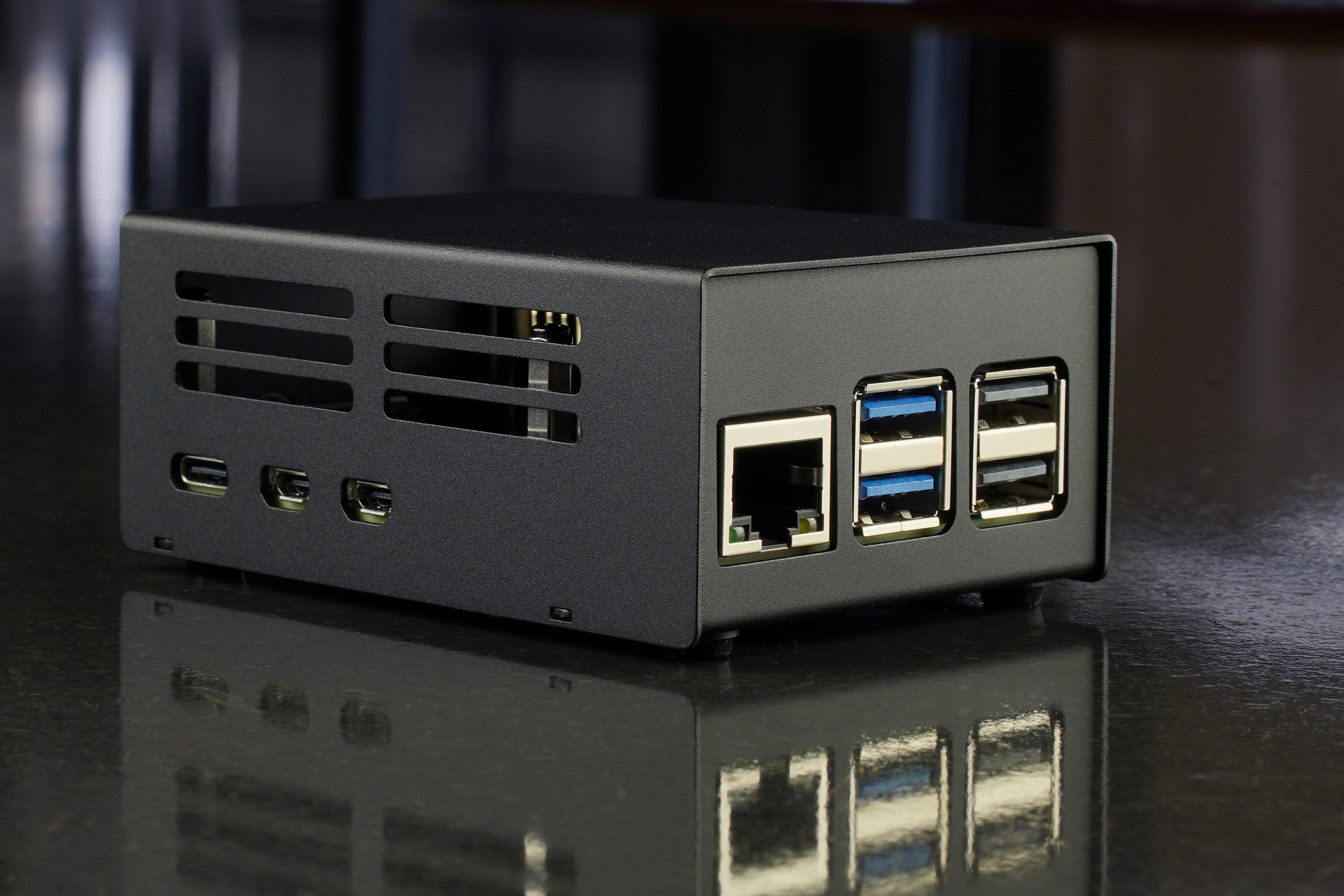

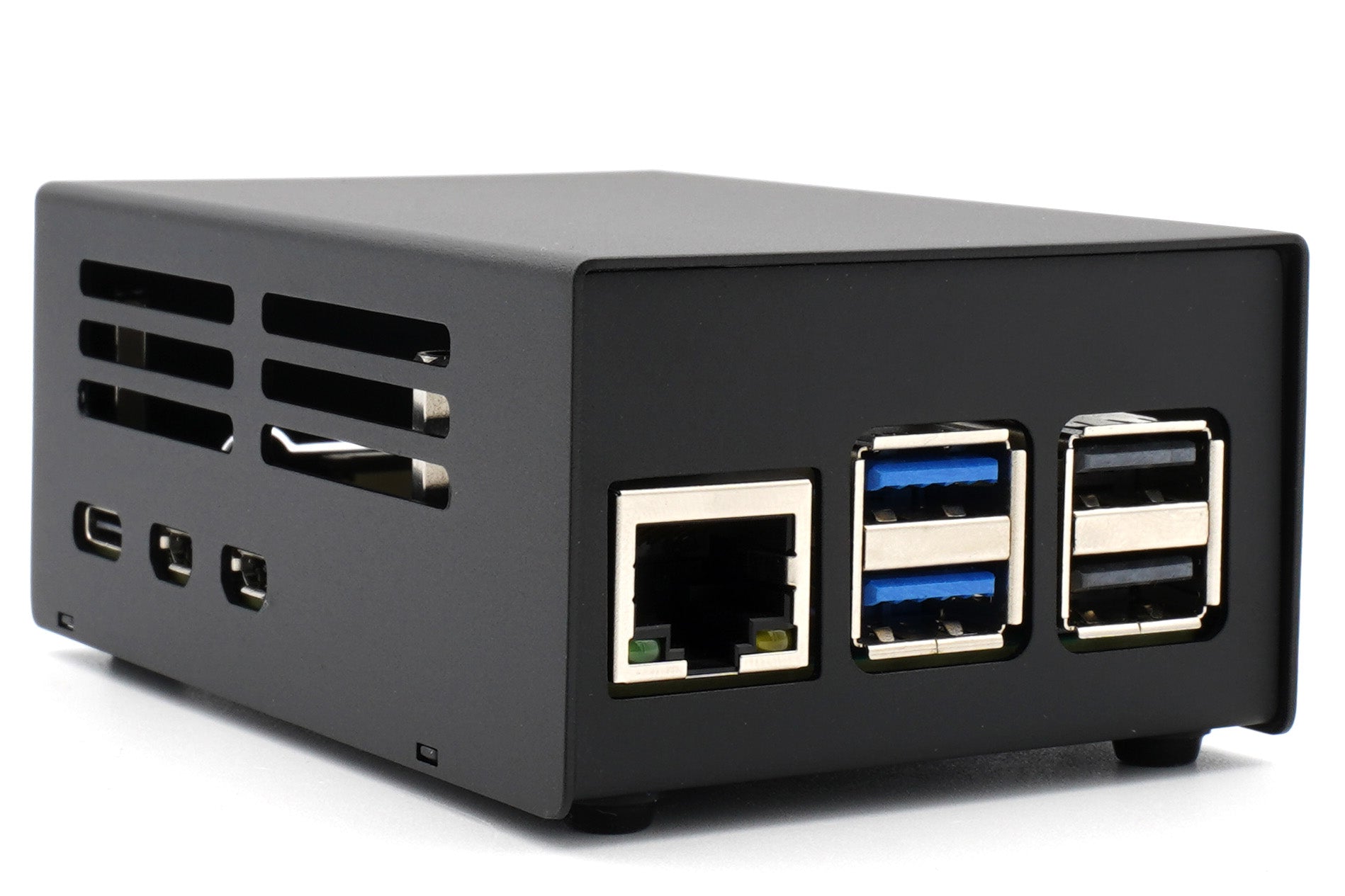

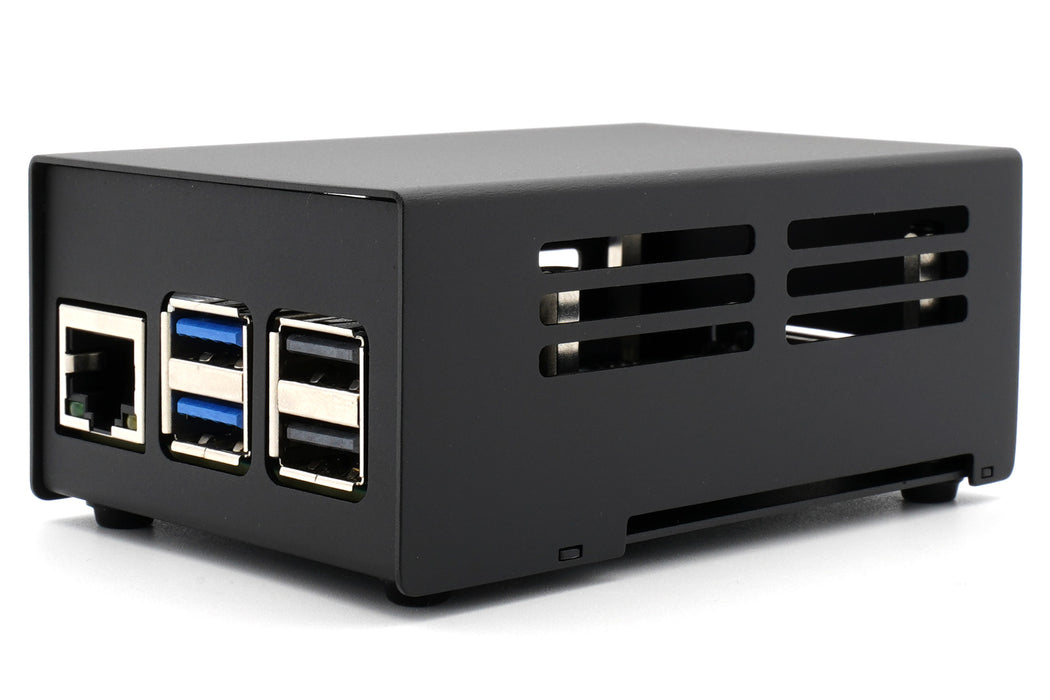

KKSB Raspberry Pi 5 M.2 HAT Case – port side with Ethernet and USB

Cooling and HAT Compatibility

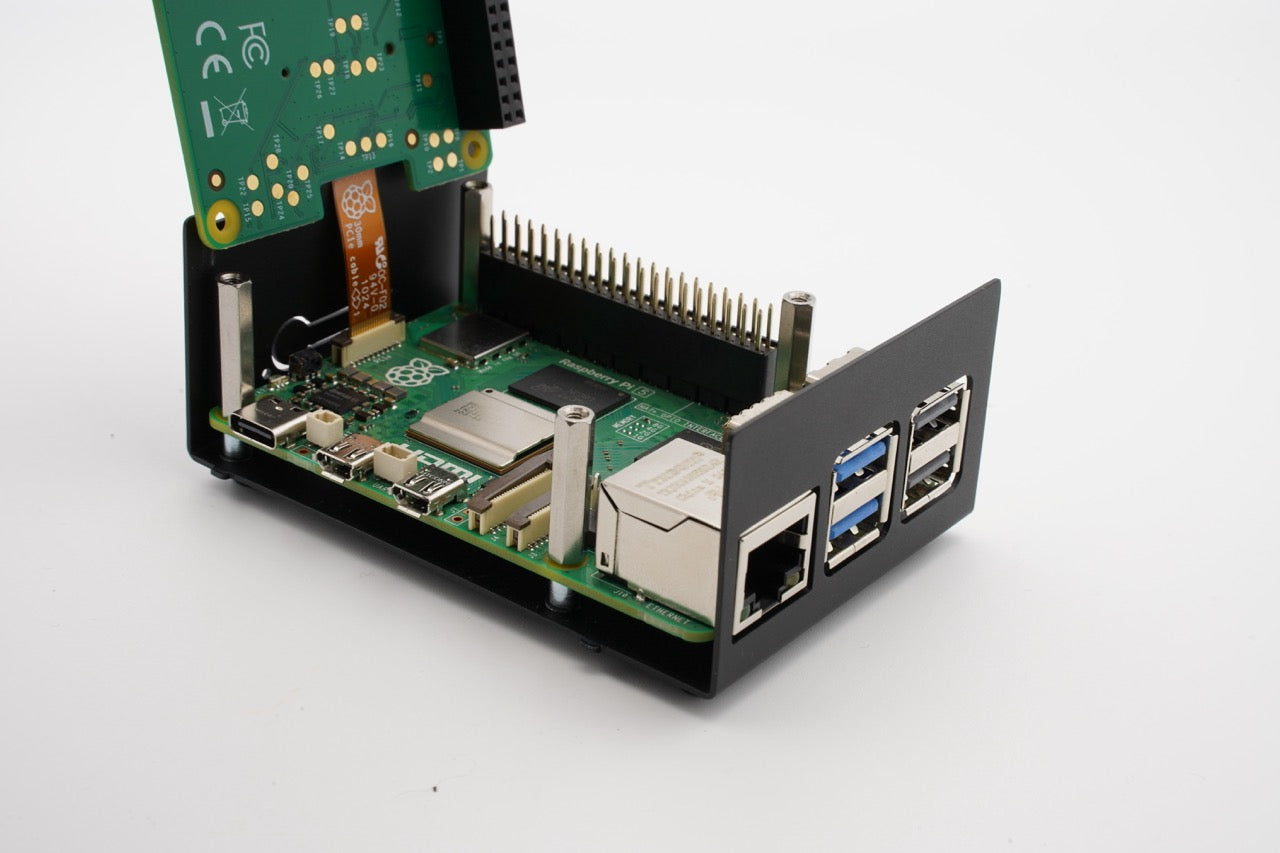

Designed for expandability and performance, the case supports NVMe HATs and the official Raspberry Pi AI HAT, with spacers included for secure installation. Ventilation slots on both sides and a 40-pin stackable header ensure full compatibility with the official Raspberry Pi 5 cooler, maintaining proper airflow between the cooler and HAT.

NOTE: Raspberry Pi 5, NVMe HATs, AI HAT, and Official Raspberry Pi Cooler/Heatsink are NOT included.

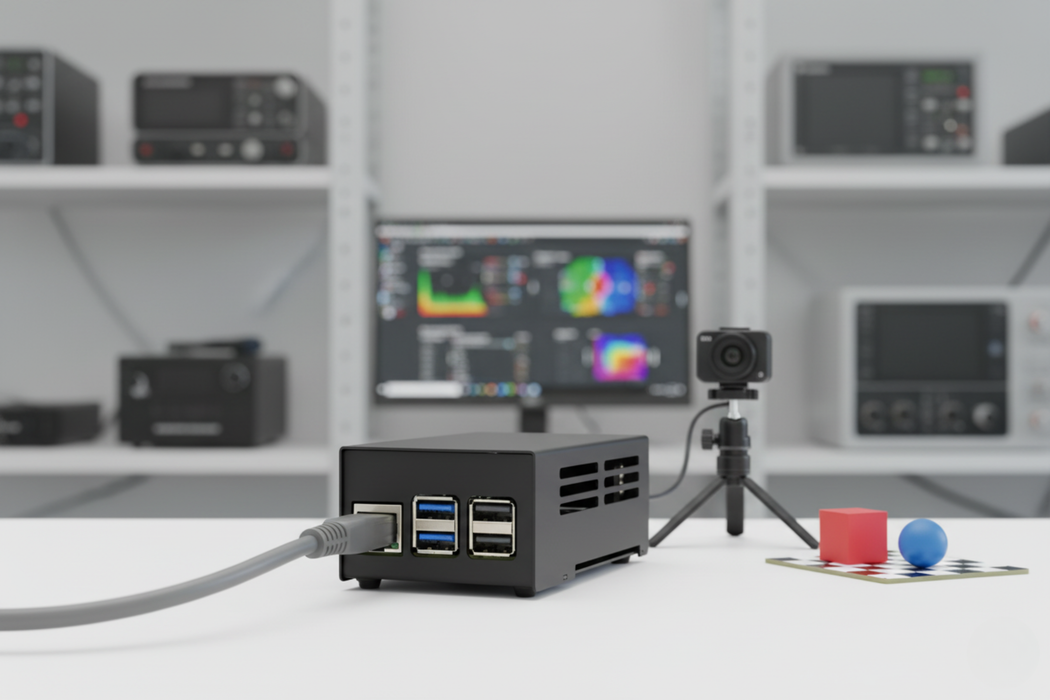

KKSB Raspberry Pi 5 M.2 HAT Case – on a lab bench with test instruments and a tripod

Some Examples of Possible Applications

The KKSB Raspberry Pi 5 M.2 HAT Case is versatile and can be used in different projects and environments:

Mini Server or Storage Hub – Pair with an NVMe HAT to build a compact, energy-efficient data storage or media server.
AI Development Projects – Use with the official Raspberry Pi AI HAT for machine learning and computer vision tasks.
Educational and Classroom Use – Durable design makes it ideal for teaching environments, workshops, or STEM labs.
Embedded and IoT Systems – Wall-mounting support and durable aluminum construction make it suitable for permanent or semi-permanent installations.

Practical Access and Mounting Options

The case includes wall-mounting holes, rubber feet for stability, and cutouts for common ports and connectors. A dedicated top opening provides easy access to 40-pin GPIO cables, making the enclosure flexible for both desktop and embedded setups.

Convenient Features for Everyday Use

The integrated start button allows you to power your Raspberry Pi 5 directly from the case, ventilation slots for airflow, and rubber feet for stability ensure smooth operation and ease of use in different environments. This feature adds convenience while maintaining a clean and functional setup.
