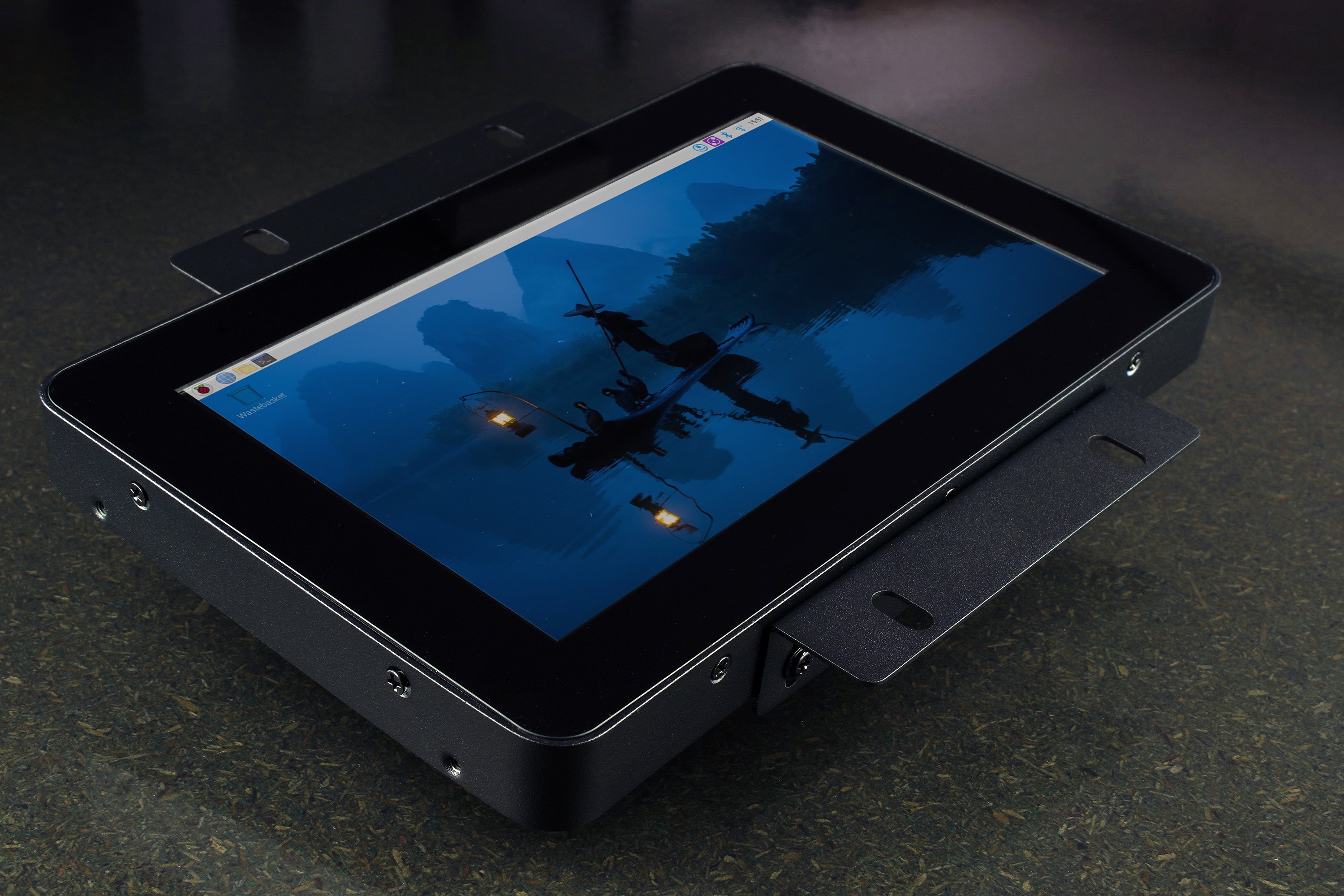

KKSB Pi 5 Display 2 Panel Mount Case – angled front view with mounting ears

KKSB Panel Mount Case for Raspberry Pi 5 & Official 7-inch Touch Display 2

Name: KKSB Panel Mount Case for Raspberry Pi 5 & Official 7-inch Touch Display 2
Brand: KKSB Cases
SKU: 7350001162102
Price: 17.7 EUR
Availability: InStock

€17,70

SKU 7350001162102

The KKSB Panel Mount Case is designed for the Raspberry Pi 5 and the official Raspberry Pi Touch Display 2, making it ideal for professional dashboards, kiosks, and control interfaces.

In stock.

Quantity Liquid error (snippets/product-form line 68): include usage is not allowed in this context

Technical Details

Compatible board: Raspberry Pi 5
Display: Official 7-inch Raspberry Pi Touch Display 2 (not included)
Compatible HATs: Room for HATs, e.g. Raspberry Pi M.2 HAT+ (shown in photos)
Port access: Raspberry Pi 5 sits on the open rear of the housing – its ports are reached directly behind the panel
Cooling: Space for low-profile heatsinks or the official Raspberry Pi 5 Active Cooler
Mounting: Panel mount only: two mounting ears with slots; user makes the panel cutout (drawings and 3D model supplied)
Material: Sandblasted black anodized aluminium and powder-coated steel
Package dimensions: 220 × 135 × 23 mm; shipping weight 370 g
In the box: Panel mount case, technical drawings for the panel cutout, 3D model file
Not included: Raspberry Pi 5, Touch Display 2, HATs, cooler/heatsink
EAN: 7350001162102

User Manuals

Download 3D model

Worldwide shipping
EU delivery: ~ 3-8 days,
Outside the EU: ~ 7-15 days.

Pay using Paypal or Bank Card
We also accept bank payment for larger orders

AI-generated backgrounds are used in some images · Learn more

3D model / Dimensions

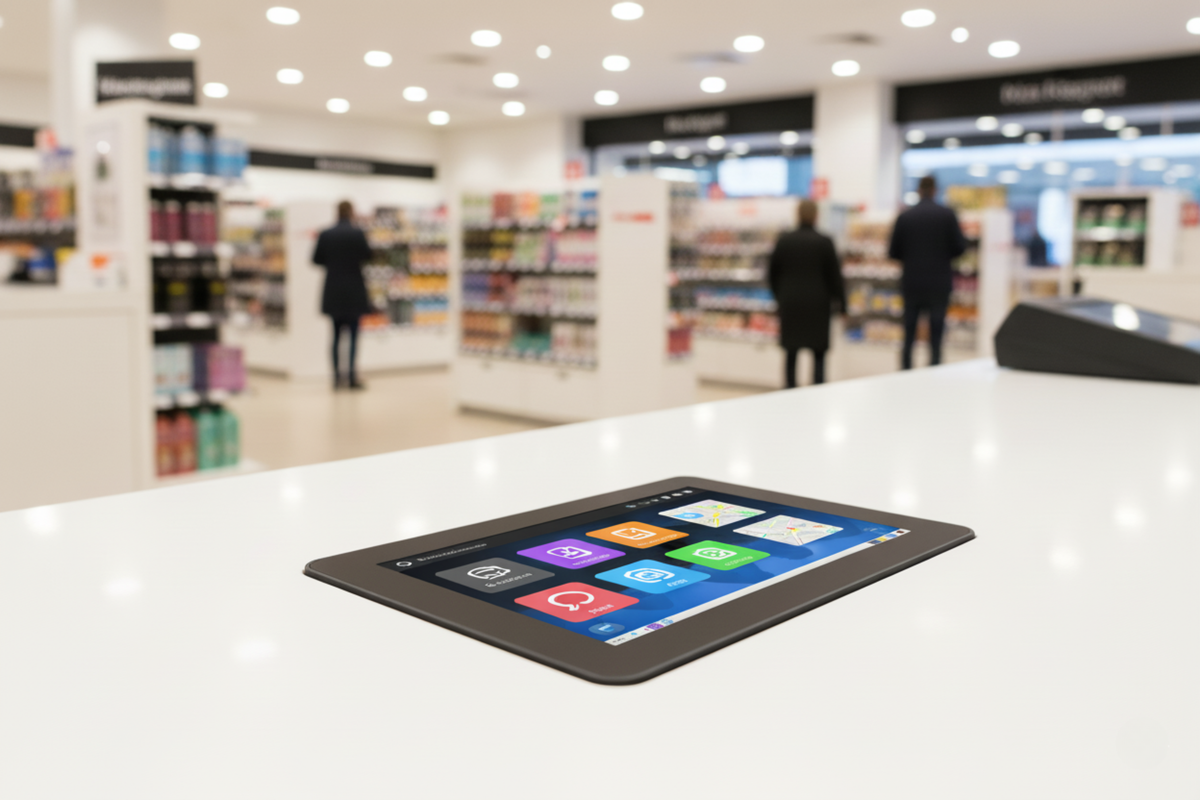

KKSB Pi 5 Display 2 Panel Mount Case – flush-mounted in a retail store counter

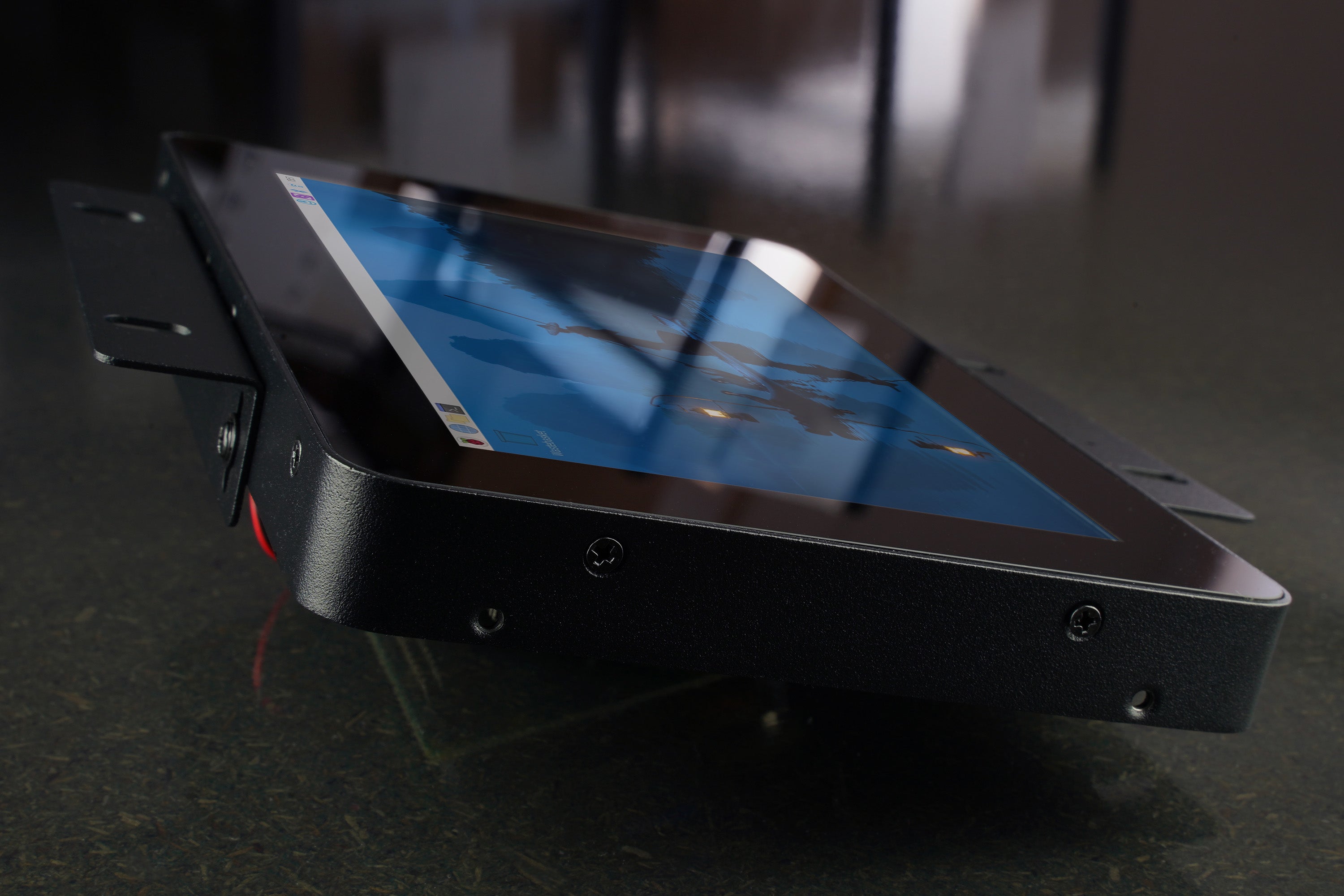

KKSB Pi 5 Display 2 Panel Mount Case – angled view against a dark background

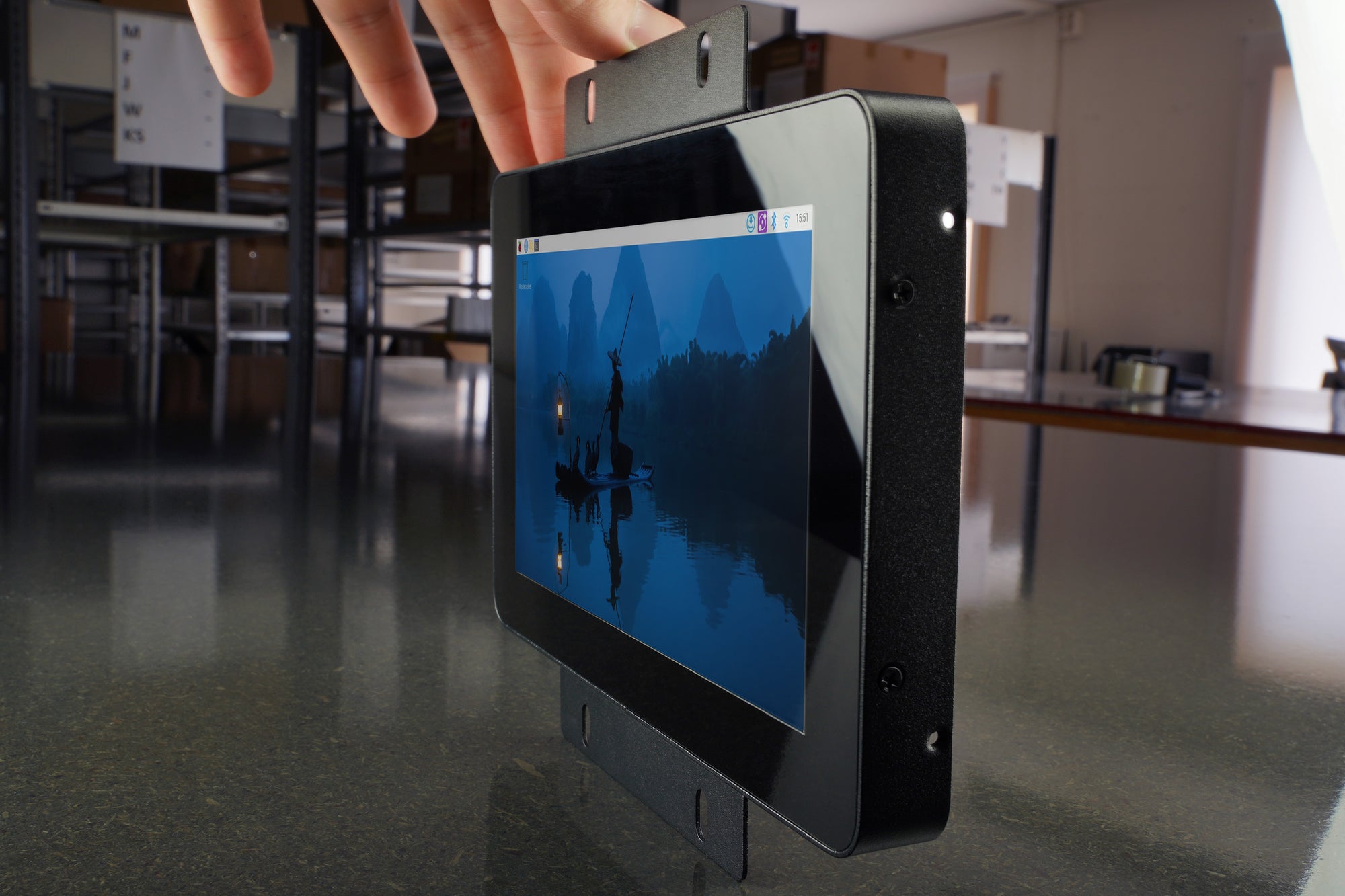

KKSB Pi 5 Display 2 Panel Mount Case – held in hand, side view

KKSB Pi 5 Display 2 Panel Mount Case – kiosk panel in a shopping mall

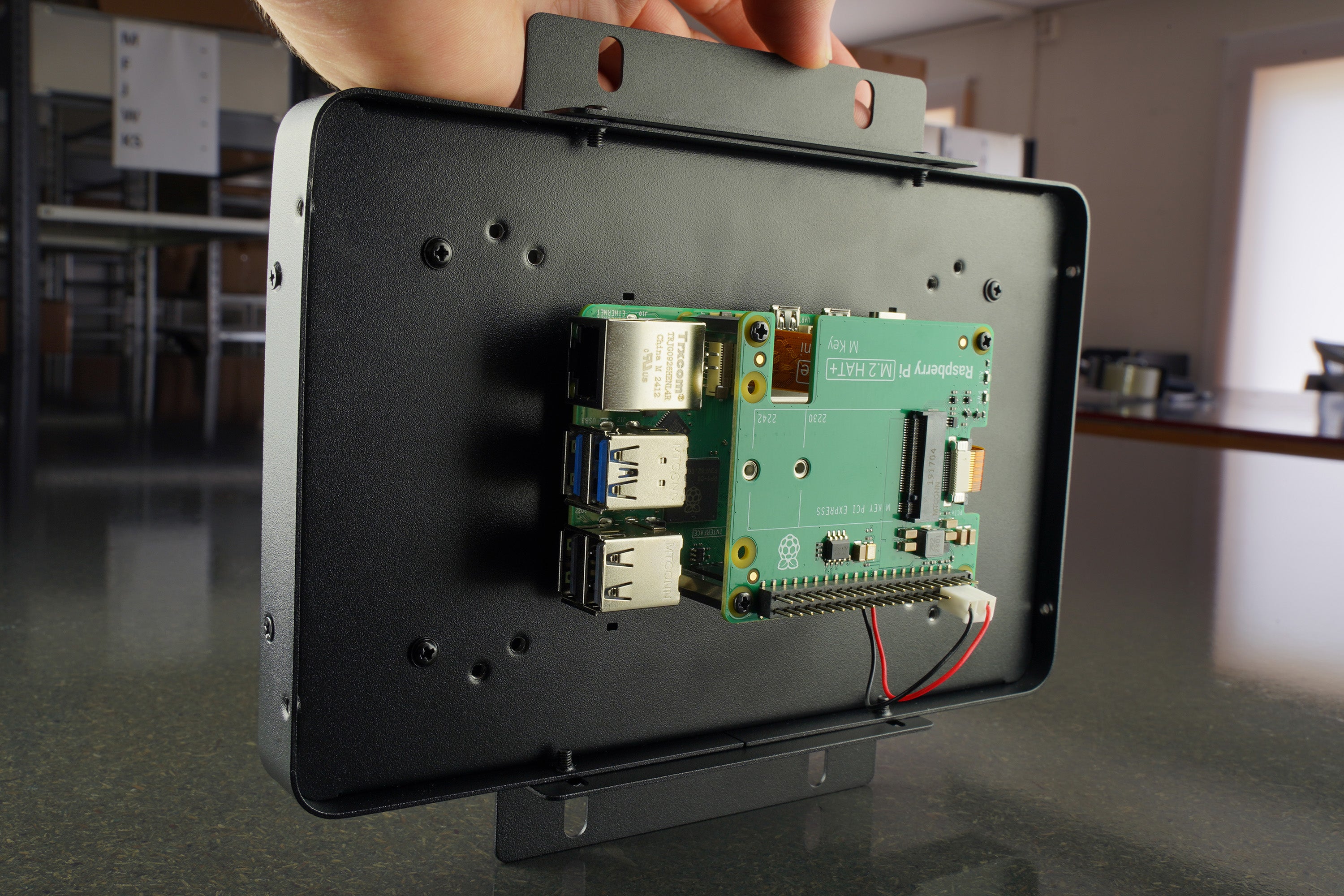

KKSB Pi 5 Display 2 Panel Mount Case – held in hand, rear view with Raspberry Pi 5

Durable Aluminum and Steel Enclosure

The KKSB Panel Mount Case is designed for the Raspberry Pi 5 and the official Raspberry Pi Touch Display 2. Made from sandblasted black anodized aluminum and powder-coated steel, it offers durability with a clean, functional finish.

Cooling Support & Panel Integration

The enclosure provides space for additional HATs, low-profile heatsinks, and the official Raspberry Pi 5 cooler to help maintain stable performance. Designed specifically for panel-mount solutions, it requires user-prepared cutouts, with technical drawings and 3D models supplied for precise installation.

KKSB Pi 5 Display 2 Panel Mount Case – wall-mounted dashboard next to a 3D printer and CNC machine

Some Examples of Possible Applications

Home Automation Dashboards – Control smart home devices from a wall-mounted display.
Media Player Interfaces – Build a compact and reliable entertainment hub.
3D Printer & CNC Controllers – Integrate the case into maker projects and machine interfaces.
Kiosk & POS Terminals – Use in retail or public-facing setups for transactions and information.
Network Monitoring & Access Control – Deploy in industrial systems for monitoring, RFID, NFC, or biometric entry points.

Quick Setup and Instructions

Assembly is straightforward with step-by-step instructions available via a QR code on the packaging. This ensures a fast and reliable setup for all experience levels.
