KKSB Pi 5 Display 2 (5") Case Stand – angled front view of the 5-inch display on the stand

KKSB Case Stand for Display 2 (5 inch) and Raspberry Pi 5

Name: KKSB Case Stand for Display 2 (5 inch) and Raspberry Pi 5
Brand: KKSB Cases
SKU: 7350001162225
Price: 28.6 EUR
Availability: InStock

€28,60

SKU 7350001162225

The KKSB Case Stand for Display 2 (5 inch) and Raspberry Pi 5 is built from premium metal materials, the case provides a professional, industrial appearance while maintaining easy access to connectors, GPIO, and add-on boards.

In stock.

Quantity Liquid error (snippets/product-form line 68): include usage is not allowed in this context

Technical Details

Compatible board: Raspberry Pi 5
Display: Official 5-inch Raspberry Pi Display 2 (not included)
Compatible HATs: Most Raspberry Pi HATs; long and short spacers included for GPIO headers of different heights
Port access: 1 × USB-C (power), 2 × micro-HDMI, 2 × USB 3.0, 2 × USB 2.0, 1 × Gigabit Ethernet, side access for a 40-pin GPIO ribbon cable
Power button: External button integrated in the case
Cooling: Ventilation slots in both side panels; official Raspberry Pi 5 Active Cooler, low-profile heatsinks and compact coolers; included 40-pin stackable header leaves airflow between cooler and HAT
Expansion: Side ventilation panels can be removed for HATs with connectors in different positions
Stand: Integrated metal stand with fixed viewing angle
Material: Sandblasted black anodized aluminium and powder-coated steel
Package dimensions: 180 × 115 × 33 mm; shipping weight 330 g
In the box: Case stand, long and short spacers, 40-pin stackable GPIO header
Not included: Raspberry Pi 5, Display 2 (5-inch), HATs, cooler
EAN: 7350001162225

User Manuals

Assembly Instruction KKSB Case Stand for Display 2 (5 inch) and Raspberry Pi 5 DE-USER_MANUAL_AND_SAFETY_DATASHEET-7350001162225.pdf
Deutsch EN-USER_MANUAL_AND_SAFETY_DATASHEET-7350001162225.pdf
English ES-USER_MANUAL_AND_SAFETY_DATASHEET-7350001162225.pdf
Español FR-USER_MANUAL_AND_SAFETY_DATASHEET-7350001162225.pdf
Français IT-USER_MANUAL_AND_SAFETY_DATASHEET-7350001162225.pdf
Italiano JP-USER_MANUAL_AND_SAFETY_DATASHEET-7350001162225.pdf
日本語 (Nihongo) NL-USER_MANUAL_AND_SAFETY_DATASHEET-7350001162225.pdf
Nederlands

Worldwide shipping
EU delivery: ~ 3-8 days,
Outside the EU: ~ 7-15 days.

Pay using Paypal or Bank Card
We also accept bank payment for larger orders

AI-generated backgrounds are used in some images · Learn more

3D model / Dimensions

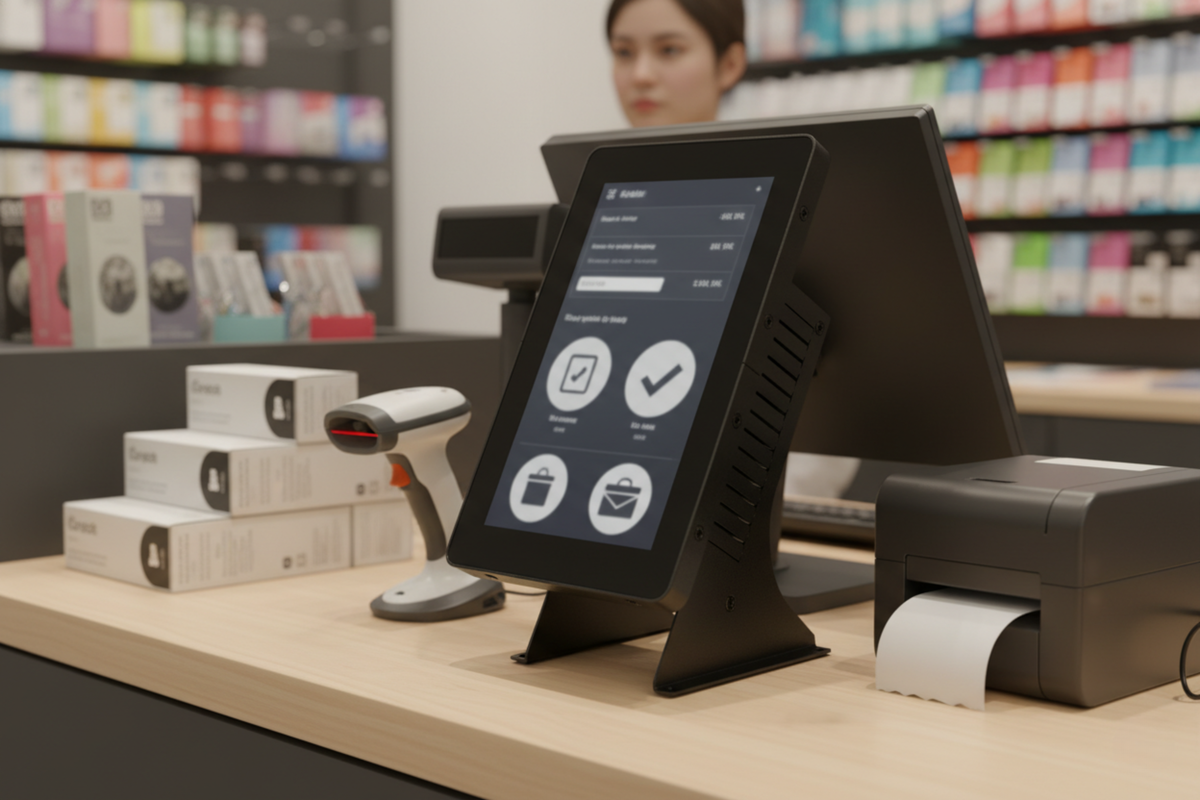

KKSB Pi 5 Display 2 (5") Case Stand – on a shop counter as a point-of-sale screen

KKSB Pi 5 Display 2 (5") Case Stand – side view with cables connected

KKSB Pi 5 Display 2 (5") Case Stand – on a workshop bench next to instruments

KKSB Pi 5 Display 2 (5") Case Stand – rear view with USB-C cable connected

KKSB Pi 5 Display 2 (5") Case Stand – display face down showing case with USB-C, micro-HDMI, Ethernet and USB

Compact yet Sleek Design

The KKSB Case Stand for Display 2 (5 inch) and Raspberry Pi 5 is a compact desktop enclosure designed for stable touchscreen use, clean cable management, and flexible hardware expansion. With an integrated angled stand and open, well-ventilated side panels, this case is ideal for dashboards, control interfaces, development setups, and embedded display projects. Built from premium metal materials, the case provides a professional, industrial appearance while maintaining easy access to connectors, GPIO, and add-on boards.

Premium Materials and Precise Fit

Manufactured from sandblasted black anodized aluminum combined with powder-coated steel, the enclosure delivers durability, weight, and a clean technical finish. Precision cutouts provide access to the most common Raspberry Pi interfaces without compromising structural rigidity. An external start button is integrated into the case, allowing the Raspberry Pi 5 to be powered on without opening the enclosure.

Some Examples of Possible Applications

The KKSB Case Stand for Display 2 (5 inch) and Raspberry Pi 5 is well suited for desktop-based and interactive display projects, including:

Home automation control panel: Centralized dashboard for lighting, climate, security, and smart devices.
Development and testing workstation: Ideal for developers working with Raspberry Pi HATs, GPIO, and add-on boards.
System monitoring display: Real-time monitoring of network status, servers, or IoT devices.
Information or status display: Compact display for system status, alerts, or process visualization.
Media or audio control interface: Touch-based controller for media playback, streaming, or audio systems.
Education and training setups: Suitable for classrooms, labs, and learning environments where stability and accessibility are important.
Prototyping and demonstration unit: Clean and professional presentation for demos, exhibitions, and product showcases.

Designed for HATs and Cooling Solutions

The case supports most Raspberry Pi HATs and includes both long and short spacers, accommodating GPIO headers of different heights. A 40-pin stackable GPIO header is included, enabling airflow between the Raspberry Pi, a heatsink or short cooler, and an installed HAT.

There is generous internal space for:

Add-on boards
Low-profile heatsinks
Official or compact coolers

Side access for a 40-pin GPIO ribbon cable allows easy external connections while keeping the enclosure assembled.

Angled Desktop Stand for Comfortable Viewing

The integrated metal stand positions the display at a fixed, ergonomic viewing angle, making it comfortable for continuous interaction. The elevated design also allows cables to exit neatly from the rear of the case, keeping desks and work surfaces organized and clutter-free.

The solid stand construction ensures stability during touchscreen operation, with no wobble or movement during use.

Excellent Airflow and Open Side Access

Large ventilation slots on both side panels support effective airflow for the Raspberry Pi 5, heatsinks, and low-profile coolers. The open side layout gives clear visibility and access to GPIO pins, connectors, and HAT interfaces, simplifying development, testing, and maintenance.

For additional flexibility, the side ventilation panels can be easily removed, allowing HATs with connectors in different positions to be installed without modification.
