KKSB Jetson Orin Nano Super Developer Kit Case

Name: KKSB Jetson Orin Nano Super Developer Kit Case
Brand: KKSB Cases
SKU: 7350001162119
Price: 21.52 EUR
Availability: InStock

€21,52

SKU 7350001162119

The KKSB Jetson Orin Nano Super Developer Kit Case is a robust enclosure designed to protect and enhance the Jetson Orin Nano Super Developer Kit.

In stock.

Quantity Liquid error (snippets/product-form line 68): include usage is not allowed in this context

Technical Details

Compatible board: NVIDIA Jetson Orin Nano Super Developer Kit
Port access: Rear: DC power jack, DisplayPort, 4 × USB Type-A, Gigabit Ethernet, USB-C (host/device/recovery). Side: microSD card slot and the 12-pin button header (power, reset, recovery and UART pins)
Expansion: 2 × SMA antenna cutouts; break-out cutout for a 12 mm push button (not included); 2 × M3 threaded holes on top for the KKSB Camera Holder
Cooling: Ventilation slots directly above the developer kit heatsink and fan
Material: Sandblasted black anodized aluminium
Mounting: VESA 75 interface (75 mm spacing) in the bottom; rubber feet for desktop use
Package dimensions: 142 × 95 × 53 mm; shipping weight 125 g
In the box: Case, 4 rubber feet; assembly instructions via QR code on the packaging
Not included: Jetson Orin Nano Super Developer Kit, 12 mm push button, SMA antennas, KKSB Camera Holder
EAN: 7350001162119

User Manuals

Worldwide shipping
EU delivery: ~ 3-8 days,
Outside the EU: ~ 7-15 days.

Pay using Paypal or Bank Card
We also accept bank payment for larger orders

AI-generated backgrounds are used in some images · Learn more

3D model / Dimensions

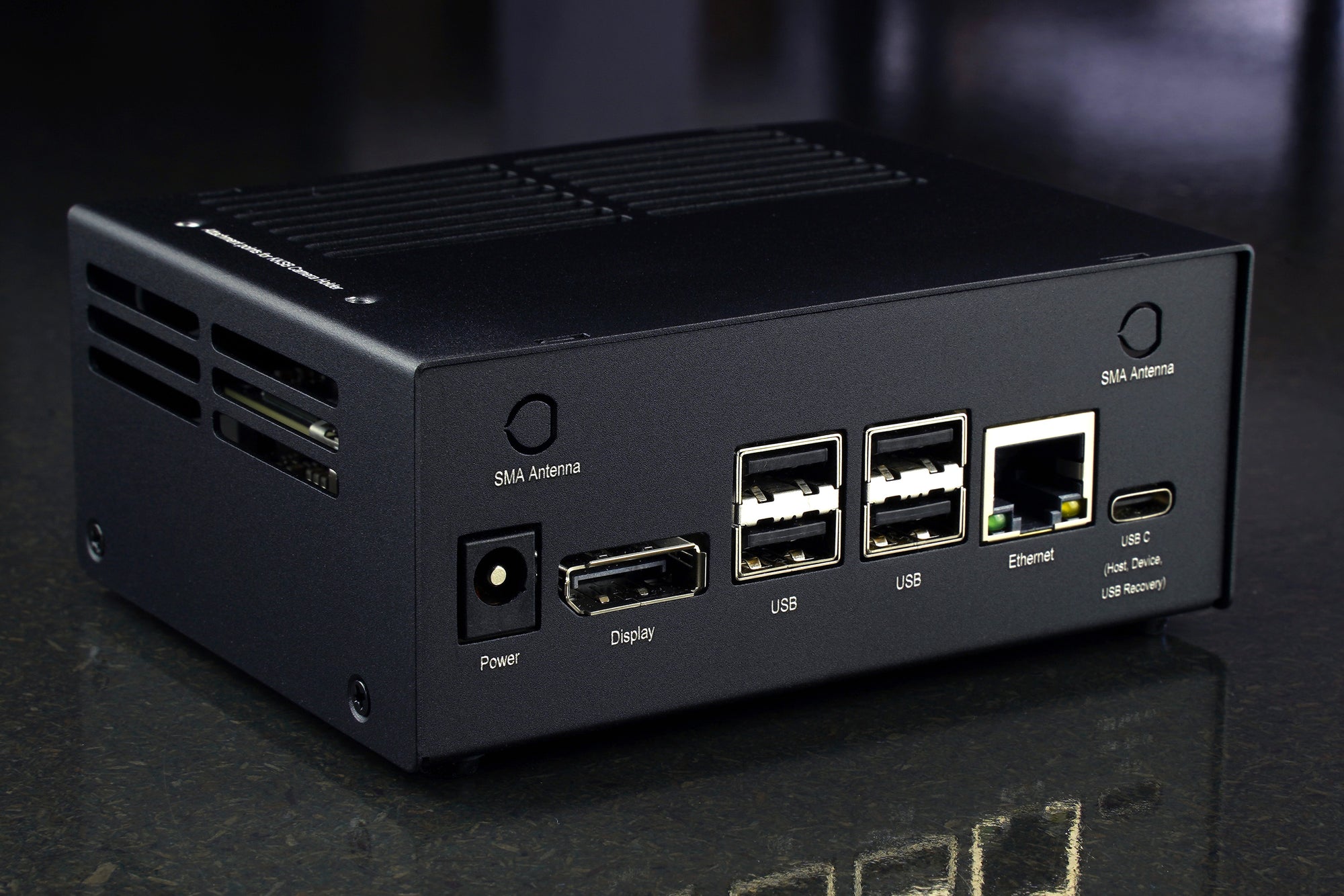

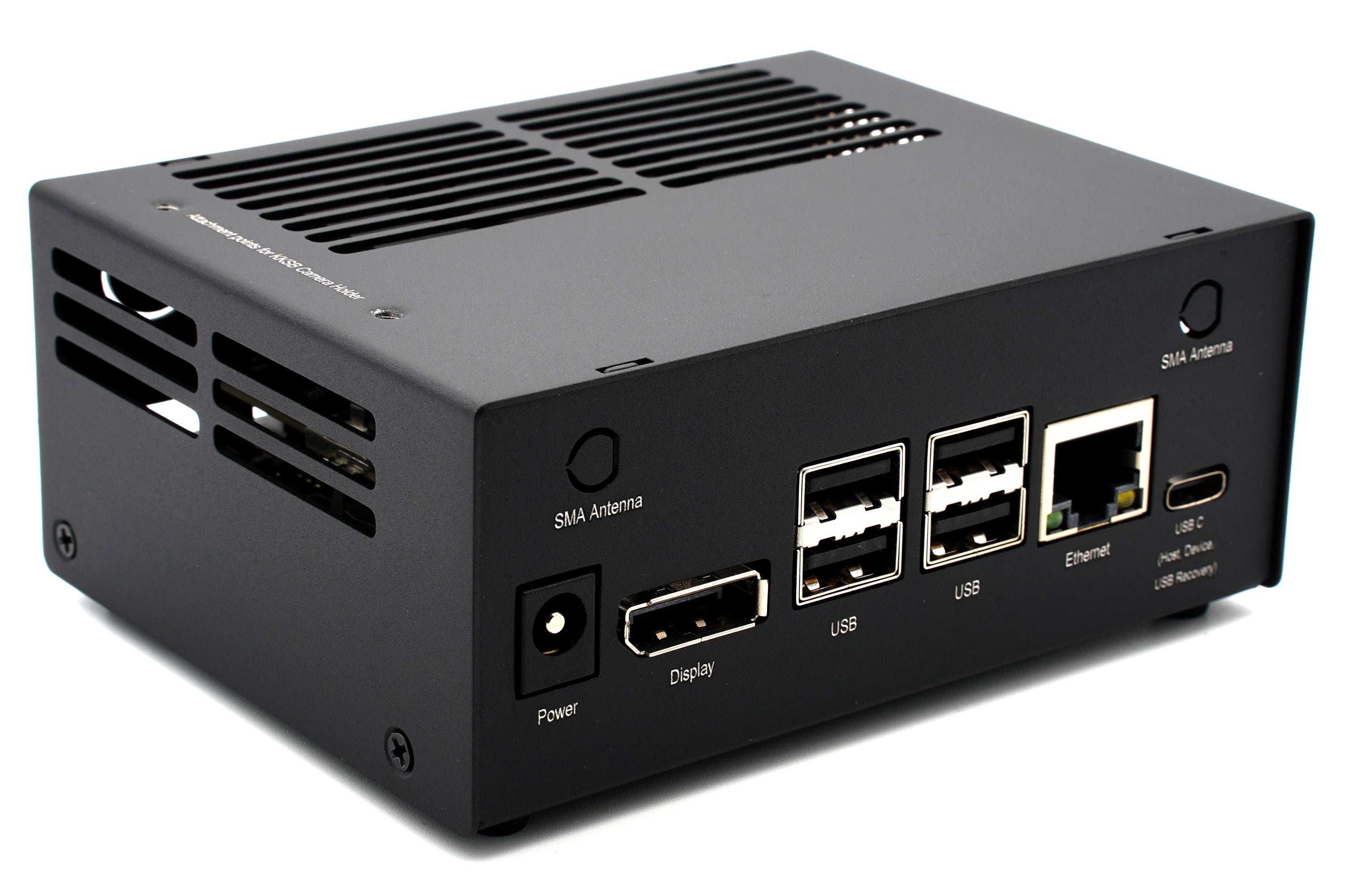

KKSB Jetson Orin Nano Super Developer Kit Case – rear connectors on dark background

KKSB Jetson Orin Nano Super Developer Kit Case

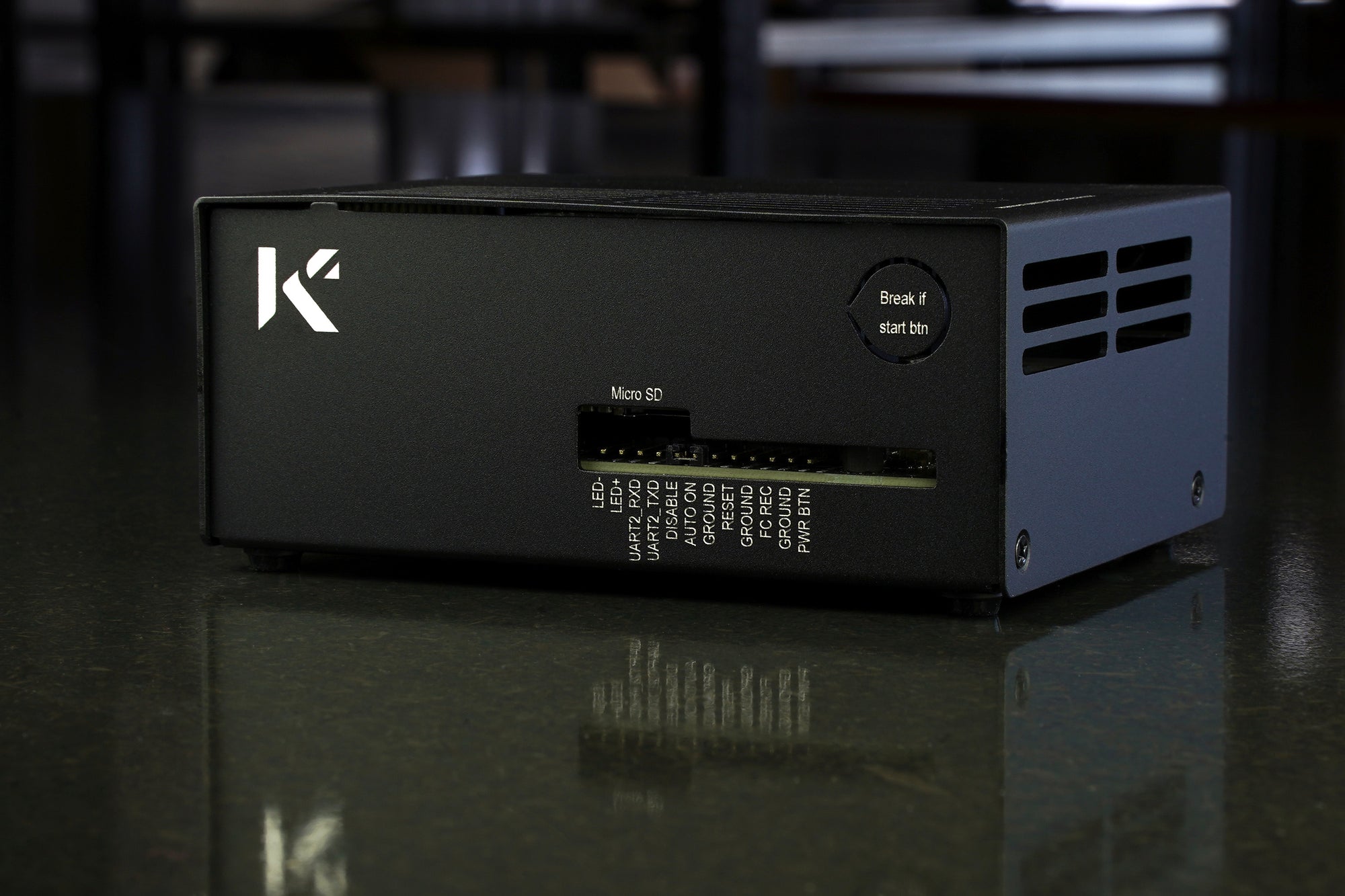

KKSB Jetson Orin Nano Super Developer Kit Case – side with microSD and button header on dark background

Durable Yet Professional Aluminum Build

The KKSB Jetson Orin Nano Super Developer Kit Case is a robust enclosure designed to protect and enhance the Jetson Orin Nano Super Developer Kit. Made from sandblasted black anodized aluminum, it combines durability with a professional matte finish.

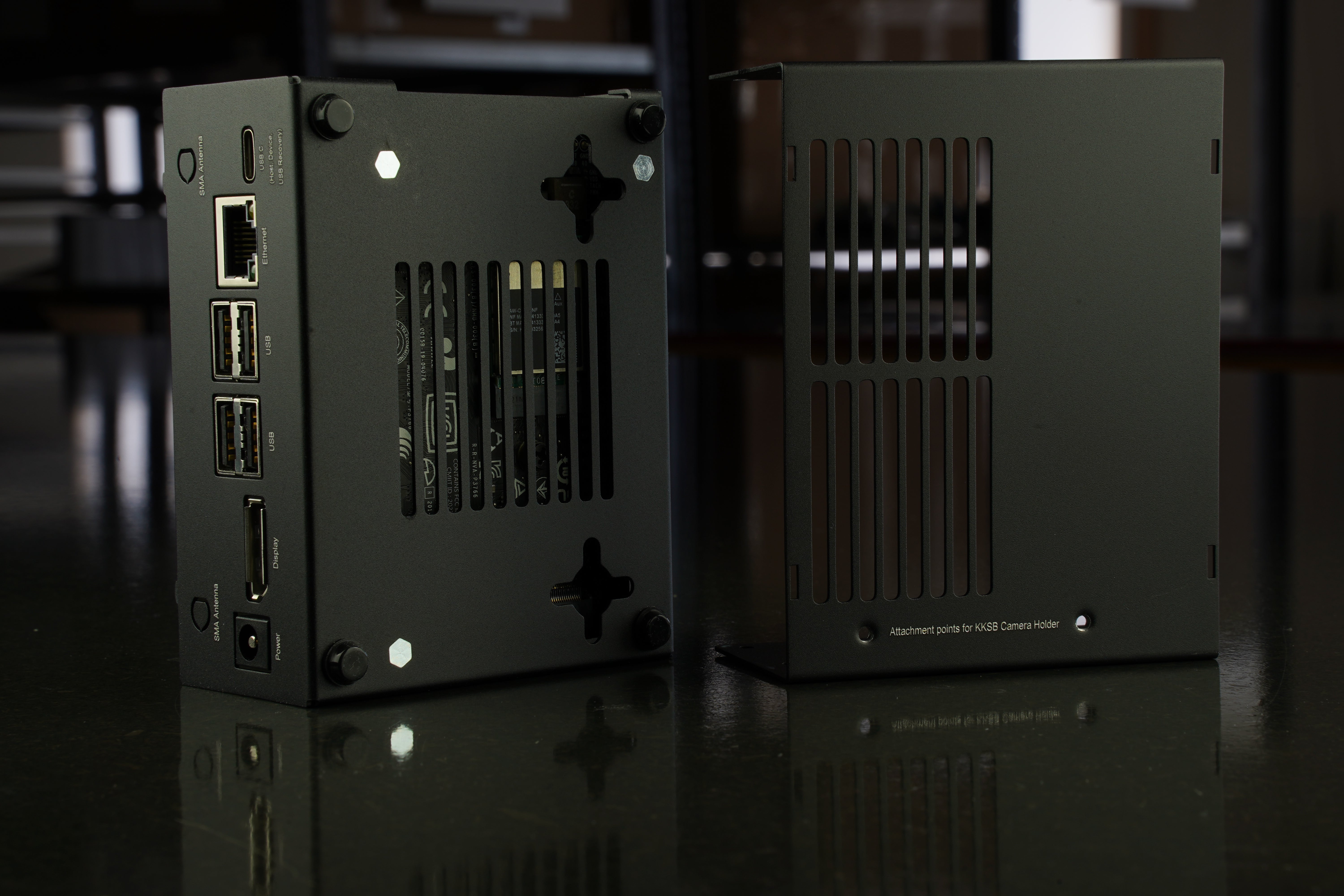

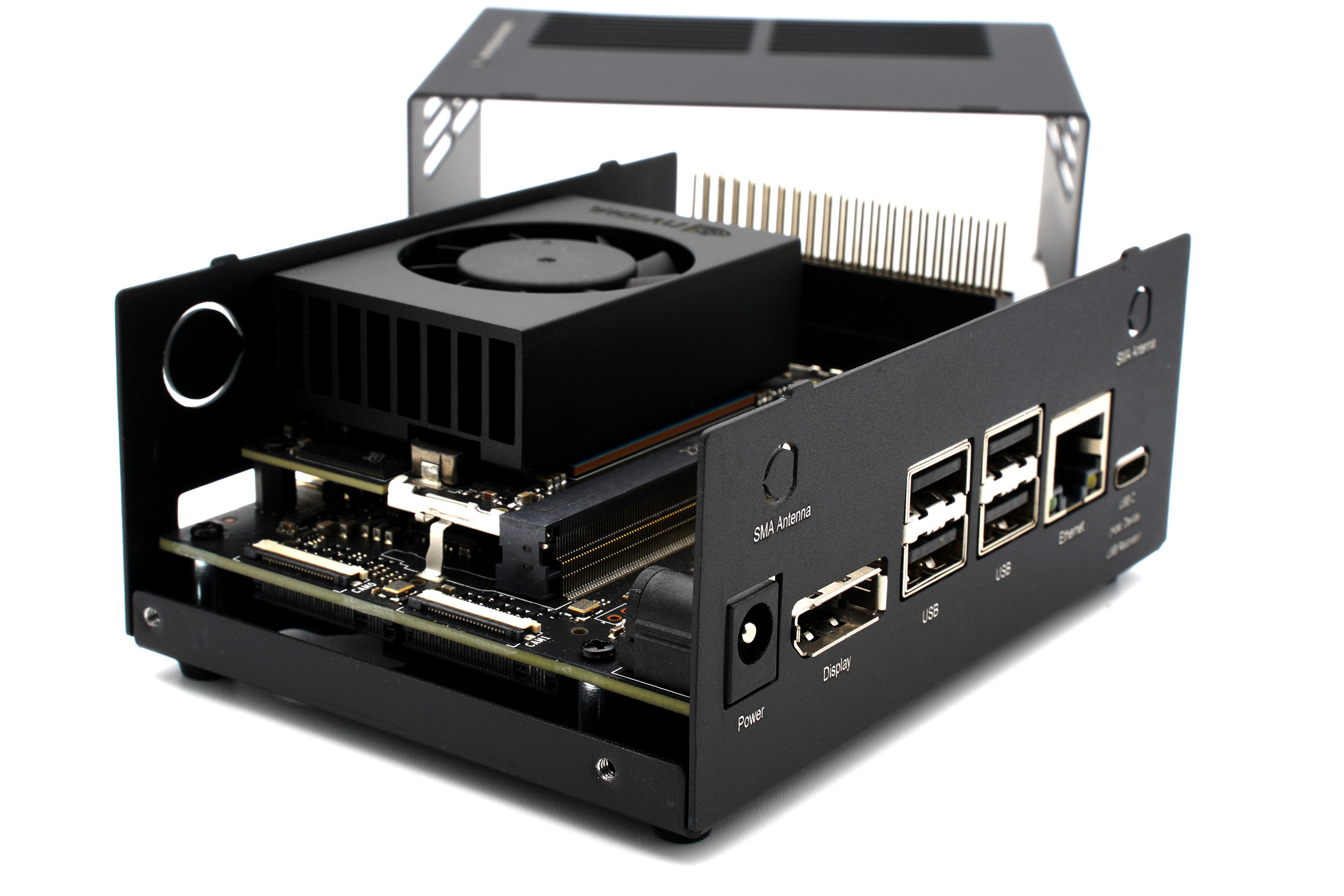

KKSB Jetson Orin Nano Super Developer Kit Case – opened with lid lifted

Optimized Ventilation Above Heatsink

Ventilation slots above the heatsink support efficient airflow, while precision cutouts provide access for ports, connectors, and a 12 mm pushbutton (not included).

Some Examples of Possible Applications

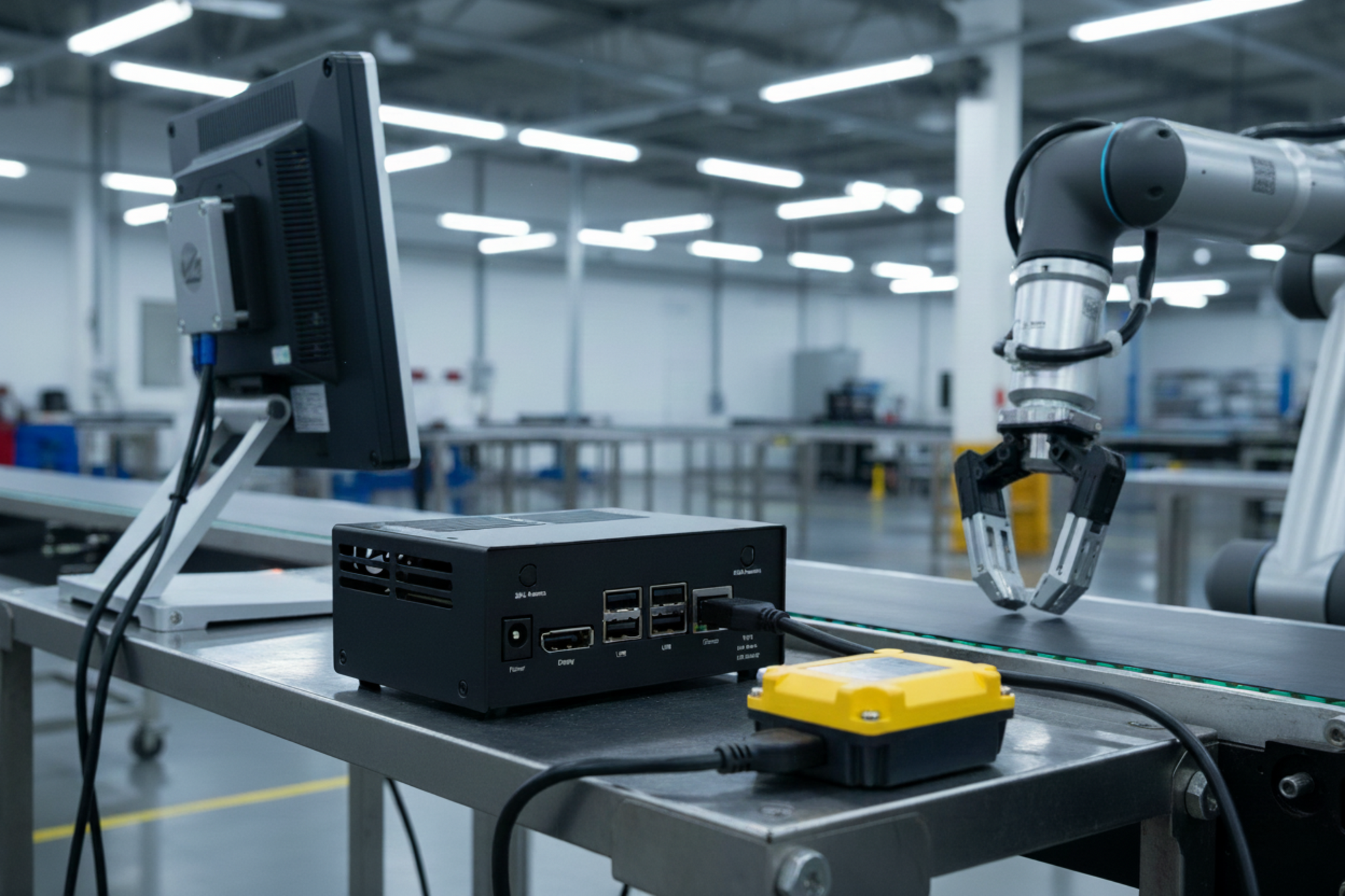

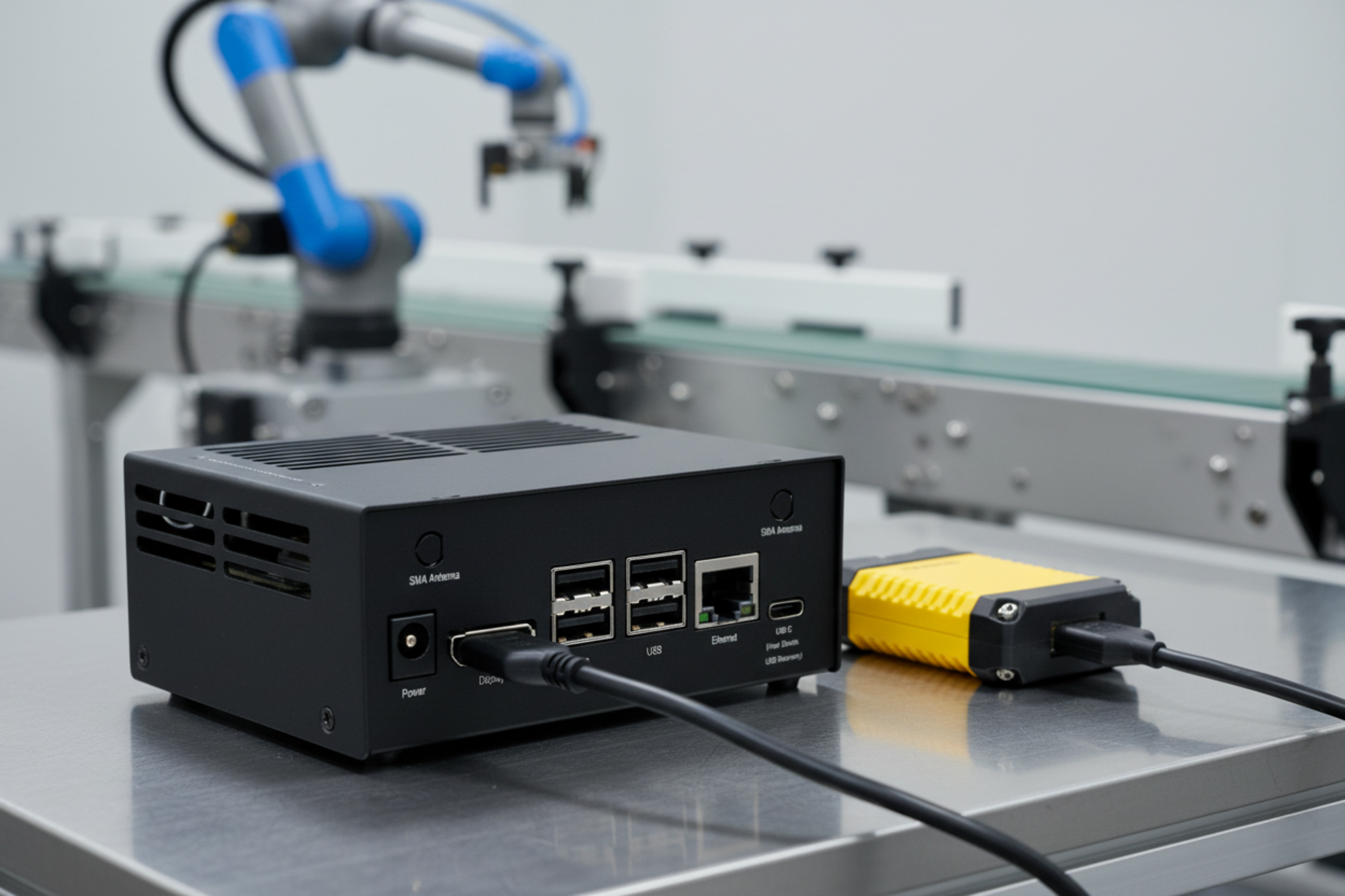

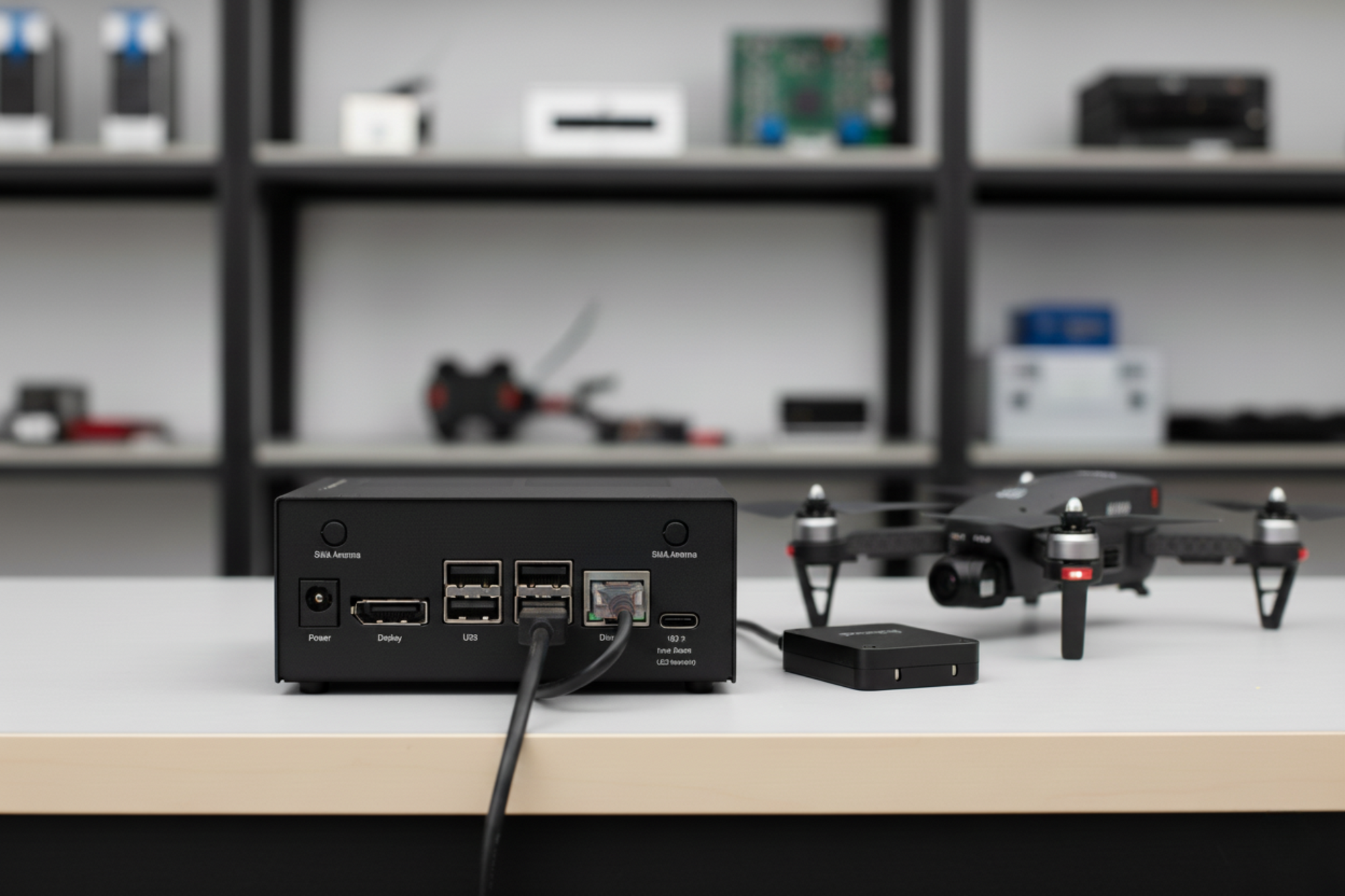

Robotics and Automation – Integrate into robots, drones, or industrial automation units where secure housing and expansion options are needed.

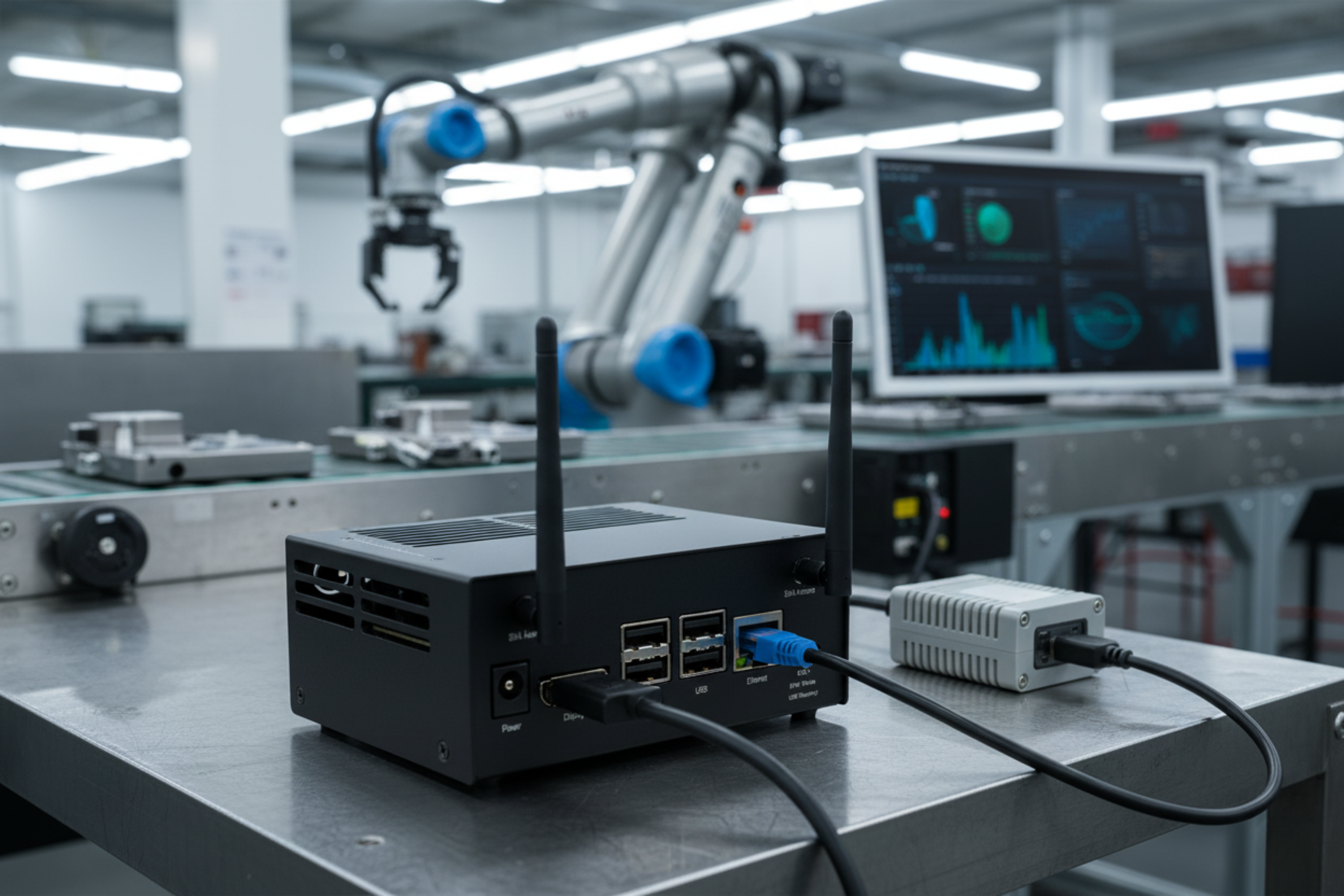

Computer Vision and Smart Cameras – Use with external SMA antennas and camera holder support for vision-based projects.
IoT and Networking Gateways – Build gateways with antenna connectivity for extended wireless communication.

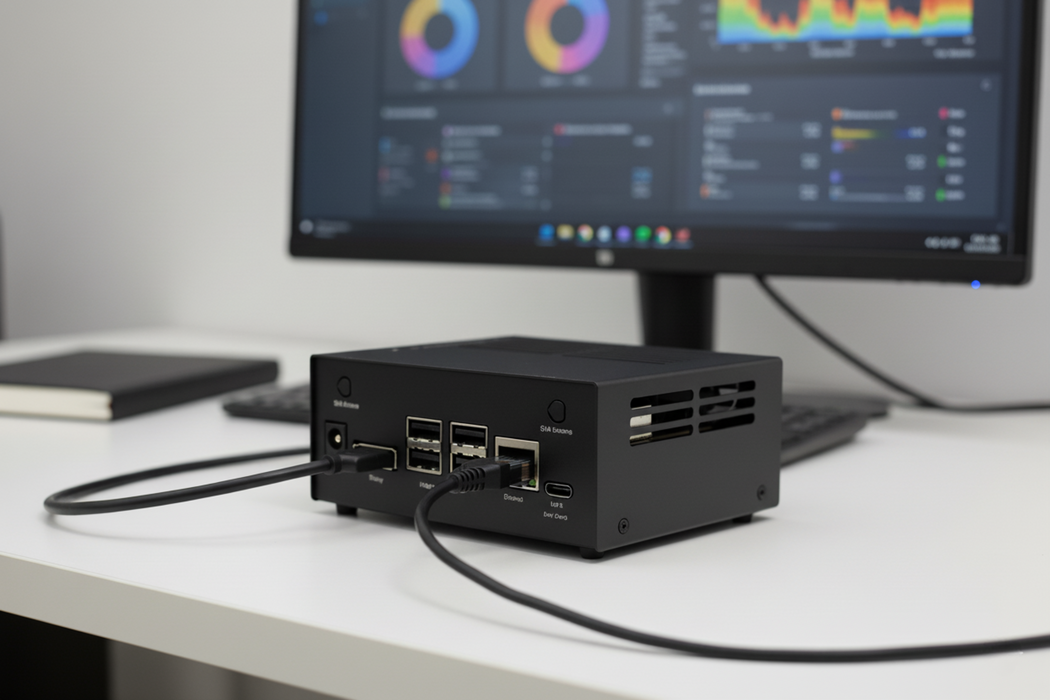

Kiosk and Embedded Systems – Install in panel-mounted setups for kiosks, digital signage, or industrial control panels.

VESA Mounting and Expansion Options

The case includes a VESA 75 interface with two plus-shaped holes for secure mounting on panels or brackets, while rubber feet provide stability on flat surfaces. It also features two SMA antenna cutouts and M3 threaded holes on top, making it easy to connect external antennas or attach the KKSB Camera Holder.

Note: Jetson Orin Nano Super Developer Kit, 12 mm pushbutton, SMA antennas, and KKSB Camera Holder are NOT included.
