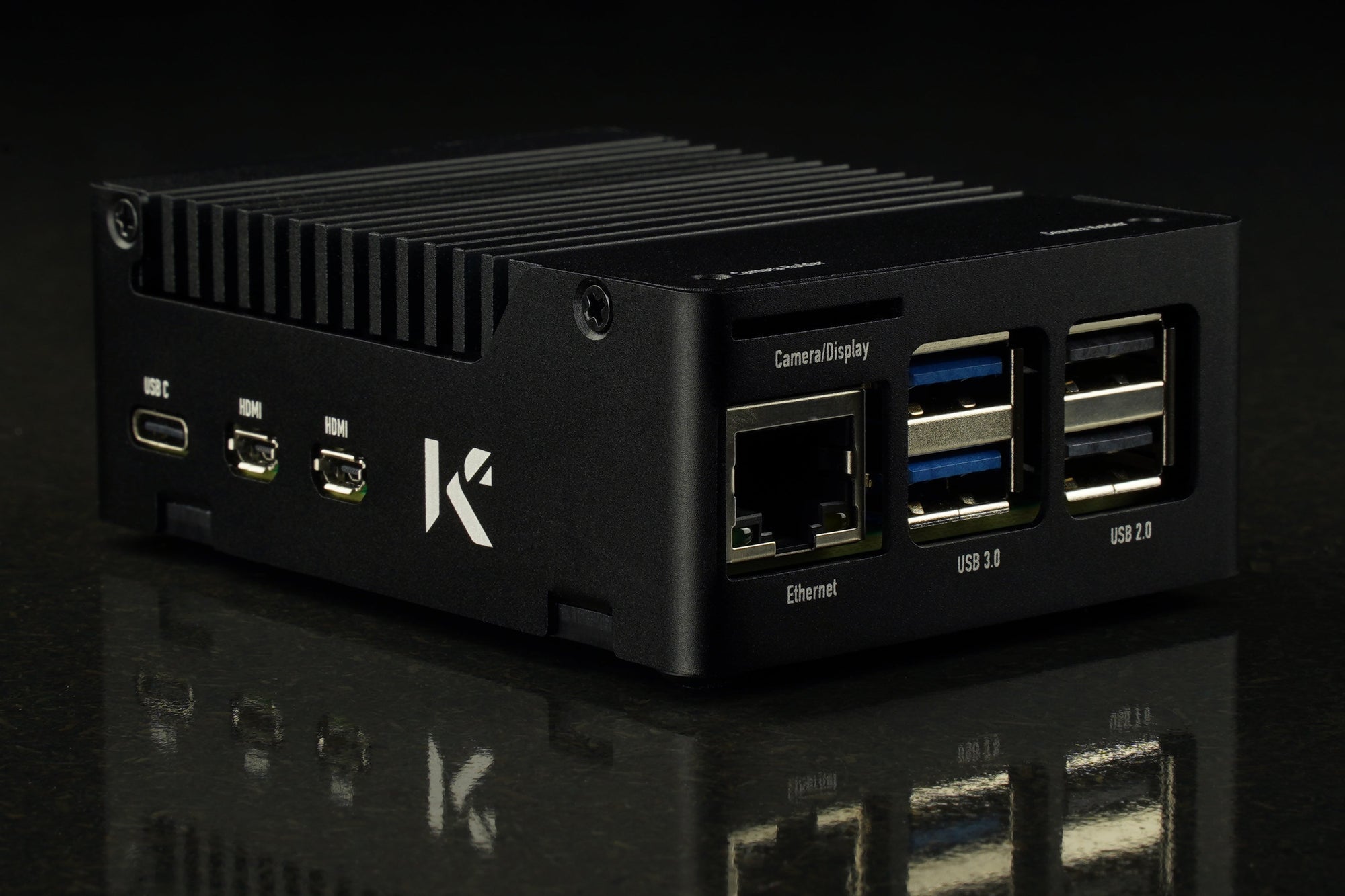

KKSB Raspberry Pi 5 Heatsink Case – port side with labelled Ethernet and USB cutouts

KKSB Raspberry Pi 5 Case with Aluminium Heatsink for Silent Passive Cooling

Name: KKSB Raspberry Pi 5 Case with Aluminium Heatsink for Silent Passive Cooling
Brand: KKSB Cases
SKU: 7350001161662
Price: 25.9 EUR
Availability: InStock
Rating: 5.0 (1 reviews)

€25,90

SKU 7350001161662

Elevate your Raspberry Pi 5 experience with our specially crafted Raspberry Pi 5 Case designed for silent passive cooling via an integrated large black anodised aluminium heatsink.

In stock.

Quantity Liquid error (snippets/product-form line 68): include usage is not allowed in this context

Technical Details

Compatible board: Raspberry Pi 5
Port access: 1 × USB-C (power), 2 × micro-HDMI, 2 × USB 3.0, 2 × USB 2.0, 1 × Gigabit Ethernet, microSD card slot, status LED window, camera/display cable slot, cable slot (marked 'Cables') and GPIO cable slot (all laser-engraved)
Power button: External button integrated in the case
Cooling: Passive cooling via large black anodized aluminium heatsink with thermal pads
GPIO: 40-pin GPIO accessible when the lid is removed; slot for GPIO cables
Material: Black anodized aluminium frame and heatsink, crack-resistant black polycarbonate base
Mounting: Holes for KKSB DIN Rail Mount Clip, KKSB 1/4"-20 UNC Tripod Bracket and KKSB Camera Holder (sold separately); rubber feet
Package dimensions: 120 × 75 × 40 mm; shipping weight 170 g
In the box: Case, heatsink, thermal pads, rubber feet, fasteners
Not included: Raspberry Pi 5, DIN Rail Clip, UNC Bracket, Camera Holder
EAN: 7350001161662

User Manuals

Worldwide shipping
EU delivery: ~ 3-8 days,
Outside the EU: ~ 7-15 days.

Pay using Paypal or Bank Card
We also accept bank payment for larger orders

AI-generated backgrounds are used in some images · Learn more

3D model / Dimensions

KKSB Raspberry Pi 5 Heatsink Case – on a classroom table with robot arms

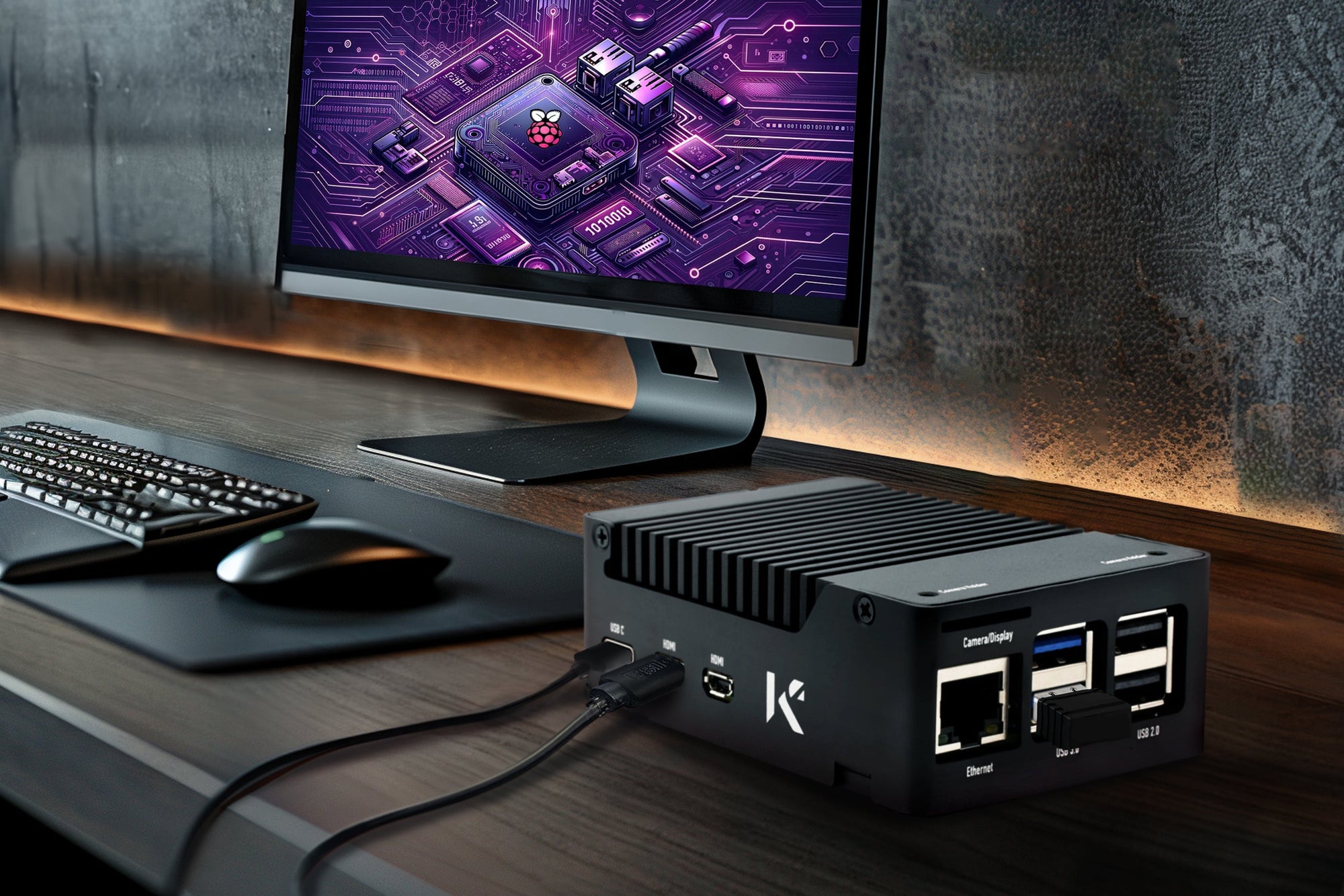

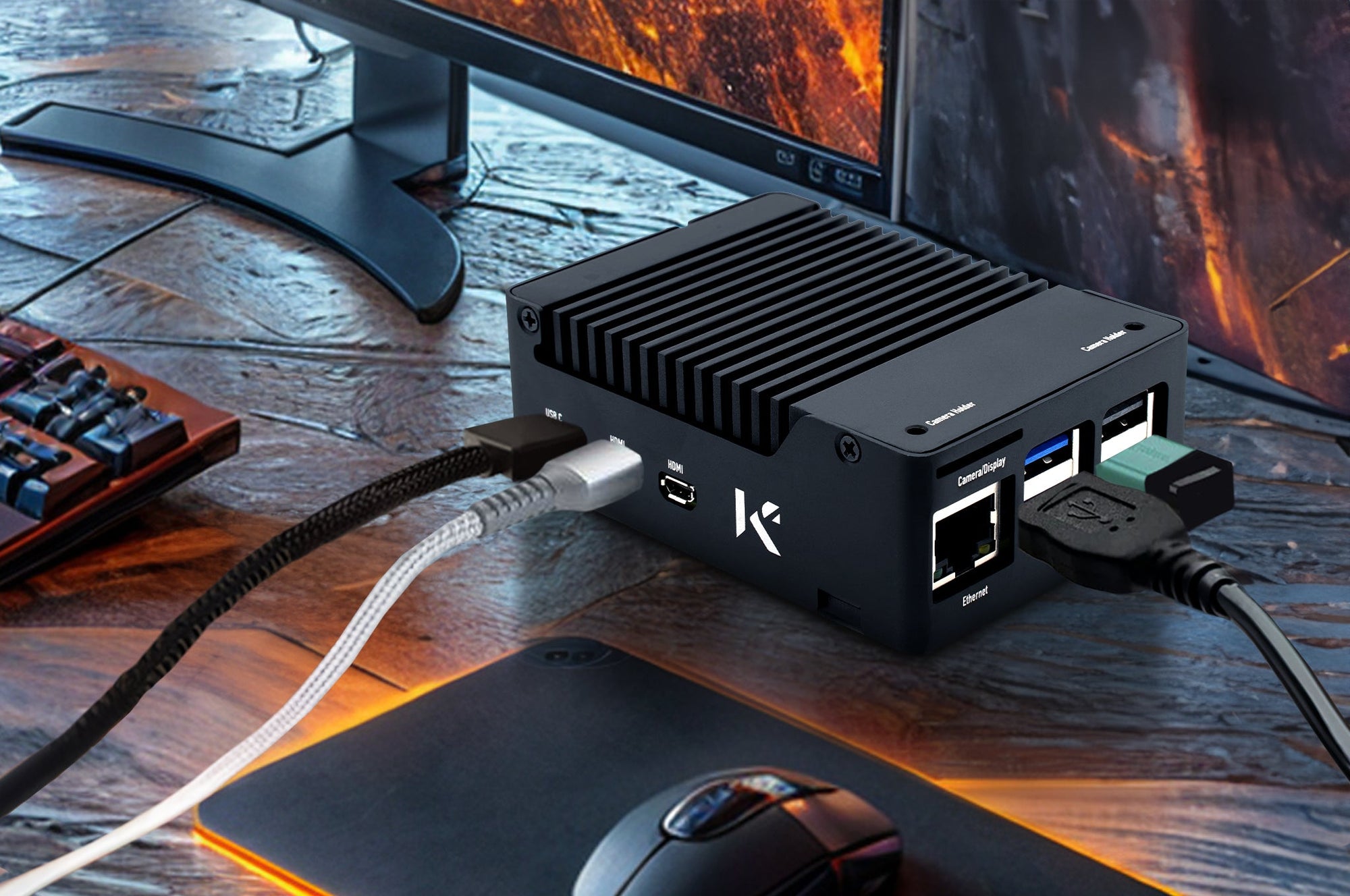

KKSB Raspberry Pi 5 Heatsink Case – on a desk under multiple monitors

KKSB Raspberry Pi 5 Heatsink Case – angled view against a dark background

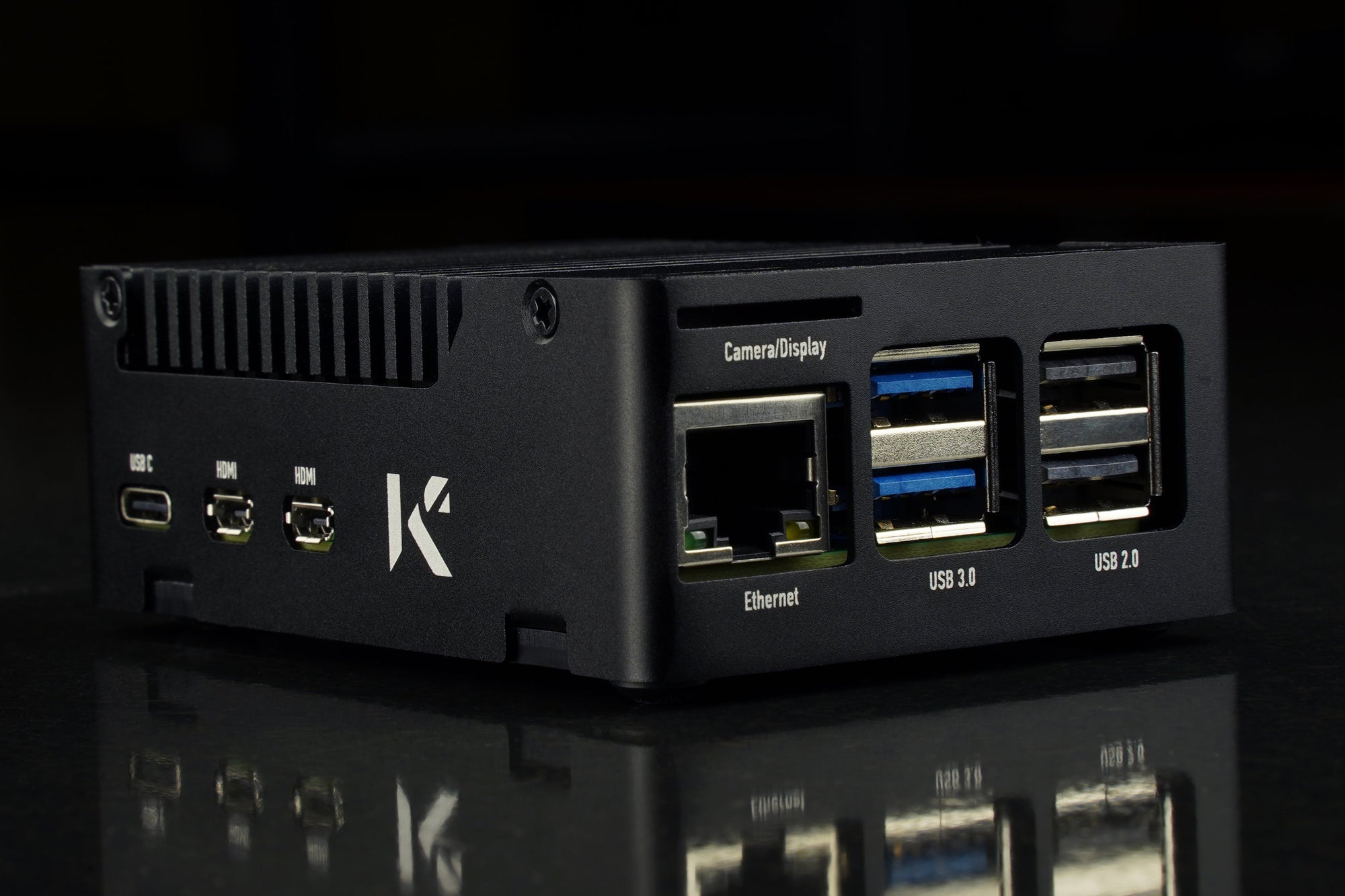

KKSB Raspberry Pi 5 Heatsink Case – port side against a dark background

KKSB Raspberry Pi 5 Heatsink Case – on a factory conveyor line next to a monitor

Durable and Effective Build Quality

Crafted from anodised black aluminium, our case ensures optimal passive cooling without sacrificing silence. The robust aluminium frame, coupled with a strategically designed large heatsink, effectively dissipates heat, maintaining peak performance for your Raspberry Pi 5.

KKSB Raspberry Pi 5 Heatsink Case – end with power button, microSD, status LED and cable slot

Accessibility and Convenience

Featuring laser-engraved labelled cutouts and easy access to the 40-PIN GPIO, our case ensures hassle-free connectivity and expansion options.

Additionally, a dedicated slot for camera/display cables enhances accessibility, while rubber feet provide stability across diverse environments. For assembly guidance, a QR code on the packaging offers quick access to instructions.

KKSB Raspberry Pi 5 Heatsink Case – mounted in an industrial cabinet near a robot arm

Some Examples of Possible Applications

Industrial IoT Monitoring System: Utilize the Raspberry Pi 5 Case with Heatsink for stable performance in demanding environments, with DIN Rail mounting ensuring robustness.
Home Media Center: Transform your Raspberry Pi 5 into a silent home media centre by incorporating the case with tripod mounting, allowing for extended operation during entertainment sessions.
Surveillance Camera Network: Leverage the case's compatibility with camera holders to set up a reliable surveillance camera network for enhanced security.
Educational Robotics Project: Integrate the Raspberry Pi 5 Case into hands-on learning experiences, utilizing its stability and labelled cutouts for easy connectivity in educational robotics projects.
Wireless Sensor Network in Smart Home Setup: Create a seamless wireless sensor network for smart home applications using the case's wireless-friendly polycarbonate base and various mounting options for proper placement.

Wireless-Friendly Polycarbonate Base

Complemented by a crack-resistant polycarbonate base, the case facilitates uninterrupted wireless signal transmission, ideal for applications requiring stable WiFi and Bluetooth connectivity.

Why Should You Buy This Case?

Silent Passive Cooling: Large black anodized aluminium heatsink for silent and effective thermal management.
Wireless-Friendly Design: Black crack-resistant polycarbonate base for optimal WiFi/Bluetooth signal transmission with minimal signal loss.
Versatile Mounting Options: Ideal for industrial installations and different settings. The case is compatible with the KKSB DIN Rail Mount Clip, KKSB Camera Holder, and KKSB UNC Thread Bracket for Tripod mounting (these accessories are Not Included).
User-Friendly Accessibility: Laser-engraved cutouts for connectors. Dedicated slot for the camera/display cable, and an additional slot to pass suitable cables at the back side of the case.
Reliable Build Quality: The case structure and the heatsink are made of anodised aluminium. The black surface treatment contributes to the appealing design of the case.

The case boasts a user-friendly design, featuring laser-engraved labelled cutouts for easy access to Raspberry Pi 5 connectors, alongside an integrated start button for added convenience.

KKSB Raspberry Pi 5 Heatsink Case – bottom view with mounting holes and polycarbonate base

Versatile Mounting Options

Our case offers versatility with compatibility for various mounting solutions, including the KKSB DIN Rail Mount Clip for industrial applications, the KKSB UNC Thread Bracket for tripod mounting, and the KKSB Camera Holder for projects requiring visual assistance or monitoring.
