KKSB Raspberry Pi 5 Case Aluminium Black

Name: KKSB Raspberry Pi 5 Case Aluminium Black
Brand: KKSB Cases
SKU: 7350001161648
Price: 11.9 EUR
Availability: InStock
Rating: 5.0 (3 reviews)

€11,90

SKU 7350001161648

Raspberry Pi 5 Case is sleek and sophisticated KKSB Case, meticulously crafted for both functionality and style. This case, with its black sandblasted aluminium finish, is perfect for your Raspberry Pi 5.

In stock.

Quantity Liquid error (snippets/product-form line 68): include usage is not allowed in this context

Technical Details

Compatible board: Raspberry Pi 5
Port access: 1 × USB-C (power), 2 × micro-HDMI, 2 × USB 3.0, 2 × USB 2.0, 1 × Gigabit Ethernet, microSD card slot, status LED window, cable slot (marked “Cables”) and the 40-pin GPIO header through the lid via the included stackable header
Power button: Integrated in the case; operates the Raspberry Pi 5 power button
GPIO: All 40 GPIO pins laser-labelled on the lid
Cooling: Hexagonal ventilation openings in the lid; space for the official Raspberry Pi 5 Active Cooler (not included)
Material: Laser-cut, sandblasted black aluminium
Mounting: Holes for wall mounting; compatible with KKSB DIN Rail Clip, KKSB Tripod (1/4"-20 UNC) Bracket and up to 2 KKSB Camera Holders via 2 M3 holes on the lid (sold separately); rubber feet
Package dimensions: 100 × 75 × 45 mm
In the box: Case, all fasteners, rubber feet, 40-pin stackable GPIO header
Not included: Raspberry Pi 5, Active Cooler, KKSB accessories
EAN: 7350001161648

User Manuals

Worldwide shipping
EU delivery: ~ 3-8 days,
Outside the EU: ~ 7-15 days.

Pay using Paypal or Bank Card
We also accept bank payment for larger orders

AI-generated backgrounds are used in some images · Learn more

3D model / Dimensions

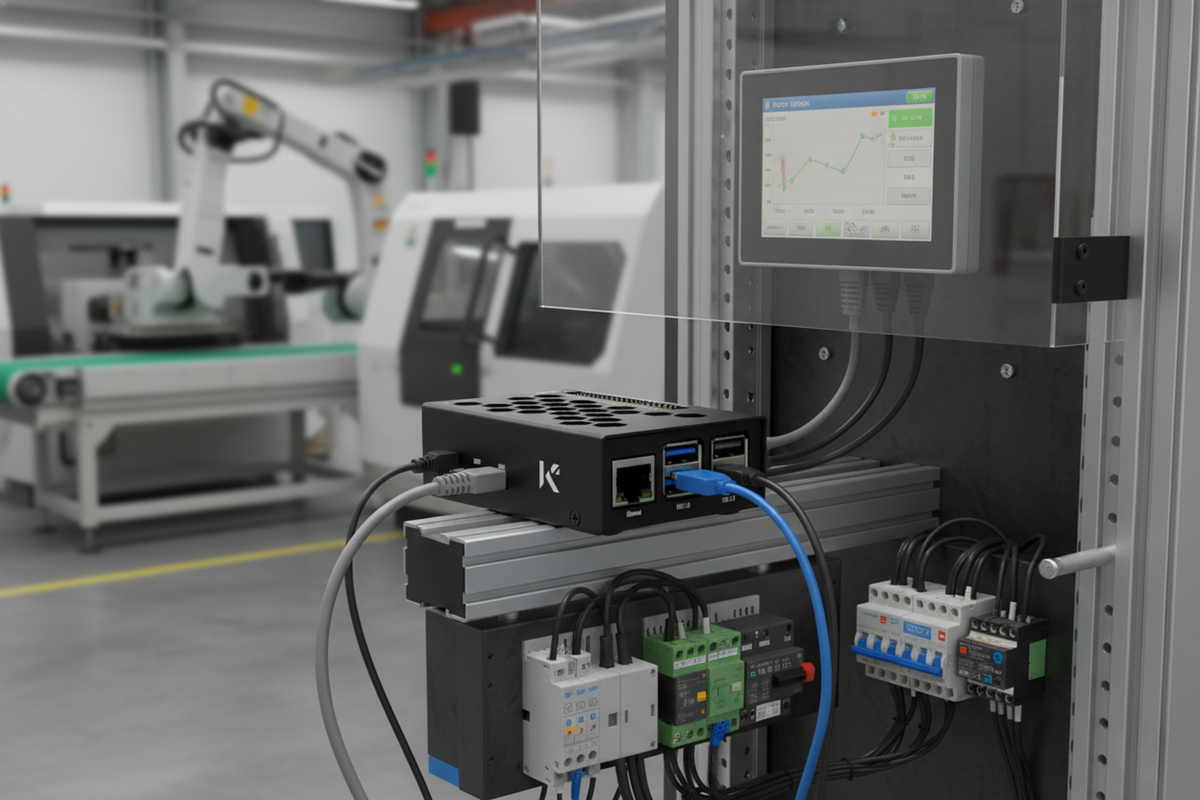

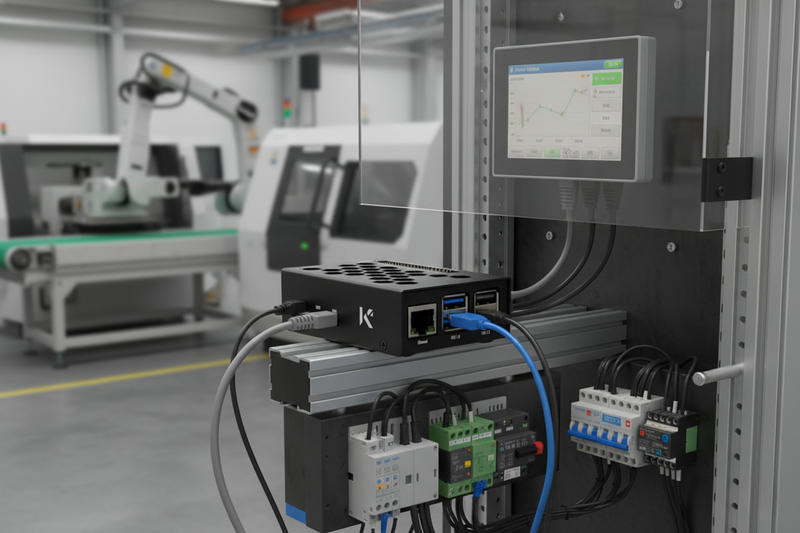

KKSB Raspberry Pi 5 Case Aluminium Black on a DIN rail in an industrial control cabinet

KKSB Raspberry Pi 5 Case Aluminium Black in an outdoor gate control cabinet

KKSB Raspberry Pi 5 Case Aluminium Black opened with Raspberry Pi 5 inside

KKSB Raspberry Pi 5 Case Aluminium Black – angled view of ports

Sleek and Sophisticated Case

Elevate your Raspberry Pi 5 experience with the sleek and sophisticated KKSB Case, meticulously crafted for both functionality and style. This case, with its black sandblasted aluminium finish, is not just a protective enclosure but a statement piece for your tech setup. Whether you're setting up a Raspberry Pi 5 in an industrial setting or adding it to your home tech collection, the KKSB Raspberry Pi 5 Case is the perfect blend of durability, functionality, and style. Upgrade your Raspberry Pi experience today!

KKSB Raspberry Pi 5 Case Aluminium Black on a desk next to a monitor

Minimalist Yet Stable Design

Minimalistic Design: Clean, minimalistic aesthetics that fit seamlessly in both industrial and home environments.
Stability Assured: Equipped with rubber feet to ensure stability and prevent slipping.
Easy Access: Designed for easy access to the most important connectors and functions.

KKSB Raspberry Pi 5 Case Aluminium Black as a desktop computer with monitor

Why Should You Choose This Case?

Complete Compatibility: Fully compatible with the official Raspberry Pi cooler.
High-Quality Material: Constructed from laser-cut, sandblasted aluminum, this case features laser-etched openings for precise fit and finish.
Easy Wall Mounting: Equipped with mounting holes for a hassle-free wall installation.
Simple Assembly: With a QR code on the product packaging, access our user-friendly assembly instructions in seconds.
Clearly Labelled GPIO Pins: Stay organized with all GPIO pins laser-etched on the top lid, ensuring easy identification.
Enhanced Ventilation: Ample ventilation openings on the top, designed for optimal cooling efficiency.
Integrated Start Button: For added convenience, a start button is seamlessly integrated into the case design.
