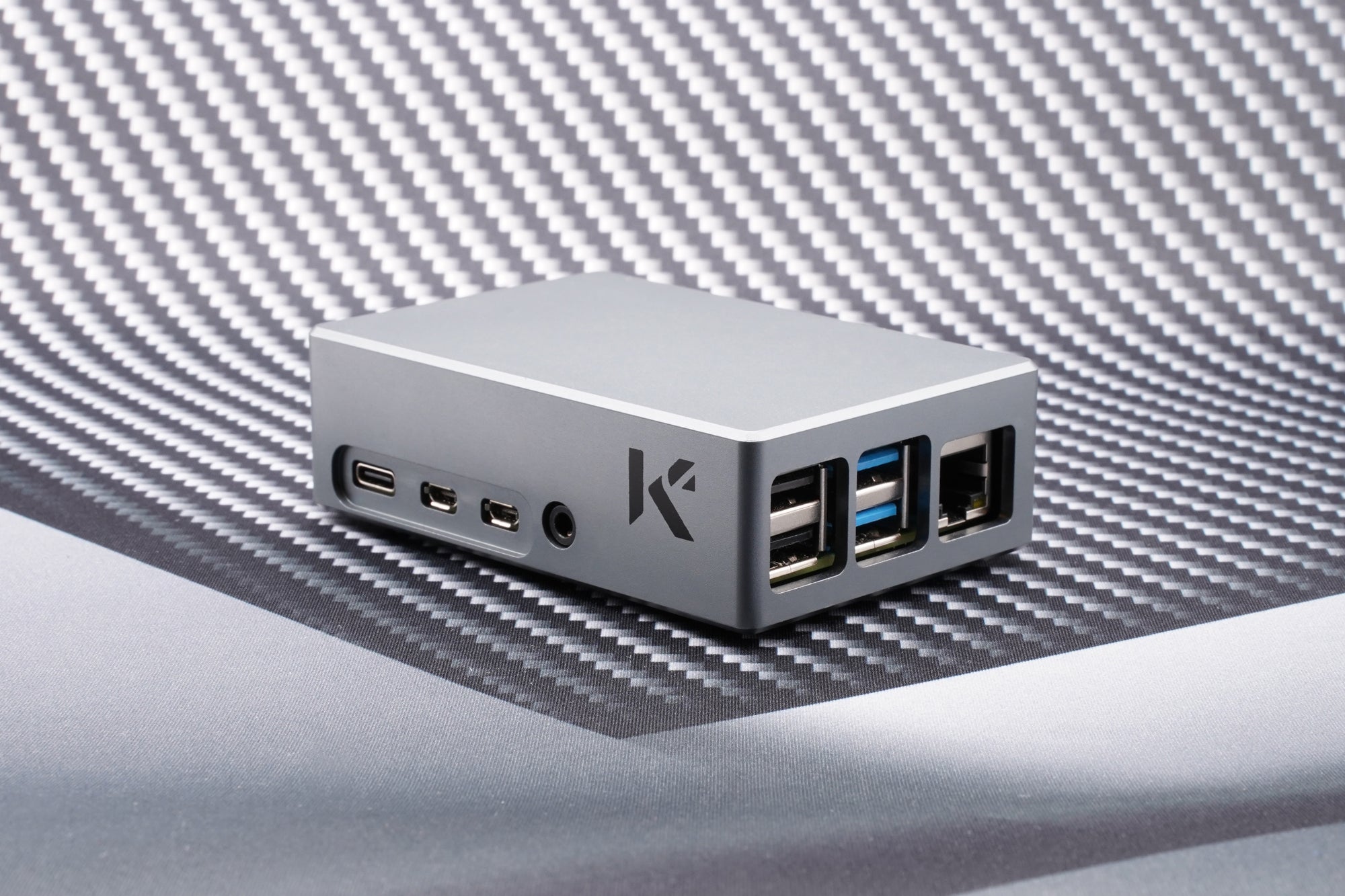

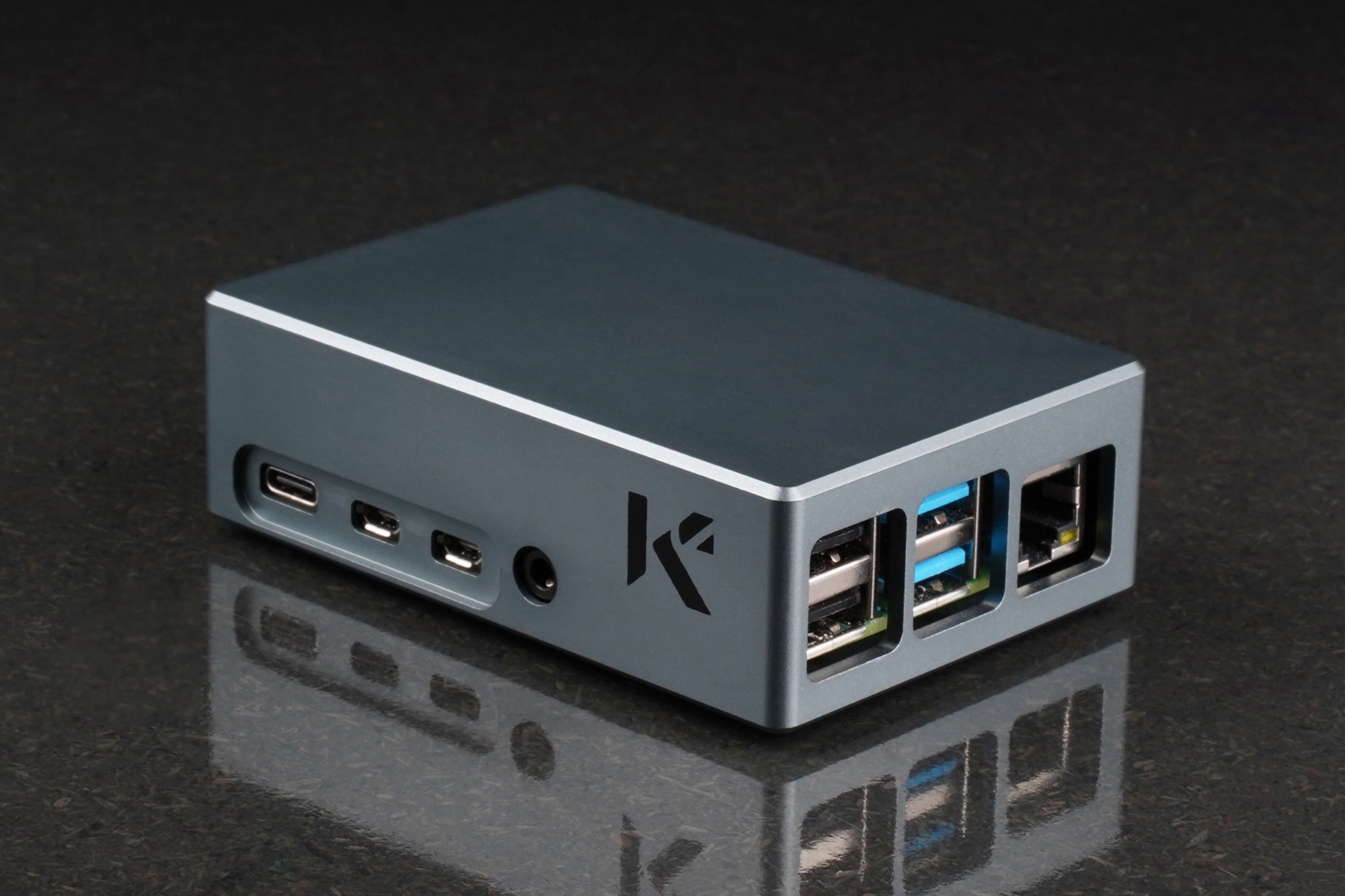

KKSB Raspberry Pi 4 Heatsink Case – Ethernet and USB end

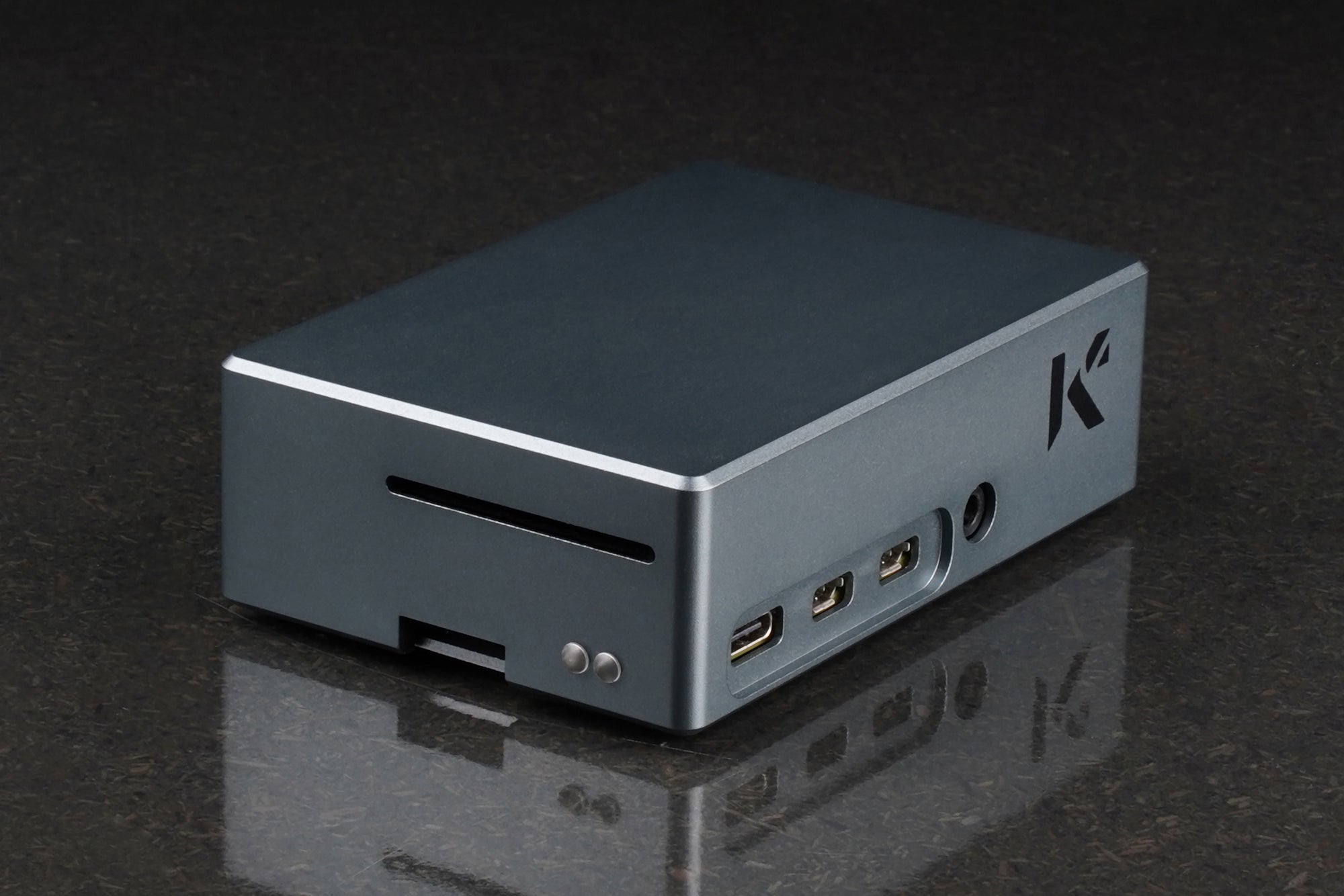

KKSB Raspberry Pi 4 Heatsink Case – Machined Aluminium Passive Cooling Case

Name: KKSB Raspberry Pi 4 Heatsink Case – Machined Aluminium Passive Cooling Case
Brand: KKSB Cases
SKU: 7350001160634
Price: 24.9 EUR
Availability: InStock
Rating: 5.0 (11 reviews)

€24,90

SKU 7350001160634

This Raspberry Pi aluminium heatsink case is specifically designed for the Raspberry Pi 4, provides an optimal way to protect and cool your Raspberry Pi 4B. Made from aluminum and featuring a grey anodized color.

In stock.

Quantity Liquid error (snippets/product-form line 68): include usage is not allowed in this context

Technical Details

Compatible board: Raspberry Pi 4 Model B
Port access: 1 × USB-C (power), 2 × micro-HDMI, 3.5 mm audio jack, 2 × USB 3.0, 2 × USB 2.0, 1 × Ethernet, microSD slot, 2 LED light pipes; side slot for GPIO access with single jumper wires
Cooling: Built-in heatsink with thermal pad; passive cooling, no space for a fan
GPIO: Accessible through a side slot; a 40-pin GPIO ribbon cable may be too large – single jumper cables recommended
Material: CNC-machined aluminium, grey anodized
Mounting: 2 pre-cut mounting holes; rubber feet
Package dimensions: 120 × 80 × 40 mm; shipping weight 160 g
In the box: Case, light pipes, 4 rubber feet, 4 screws and fasteners, thermal pad
Not included: Raspberry Pi 4, fan
EAN: 7350001160634

User Manuals

Worldwide shipping
EU delivery: ~ 3-8 days,
Outside the EU: ~ 7-15 days.

Pay using Paypal or Bank Card
We also accept bank payment for larger orders

AI-generated backgrounds are used in some images · Learn more

3D model / Dimensions

KKSB Raspberry Pi 4 Heatsink Case – next to a CRT TV running a retro game

KKSB Raspberry Pi 4 Heatsink Case – on a lab bench with test equipment

KKSB Raspberry Pi 4 Heatsink Case – on a living room side table under a screen

Durable and Sleek Design

The KKSB Raspberry Pi 4 Heatsink Case is a passive-cooling solution for your Raspberry Pi 4 board. This Raspberry Pi 4 enclosure is an effective silent cooling solution. The case features a built-in heatsink, which eliminates the need for a cooling fan, making it a perfect solution for those who want a quiet and efficient way to cool their Raspberry Pi 4B. The bottom of the case features rubber feet for optimal stability. The package also includes a couple of LED indicators, 4 rubber feet, and 4 screws to assemble the lid and the bottom.

Cutouts for Convenient Access

This Raspberry Pi 4 case includes cutouts for USB interfaces, Ethernet, Audio Jack, HDMI, MicroUSB, Power, etc. However, 40-pin GPIO cables can be too large and it is better to use single jumper cables to connect to the GPIO.

Easy to Mount

KKSB Raspberry Pi 4 heatsink case also includes 2 pre-cut mounting holes, making it easy to mount your Raspberry Pi 4B to a wall or on the back of a monitor.

Some Examples of Possible Applications

Media center: The Raspberry Pi 4 case with built-in heatsink can be used to build a media center for streaming movies, music, and TV shows.
Retro gaming: The case can be used to build a retro gaming console using the Raspberry Pi 4 and emulators for classic consoles.
Home automation: The case can be used to build a home automation system using the Raspberry Pi 4 and various sensors and actuators.
Surveillance: The case can be used to build a surveillance system using the Raspberry Pi 4 and a camera module, which can be accessed remotely.
Desktop PC: The case can be used to build a desktop PC using the Raspberry Pi 4, which can be used for basic productivity tasks such as document editing, web browsing, and email.
NAS (Network Attached Storage): The case can be used to build a NAS using the Raspberry Pi 4 and an external hard drive, which can be used to store and share files on a local network.
Weather Station: The case can be used to build a weather station using the Raspberry Pi 4 and various sensors for monitoring temperature, humidity, pressure, and other weather parameters.
Robotics: The case can be used to build a robot using the Raspberry Pi 4 and various actuators and sensors, which can be programmed to perform various tasks.
IoT (Internet of Things) device: The case can be used to build an IoT device using the Raspberry Pi 4, which can be connected to the internet to collect and transmit data.

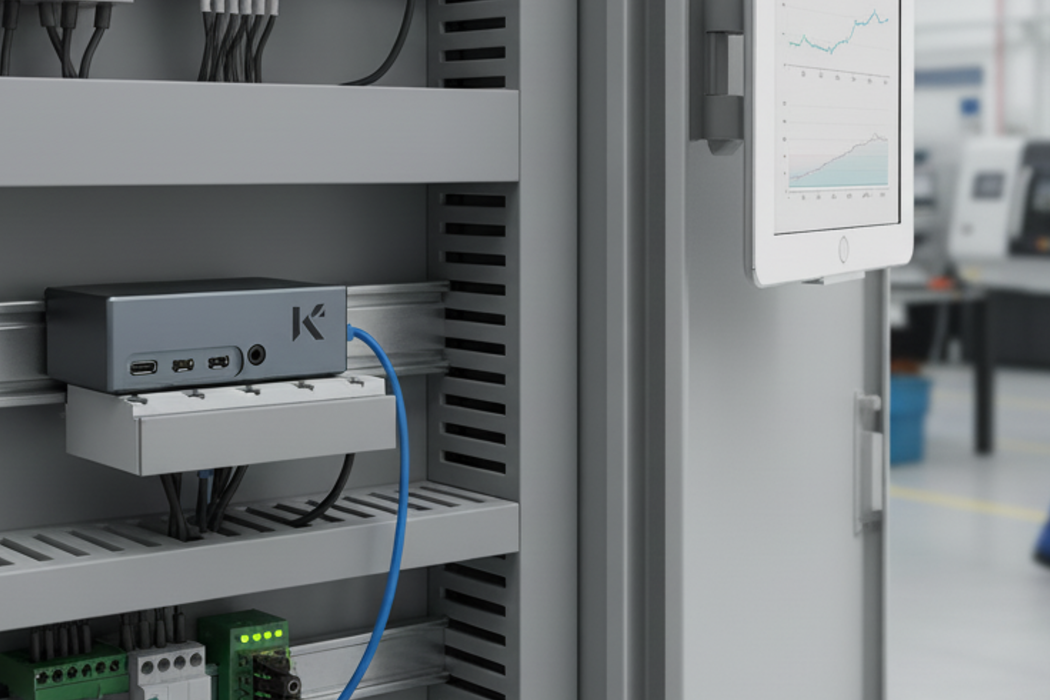

Industrial Automation: The case can be used to build an industrial automation system using the Raspberry Pi 4 and various sensors, actuators, and industrial protocols.

Why Should You Choose This Case?

Provides efficient passive cooling for the Raspberry Pi 4 board
Built-in heatsink eliminates the need for a cooling fan, making it a quiet and efficient cooling solution.
Durable aluminum construction provides optimal protection for the Raspberry Pi 4 board.
Sleek and professional design, with a grey anodized color, that blends in well with any setup.
Cutouts for USB interfaces, Ethernet, Audio Jack, HDMI, MicroUSB, Power, etc.
Easy to install and mount, with 2 pre-cut mounting holes and included screws, rubber feet and LED indicators.
Perfect for a variety of applications such as media center, retro gaming, home automation, surveillance, desktop PC, and more.

Built-in Heatsink for Efficient Cooling

KKSB Raspberry Pi 4 Aluminium case features a built-in heatsink, eliminating the need for a cooling fan, making it a perfect solution for those who want a quiet and efficient way to cool their Raspberry Pi 4B. The case also includes a thermal pad for efficient heat dissipation.

However, please note that this KKSB Raspberry Pi 4 Heatsink Case does not have space for Raspberry Pi 4 fan.

Items included

KKSB Raspberry Pi 4 Case
Light Pipes
Fasteners and Screws
Rubber Feet

KKSB Raspberry Pi 4 Machined Aluminum Case

Excellent case quality!

KKSB Raspberry Pi 4 Machined Aluminum Case

Solid Case

An excellent solid case with built-in heat sink

A Case That Sold The SBC

The Pi 4 was the first in the series I was not going to buy. I have multiples of all previous versions. I'm not at all happy with the dual micro HDMI connectors.
I doubt more than one person in a thousand actually uses the Pi 4 as a desktop replacement. Most that have tried it do it as an experiment.
Dual monitors are not needed by the overwhelming majority of users.
On the Pi 4 they were catering to the extreme minority of users and not the majority. It should have had a single full size HDMI port.
I was so disappointed in the changes made to this board I decided to skip it altogether in the hopes the Pi 5 gets it right.
I do appreciate the choice of 4GB RAM and feel this is the best thing it has going for it.
Then I saw this beautiful case and it convinced me to buy a Pi 4 to use the case. The Raspberry Pi series has got to be the absolute most competitive boards to market a case for.
The available case variants are almost limitless.
I look for certain things when buying a case for any SBC.
1. It must be capable of cooling the board without a fan.
2. I won't settle for anything less than a machined anodized aluminum case.
3. The case must not increase the footprint of the SBC any more than absolutely required.
4. The case must look very good to compliment the SBC for which it was intended.
This case exceeds all my expectations so I bought the KKSB case first and a 4GB model Pi 4 second.
Don't concern yourself if the case starts to feel rather warm with a load on the Pi 4. It's just a sign it's doing it's job of pulling the heat of the CPU and into the case.
The entire case works as a heat sink and it does it quite well.
I am so delighted to see a company that takes pride in the way their products perform and look.
I just ordered a couple of KKSB machined aluminum Khadas Vim 3 cases. I will be buying the Vim 3 pro boards shortly.
The Vim 3 is another SBC I have been holding back on. The reason for that is there was a lack of quality cases for it.
I couldn't see spending $140USD on an SBC with the only case option being a cheap looking plastic case.
KKSB has solved this problem.
KKSB team, If you read this PLEASE make a finely machined and anodized case for the new Odroid C4.
There is currently nothing out there but the cheap plastic case from the manufacturer.
I'll be waiting on buying an Odroid C4 for better cases to be available. KKSB, you can make that happen before anyone else does.
