KKSB Jetson Orin Nano Case – rear with DC power, DisplayPort, 4 × USB 3.0, Ethernet, USB-C and SMA knockouts

KKSB NVIDIA Jetson Orin Nano Developer Kit Case

Name: KKSB NVIDIA Jetson Orin Nano Developer Kit Case
Brand: KKSB Cases
SKU: 7350001161518
Price: 23.9 EUR
Availability: InStock
Rating: 4.75 (8 reviews)

€23,90

SKU 7350001161518

The KKSB NVIDIA Jetson Orin Nano Developer Kit case, made from powder-coated steel, is designed exclusively for the official NVIDIA Jetson Orin Nano Developer Kit.

Note: You must remove the plastic base from the NVIDIA Orin Board to fit it inside the case.

In stock.

Quantity Liquid error (snippets/product-form line 68): include usage is not allowed in this context

Technical Details

Compatible board: Official NVIDIA Jetson Orin Nano Developer Kit (the kit's plastic base must be removed)
Port access: Rear: DC power jack (9–20 V), DisplayPort, 4 × USB 3.0, 1 × Gigabit Ethernet, 1 × USB-C (host, device, USB recovery). Side: microSD slot, opening for the button header with each pin labelled (LED−, LED+, UART2 RXD/TXD, DISABLE, AUTO ON, RESET, FC REC, GROUND, PWR BUTTON). Other side: camera cable slots, power LED window. Top: 40-pin GPIO header opening with pin names marked
Power button: External start button included, mounted in the side of the case
Antenna: 2 knockouts marked “SMA External Antenna”; two plastic plates in the bottom let WiFi through, with self-adhesive tape included for fixing the antennas there
Cooling: Ventilation slots above the Jetson Orin Nano's fan; air is drawn in at the middle and blown out at the sides
Material: Powder-coated steel, black
Mounting: Interface in the bottom for the KKSB DIN Rail Clip; threads on top for KKSB Camera Holders (both sold separately); rubber feet
In the box: Case, rubber feet, start button, self-adhesive tape
Not included: Jetson Orin Nano Developer Kit, antennas, SMA connectors, KKSB DIN Rail Clip, KKSB Camera Holder
EAN: 7350001161518

User Manuals

Worldwide shipping
EU delivery: ~ 3-8 days,
Outside the EU: ~ 7-15 days.

Pay using Paypal or Bank Card
We also accept bank payment for larger orders

AI-generated backgrounds are used in some images · Learn more

3D model / Dimensions

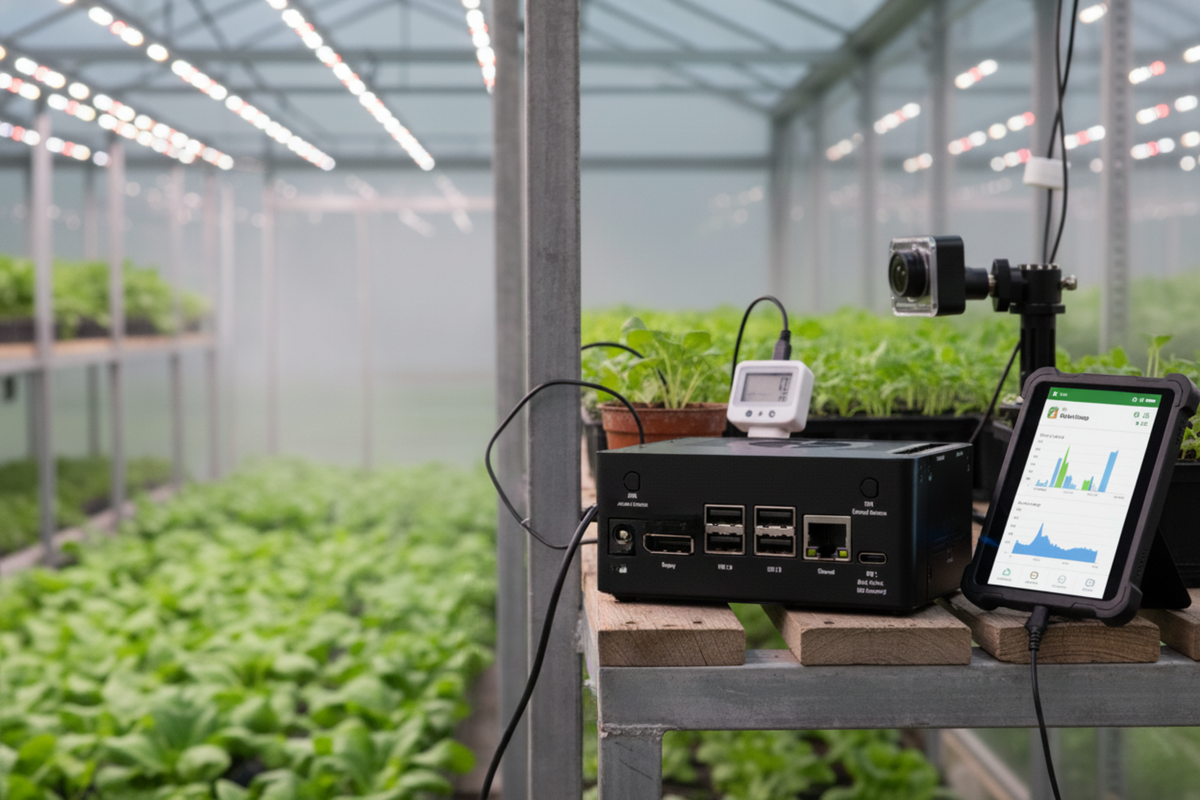

KKSB Jetson Orin Nano Case – in a greenhouse next to a tablet and sensor

KKSB Jetson Orin Nano Case – on a TV bench below a wall-mounted TV

Versatile Yet Durable Case

The KKSB NVIDIA Jetson Orin Nano Developer Kit case from KKSB Cases is the perfect choice for professionals seeking a high-quality, functional, and durable case. With its robust construction, efficient ventilation, connectivity options, and compatibility with the official NVIDIA Jetson Orin Nano Developer Kit, this case ensures your device is protected and performs optimally.

Efficient Ventilation Slots

This case features ventilation slots right above the Jetson Orin Nano's fan, which ensures optimal cooling and prevents overheating. The cold air is sucked down in the middle and blown out in the sides, providing efficient airflow to keep your device running smoothly.

Why Should You Choose This Case?

Optimal Protection: The heavy and robust construction of the case, made from powder-coated steel, ensures excellent protection for your NVIDIA Jetson Orin Nano Developer Kit.
Efficient Cooling: The ventilation slots located above the fan of the Jetson Orin Nano prevent overheating and promote optimal cooling, maintaining the smooth operation of your device.
Strong WiFi Connectivity: The included plastic plates with self-adhesive tape allow for strong WiFi connectivity, ensuring reliable and uninterrupted wireless connections.
Stability and Easy Access: Rubber feet provide stability for the case, while the start button offers easy access and control of your device.
Convenient Interface: The cutouts for common interfaces eliminate the need to open the case, making it easy to connect various devices and peripherals.
Perfect Fit: Designed specifically for the KKSB NVIDIA Jetson Orin Nano Developer Kit, this case guarantees a precise fit, ensuring compatibility and proper functionality.
Mounting Options: The interface at the bottom of the case accommodates the KKSB Din rail clip (not included), providing flexible mounting options.
Camera Compatibility: The threads on top of the case support KKSB Camera holders, enabling effortless attachment of a camera for capturing footage.
Enhanced Connectivity: The two cutouts for external antennas enable you to enhance your device's connectivity and signal strength.
Easy Pin Connection: The pin names marked on the top of the case facilitate easy connection without the need to open the case and locate the correct pin.

Mounting Options

In the bottom of the case, there is an interface that allows you to mount the KKSB Din rail clip (sold separately) for din rail mount.

Convenient Features

This case also comes with rubber feet for added stability and protection, as well as a start button for easy use. On top of the case, there are threads compatible with KKSB Camera holders, making it easy to attach your camera and capture footage. Finally, each pin is marked with a name on the top of the case, making it easier to connect without having to open the case and locate the correct pin.

Seamless Connectivity

There is a cutout for most common interfaces in the case, making it easy to connect all your devices without having to open the case. There are also two cutouts for external antennas, allowing you to further improve your device's connectivity. At the bottom of the case, there are two plastic plates that let WiFi through. Self-adhesive tape is included with the case to attach the antennas to here, providing strong connectivity for your device.
