KKSB HAT Case for Raspberry Pi 5

Name: KKSB HAT Case for Raspberry Pi 5
Brand: KKSB Cases
SKU: 7350001162034
Price: 13.99 EUR
Availability: InStock

€13,99

SKU 7350001162034

The KKSB HAT Case for Raspberry Pi 5 doesn't just protect your Raspberry Pi; it empowers it by supporting a wide range of add-on boards. Constructed from sandblasted black anodized aluminum, it shields your Pi 5 from accidental damage, dust, and overheating—common threats in bustling DIY environments or on-the-go IoT projects.

In stock.

Quantity Liquid error (snippets/product-form line 68): include usage is not allowed in this context

Technical Details

Compatible board: Raspberry Pi 5
Compatible HATs: Most standard Raspberry Pi 5 HATs and NVMe HATs; long and short spacers included for HATs with long or short GPIO headers
Port access: 1 × USB-C (power), 2 × micro-HDMI, 2 × USB 3.0, 2 × USB 2.0, 1 × Gigabit Ethernet, microSD card opening and side access for a 40-pin GPIO cable
Power button: External button integrated in the case that operates the Raspberry Pi 5 power button
Cooling: Ventilation slots in both side panels; fits the official Raspberry Pi 5 Active Cooler (included 40-pin stackable header leaves an airflow gap between cooler and HAT); room for heatsinks or low-profile coolers
Expansion: Side-panel ventilation slots can be removed to give access to HATs with connectors in different positions
Material: Sandblasted black anodized aluminium
Mounting: 2 keyholes on the bottom for wall mounting; rubber feet
Package dimensions: 100 × 74 × 22 mm; shipping weight 110 g
In the box: Case, long and short spacers, screws, rubber feet, 40-pin stackable GPIO header
Not included: Raspberry Pi 5, HAT/NVMe HAT, cooler, GPIO cable
EAN: 7350001162034

User Manuals

Worldwide shipping
EU delivery: ~ 3-8 days,
Outside the EU: ~ 7-15 days.

Pay using Paypal or Bank Card
We also accept bank payment for larger orders

AI-generated backgrounds are used in some images · Learn more

3D model / Dimensions

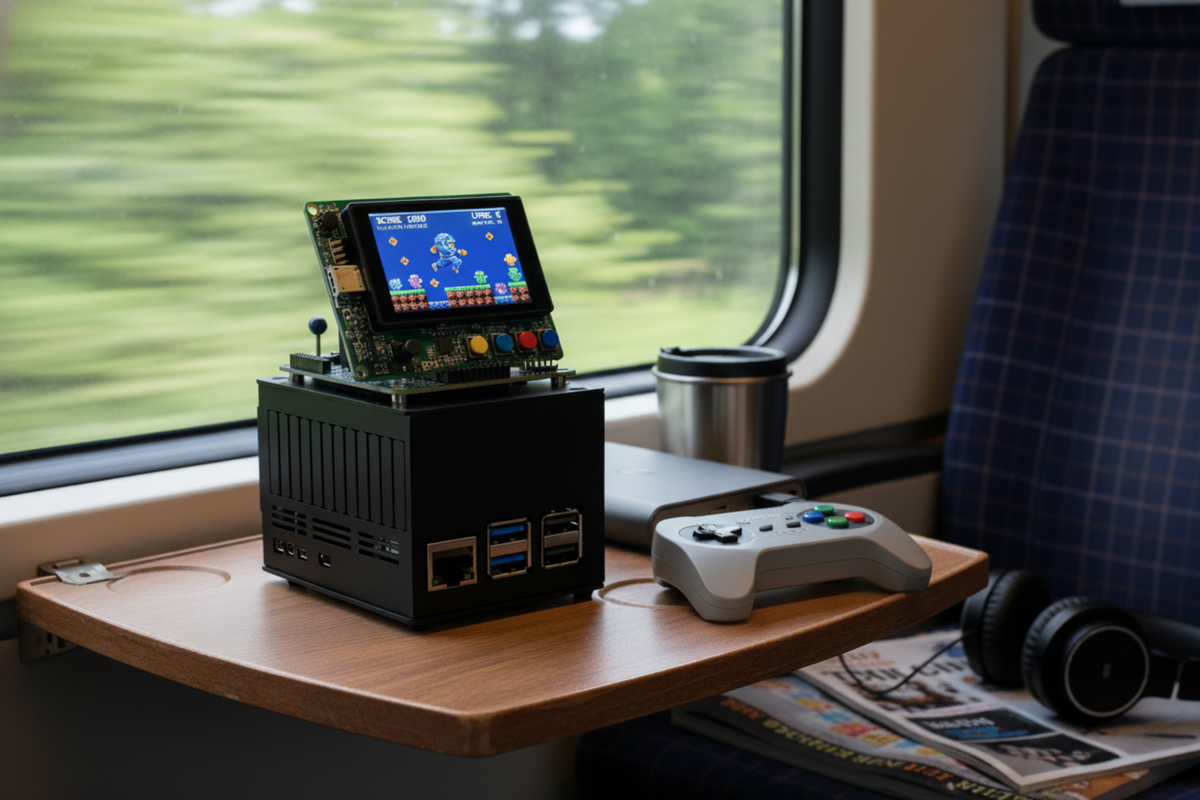

KKSB HAT Case for Raspberry Pi 5 – on a train table with a small display and game controller

KKSB HAT Case for Raspberry Pi 5 – lid being fastened with a screwdriver

KKSB HAT Case for Raspberry Pi 5 – top view of the aluminium lid

KKSB HAT Case for Raspberry Pi 5 – on a lab desk next to a monitor and laptop

KKSB HAT Case for Raspberry Pi 5 – on a desk connected to a small touchscreen

Smart Design and Durable Build Quality

Constructed from sandblasted black anodized aluminum, the KKSB HAT Case exudes elegance while offering superior durability and heat dissipation. The case features an external start button, rubber feet for stability, and a cutout for common interfaces to facilitate smooth operations and device handling. For added convenience, keyholes on the bottom enable wall mounting, while an access point for a 40 GPIO cable simplifies cable management.

Effortless HAT Integration

The KKSB HAT Case is engineered for seamless compatibility with most standard HATs and NVMe HATs.
Both long and short spacers are included, ensuring flexibility to accommodate HATs with varying GPIO header lengths.
For HATs with connectors in unique locations, the side panel ventilation slots are easily removable, offering optimal access without compromising functionality.

KKSB HAT Case for Raspberry Pi 5 – end view with power button tab and microSD opening

Ventilation Support

Designed with plenty of ventilation slots on both side panels, the case provides excellent airflow to keep your Raspberry Pi 5 running at optimal temperatures.
It is compatible with the Official Raspberry Pi Cooler and includes a 40-pin stackable header, ensuring ample airflow between the HAT and the cooler.
The case also has sufficient space for addon boards, heatsinks, or low-profile coolers, making it ideal for resource-intensive applications.

Some Examples of Possible Applications

Home automation and IoT projects.
Media streaming and entertainment systems.
Industrial monitoring and control setups.
Robotics and AI-powered systems.
Education and prototyping.
Smart home hubs and security systems.

Convenient Access to Peripherals and GPIO

The case's thoughtful design maximizes functionality by providing effortless access to all ports and GPIO pins. This makes it a versatile choice for anyone looking to expand their Raspberry Pi's capabilities with additional HATs and peripherals. Whether you're a hobbyist building at home or a developer working on complex IoT projects, the case's compatibility and ease of installation offer a seamless experience.

Guided Assembly via QR Code

The case is easy to install, with assembly instructions easily accessible via a QR code on the packaging. You can also benefit from practical features like rubber feet for grip and two keyholes for convenient wall mounting. This comprehensive feature set ensures the KKSB HAT Case is more than just a cover—it's an essential tool for anyone looking to protect and optimize their Raspberry Pi 5.
