KKSB Case for Raspberry Pi 5 and M.2 NVMe HAT

Name: KKSB Case for Raspberry Pi 5 and M.2 NVMe HAT
Brand: KKSB Cases
SKU: 7350001162089
Price: 16.99 EUR
Availability: InStock
Rating: 5.0 (6 reviews)

€16,99

SKU 7350001162089

This KKSB Case for Raspberry Pi 5 and M.2 NVMe HAT has been designed to seamlessly accommodate the official Raspberry Pi M.2 HAT+ for Raspberry Pi 5. With its robust design and advanced features, this case ensures your Raspberry Pi and HATs operate seamlessly.

In stock.

Quantity Liquid error (snippets/product-form line 68): include usage is not allowed in this context

Technical Details

Compatible board: Raspberry Pi 5
Compatible HATs: Official Raspberry Pi M.2 HAT+ (M.2 NVMe SSD) and other HATs with a similar form factor. HATs with side-facing connectors are not supported (the case has no removable side panels).
Port access: 1 × USB-C (power), 2 × micro-HDMI, 2 × USB 3.0, 2 × USB 2.0, 1 × Gigabit Ethernet, microSD card slot, status LED window, cable slot (marked “Cables”) and 40-pin GPIO cable access through the top
Power button: External button in the case that operates the Raspberry Pi 5 power button
Cooling: Ventilation slots in the top; fits the official Raspberry Pi 5 Active Cooler (included 40-pin stackable header leaves an airflow gap between cooler and HAT)
Material: Sandblasted black anodized aluminium
Mounting: 2 keyholes for wall mounting; pre-cut holes for KKSB DIN Rail Clip, KKSB Tripod (1/4"-20 UNC) Bracket, KKSB VESA Bracket and KKSB Camera Holder (sold separately); rubber feet
Package dimensions: 120 × 74 × 43 mm; shipping weight 100 g
In the box: Case, long and short spacers, screws, rubber feet, 40-pin stackable GPIO header
Not included: Raspberry Pi 5, M.2 HAT+, SSD, cooler, KKSB accessories
EAN: 7350001162089

User Manuals

Worldwide shipping
EU delivery: ~ 3-8 days,
Outside the EU: ~ 7-15 days.

Pay using Paypal or Bank Card
We also accept bank payment for larger orders

AI-generated backgrounds are used in some images · Learn more

3D model / Dimensions

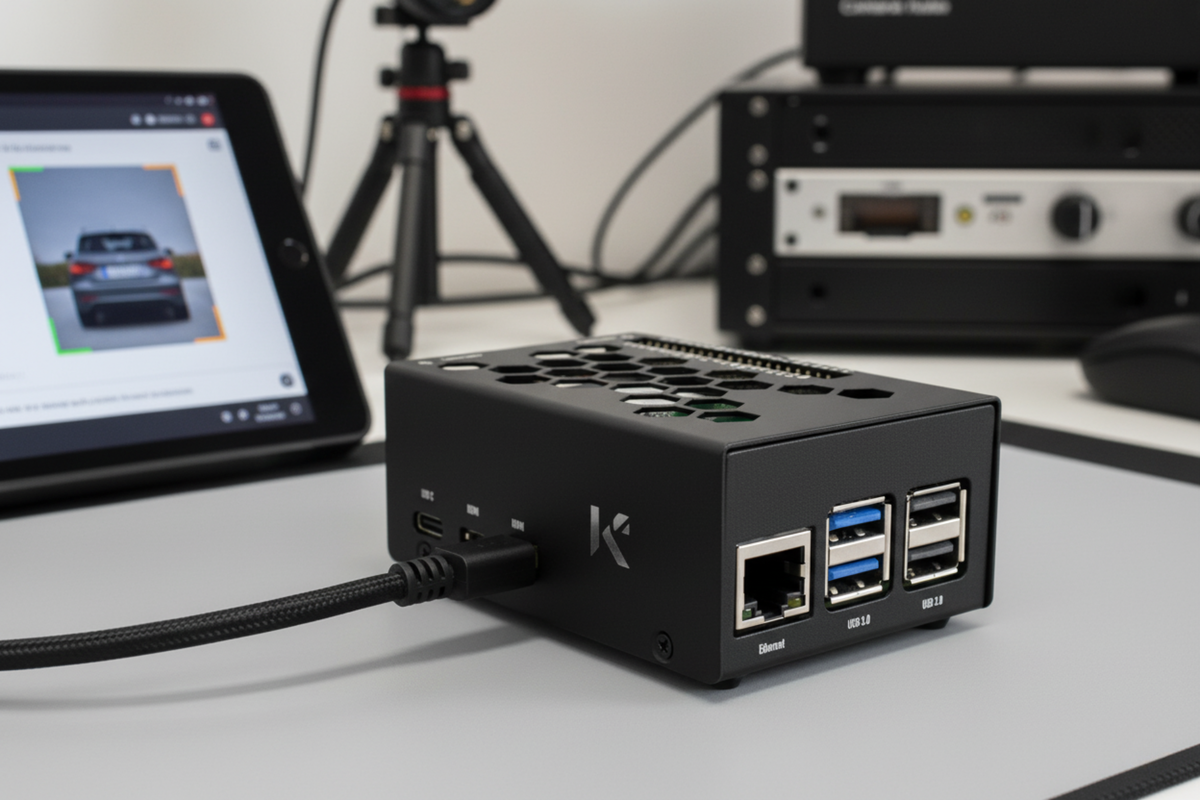

KKSB Raspberry Pi 5 M.2 NVMe HAT case in use on a desk with camera and tablet

KKSB Raspberry Pi 5 M.2 NVMe HAT case – USB-C power and 2 × micro-HDMI side, Ethernet and USB front

KKSB Raspberry Pi 5 M.2 NVMe HAT case on a workbench connected to a monitor

KKSB Raspberry Pi 5 M.2 NVMe HAT case – bottom with mounting holes and spacers

KKSB Raspberry Pi 5 M.2 NVMe HAT case opened with Raspberry Pi 5 and M.2 HAT+ installed

Durable and Practical Design

Crafted from sandblasted black anodized aluminum, the case combines a sleek aesthetic with exceptional durability and heat dissipation. An external start button, rubber feet for stability, and cutouts for Raspberry Pi 5 interfaces enhance the usability and functionality of this case. Two keyholes on the bottom make it easy to wall-mount your setup for a clean and space-saving installation.

Ventilation Support

The case features plenty of ventilation slots on the top, promoting excellent airflow to maintain optimal device temperatures during operation.
It is compatible with the Official Raspberry Pi Cooler, and the included 40-pin stackable header ensures proper airflow between the HAT and the cooler.

Please note that this case is compatible with the Official Raspberry Pi Cooler. Other low-profile coolers may fit if they have the same form factor as the official Raspberry Pi 5 Cooler.

Thoughtful Design

Designed to work perfectly with the Raspberry Pi M.2 HAT+ (M.2 NVMe HAT for Raspberry Pi 5), the case makes installing HATs straightforward and efficient.
It includes long and short spacers, accommodating HATs with varying GPIO header lengths, ensuring compatibility and flexibility.
A top access point for a 40 GPIO cable simplifies cable management, making it a suitable choice for clean and organized setups.

KKSB Raspberry Pi 5 M.2 NVMe HAT case wall-mounted with keyholes in an industrial setting

Some Examples of Possible Applications

Data storage and server setups utilizing the M.2 NVMe HAT+.
Industrial IoT projects require durability and high-speed storage.
Media streaming and home entertainment systems.
Advanced prototyping and education projects.
Compact AI and robotics systems.

Extended Compatibility with KKSB Accessories

The case is fully compatible with KKSB Camera Holders, KKSB DIN Rail Clips, KKSB VESA Brackets, and KKSB Tripod Brackets, allowing you to adapt it to various applications. (All these accessories are sold separately).
