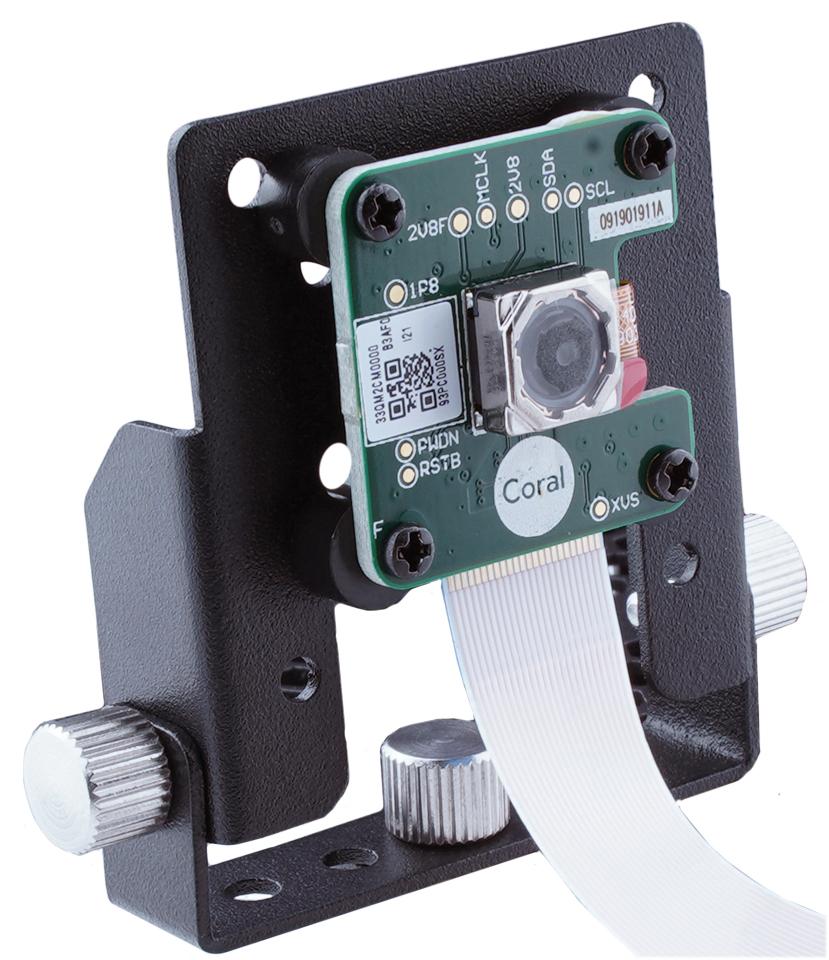

KKSB Camera Holder – holder with Raspberry Pi camera module, front view

KKSB Camera Holder Compatible with Many Camera Modules

Name: KKSB Camera Holder Compatible with Many Camera Modules
Brand: KKSB Cases
SKU: 7350001160887
Price: 7.9 EUR
Availability: InStock
Rating: 5.0 (2 reviews)

€7,90

SKU 7350001160887

The KKSB-Camera Holder is a metal bracket that works with a variety of camera modules.

In stock.

Quantity Liquid error (snippets/product-form line 68): include usage is not allowed in this context

Technical Details

Compatible cameras: Raspberry Pi HQ Camera, Raspberry Pi Camera Module v2, Raspberry Pi NoIR Camera, Coral Camera Module and similar-sized modules
Compatible KKSB cases: KKSB Raspberry Pi 5 cases (Project, Aluminum, Heatsink), ROCK 5B, Jetson Nano/Xavier NX Compact, Asus Tinker Board 2/Edge R/Edge T, Coral Dev Board and Coral Dev Board Mini cases
Adjustment: 2-axis rotation; 5 selectable offset positions via 5 base holes
Material: Metal, matte black
Package dimensions: 69 × 56 × 24 mm
In the box: 1 × KKSB Camera Holder
Not included: Camera module, case
EAN: 7350001160887

User Manuals

Worldwide shipping
EU delivery: ~ 3-8 days,
Outside the EU: ~ 7-15 days.

Pay using Paypal or Bank Card
We also accept bank payment for larger orders

AI-generated backgrounds are used in some images · Learn more

3D model / Dimensions

KKSB Camera Holder – monitoring a production line in a factory

KKSB Camera Holder – HQ camera with lens on the holder

KKSB Camera Holder – angled view with camera module and thumb screw

KKSB Camera Holder – HQ camera on the holder on top of a case

KKSB Camera Holder – on a KKSB case in a greenhouse

Flexible Mounting for Raspberry Pi Cameras

The KKSB-Camera Holder is a metal bracket that works with a variety of camera modules including Raspberry Pi NoIR Camera, Raspberry Pi HQ Camera, Coral Camera Module, and Raspberry Pi Camera Module v2, etc. The KKSB Camera Bracket/Holder has 5 offset positions and it sports 2-Axis rotation. There are 5x holes at the base you can select from to adjust the offset position.

Examples of Camera Modules Compatible with the KKSB Camera Holder

This KKSB Camera Holder is suitable for most official Raspberry Pi camera modules. including (but not limited to):

Raspberry Pi AI Camera
Raspberry Pi Global Shutter Camera
Raspberry Pi Camera Module 3
Raspberry Pi Camera Module 3 Sensor Assembly
Raspberry Pi HQ Camera
Raspberry Pi Camera Module v2
Raspberry Pi NoIR Camera

No camera is included in this offer. The camera in the pictures is used for demonstration only.

Camera Holder Compatibility

The KKSB Camera Holder is compatible with KKSB cases that feature factory-made threaded mounting holes on the top panel.

Depending on the case model, there may be one or two threaded mounting points. These threaded holes are designed to allow direct installation of the camera holder without modifications.

If your KKSB case includes at least one top-mounted threaded hole, the camera holder can be securely mounted.

How to check compatibility

Look for one or more threaded mounting holes on the top of the case, as shown in the images
If present, the case supports mounting the KKSB Camera Holder

Note:
The camera holder is sold separately. Case design and number of mounting points vary by model.
