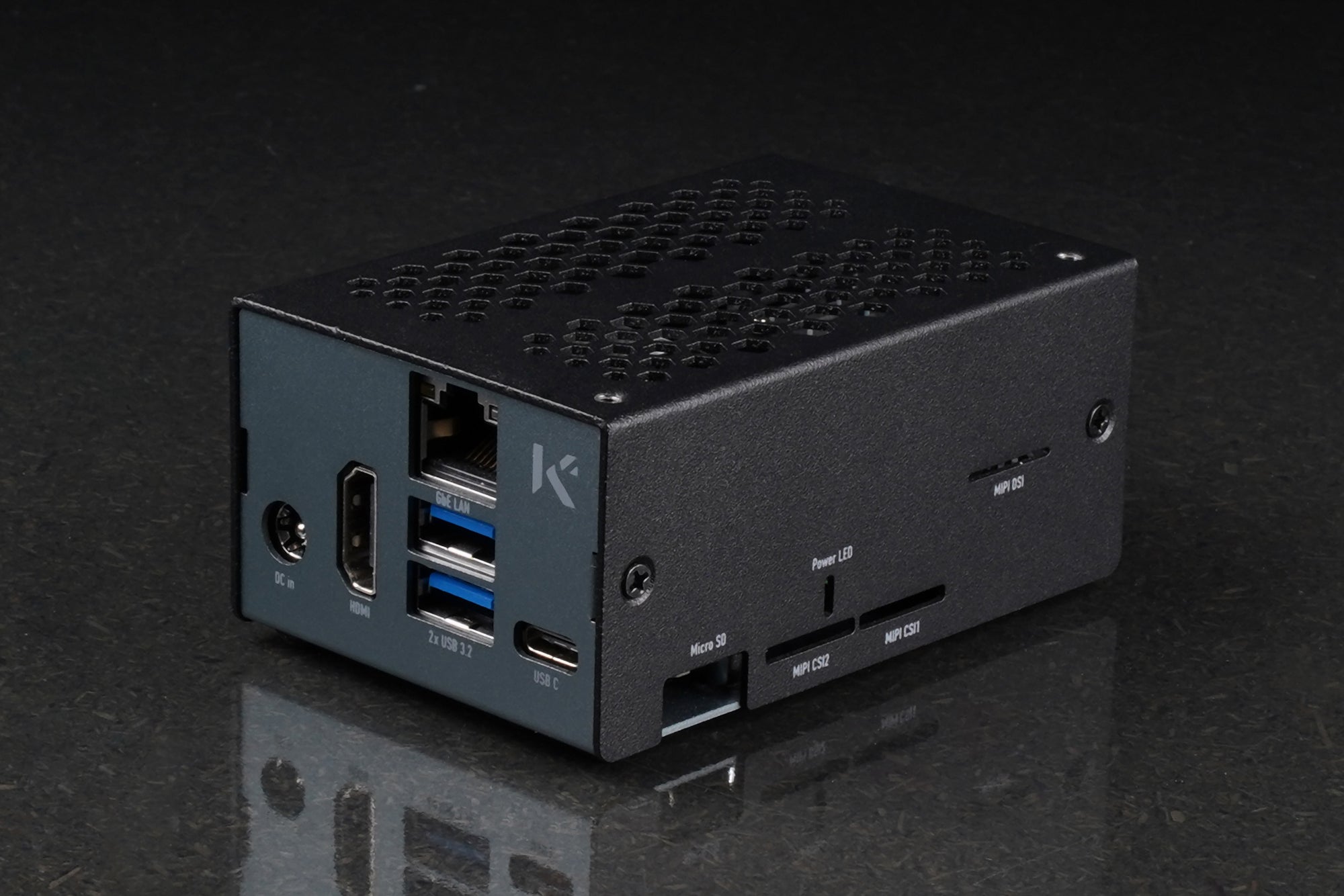

KKSB Tinker Edge T Case – end panel with DC jack, HDMI, USB 3.0, Ethernet and USB-C

KKSB Asus Tinker Edge T Case

Name: KKSB Asus Tinker Edge T Case
Brand: KKSB Cases
SKU: 7350001160931
Price: 15.9 EUR
Availability: InStock

€15,90

SKU 7350001160931

KKSB ASUS Tinker Edge T Case features a powder-coated steel lid, and an anodized aluminum bottom. This case is compatible with the ASUS Tinker Edge T.

In stock.

Quantity Liquid error (snippets/product-form line 68): include usage is not allowed in this context

Technical Details

Compatible board: ASUS Tinker Edge T

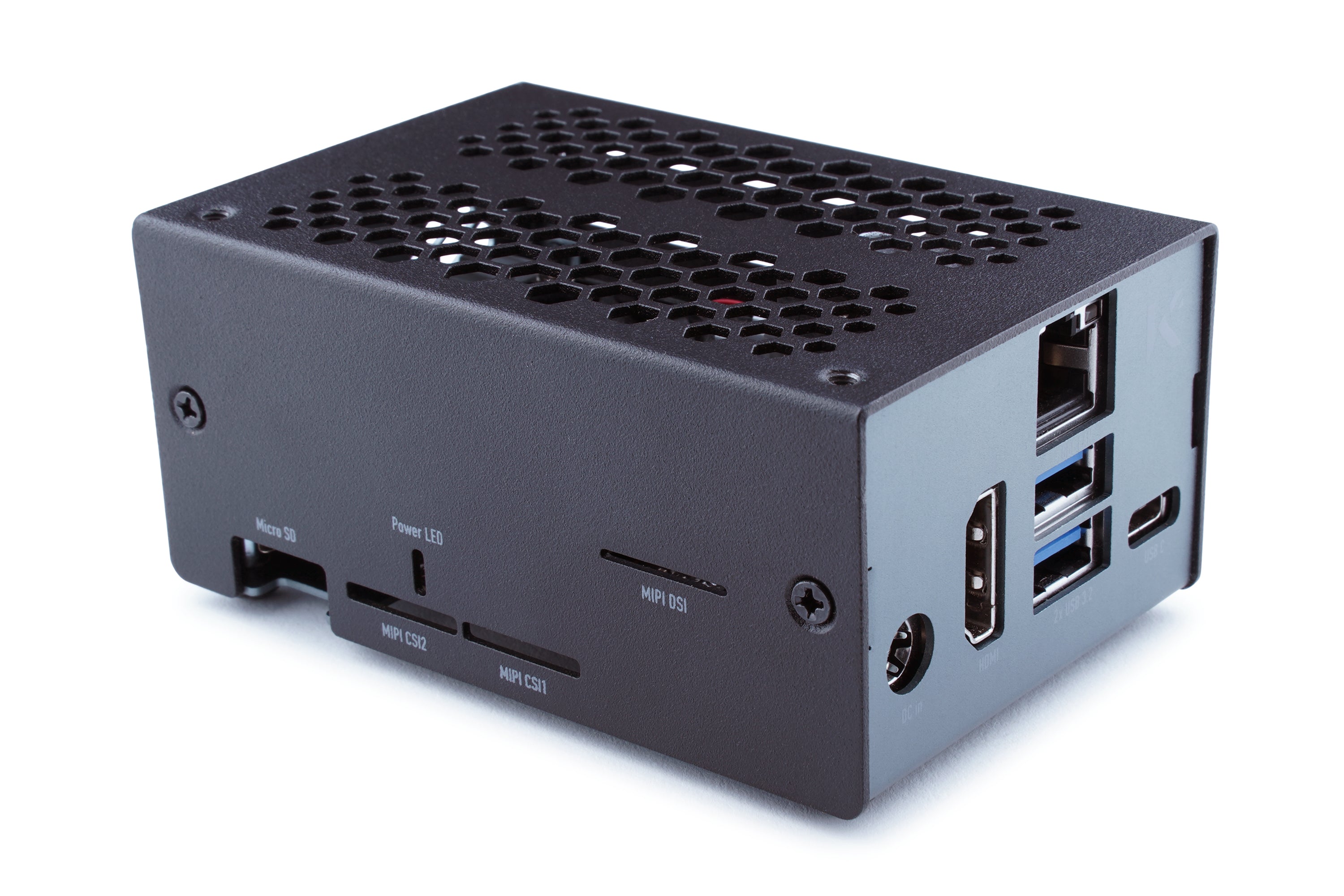

Port access: End panel: DC power jack, 1 × HDMI, 2 × USB 3.0, 1 × Gigabit Ethernet, 1 × USB-C. Side: microSD slot, power LED window, MIPI CSI1, MIPI CSI2 and MIPI DSI ribbon cable slots. Long slot in the opposite side

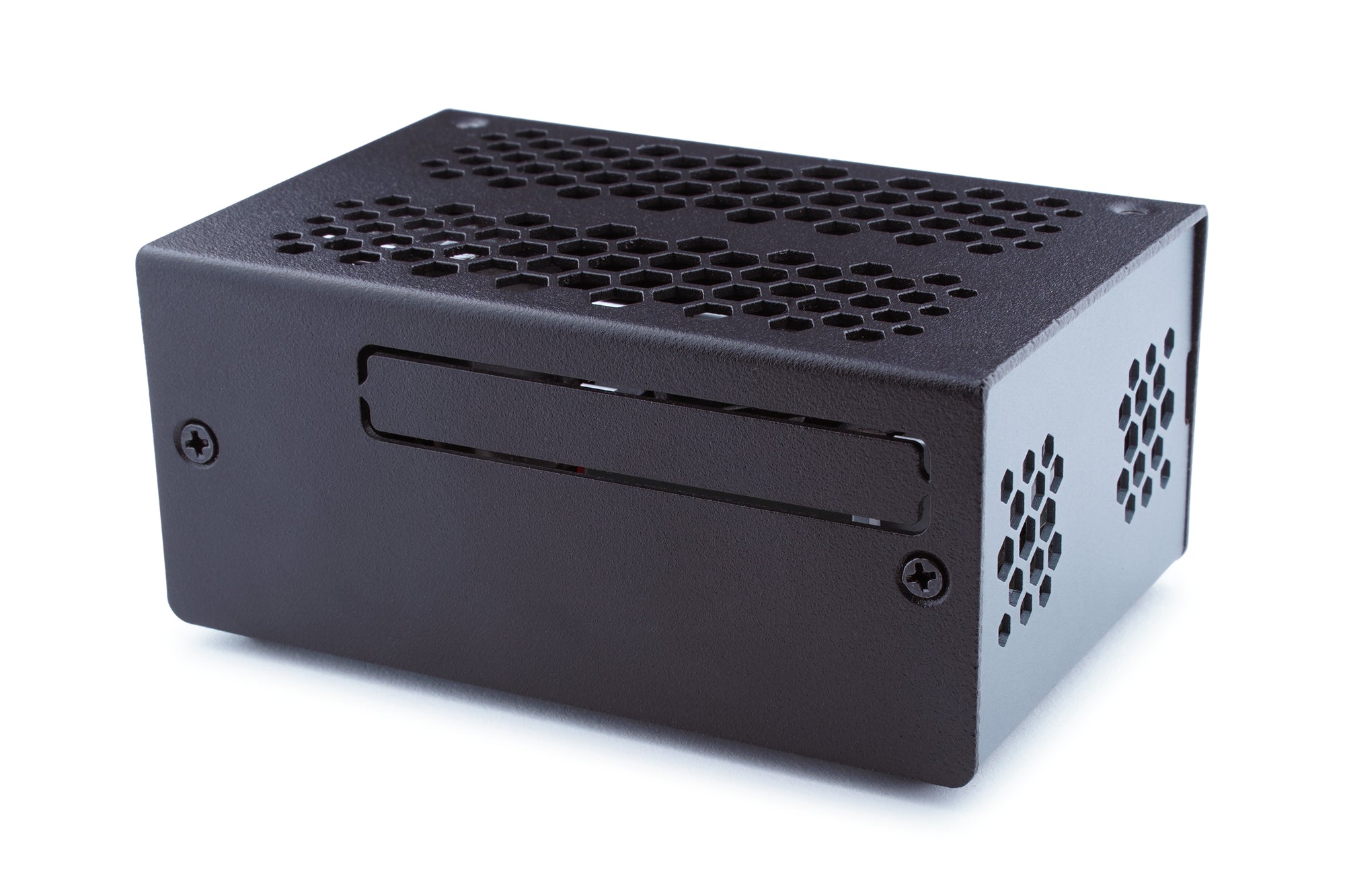

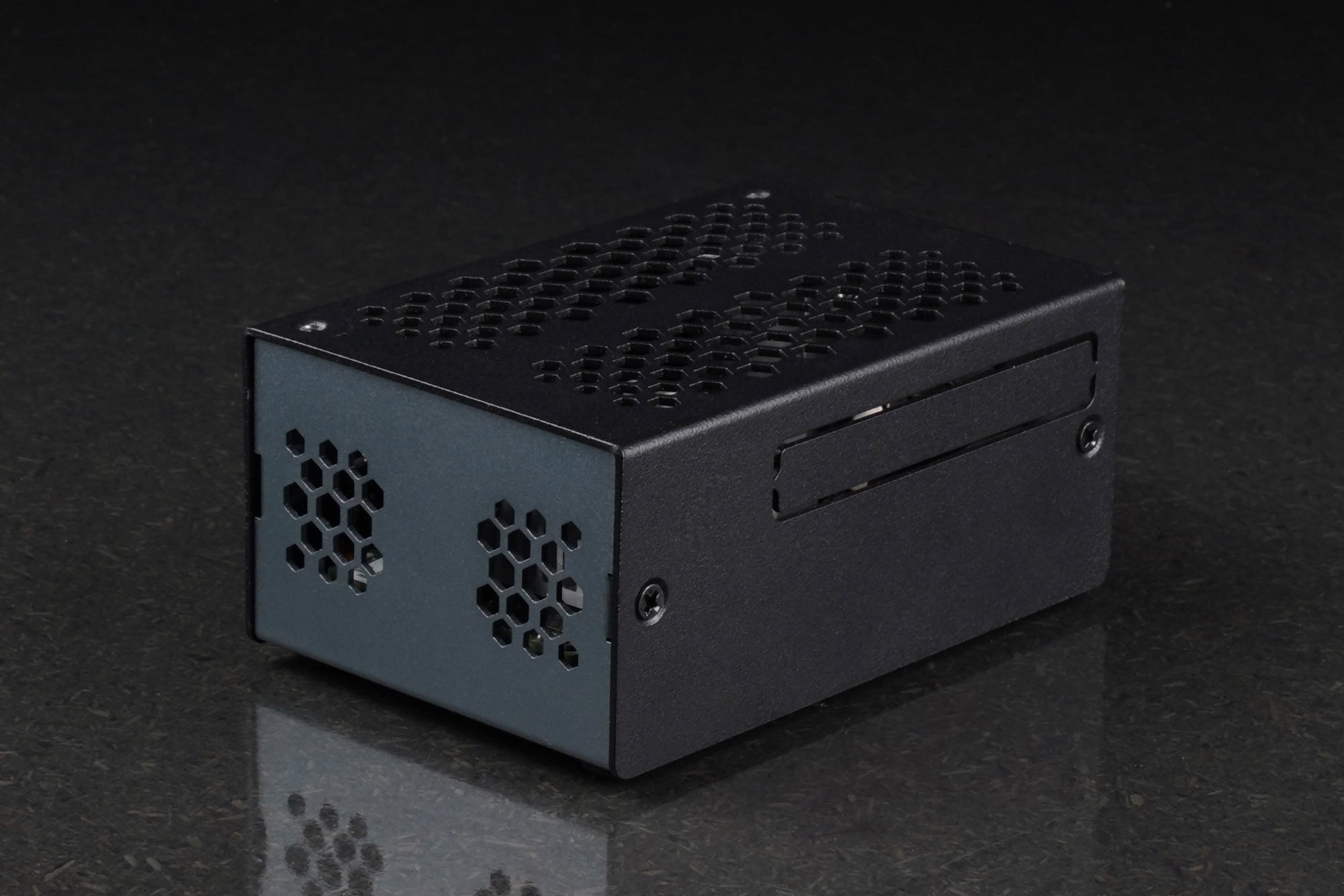

Cooling: Hexagonal ventilation holes in the lid and on the short sides
Material: Powder-coated steel lid; sandblasted aluminium bottom with grey anodized finish

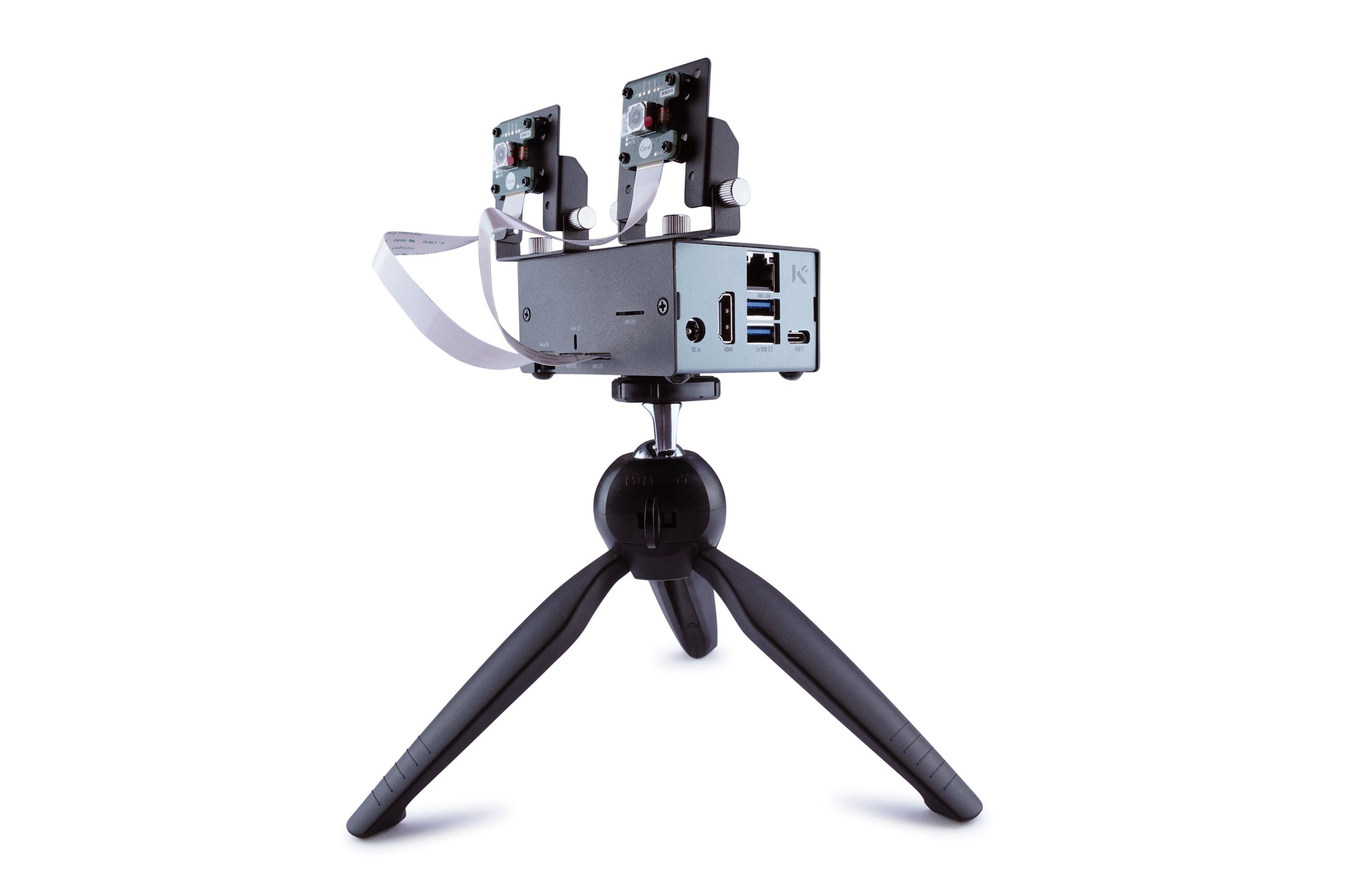

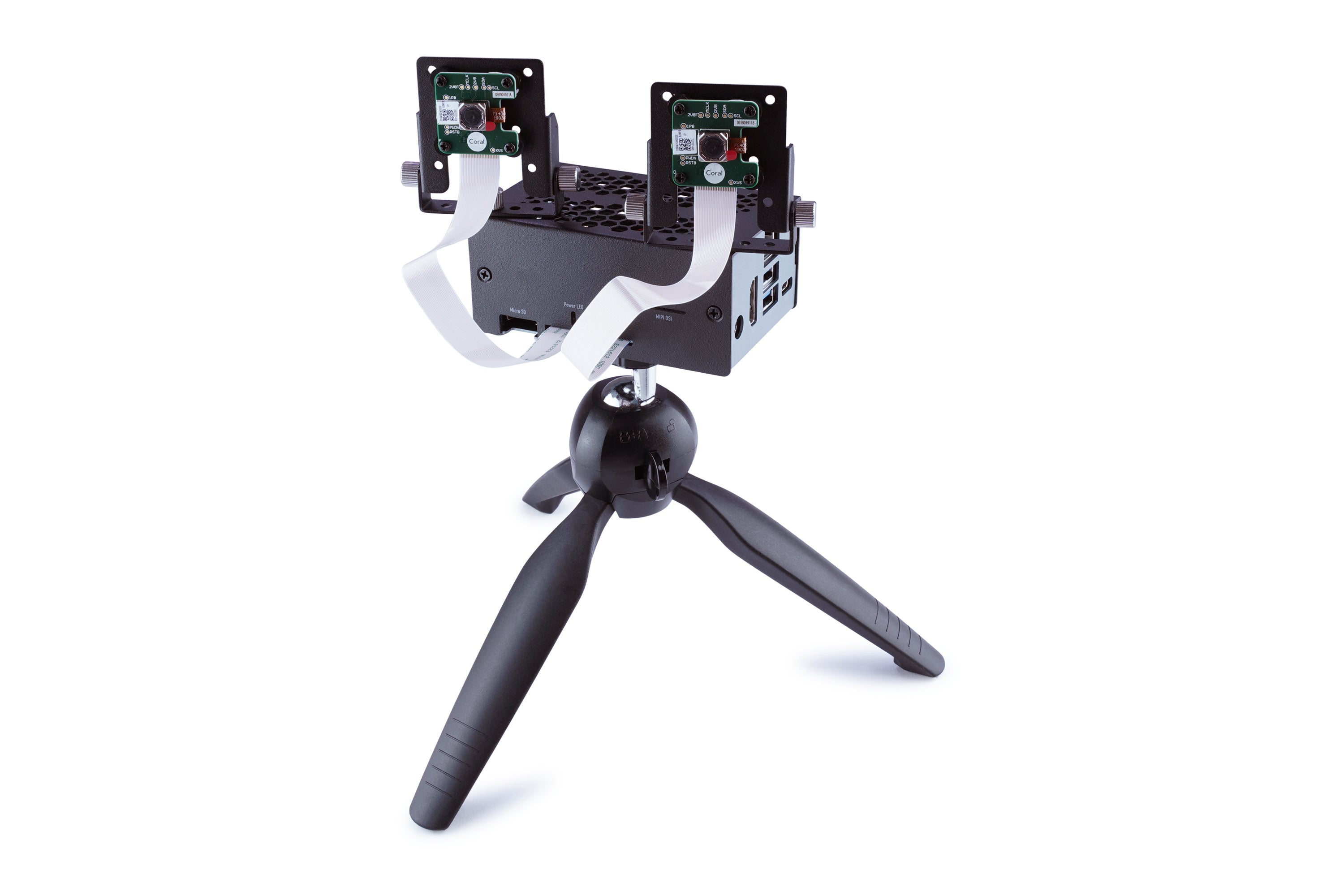

Mounting: 2 keyhole mounting holes; pre-cut holes for KKSB DIN Rail Clip, KKSB ¼"-20 UNC Thread (tripod) and KKSB Camera Holder (sold separately); 4 rubber feet
In the box: Case, rubber feet, fasteners
Not included: ASUS Tinker Edge T, KKSB DIN Rail Clip, KKSB ¼"-20 UNC Thread, KKSB Camera Holder, tripod, camera module
EAN: 7350001160931

User Manuals

Worldwide shipping
EU delivery: ~ 3-8 days,
Outside the EU: ~ 7-15 days.

Pay using Paypal or Bank Card
We also accept bank payment for larger orders

AI-generated backgrounds are used in some images · Learn more

3D model / Dimensions

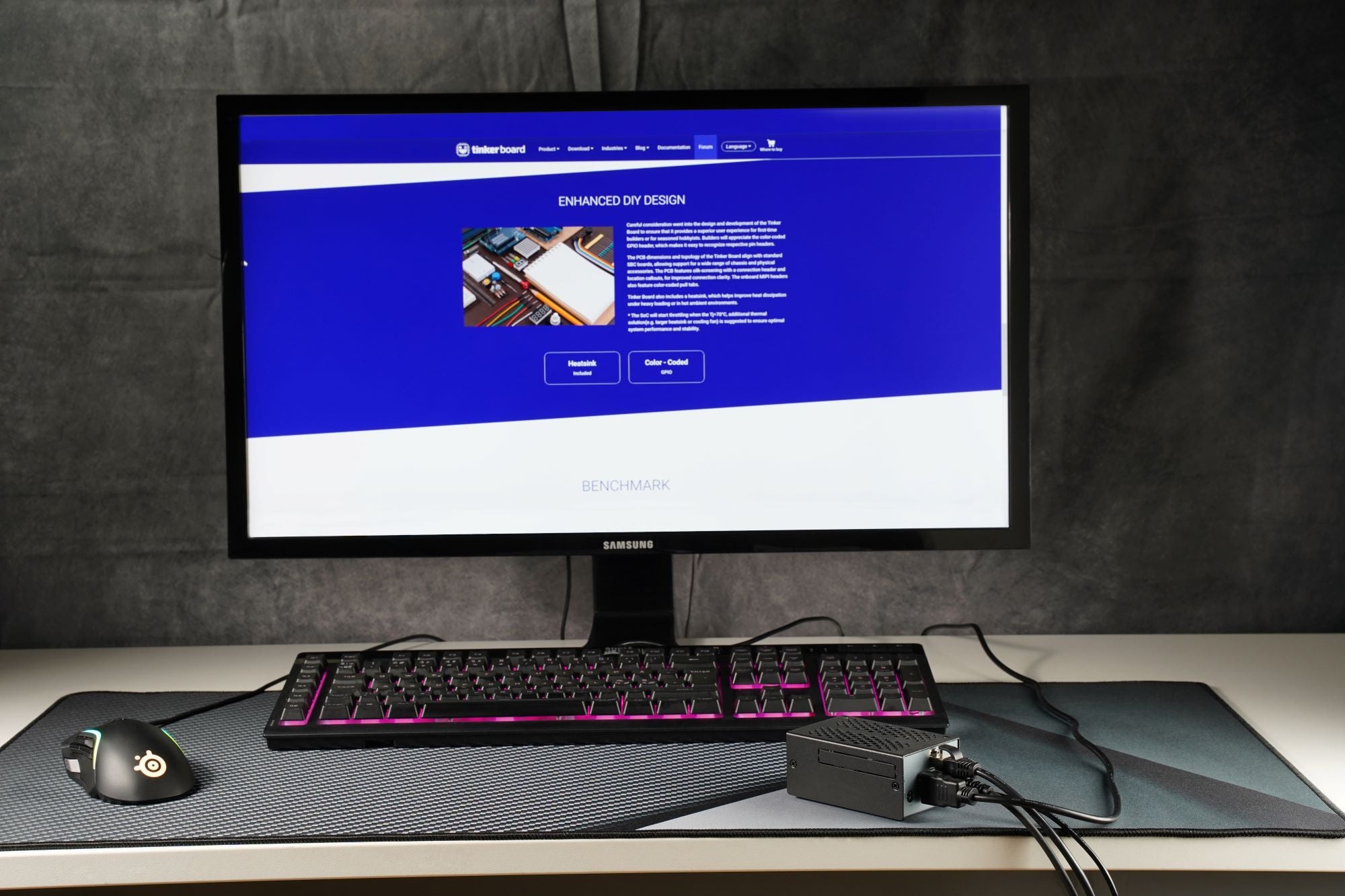

KKSB Tinker Edge T Case – on a desk with plants in front of a monitor

KKSB Tinker Edge T Case – in a lab with a robot arm and monitor

Convenient Interface Access

The cover of this Tinker Edge T enclosure has hexagonal holes for optimized airflow to support heat dissipation. and has cutouts to access most of the interfaces and ports on the board so that there remains no need to remove the lid while you are working on your creative projects.

Compatible with Multiple KKSB Accessories

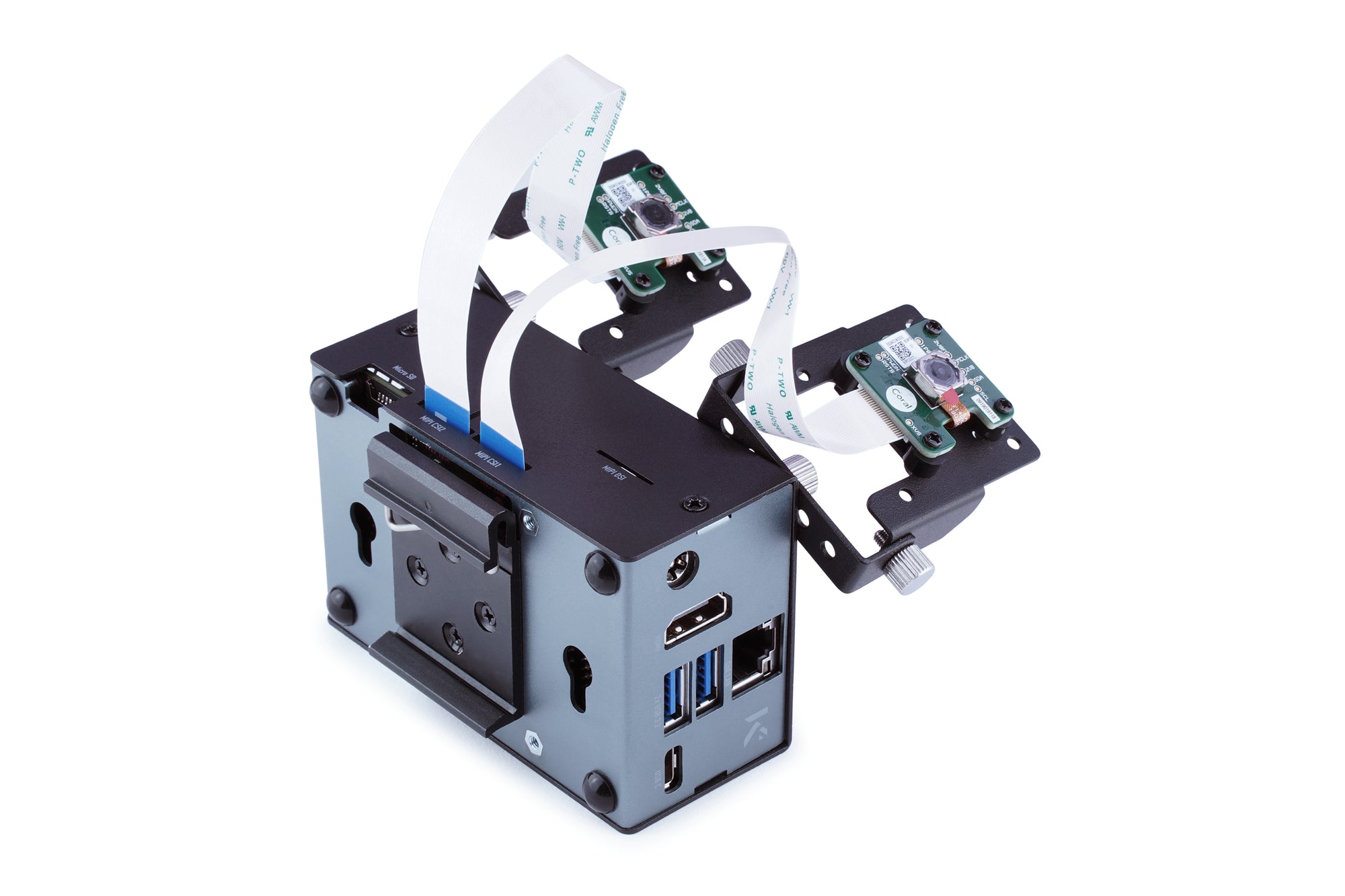

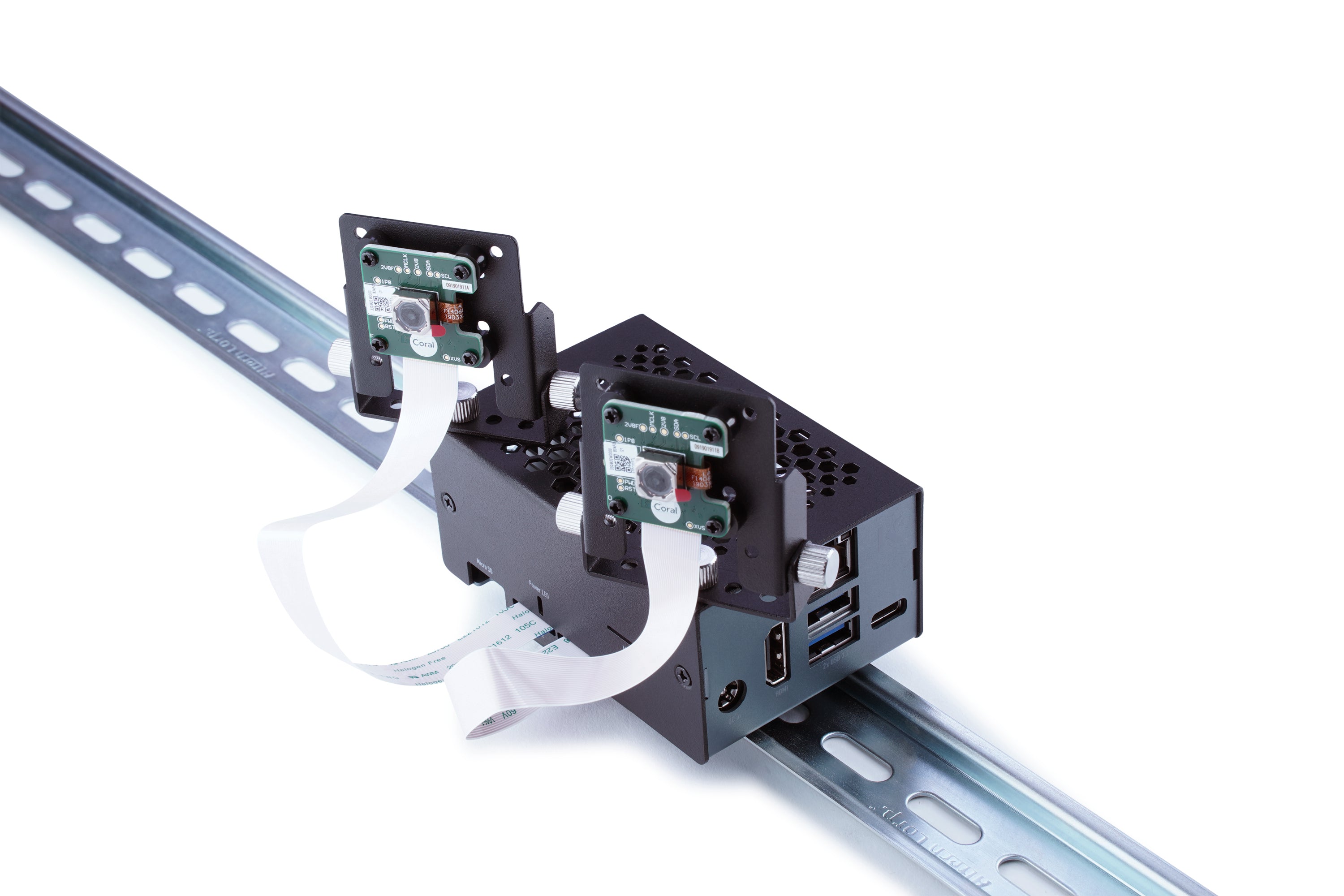

KKSB Tinker Edge T Case is designed to support accessories you may need to equip the board with. This case supports the KKSB DIN Rail Clip, KKSB ¼-20 UNC Thread as well as the KKSB Camera Holder. You can buy them separately since they are not included.

These accessories will optimize the functionality of your Tinker Edge T board to work on smart AI and IoT projects including but not limited to smart authorization, smart access, smart monitoring, face recognition, etc.

KKSB Tinker Edge T Case – on a desk in front of a monitor showing camera feeds

Some Examples of Possible Applications

Smart home automation
Industrial IoT and automation
Robotics and drone control
Smart surveillance and security systems
Face recognition and biometric identification systems
Machine learning and AI projects

Why Should You Choose This Case?

Provides durable protection for your ASUS Tinker Edge T board
Allows for easy access to all interfaces and ports on the board
Enhances the board's functionality with the ability to add accessories such as the KKSB DIN Rail Clip, KKSB ¼-20 UNC Thread, and KKSB Camera Holder
Improves heat dissipation with optimized airflow through hexagonal holes on the top of the case
Offers surface mounting options and added stability with rubber feet
Suitable for a wide range of smart AI and IoT projects and application
