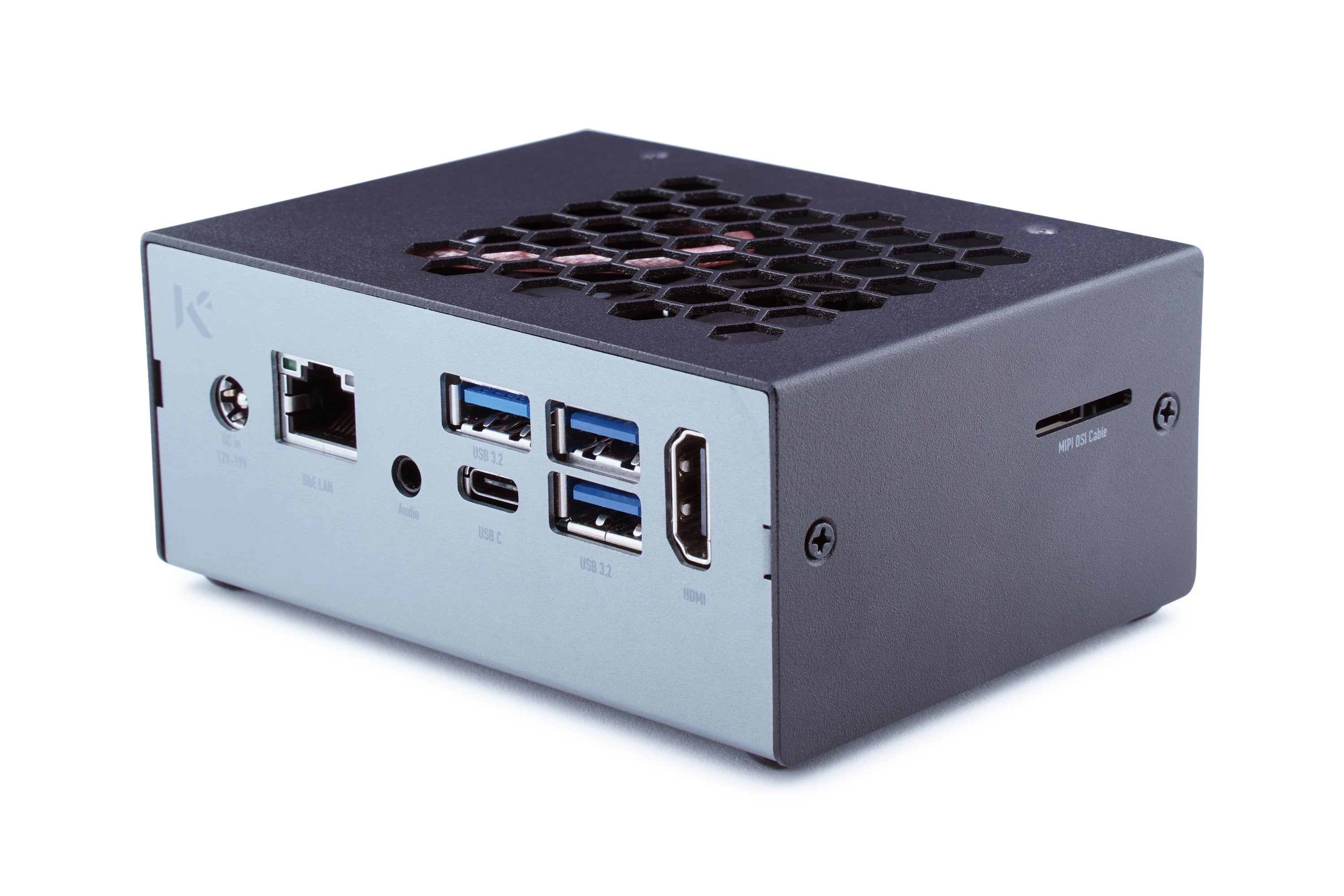

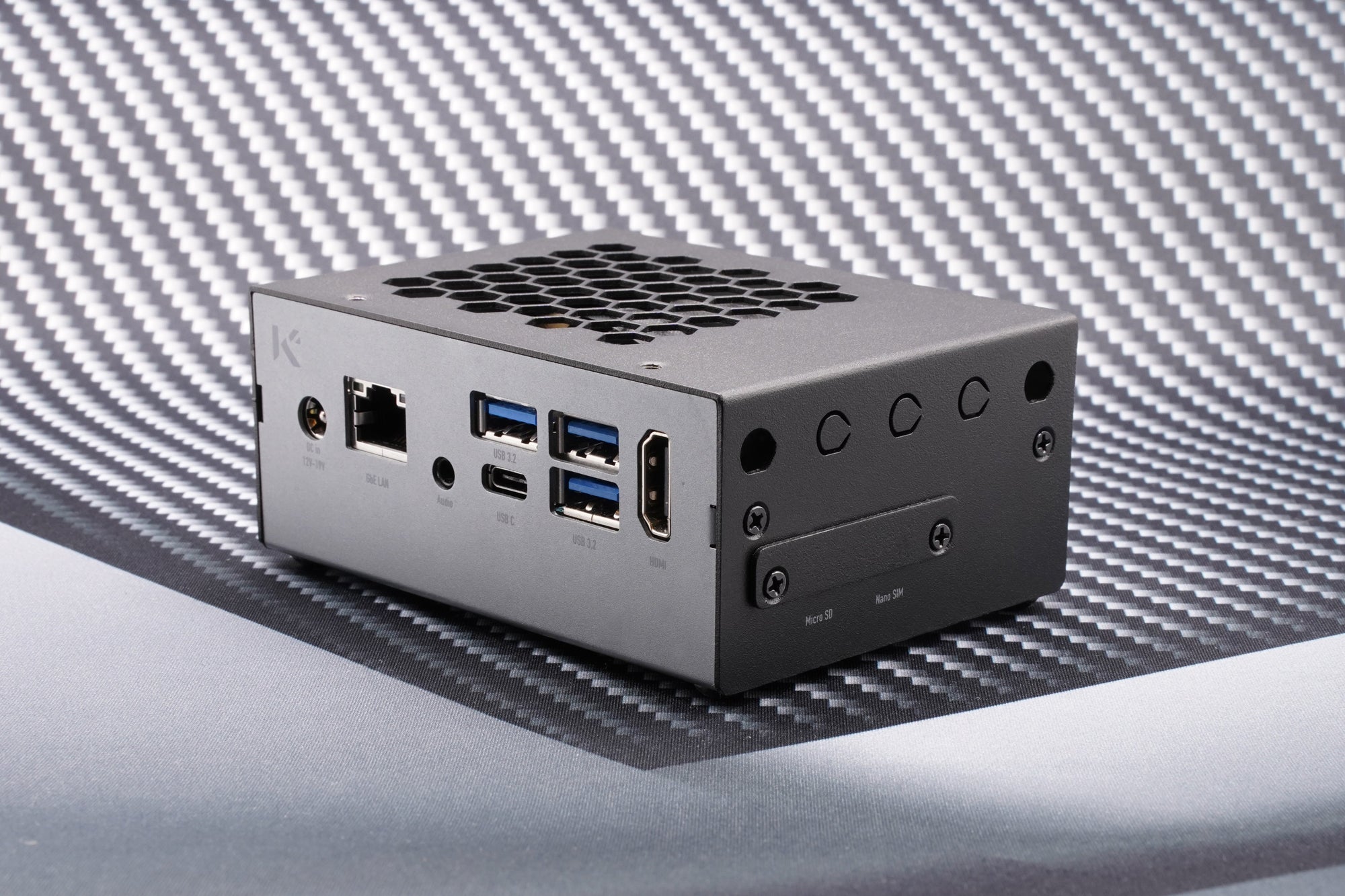

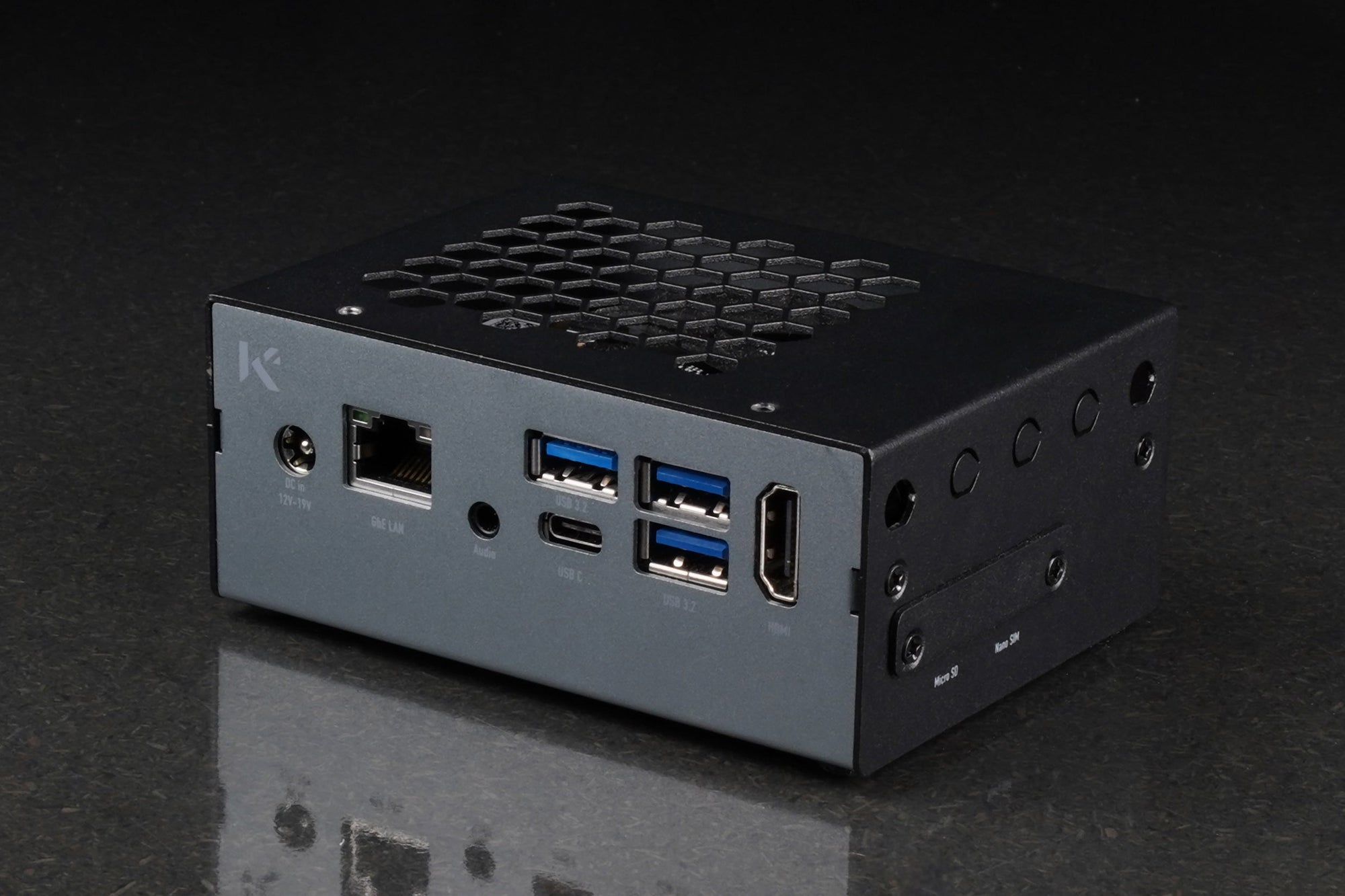

KKSB Tinker Edge R Case – end panel with DC in, Ethernet, audio, USB-C, USB 3.x and HDMI

KKSB ASUS Tinker Edge R Case

Name: KKSB ASUS Tinker Edge R Case
Brand: KKSB Cases
SKU: 7350001160870
Price: 17.9 EUR
Availability: InStock

€17,90

SKU 7350001160870

KKSB ASUS Tinker Edge R Case features a powder-coated steel lid, and an anodized aluminium bottom, designed to provide durable protection for your ASUS Tinker Edge R board.

In stock.

Quantity Liquid error (snippets/product-form line 68): include usage is not allowed in this context

Technical Details

Compatible board: ASUS Tinker Edge R

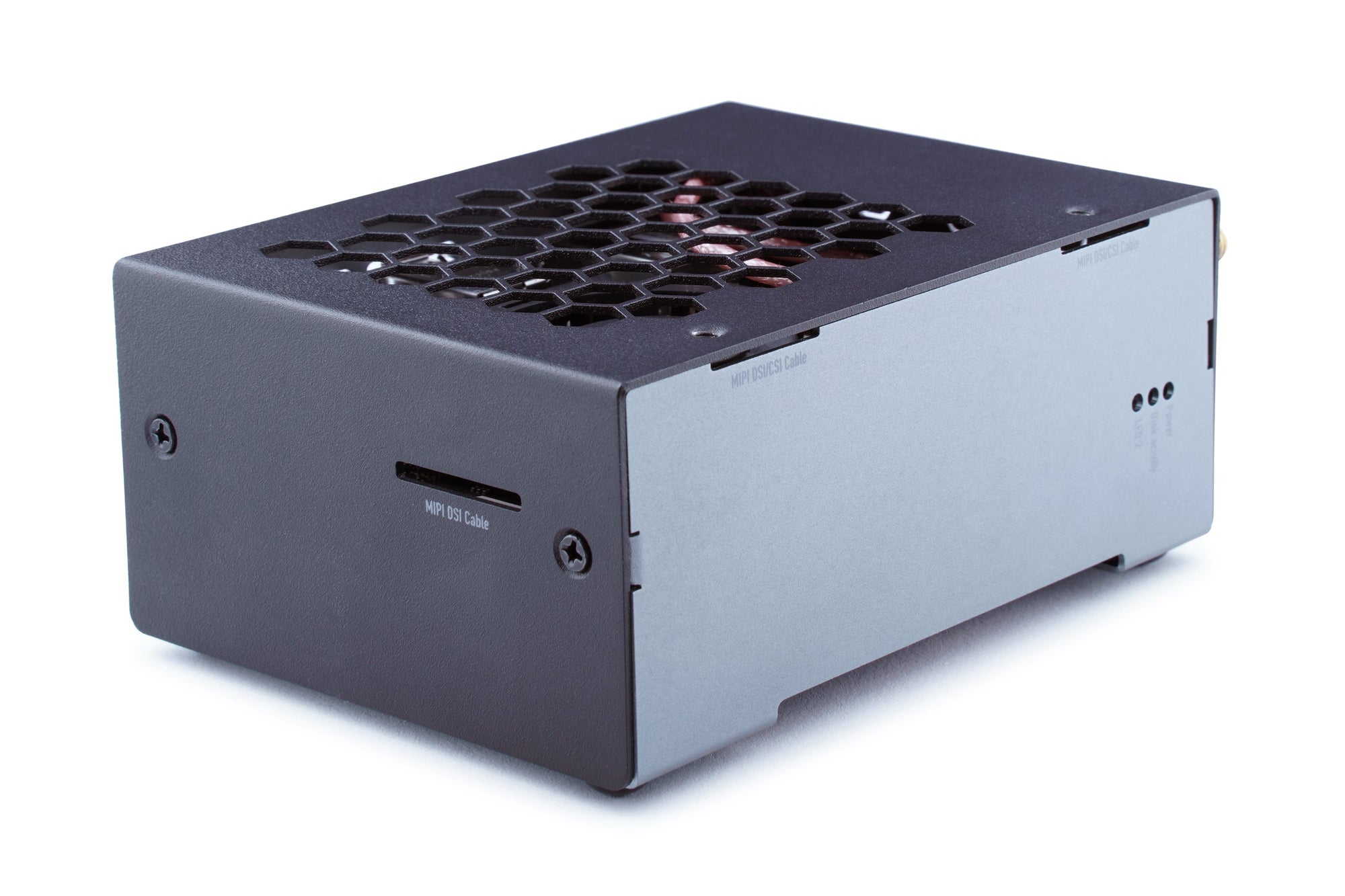

Port access: End panel: DC in (12–19 V), 1 × Gigabit Ethernet (GbE LAN), audio jack, 1 × USB-C, 3 × USB 3.x Type-A, 1 × HDMI. Side: MIPI DSI cable slot. Opposite end: MIPI CSI camera cable slots, microSD and nano SIM slots behind a removable cover, three small indicator holes
Antenna: Precut holes for SMA antenna connectors (5 positions visible, 2 shown fitted with SMA connectors); antennas not included

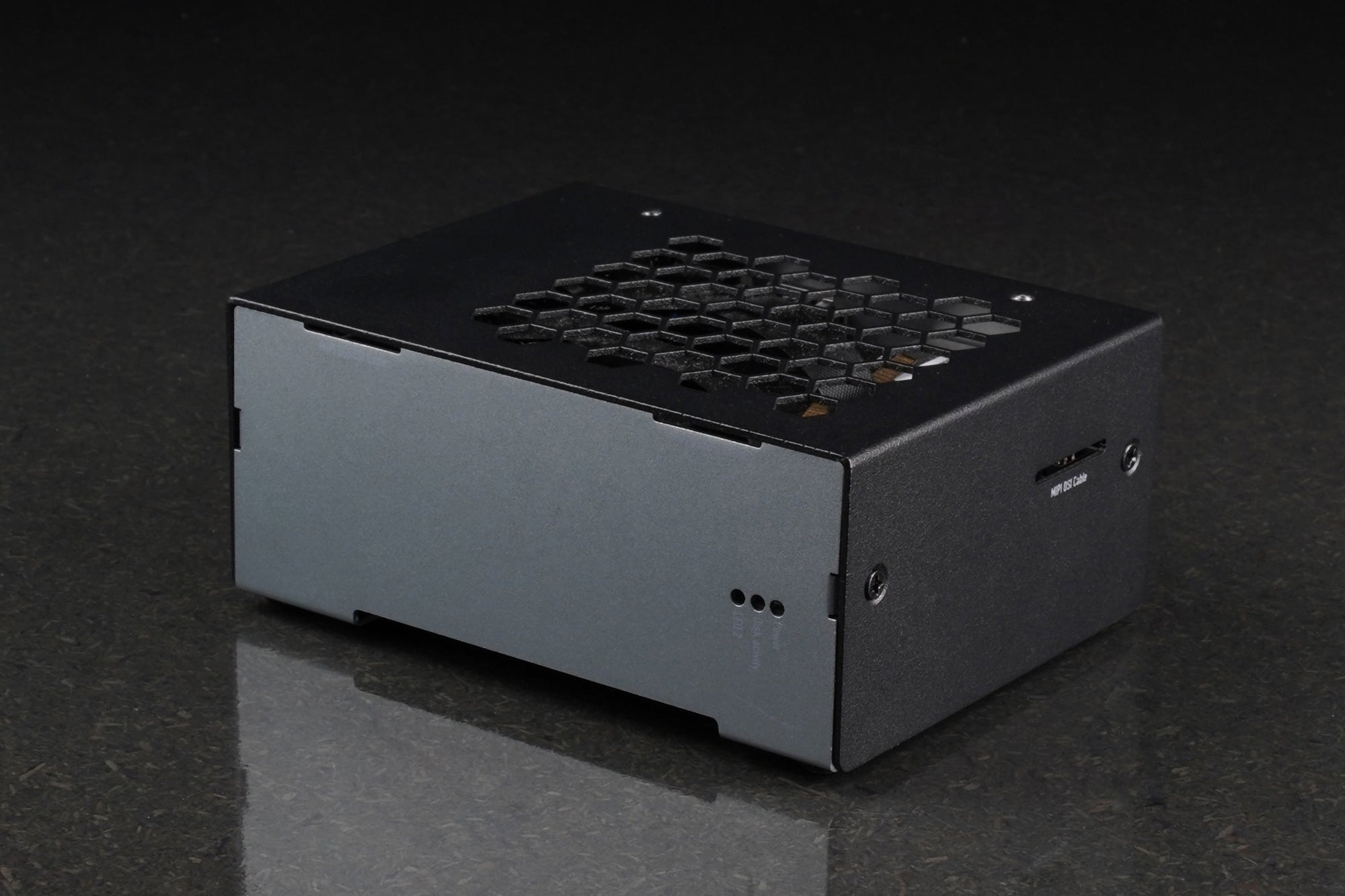

Cooling: Hexagonal ventilation holes in the lid
Material: Powder-coated steel lid; sandblasted aluminium bottom with grey anodized finish
Mounting: Pre-cut holes for KKSB DIN Rail Clip, KKSB ¼"-20 UNC Thread (tripod) and KKSB Camera Holder (sold separately); 4 rubber feet
In the box: Case, cover for SIM and microSD card slots, rubber feet, fasteners
Not included: ASUS Tinker Edge R, SMA antennas, KKSB DIN Rail Clip, KKSB ¼"-20 UNC Thread, KKSB Camera Holder, tripod, camera module
EAN: 7350001160870

User Manuals

Worldwide shipping
EU delivery: ~ 3-8 days,
Outside the EU: ~ 7-15 days.

Pay using Paypal or Bank Card
We also accept bank payment for larger orders

AI-generated backgrounds are used in some images · Learn more

3D model / Dimensions

KKSB Tinker Edge R Case – on a lab desk next to a robot arm

KKSB Tinker Edge R Case – on a shop counter next to a payment tablet

KKSB Tinker Edge R Case – on a factory workbench next to electrical cabinets

Convenient Interface Access

The top of this Tinker Edge R enclosure has hexagonal holes for optimized airflow to support heat dissipation. The case has cutouts to access most of the interfaces and ports on the board so that there remains no need to remove the lid while you are working on your creative projects.

Compatible with Multiple KKSB Accessories

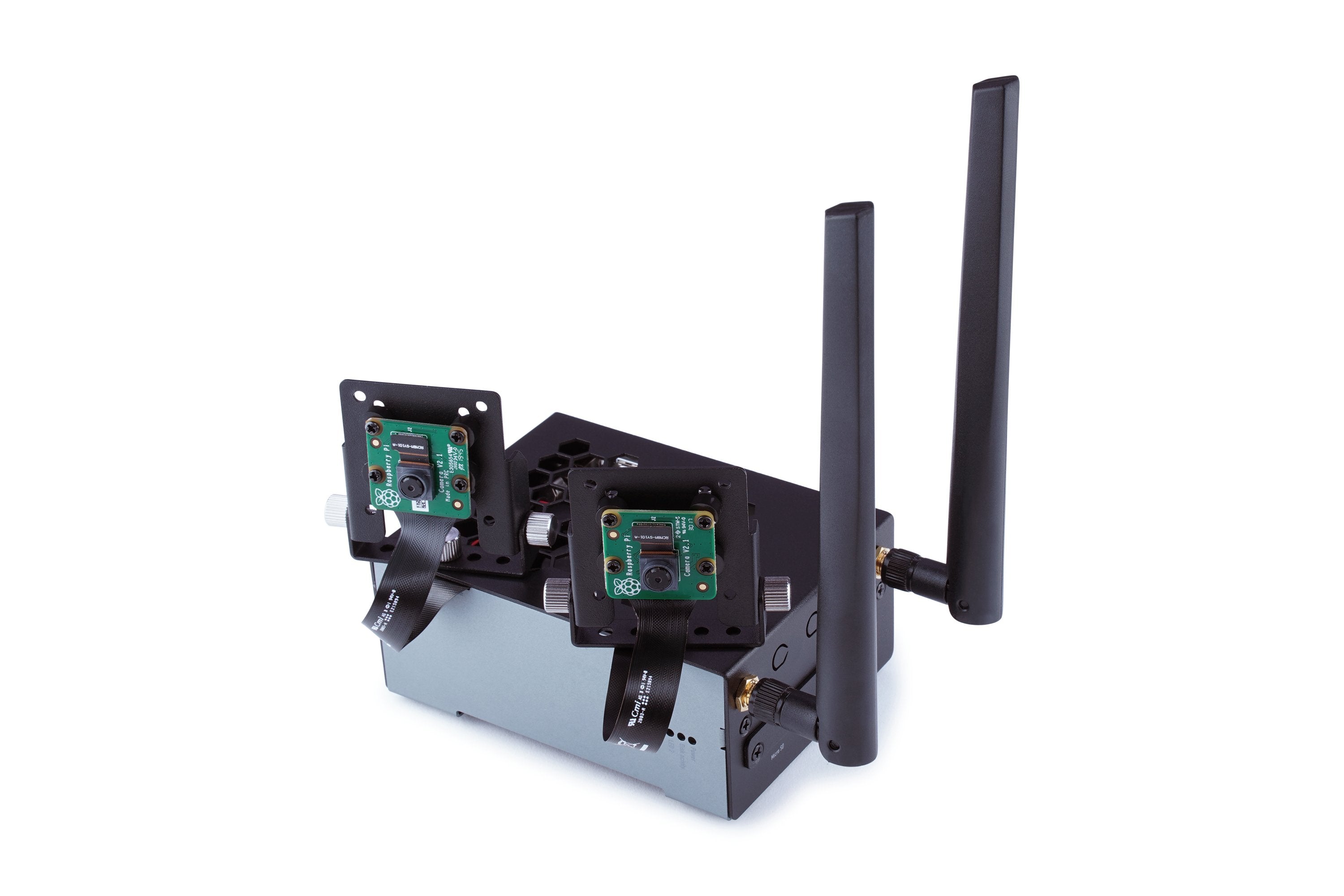

The KKSB Tinker Edge R case is designed to support accessories you may need to equip the board with. This case supports the KKSB DIN Rail Clip, KKSB ¼-20 UNC Thread as well as the KKSB Camera Holder. These accessories will optimize the functionality of your Tinker Edge R board to work on smart AI and IoT projects including but not limited to smart authorization, smart access, smart monitoring, face recognition, etc.

KKSB Tinker Edge R Case – on a desk in front of security camera monitors

Why Should You Choose This Case?

Provides durable protection for your ASUS Tinker Edge R board
Allows for easy access to all interfaces and ports on the board
Enhances the board's functionality with the ability to add accessories such as the KKSB DIN Rail Clip, KKSB ¼-20 UNC Thread, and KKSB Camera Holder
Improves heat dissipation with optimized airflow through hexagonal holes on the top of the case
Offers surface mounting options and added stability with rubber feet
Suitable for a wide range of smart AI and IoT projects and application
