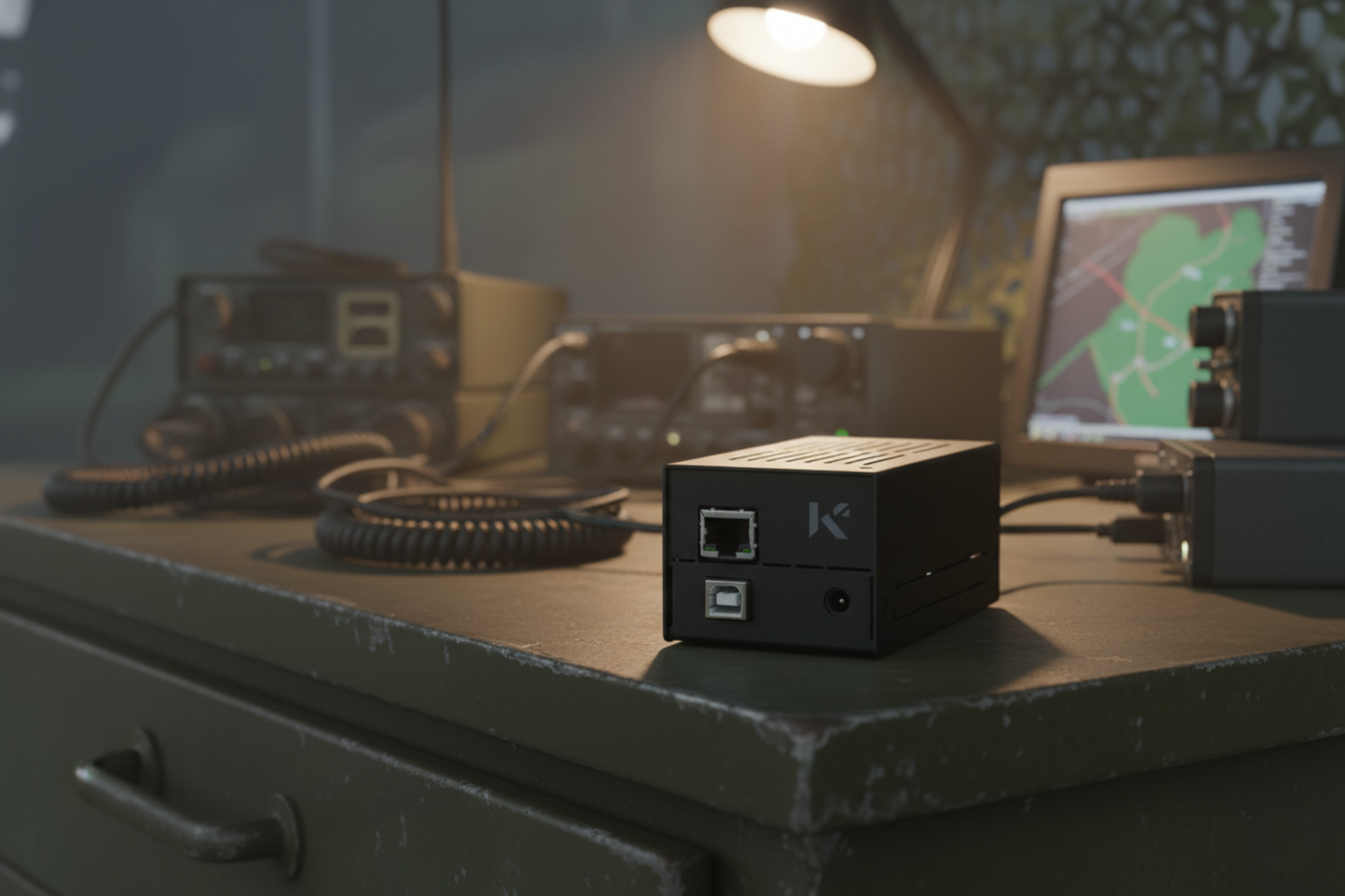

KKSB Arduino UNO/Mega Case (Tall) – front with Ethernet, USB-B and DC jack openings

KKSB Arduino UNO Rev3, Mega Rev3 Case with Space for Arduino Ethernet Shield (Tall Version)

Name: KKSB Arduino UNO Rev3, Mega Rev3 Case with Space for Arduino Ethernet Shield (Tall Version)
Brand: KKSB Cases
SKU: 7350001160955
Price: 18.9 EUR
Availability: InStock
Rating: 4.5 (4 reviews)

€18,90

SKU 7350001160955

The KKSB Arduino Case fits both Arduino Mega and UNO, and accommodates the Ethernet Shield and board. It's a two-piece case made of powder-coated steel.

In stock.

Quantity Liquid error (snippets/product-form line 68): include usage is not allowed in this context

Technical Details

Compatible board: Arduino UNO Rev3 and Arduino Mega Rev3 (not compatible with Arduino UNO Rev4)
Compatible HATs: Arduino Ethernet Shield; additional Arduino shields via displaceable/removable pre-cut flanges
Port access: 1 × Ethernet (Ethernet Shield), 1 × USB-B, 1 × DC power jack, long slot openings in the sides and pre-cut round flanges at the rear for cables
Cooling: Ventilation slots in the top
Material: Steel, black powder-coated (2-piece)
Mounting: 2 holes for surface/wall mounting; holes for KKSB DIN Rail Clip (sold separately); 4 rubber feet
In the box: Case, fasteners, 4 × rubber feet
Not included: Arduino UNO/Mega, Arduino Ethernet Shield, KKSB DIN Rail Clip
EAN: 7350001160955

User Manuals

Worldwide shipping
EU delivery: ~ 3-8 days,
Outside the EU: ~ 7-15 days.

Pay using Paypal or Bank Card
We also accept bank payment for larger orders

AI-generated backgrounds are used in some images · Learn more

3D model / Dimensions

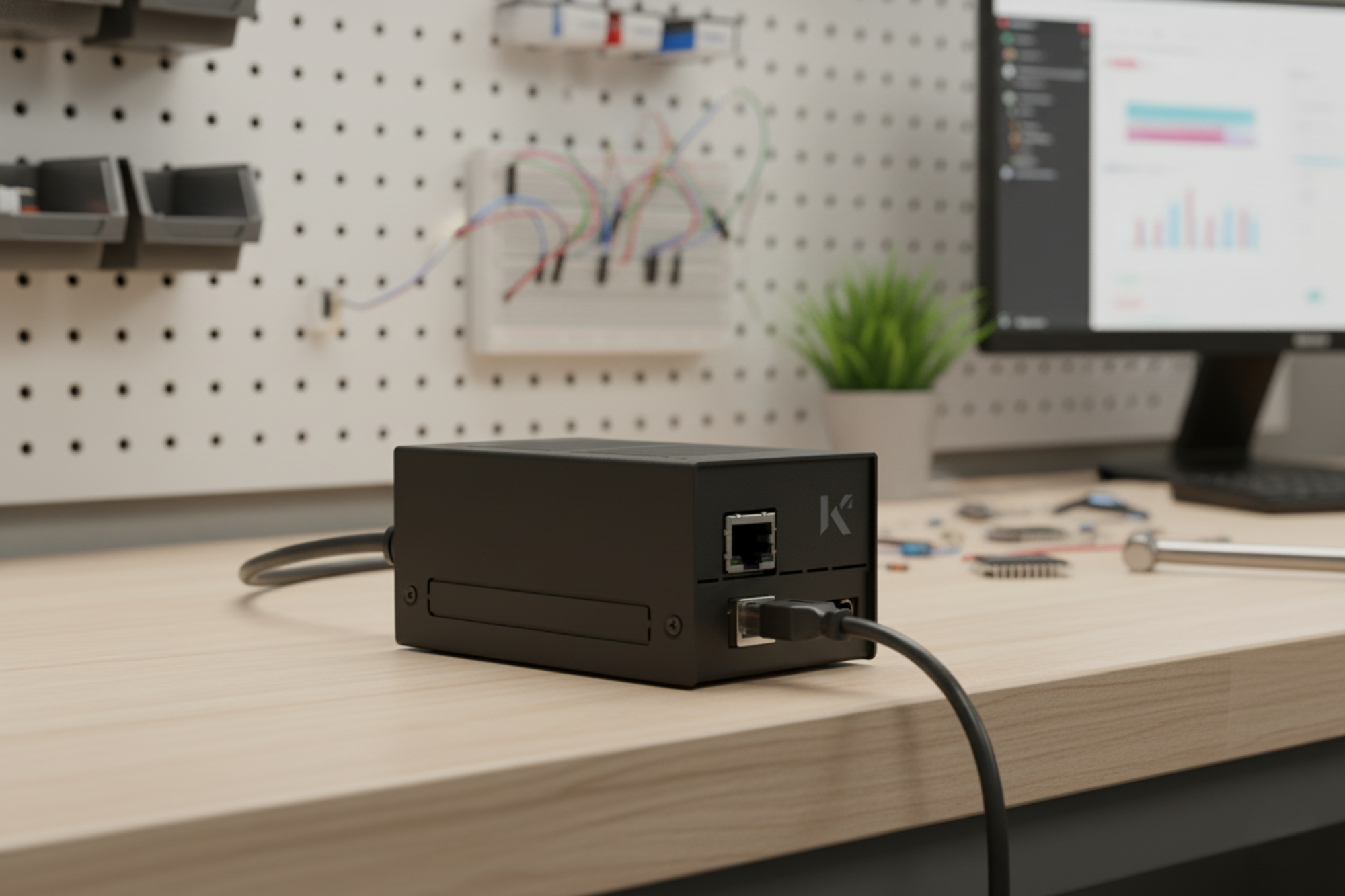

KKSB Arduino UNO/Mega Case (Tall) – on a desk in front of a pegboard wall

Mounting and Stability

The bottom of this Arduino case with space for Ethernet Shield comes with 4x rubber feet. These feet provide stability to the case on different surfaces. You can also attach the KKSB DIN Rail Clip with this case through the precut holes at the bottom. There are also 2x wall-mounting holes to fix the case wherever you want.

Possibility to Add More Arduino Shields

KKSB Arduino UNO, Mega enclosure not only has cutouts for the compatible board connectors but also has cutouts for connectors on Arduino Ethernet Shield. This KKSB Arduino enclosure has pre-cut flanges you can displace to connect more Arduino shields. It makes the case more applicable.

KKSB Arduino UNO/Mega Case (Tall) – on a desk next to a monitor showing a map

Some Examples of Possible Applications

Industrial control systems and automation
Home automation and IoT projects
Robotics and drone development
Data logging and monitoring systems
Educational projects and workshops
Prototyping and R&D for electronics and engineering projects
Building controllers for lights, temperature, humidity, and other environmental variables
Building a touch-screen interface for controlling the Arduino based devices
Building a DIY home security system
Building a DIY smart home automation system
Building a DIY weather station
Building a DIY controller for a 3D printer

It's important to note that the case itself does not have any specific functionality; it is simply a protective enclosure for the Arduino board, however it's added features make it more versatile for different projects.

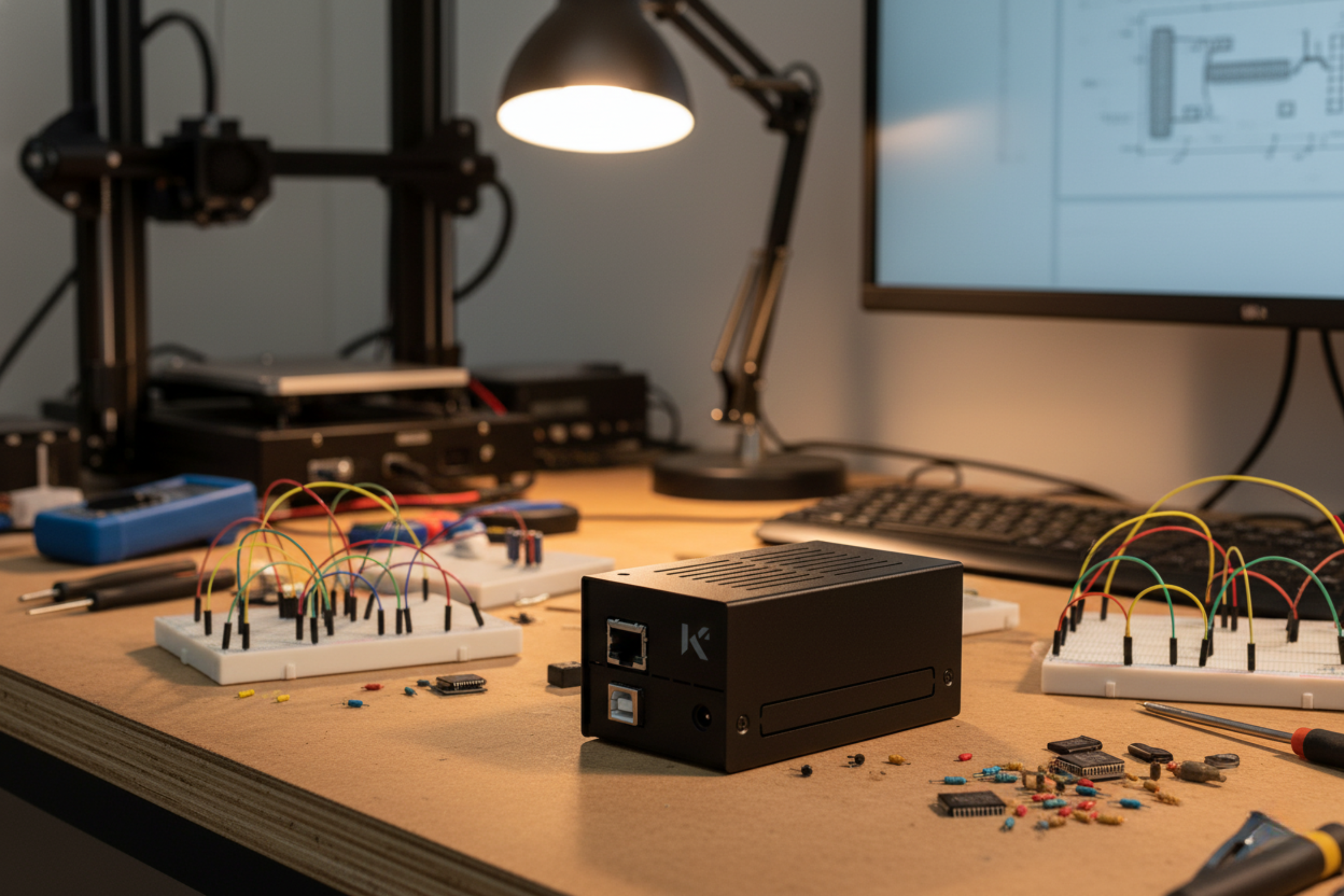

KKSB Arduino UNO/Mega Case (Tall) – on a cluttered electronics workbench under a lamp

Why Should You Choose This Case?

Here are a few reasons why you may choose the KKSB Arduino UNO, Mega Case for your project:

Durability: Made of powder-coated steel, the case is built to last and withstand the test of frequent use.
Compatibility: The case is specifically designed for the Arduino UNO, Mega and Ethernet Shield, ensuring a perfect fit and easy access to all ports and connectors.
Flexibility: The case features pre-cut flanges that are displaceable and removable, allowing you to use additional Arduino shields, making it easy to expand your project as needed.
Suitable for Multiple Orientations: The case comes with 4 rubber feet for stability on different surfaces and 2 wall-mounting holes for surface mounting. Since the case is also compatible with the KKSB DIN Rail Clip (Not Included), you can mount the case on DIN Rail if required.
Professional look: The sleek, powder-coated black finish gives the case a professional look, making it suitable for use in a variety of settings.
Accessories: The case comes with fasteners and 4 rubber feet included, making it ready to use straight out of the box.

Overall, the KKSB Arduino Case offers a balance of protection, durability, and versatility, making it a great choice for a wide range of projects.
