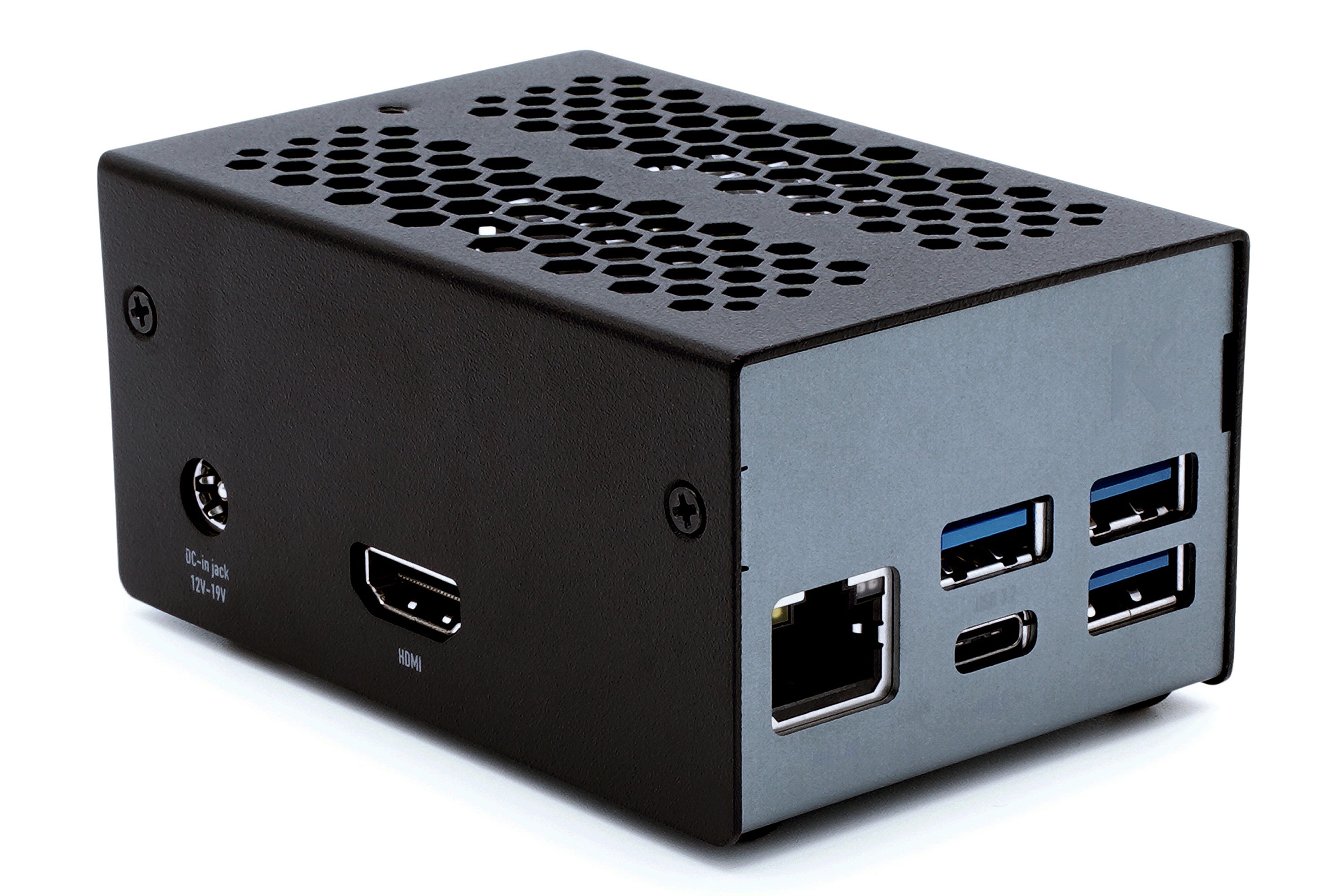

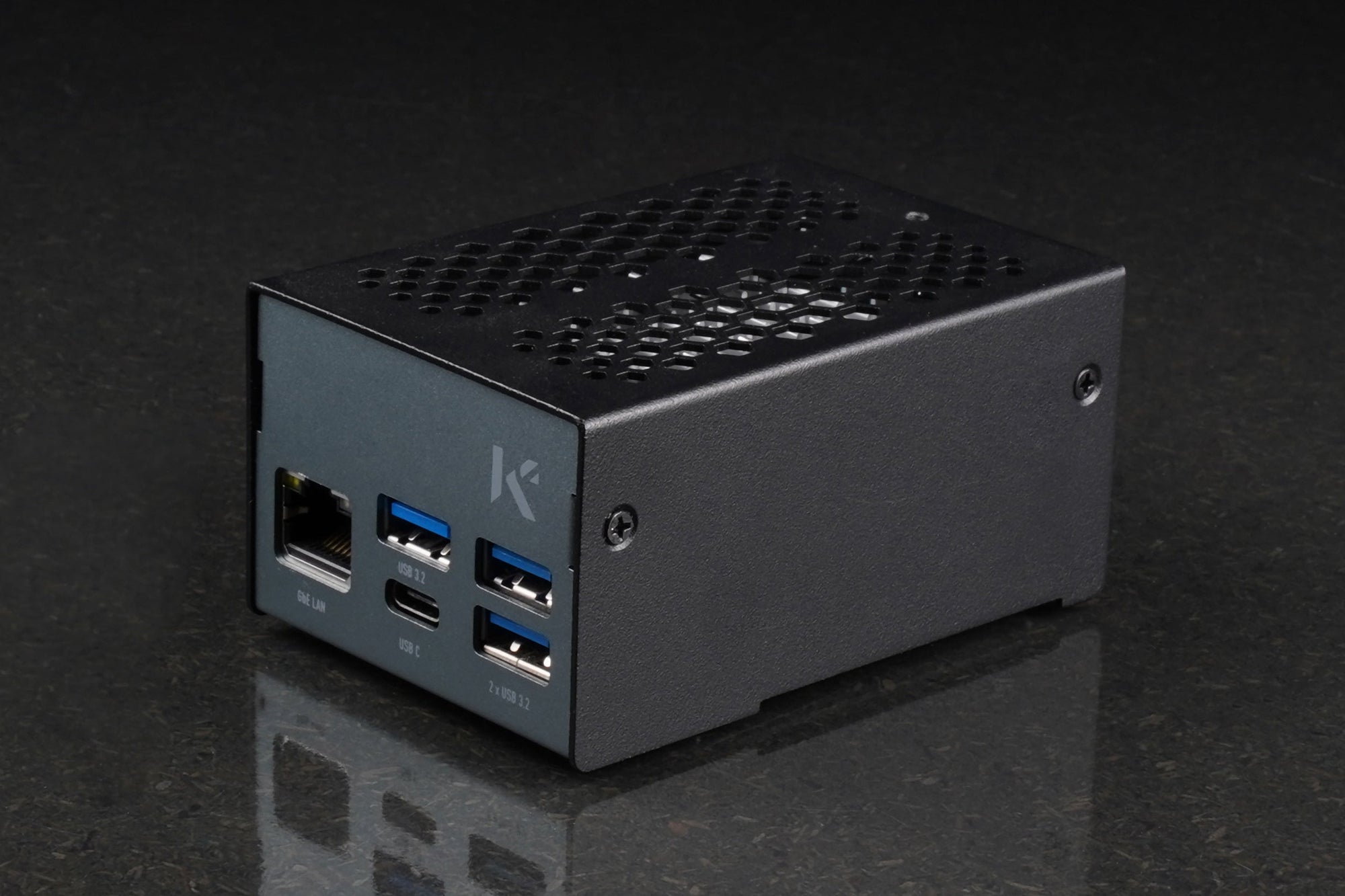

KKSB Tinker Board 2 Case – end panel with Ethernet, USB-C and three USB 3.x ports

KKSB ASUS Tinker Board 2 Case

Name: KKSB ASUS Tinker Board 2 Case
Brand: KKSB Cases
SKU: 7350001160924
Price: 15.9 EUR
Availability: InStock
Rating: 5.0 (3 reviews)

€15,90

SKU 7350001160924

KKSB ASUS Tinker Board 2 Case has a 2-piece metal enclosure, with a high-grade powder-coated steel lid featuring hexagonal cutouts for airflow. The bottom is sandblasted aluminum with a grey anodized finish.

In stock.

Quantity Liquid error (snippets/product-form line 68): include usage is not allowed in this context

Technical Details

Compatible board: ASUS Tinker Board 2

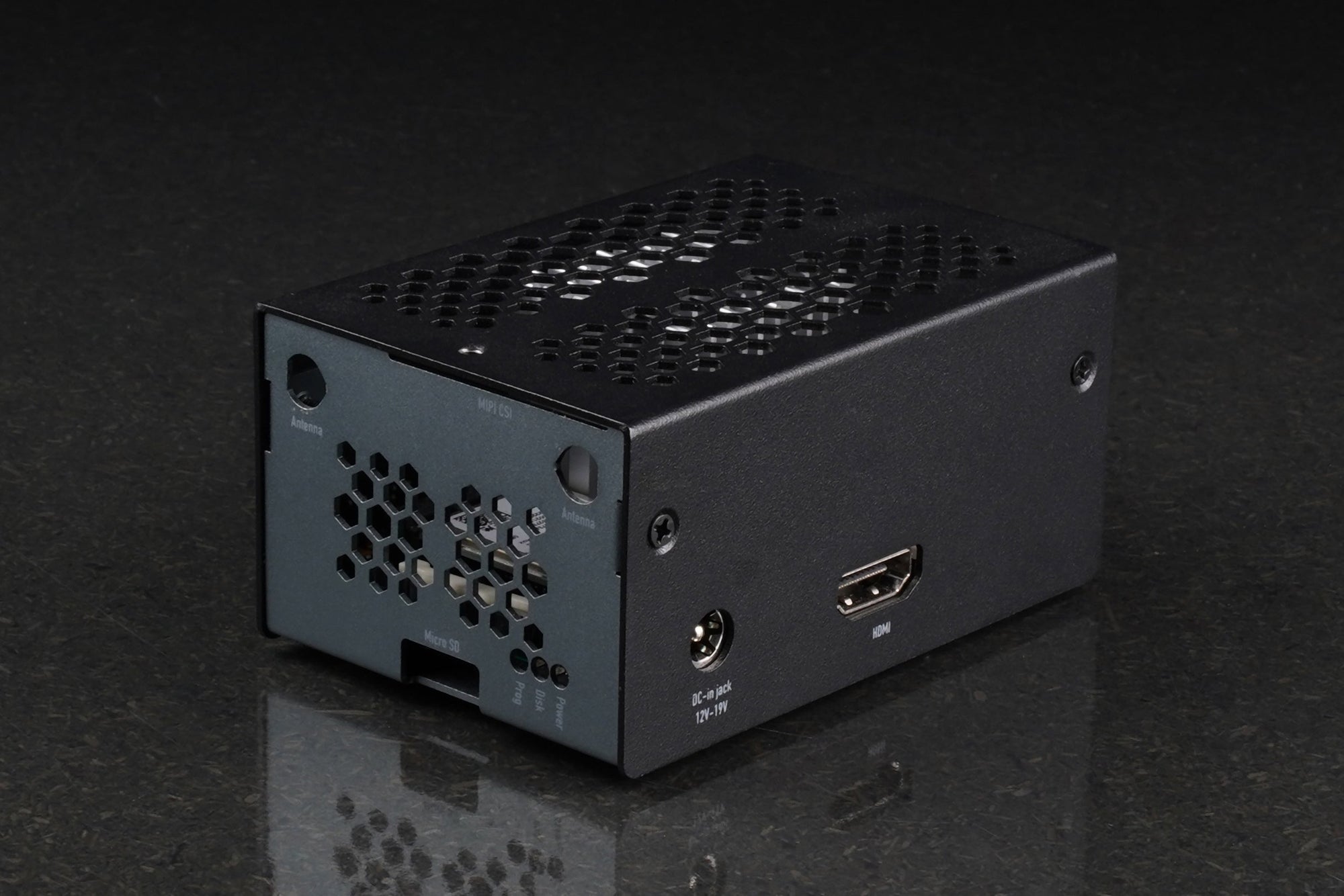

Port access: End panel: 1 × Gigabit Ethernet, 1 × USB-C, 3 × USB 3.x Type-A. Side: DC-in jack (12–19 V), 1 × HDMI. Opposite end: microSD card slot, three small indicator holes, 2 knockouts marked “Antenna”

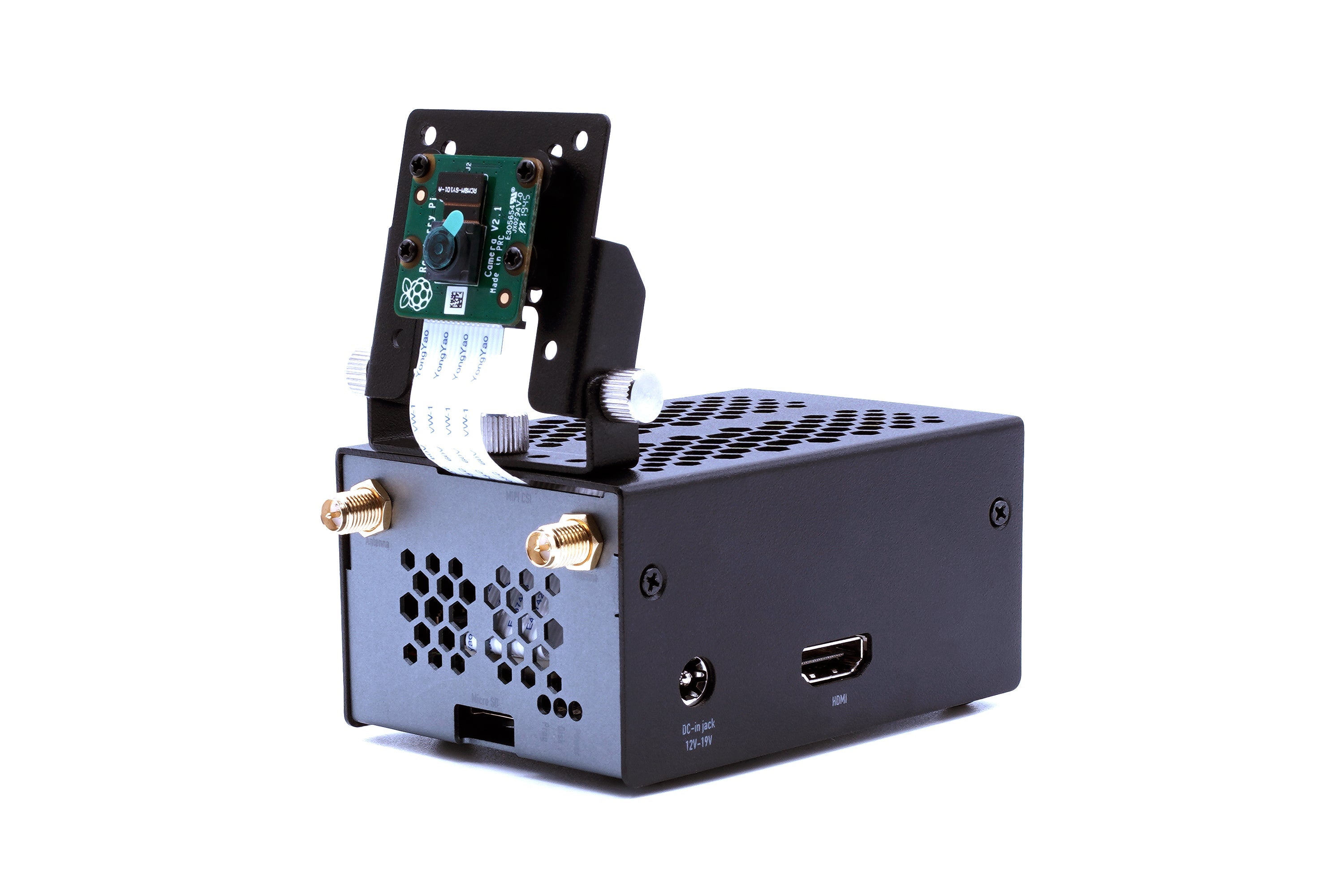

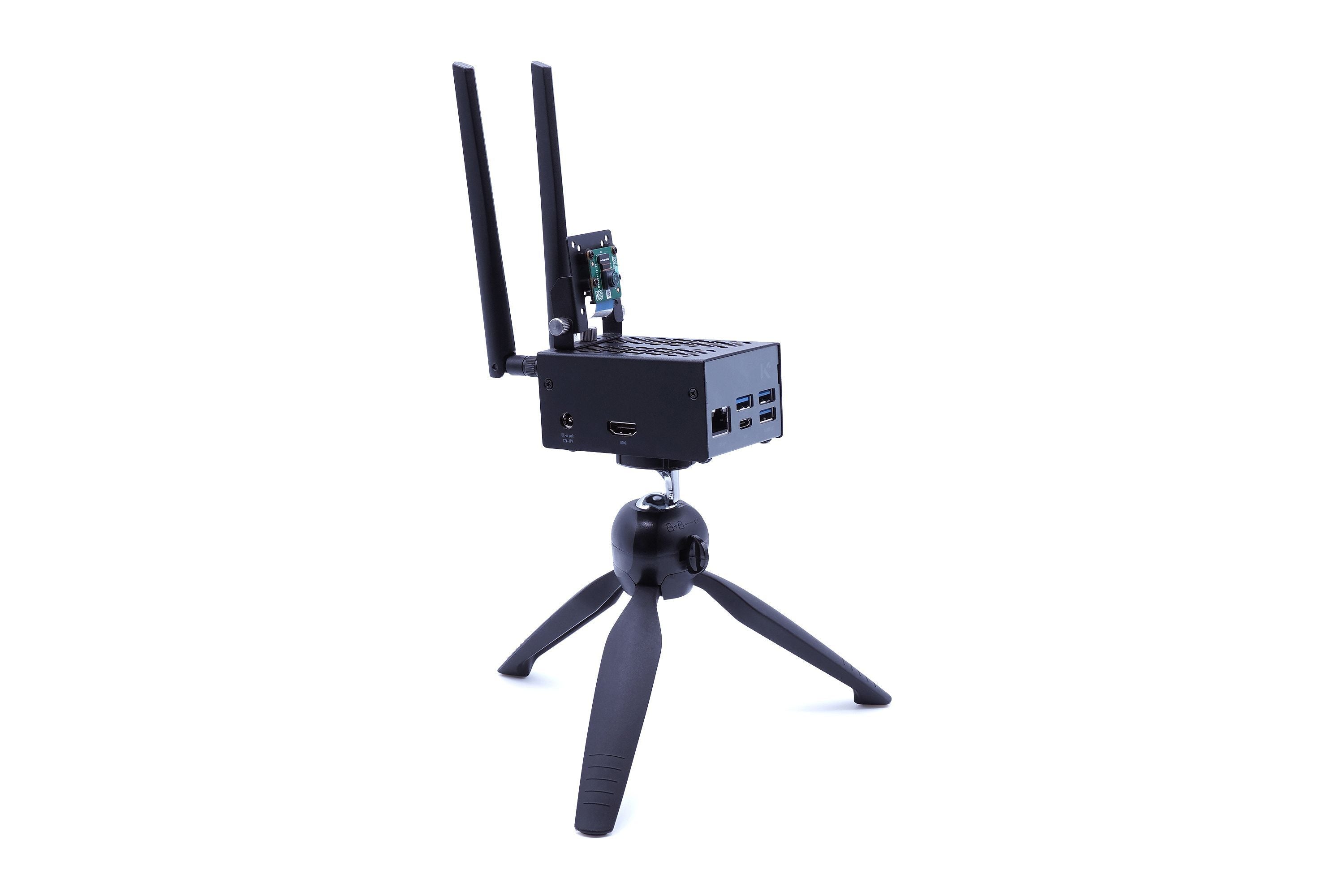

Antenna: 2 knockout holes marked “Antenna” for SMA antenna connectors; antennas not included
Cooling: Hexagonal ventilation holes in the lid and end panel
Material: Powder-coated steel lid; sandblasted aluminium bottom with grey anodized finish

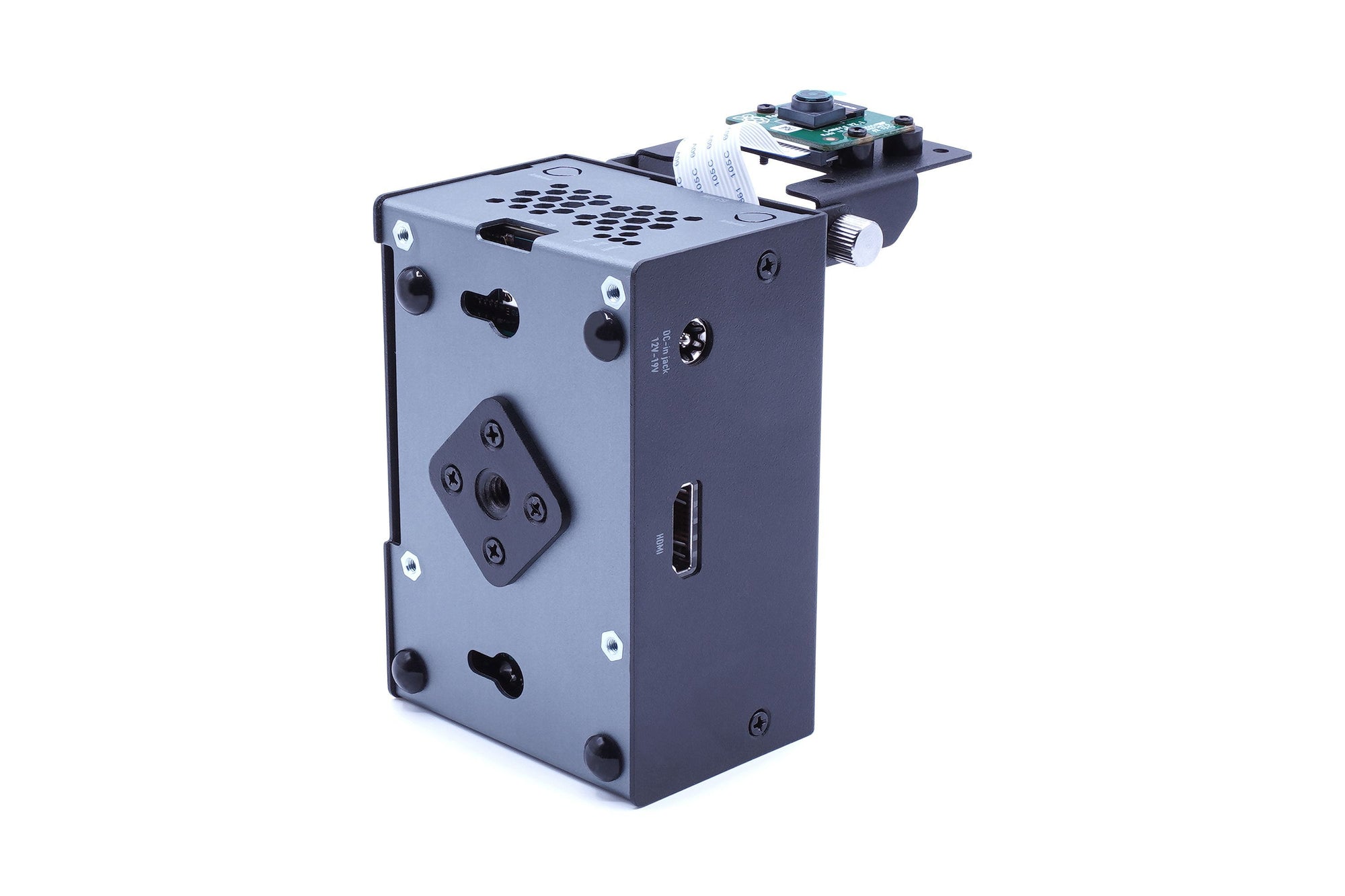

Mounting: 2 pre-cut wall mounting holes; holes and cutout for KKSB ¼"-20 UNC Thread (tripod); supports KKSB DIN Rail Clip and KKSB Camera Holder (sold separately); 4 rubber feet
In the box: Case lid, case bottom, 4 rubber feet, fasteners
Not included: ASUS Tinker Board 2, KKSB Camera Holder, KKSB ¼"-20 UNC Thread, KKSB DIN Rail Clip, tripod, camera module, SMA antennas
EAN: 7350001160924

User Manuals

Worldwide shipping
EU delivery: ~ 3-8 days,
Outside the EU: ~ 7-15 days.

Pay using Paypal or Bank Card
We also accept bank payment for larger orders

AI-generated backgrounds are used in some images · Learn more

3D model / Dimensions

KKSB Tinker Board 2 Case – next to a retro TV in a game room

KKSB Tinker Board 2 Case – on a living room side table below a wall-mounted TV

Convenient Access To Ports

The case is designed to fit the ASUS Tinker Board 2 while letting the user access most of the important ports and interfaces on the board without having to remove the lid.

Versatile Enclosure and Accessories

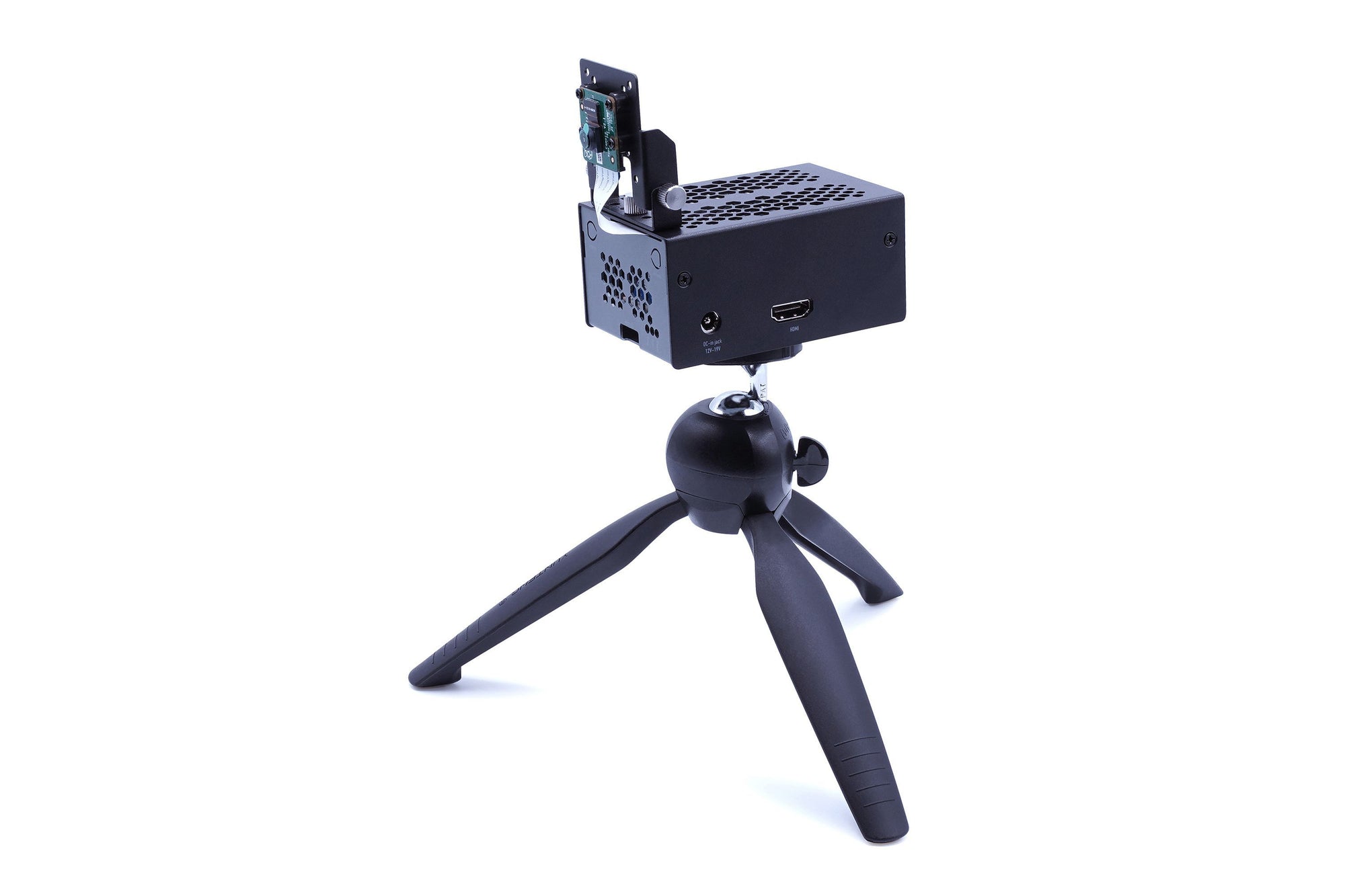

Since this Tinker Board 2 enclosure supports DIN Rail Clip, KKSB UNC Thread, KKSB Camera Holder, and Mini Tripod, you can optimize the applicability of your ASUS Tinker Board 2. With this case and accessories, you can work on many IoT and AI applications including face recognition, proper surveillance, smart access, smart authorization, and more.

KKSB Tinker Board 2 Case – on a lab bench next to a robot arm and monitor

Some Examples of Possible Applications

Possible applications for the KKSB ASUS Tinker Board 2 Case include:

IoT (Internet of Things) projects such as smart home automation, smart surveillance, and smart access control
AI (Artificial Intelligence) projects such as face recognition and image processing
Industrial control and automation
Robotics
Digital Signage
Smart Transportation

Why Should You Choose This Case?

The powder-coated steel and sandblasted aluminium construction provide a durable and attractive enclosure for the ASUS Tinker Board 2
The hexagonal cutouts on the lid allow for proper heat dissipation
The case allows for easy access to most of the ports and interfaces on the board without having to remove the lid
The case allows for surface mounting using the pre-cut wall mounting holes and rubber feet
The case is designed to support DIN Rail Clip, KKSB UNC Thread, KKSB Camera Holder, and Mini Tripod, which can help users optimize the applicability of their ASUS Tinker Board 2.
