KKSB DIN Rail Mount Clip with Screws
KKSB DIN Rail Mount Clip with Screws
Based in the USA? 🇺🇸

Due to newly increased import tariffs, ordering from our website may be costly. For the best price and fastest delivery, please shop through our dedicated Amazon USA store—domestic shipping, no import fees. Shop on Amazon ➔

KKSB DIN Rail Mount Clip with Screws

€3,90
Incl. VAT
SKU 7350001160962

The KKSB DIN Rail Mount Clip enables secure mounting of compatible KKSB cases onto a standard 35mm DIN Top Hat rail

In stock. Delivery time: 3-8 days Delivery time: 7-15 days
Liquid error (snippets/product-form line 68): include usage is not allowed in this context
Technical Details
  • Compatibility: Compatible with KKSB cases featuring factory-made DIN rail mounting holes on the bottom panel
  • Rail Standard: 35mm DIN Top Hat Rail
  • Material: Aluminum
  • Surface Finish: Black powder-coated
  • Screw Size: M2.5
  • Installation Type: Direct screw mounting to compatible cases
  • This offer does NOT include the Rail.
  • This offer does NOT include any case
User Manuals
DE-USER_MANUAL_AND_SAFETY_DATASHEET-7350001160962_e6c171fa-7e0a-4f7d-a253-1e298b55b6ca.pdf
Deutsch EN-USER_MANUAL_AND_SAFETY_DATASHEET-7350001160962_e54f9ae6-42ec-4a84-b878-6a00f710cd6c.pdf
English ES-USER_MANUAL_AND_SAFETY_DATASHEET-7350001160962_09536672-2765-4095-845c-ec77994588a7.pdf
Español FR-USER_MANUAL_AND_SAFETY_DATASHEET-7350001160962_9d2c1d1f-ddfc-493c-b48d-9bc360fdf3d7.pdf
Français IT-USER_MANUAL_AND_SAFETY_DATASHEET-7350001160962_ead7d69b-18d9-42ac-b743-667183161a3c.pdf
Italiano JP-USER_MANUAL_AND_SAFETY_DATASHEET-7350001160962_9c69bc76-b3d4-4922-bda5-34761ffc6a1b.pdf
日本語 (Nihongo) NL-USER_MANUAL_AND_SAFETY_DATASHEET-7350001160962_79e6271c-7d8e-45c6-b29f-fb97f0f623f1.pdf
Nederlands
Worldwide shipping
EU delivery: ~ 3-8 days,
Outside the EU: ~ 7-15 days.
Pay using Paypal or Bank Card
We also accept bank payment for larger orders
American Express
Apple Pay
Bancontact
Google Pay
iDEAL
Klarna
Maestro
Mastercard
PayPal
Shop Pay
Union Pay
Visa

AI-generated backgrounds are used in some images · Learn more

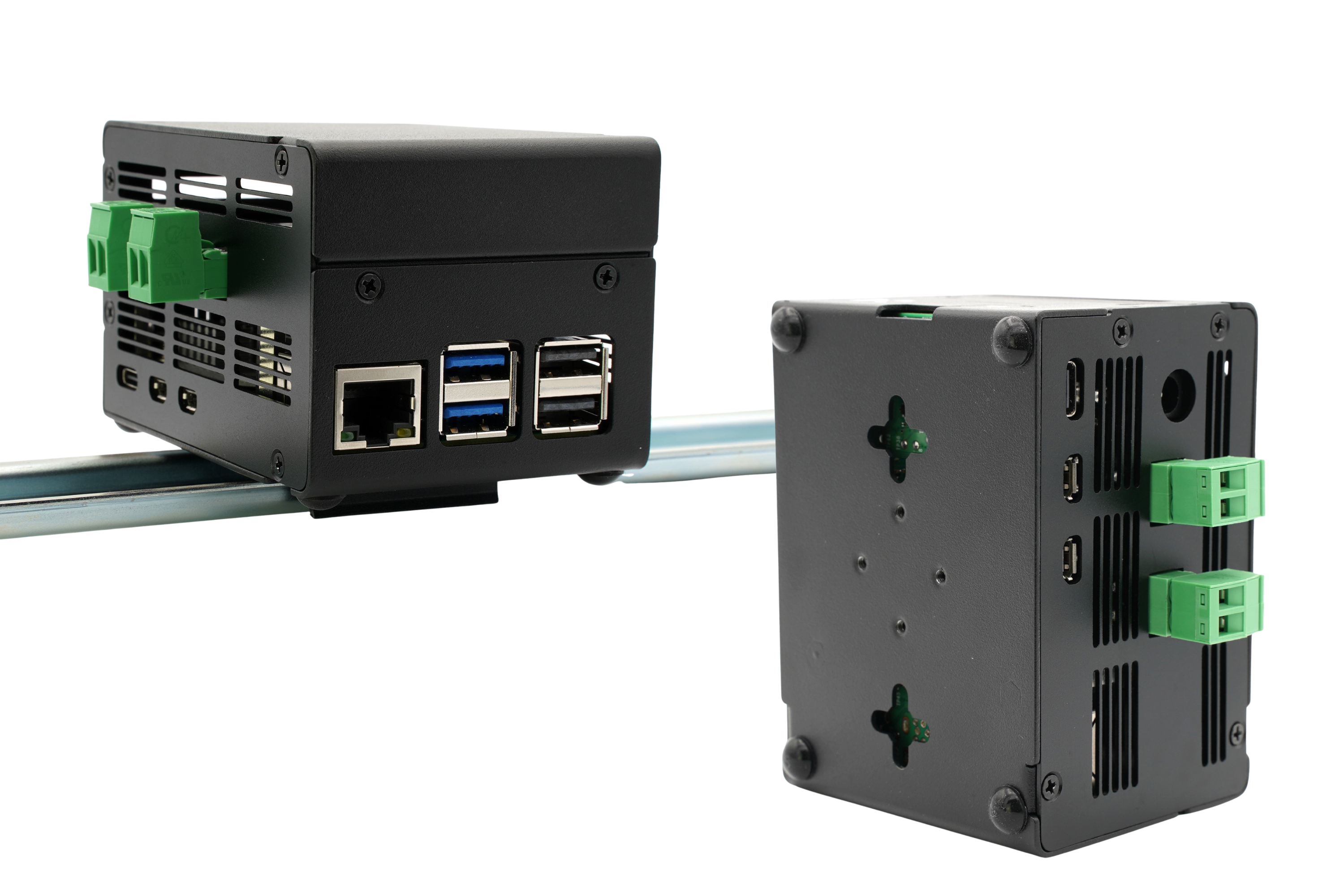

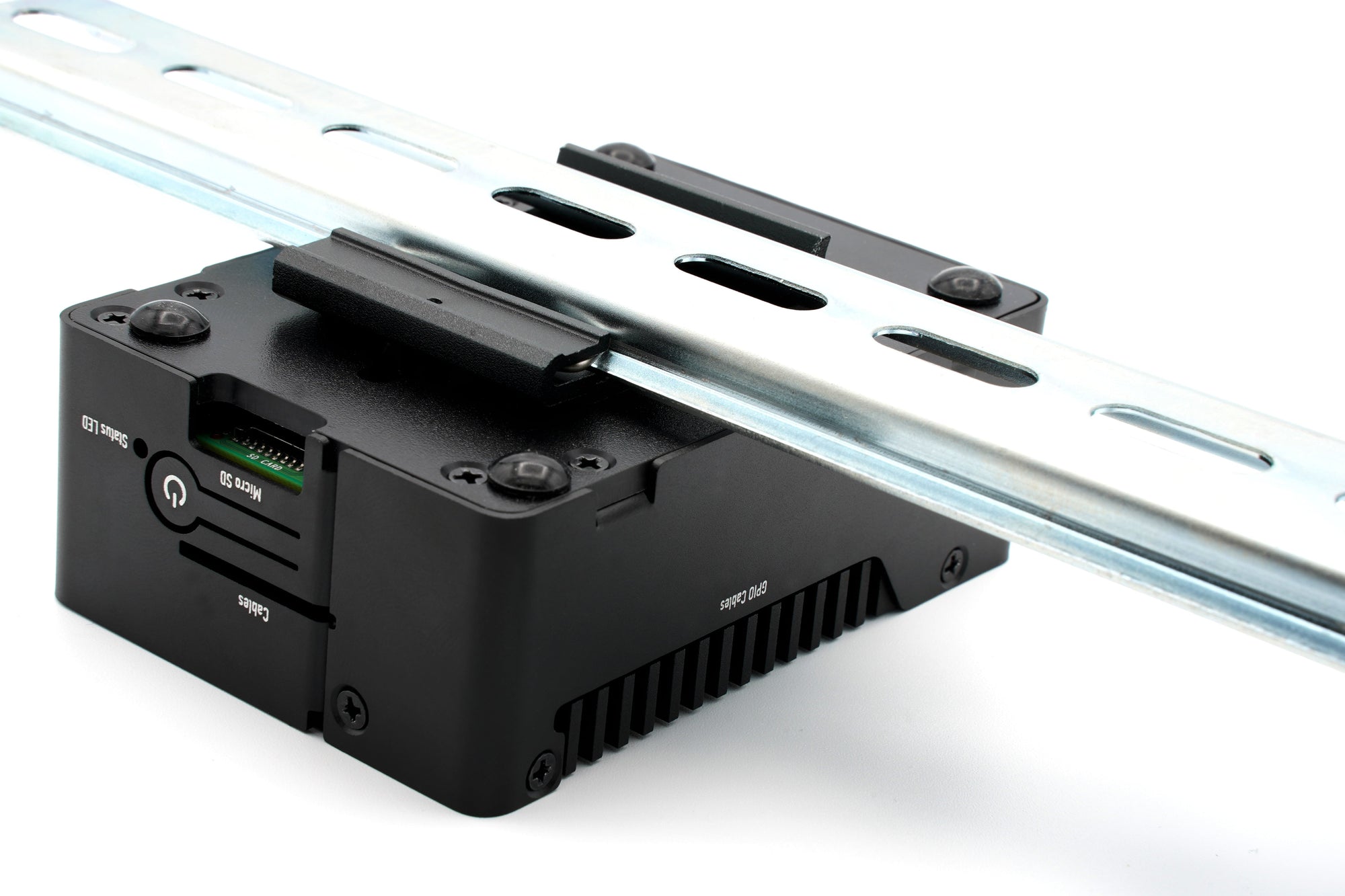

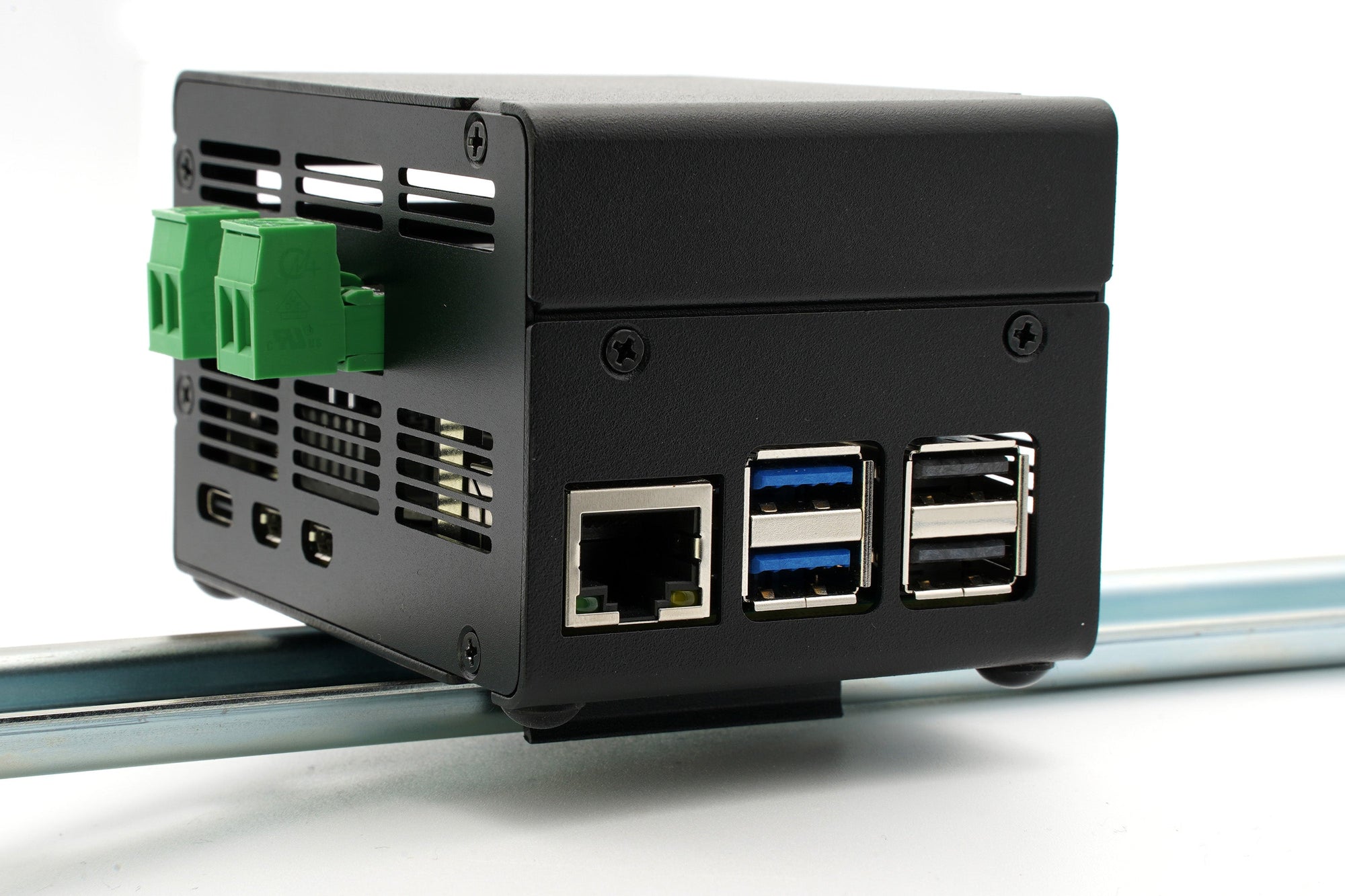

Engineered for Secure DIN Rail Integration

Manufactured from black powder-coated aluminum, the clip is designed for industrial installations such as control cabinets, automation systems, and embedded edge deployments. The clip attaches directly to compatible KKSB cases using the included screws and allows fast installation and removal from the DIN rail.

DIN Rail Mount Clip Compatibility

The KKSB DIN Rail Mount Clip is compatible with KKSB cases that feature factory-made DIN rail mounting holes on the bottom panel.

These precut mounting holes are designed to allow direct installation of the DIN Rail Clip without drilling or modifications.

If your KKSB case includes four bottom mounting holes for DIN rail attachment, the clip can be securely installed.

How to check compatibility

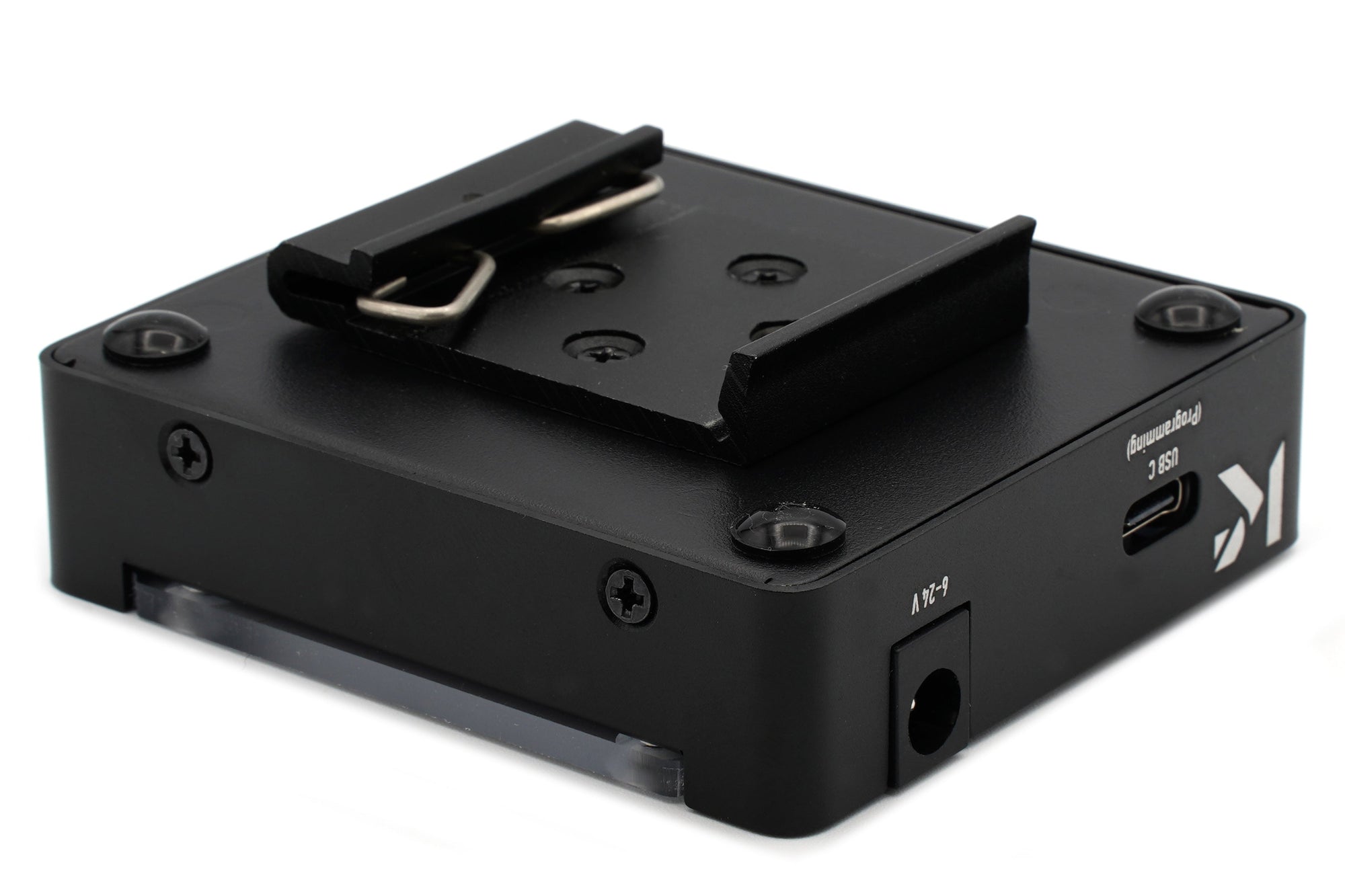

  • Look for four precut mounting holes on the bottom of the case, as shown in the images

  • If present, the case supports mounting the KKSB DIN Rail Mount Clip


Installation on Other KKSB Cases

The DIN Rail Clip can also be used with other KKSB cases by modifying the enclosure:

  • Drill 4 × M2.5 mounting holes

  • Secure the clip using M2.5 screws and nuts

  • Alternatively, thread the enclosure with M2.5 threads for direct screw mounting

Modification should be performed carefully to maintain structural integrity.

Items Included

  • 1 × KKSB DIN Rail Mount Clip

  • 4 × Mounting Screws

The images of cases and the Rail are for demonstration purposes only.

  • This offer does NOT include the Rail
  • This offer does NOT include any case
