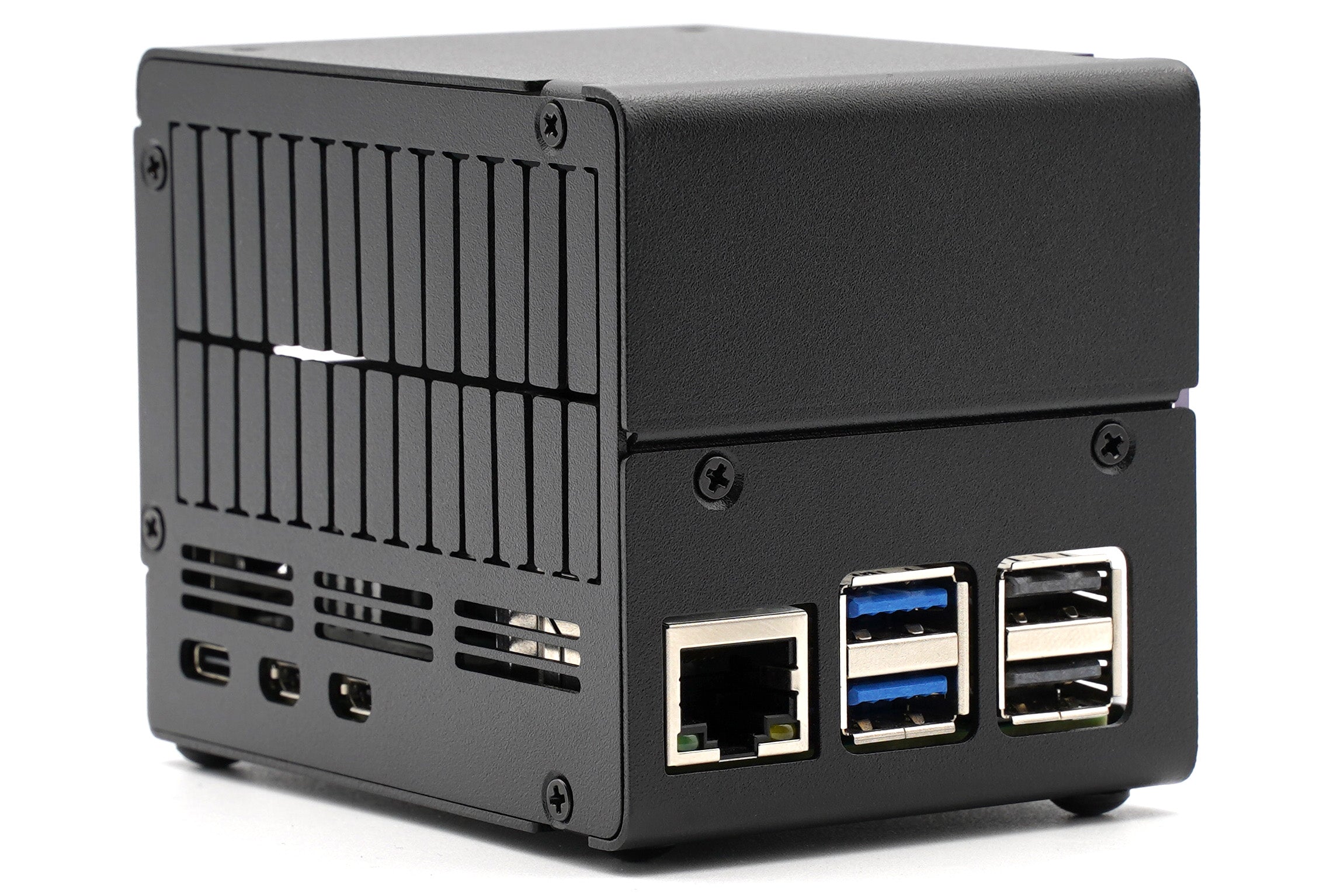

KKSB Tall Raspberry Pi 5 Case – port side with Ethernet, USB, USB-C and micro-HDMI

KKSB Case for Raspberry Pi 5 – Tall Aluminum Enclosure for Dual HATs & NVMe HATs

Name: KKSB Case for Raspberry Pi 5 – Tall Aluminum Enclosure for Dual HATs & NVMe HATs
Brand: KKSB Cases
SKU: 7350001162249
Price: 26.2 EUR
Availability: InStock
Rating: 5.0 (1 reviews)

€26,20

SKU 7350001162249

A tall, durable aluminum case designed for advanced Raspberry Pi 5 setups. Supports dual HAT installations, NVMe HATs, and the Official Raspberry Pi Cooler, with excellent airflow and easy access for upgrades.

In stock.

Quantity Liquid error (snippets/product-form line 68): include usage is not allowed in this context

Technical Details

Compatible board: Raspberry Pi 5
Compatible HATs: Dual HAT installations, most HATs and NVMe HATs; long and short spacers included
Port access: 1 × USB-C (power), 2 × micro-HDMI, 2 × USB 3.0, 2 × USB 2.0, 1 × Gigabit Ethernet, microSD card opening, side access for a 40-pin GPIO cable

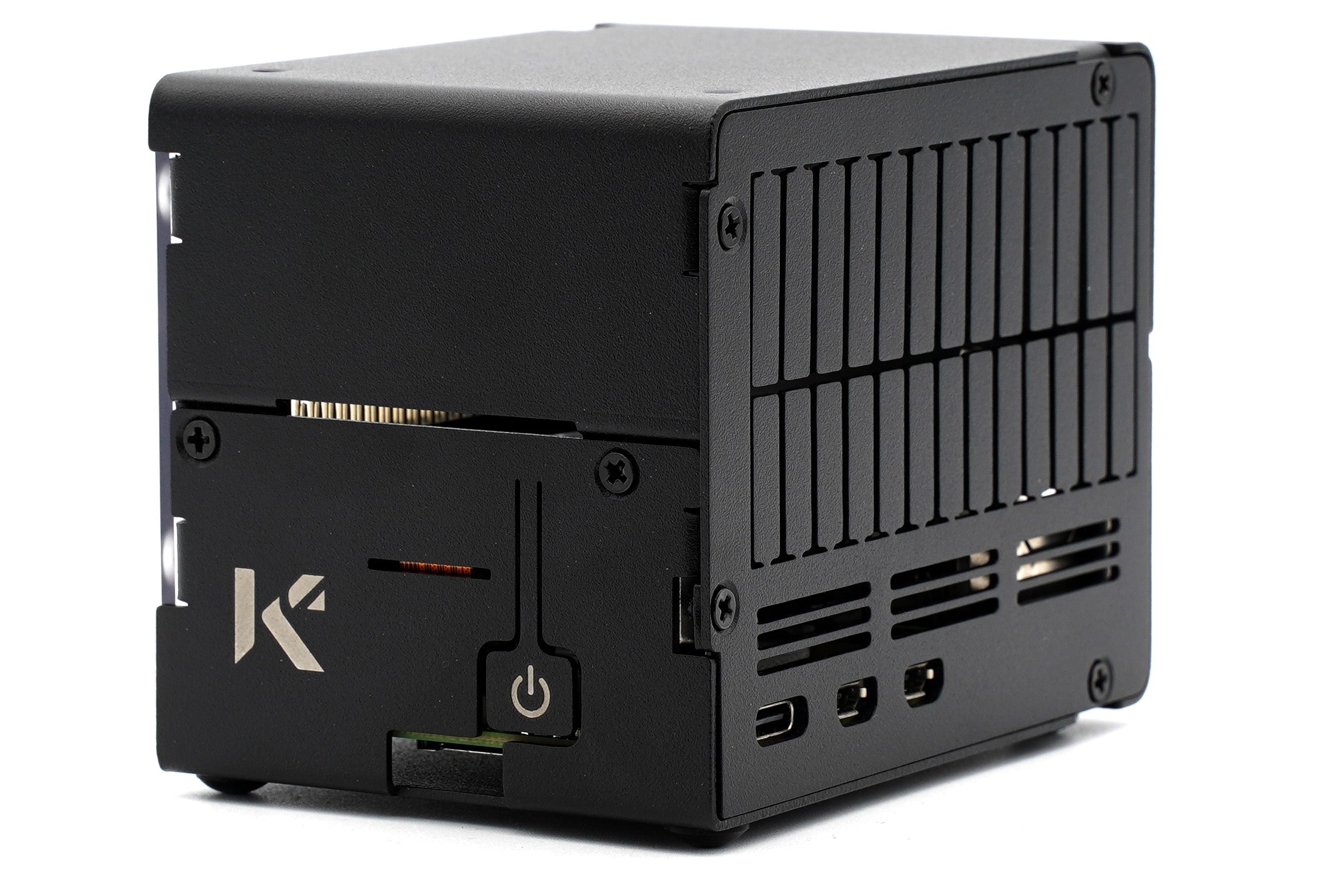

Power button: External button integrated in the case, marked with a power symbol
Cooling: Ventilation slots on the connector side; fits the official Raspberry Pi 5 Active Cooler (included 40-pin stackable header leaves airflow between cooler and HAT); room for heatsinks or low-profile coolers
Expansion: Removable top panel; removable side-panel sections for HAT connector access
Material: Sandblasted black anodized aluminium, powder-coated steel frame, clear polycarbonate side
Mounting: 2 keyholes on the bottom for wall mounting; threaded holes for the KKSB Camera Holder (sold separately); rubber feet
Package dimensions: 120 × 80 × 80 mm; shipping weight 305 g
In the box: Case, long and short spacers, 40-pin stackable header, rubber feet
Not included: Raspberry Pi 5, HATs, cooler
EAN: 7350001162249

User Manuals

Assembly Instruction KKSB Case For Raspberry Pi 5 - Tall- Dual HATs DE-USER_MANUAL_AND_SAFETY_DATASHEET-7350001162249.pdf
Deutsch EN-USER_MANUAL_AND_SAFETY_DATASHEET-7350001162249.pdf
English ES-USER_MANUAL_AND_SAFETY_DATASHEET-7350001162249.pdf
Español FR-USER_MANUAL_AND_SAFETY_DATASHEET-7350001162249.pdf
Français IT-USER_MANUAL_AND_SAFETY_DATASHEET-7350001162249.pdf
Italiano JP-USER_MANUAL_AND_SAFETY_DATASHEET-7350001162249.pdf
日本語 (Nihongo) NL-USER_MANUAL_AND_SAFETY_DATASHEET-7350001162249.pdf
Nederlands

Worldwide shipping
EU delivery: ~ 3-8 days,
Outside the EU: ~ 7-15 days.

Pay using Paypal or Bank Card
We also accept bank payment for larger orders

AI-generated backgrounds are used in some images · Learn more

3D model / Dimensions

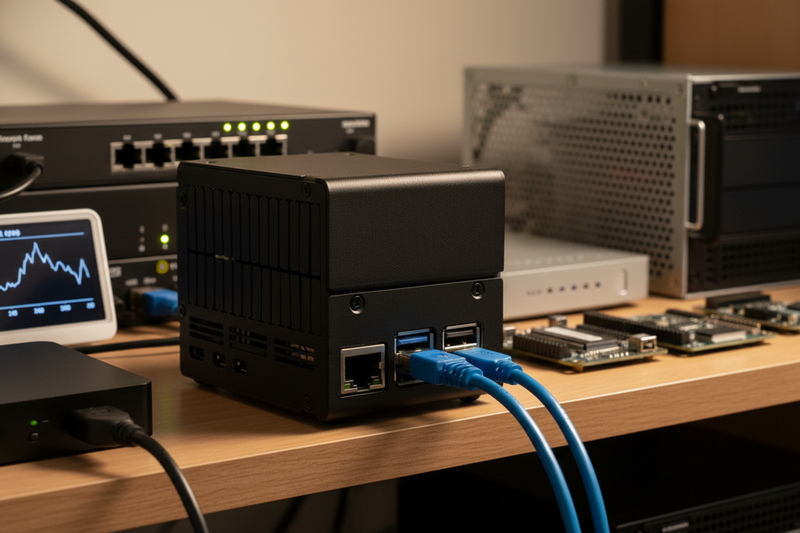

KKSB Tall Raspberry Pi 5 Case – on a desk next to a network switch

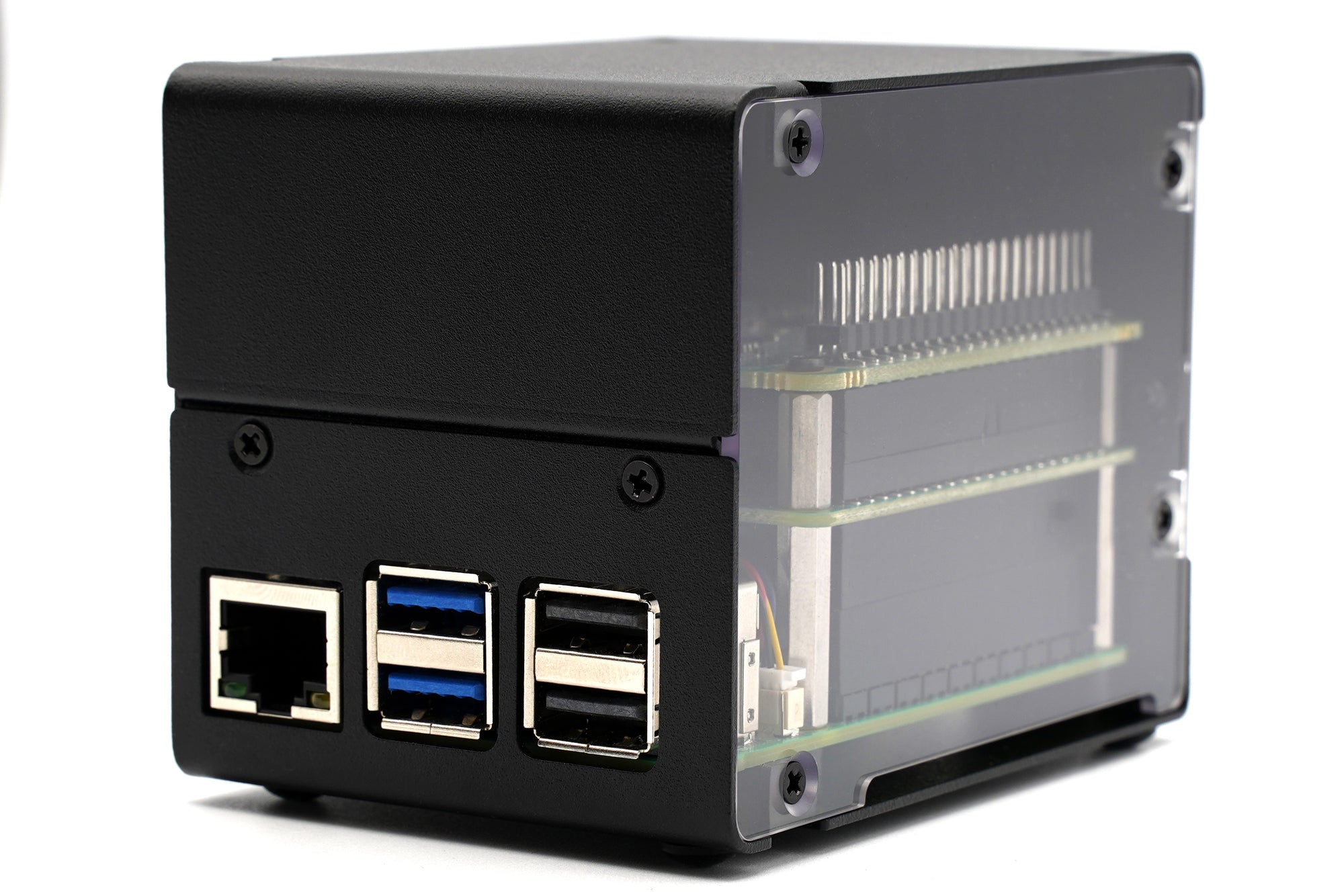

KKSB Tall Raspberry Pi 5 Case – port end with clear polycarbonate side

KKSB Tall Raspberry Pi 5 Case – on a desk next to a monitor showing a retro game

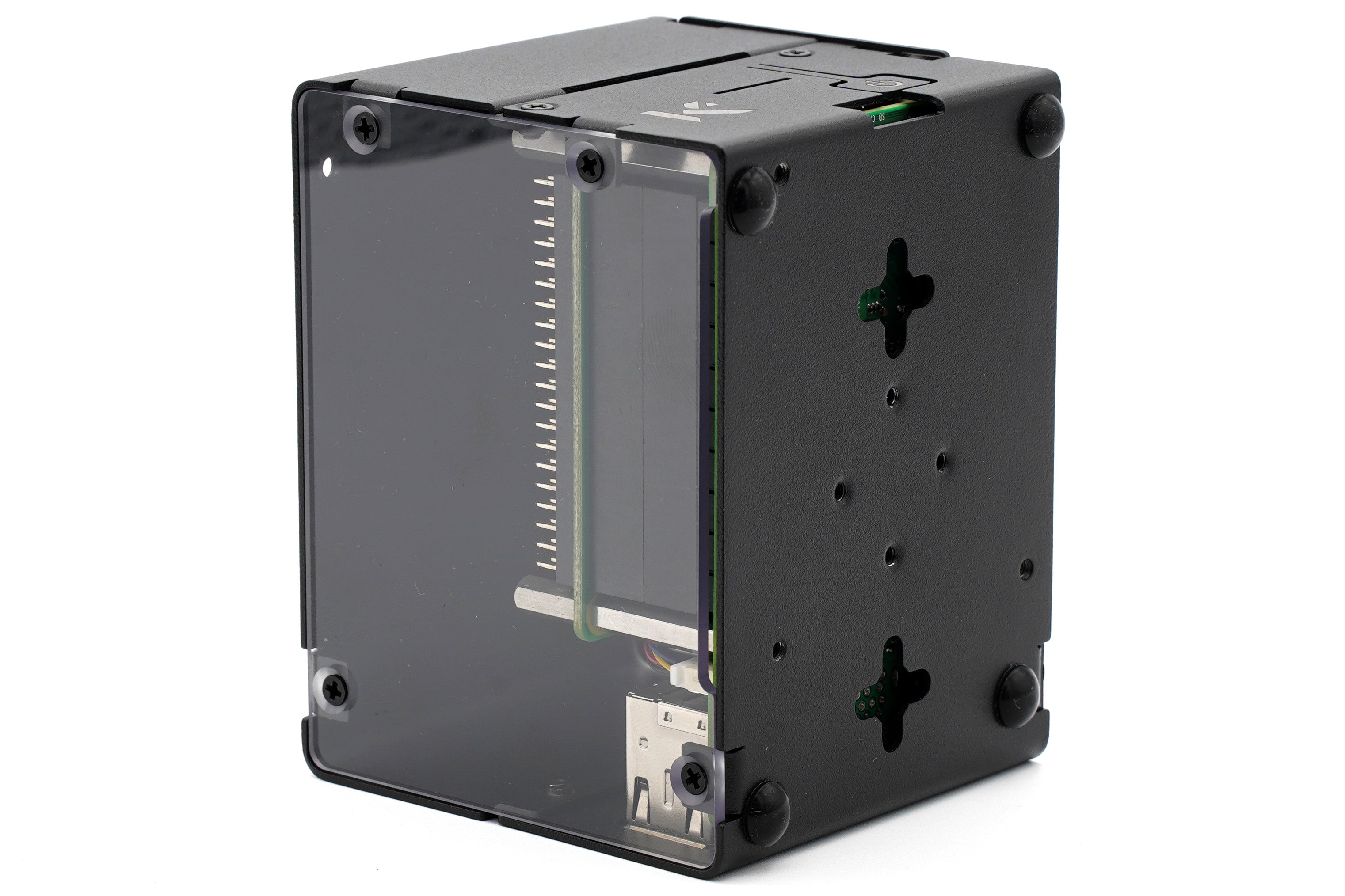

KKSB Tall Raspberry Pi 5 Case – clear side and bottom with keyhole mounting holes

Built for Advanced Raspberry Pi 5 Projects

The KKSB Tall Case for Raspberry Pi 5 is designed for users who need more space, flexibility, and performance from their setup. With support for dual HAT installations and compatibility with most NVMe HATs, this enclosure is ideal for expanding your Raspberry Pi 5 beyond standard configurations. Its tall form factor provides the clearance needed for stacked components, making it a reliable solution for demanding applications such as storage expansion, AI processing, and custom embedded systems.

Dual HAT & NVMe HAT Compatibility

This case is engineered to support a wide range of HATs, including NVMe expansion boards. The extra internal height allows for dual HAT installations, giving you the flexibility to build more powerful and feature-rich systems. Both long and short spacers are included, ensuring compatibility with different GPIO header configurations.

Note: Raspberry Pi board, HAT modules, and cooling components are not included.

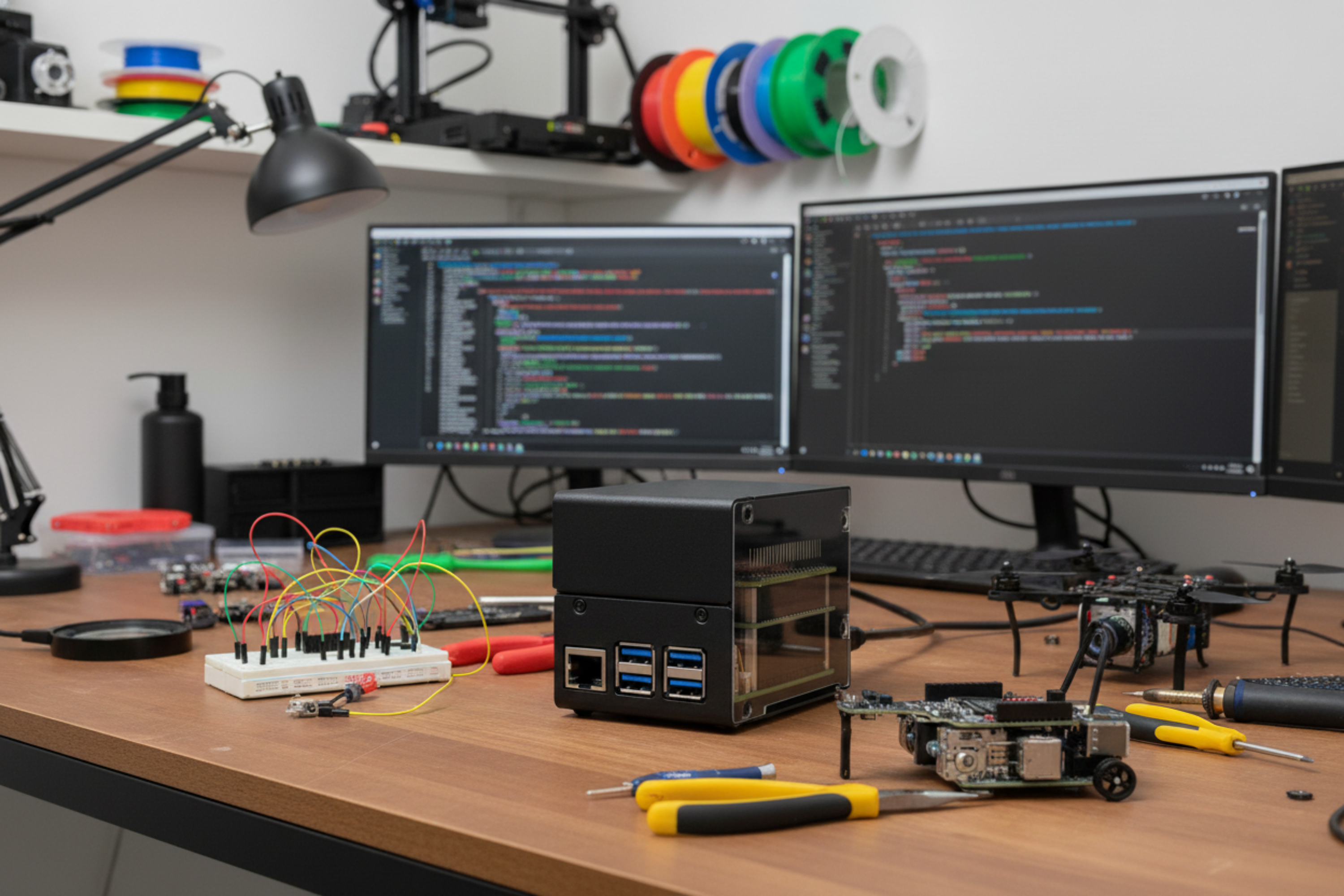

KKSB Tall Raspberry Pi 5 Case – on a developer desk next to monitors

Some Examples of Possible Applications

Ideal for a wide range of use cases:

Home lab and server setups
Edge computing systems
AI and NVMe storage projects

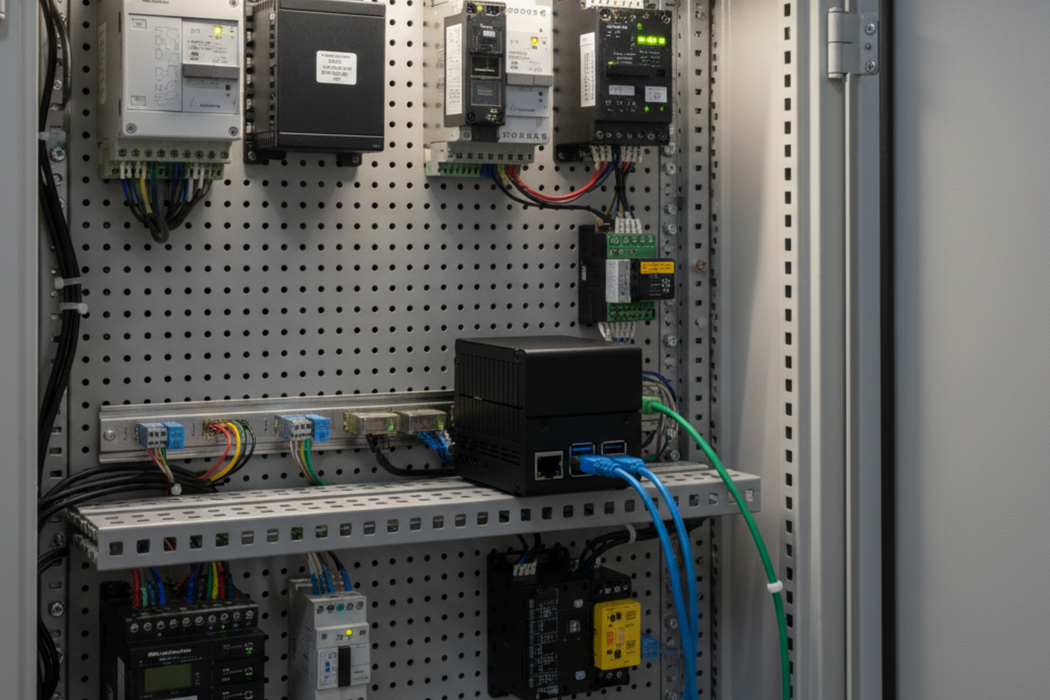

Industrial and embedded applications
Development and testing environments

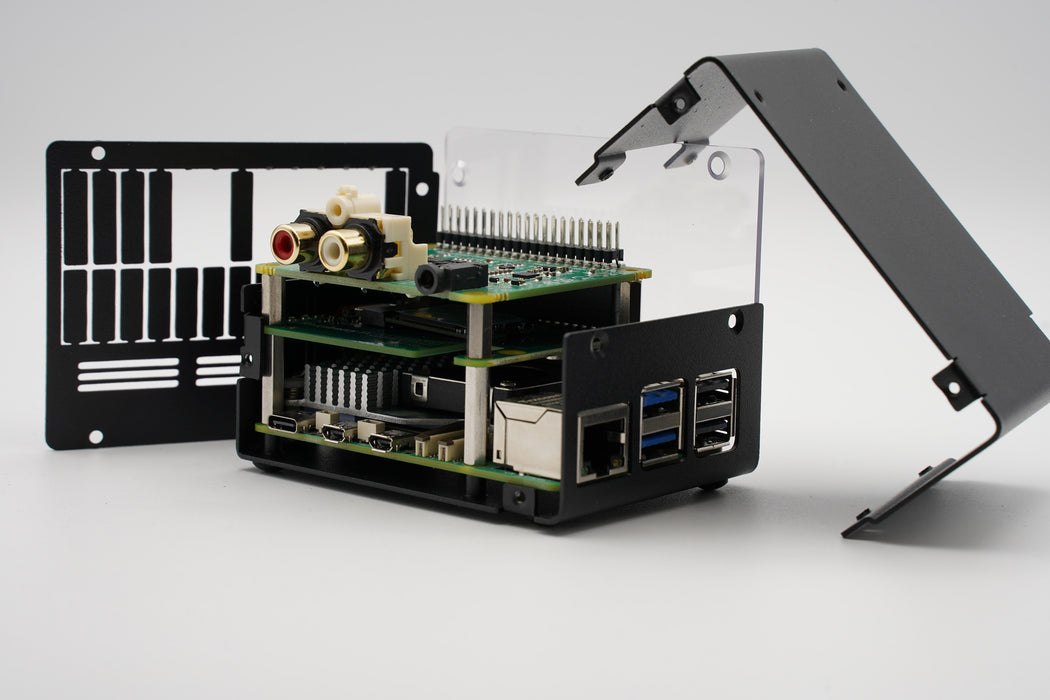

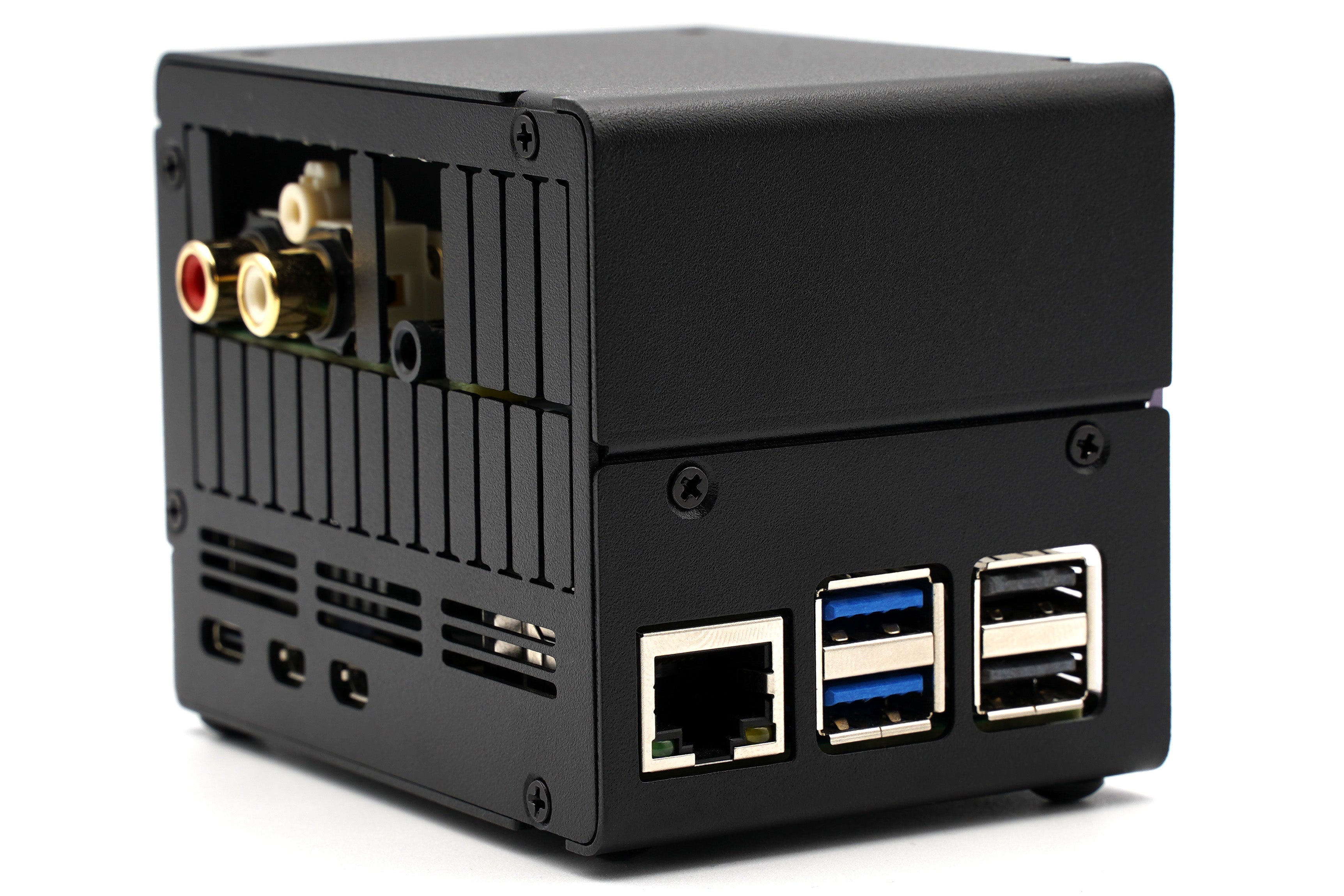

KKSB Tall Raspberry Pi 5 Case – with side panel sections removed for an audio HAT with RCA outputs

Compatible with the Official Raspberry Pi 5 Cooler

The case includes a 40-pin stackable header, allowing you to use the official Raspberry Pi 5 cooler while maintaining proper airflow between the cooler and installed HATs. This ensures stable thermal performance even in high-load scenarios.
