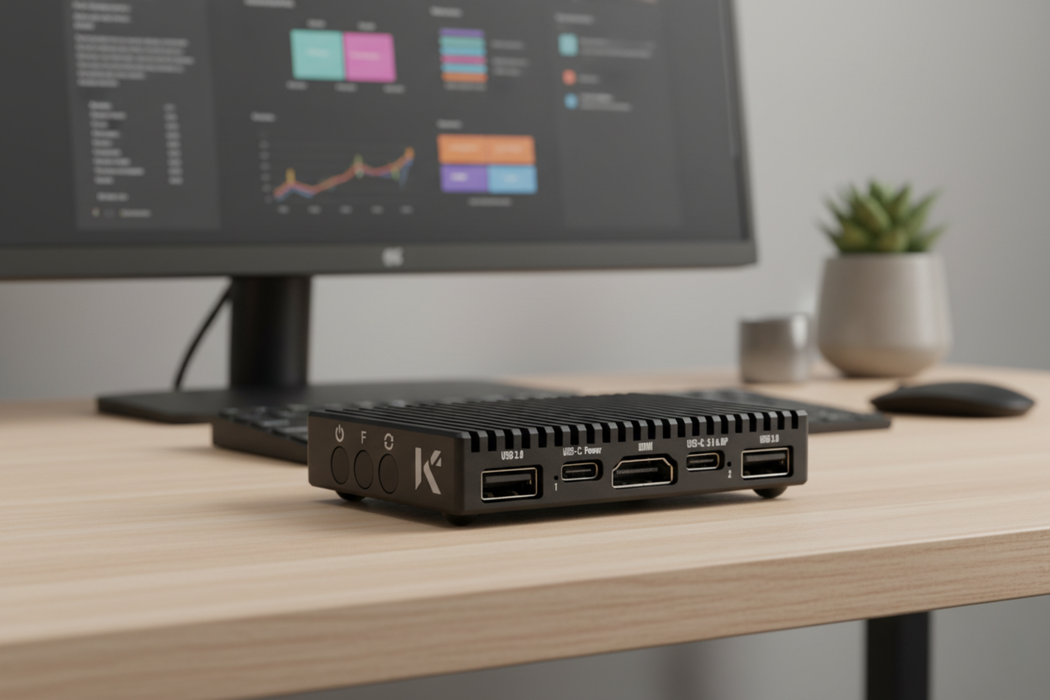

KKSB Khadas Edge2 Heatsink Case – front with USB 2.0, USB-C power, HDMI, USB-C 3.1 & DP, USB 3.0 and buttons

KKSB Khadas Edge2 Heatsink Case - Black Aluminium Enclosure

Name: KKSB Khadas Edge2 Heatsink Case - Black Aluminium Enclosure
Brand: KKSB Cases
SKU: 7350001161259
Price: 25.9 EUR
Availability: OutOfStock
Rating: 4.8 (5 reviews)

€25,90

Sold out

SKU 7350001161259

KKSB Khadas Edge2 case is made of CNC machined aluminium and is designed to work as a heatsink for optimal passive cooling. The case comes with thermal pad and push buttons for Reset, Function, and Start.

Sold-out

Technical Details

Compatible board: Khadas Edge2
Port access: Front: 1 × USB 2.0, 1 × USB-C (power), 1 × HDMI, 1 × USB-C 3.1 with DisplayPort, 1 × USB 3.0. Side: ribbon/connector slots labelled Mic, Cam1 / MIPI-DSI2, Cam2 / MIPI-DSI1, Cam3 / IO2 and Mic / IO1
Power button: Three push buttons in the case for power, function (F) and reset
Cooling: Passive: the finned aluminium cover is a heatsink in contact with the SoC via the included thermal pad
Material: CNC-machined aluminium, black anodized; plastic bottom plate for WiFi/BT signals
Mounting: 2 keyhole mounting holes in the bottom for wall mounting; 4 rubber feet
Package dimensions: 122 × 78 × 30 mm; shipping weight 165 g
In the box: Case, thermal pad, 3 push buttons, rubber feet, fasteners
Not included: Khadas Edge2
EAN: 7350001161259

User Manuals

Worldwide shipping
EU delivery: ~ 3-8 days,
Outside the EU: ~ 7-15 days.

Pay using Paypal or Bank Card
We also accept bank payment for larger orders

AI-generated backgrounds are used in some images · Learn more

3D model / Dimensions

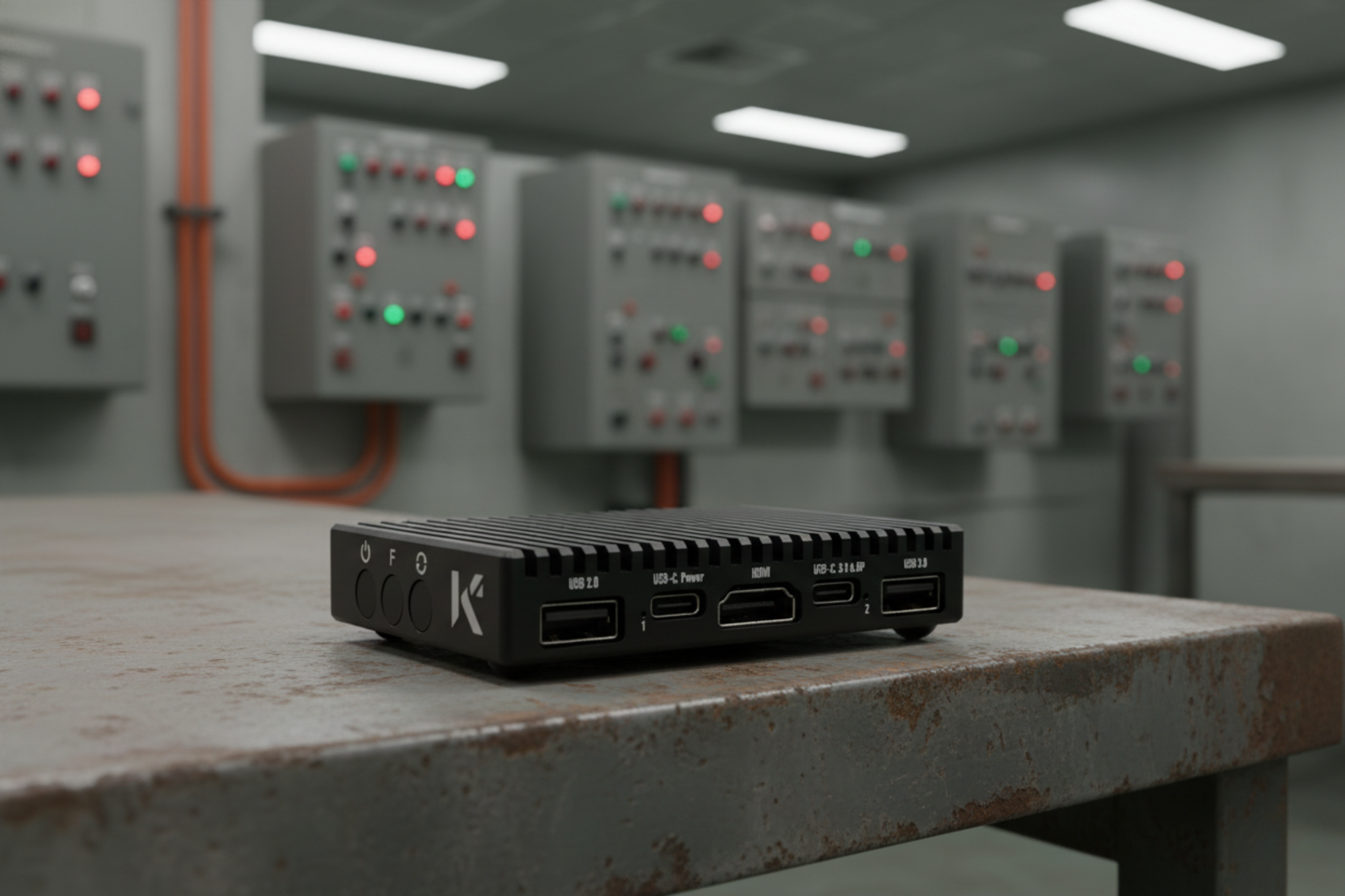

KKSB Khadas Edge2 Heatsink Case – on a workbench in an industrial control room

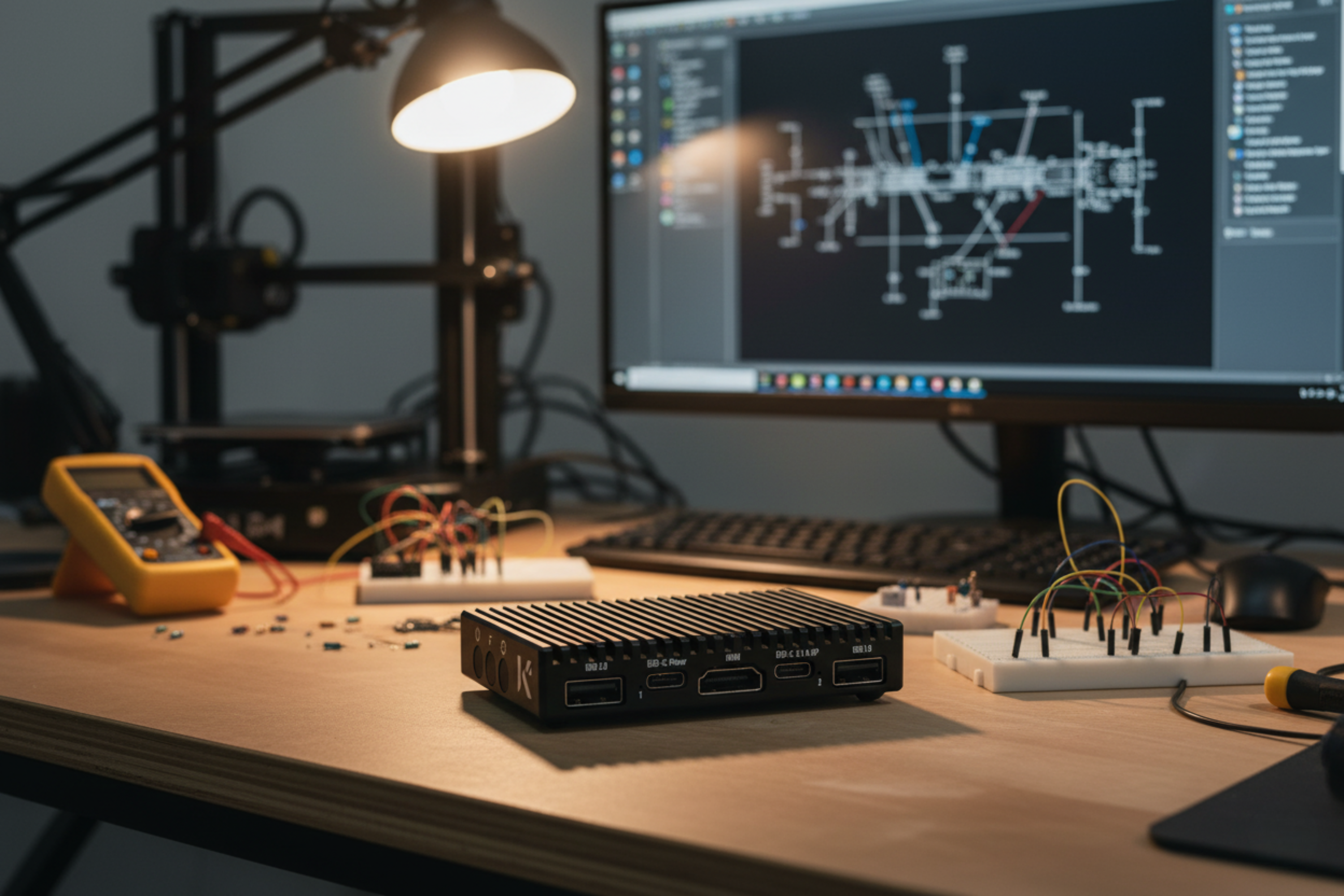

KKSB Khadas Edge2 Heatsink Case – on an electronics workbench in front of a schematic on a monitor

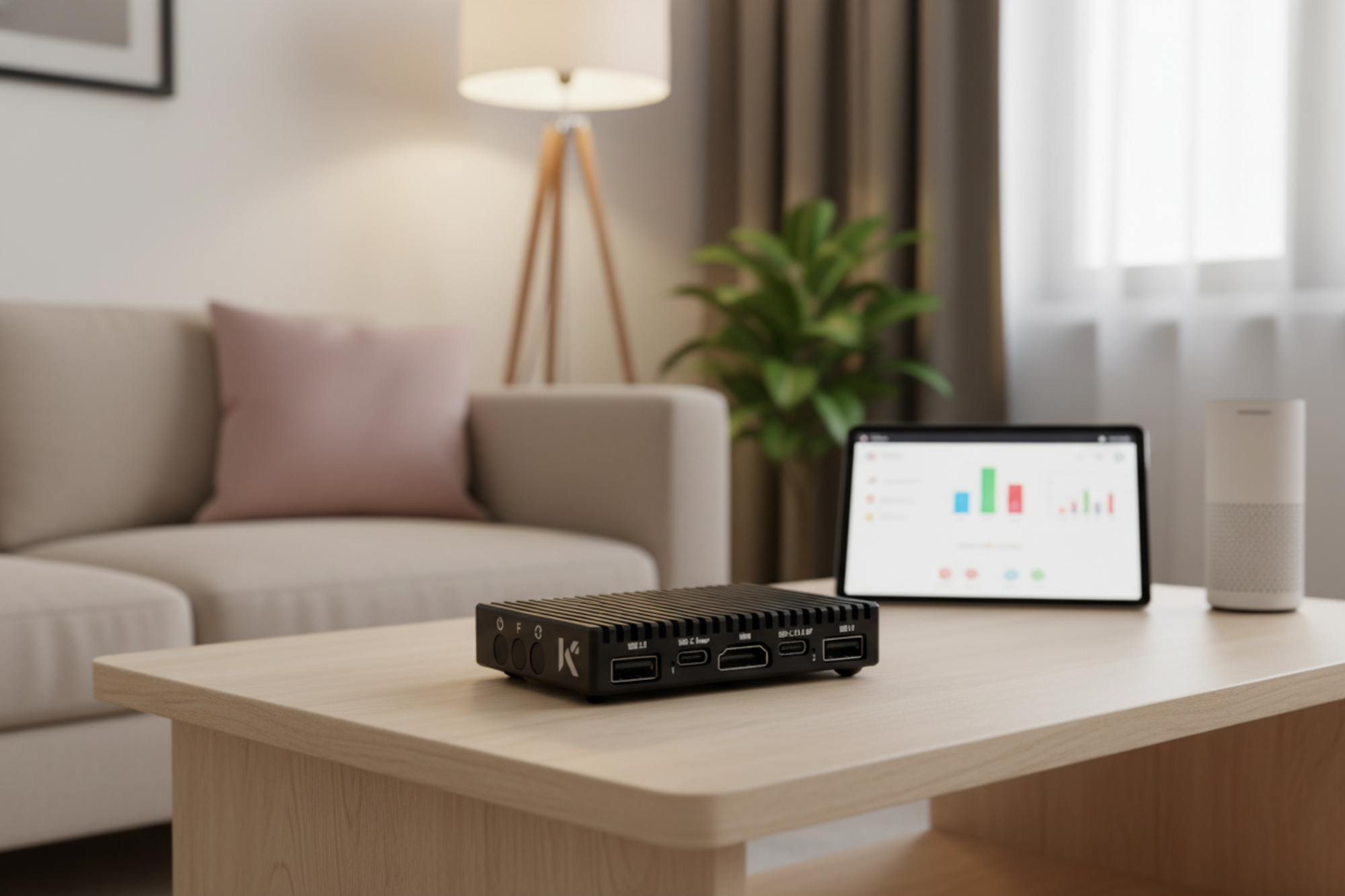

KKSB Khadas Edge2 Heatsink Case – on a living room coffee table next to a tablet

Sleek and Secure with Built-in Heatsink

The KKSB Khadas Edge2 aluminium case has been designed with a built-in heatsink. It comes with a high-performance thermal conductive pad that ensures the best possible cooling, resulting in an SoC temperature of 80 degrees Celsius under full load at room temperature. For projects needed more cooling active cooling is needed. The case itself acts as a large passive heatsink, dissipating heat efficiently and keeping your device cool even during intensive workloads.

Improved Wireless Signal Transmission

The bottom plate of the KKSB Khadas Edge2 Case is made of plastic, which ensures optimal WiFi and BT performance. This is because metal cases can interfere with wireless signals, leading to reduced performance. With the KKSB Khadas Edge2 Case, you can enjoy the full range and speed of your wireless connections.

Stability and Protection

The KKSB Khadas Edge2 Case comes with rubber feet that not only protect your table from scratches but also provide maximum stability for your device. The rubber feet keep your Khadas Edge2 board in place, preventing any accidental slips or falls.

Some Examples of Possible Applications

Customized IoT projects: With easy access to the GPIO pins, developers and makers can easily connect sensors, actuators, and other peripherals to create customized IoT projects.
Industrial control systems: All-round protection and stability of this Khadas Edge2 case make it ideal for use in industrial control systems where reliability and durability are critical.
Home automation: The case's push buttons and easy assembly make it ideal for DIY home automation projects.
Edge computing: The built-in heatsink and passive thermal management make this Khadas Edge2 enclosure suitable for edge computing applications, such as edge AI and machine learning.
Media centers: The case's optimal WiFi and BT performance make it ideal for media center applications, where fast and reliable wireless connectivity is important.
Robotics: The case's stability and easy assembly make it ideal for robotics projects, where the device may need to move around and withstand some wear and tear.
Gaming consoles: The built-in heatsink and passive thermal management make theis Khadas Edge2 heatsink case suitable for use in gaming consoles, which can generate a lot of heat.
Network Attached Storage (NAS): Support for WiFi and BT performance makes this Khadas Edge2 case suitable for use in NAS devices, which require reliable wireless connectivity and data protection.

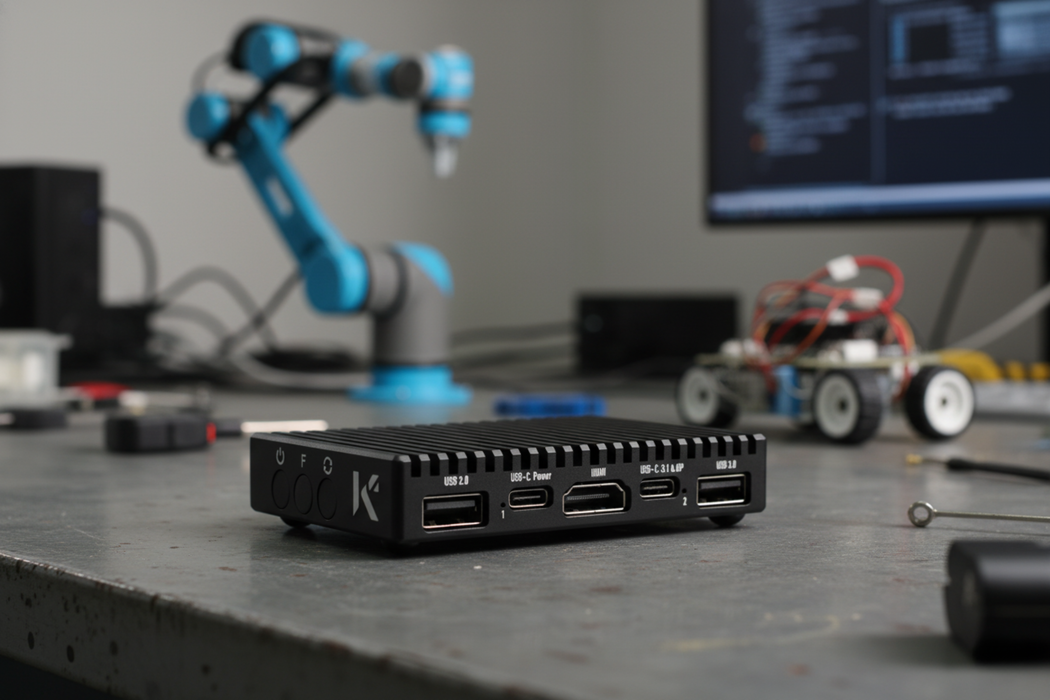

KKSB Khadas Edge2 Heatsink Case – on a lab bench next to a robot arm and small robot

Why Should You Choose This Case?

Thermal Management: The case comes with a built-in heatsink and thermal conductive pad that ensures the best possible cooling, resulting in an SoC temperature of 80 degrees Celsius under full load at room temperature. This helps to prevent the device from overheating and ensures optimal performance.
Access to GPIO Pins: The case allows for easy access to all the GPIO pins on the Khadas Edge2 board, which makes it easy to customize and configure the device for specific needs.
Stability and Protection: The case comes with rubber feet that not only protect your table from scratches but also provide maximum stability for your device. The rubber feet keep your Khadas Edge2 board in place, preventing any accidental slips or falls.
Easy Assembly: The KKSB Khadas Edge2 Case is simple to assemble, even for beginners. All fasteners, feet, and thermal pads are included, and the heat sinks are made of one piece of solid aluminum and CNC machined for maximum precision.
Optimal WiFi and BT Performance: The bottom plate of the KKSB Khadas Edge2 Heatsink Case is made of plastic, which ensures optimal WiFi and BT performance. This means that you can enjoy the full range and speed of your wireless connections.
Convenient Push Buttons: The case comes with three push buttons for function, reset, and power, which are conveniently placed on the case, making it easy to access them when you need to.
Sleek and Professional Look: The anodised black aluminium case gives the device a sleek and professional look that can be used for various applications, including home automation, media centers, robotics, gaming consoles, and industrial control systems.

Easy Assembly

This Khadas Edge2 Heatsink Case is simple to assemble, even for beginners. Fasteners, feet and rubber feet are included.

Remove the plastic on both sides of the thermal pad
Insert 3x control buttons to the relevant cutouts (inside-out)
Align the mounting holes of Khadas Edge2 board with the spacers on the base of the case
Secure the board to the bottom of the case using screws
Mount the cover of the case on top and secure with the help of screws
Fix the rubber feet

Push Buttons

The KKSB Khadas Edge2 Case comes with three push buttons for function, reset, and power. These buttons are conveniently placed on the case, making it easy to access them when you need to.

In conclusion, the KKSB Khadas Edge2 Case is the perfect accessory for your Khadas Edge2 board. With its thermal management, easy access to GPIO pins, stability and protection, easy assembly, optimal WiFi and BT performance, and convenient push buttons, it offers everything you need to get the most out of your device.

Access to GPIO Pins

With the KKSB Khadas Edge2 Case, you have full access to all the GPIO pins on your Khadas Edge2 board. This makes it easy to customise and configure your device for your specific needs. You can easily connect sensors, actuators, and other peripherals to the GPIO pins without having to remove the case.

Items Included

KKSB Khadas Edge2 Case
Rubber Feet
Fasteners

Khadas Edge2 is NOT included.

Nice SBC chassis

This is the best chassis for the Khadas. This aluminium enclosure will allow you to have a noiseless PC.

I like it a lot

Bought this case to take my Edge2 with me on my trips.
Very happy with it. It looks like a gem. And the thermals are good enough.
37C idle and can go up to 83C after +25 minutes all cores maxed out.
But it doesn't throttle much(1.6Ghz vs 1.8Ghz on small cores). And for normal use you'd never reach that temperature.
You could replace the thermal pad with a thin copper shim and thermal paste to improve it a little, but for me it's not needed. Thermal pad is thin enough.
The bottom plate is plastic, I think for better wifi reception. I don't mind it.
You need to place the metal spacers over the screw holes and then put on the plastic plate.
You can see assembly and thermals in my video about it.
https://www.youtube.com/watch?v=pt3rAV5W57k
Greetings, NicoD

Need a better fitting for wifi antenna

The case is designed to have no fan inside, so the case can get very hot which is expected. But I would expect the case has a better fitting for the wifi antenna. Right now, my wifi antenna is positioned inside the case, with the temp can go up to 80 degree, the wifi signal is definitely negatively impacted. I wish the case can provide a support for external fan mounting. For example, allow users to mount a small silent fan on top of the metal case to speed up the cooling.

Good

good case

Khadas edge2 case

A very good fit and a very nice case for khadas edge2. One problem is of course the that it gets very warm whithout a cooling fan. But that was the intention and then you don’t get the disturbing noise from the fan. So a very good case!
