KKSB BeagleY-AI Case

Name: KKSB BeagleY-AI Case
Brand: KKSB Cases
SKU: 7350001162065
Price: 16.9 EUR
Availability: InStock

€16,90

SKU 7350001162065

The KKSB BeagleY-AI Case is purpose-built for the BeagleY-AI SBC, combining durability, functionality, and style to protect and enhance your projects. With dedicated cutouts and thoughtful features, this case ensures a seamless experience for developers, hobbyists, and professionals alike.

In stock.

Quantity Liquid error (snippets/product-form line 68): include usage is not allowed in this context

Technical Details

Compatible board: BeagleY-AI
Compatible HATs: Most HATs; long and short spacers included for HATs with long or short GPIO headers. Removable side ventilation panels give access for HATs with connectors in different positions.
Port access: 4 × USB 3 Type-A, 1 × Gigabit Ethernet, 1 × USB-C (power), 1 × micro-HDMI, microSD card slot, an additional slot opening on the USB-C side and 40-pin GPIO cable access in the side

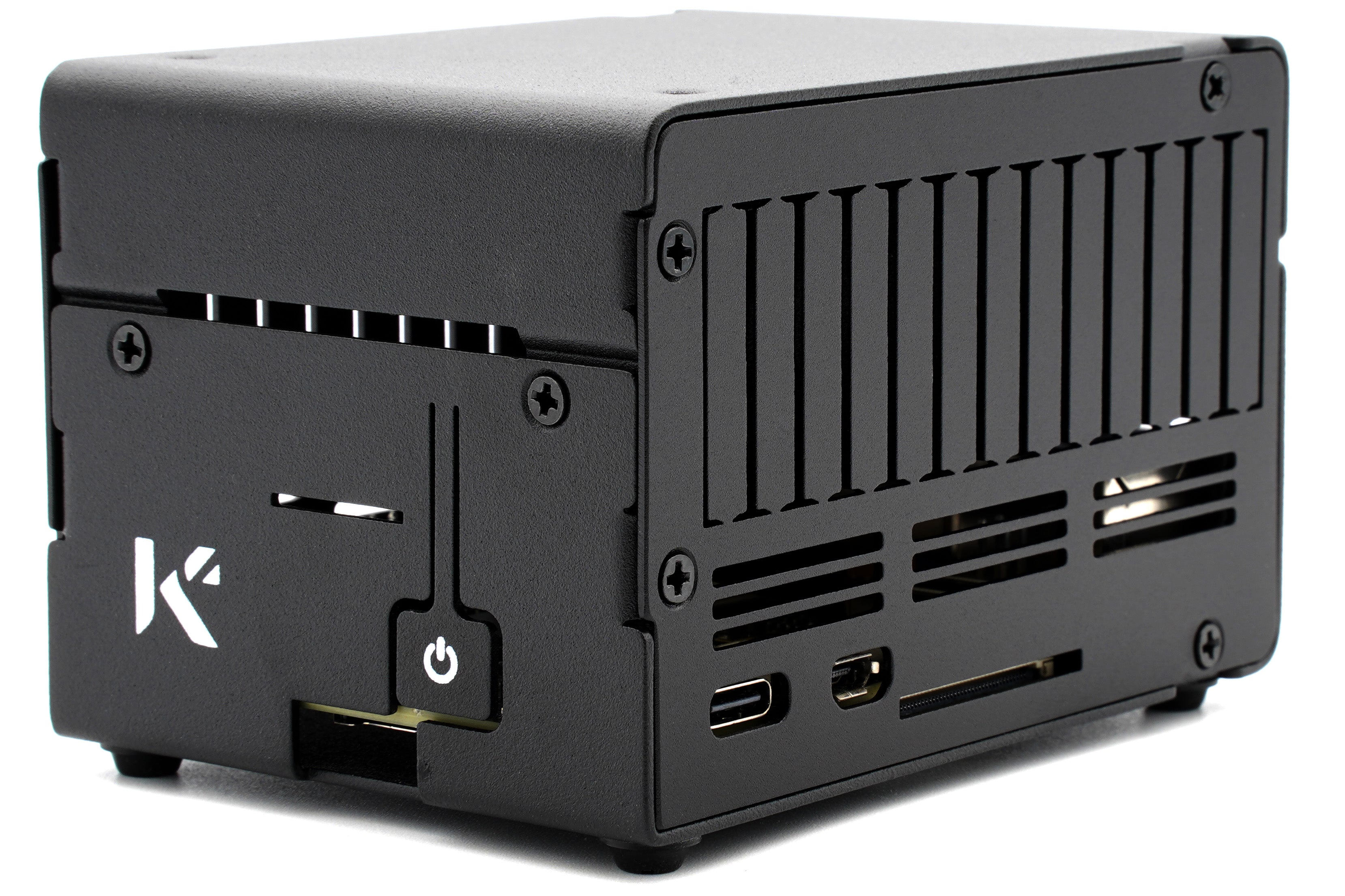

Power button: External start button integrated in the case
Cooling: Ventilation slots in both side panels; space for low-profile heatsinks or coolers; included 40-pin stackable header leaves an airflow gap between cooler and HAT
Material: Sandblasted black anodized aluminium case with powder-coated steel frame
Mounting: 2 keyholes in the bottom for wall mounting; pre-cut holes for KKSB DIN Rail Clip; compatible with KKSB Camera Holder and KKSB VESA Bracket (sold separately); rubber feet
Package dimensions: 115 × 75 × 65 mm; shipping weight 220 g
In the box: Case, spacers (long and short), screws, rubber feet, 40-pin stackable header
Not included: BeagleY-AI, electronics, cooler/heatsink, KKSB accessories
EAN: 7350001162065

User Manuals

Worldwide shipping
EU delivery: ~ 3-8 days,
Outside the EU: ~ 7-15 days.

Pay using Paypal or Bank Card
We also accept bank payment for larger orders

AI-generated backgrounds are used in some images · Learn more

3D model / Dimensions

KKSB BeagleY-AI Case – on a desk below a monitor showing face detection

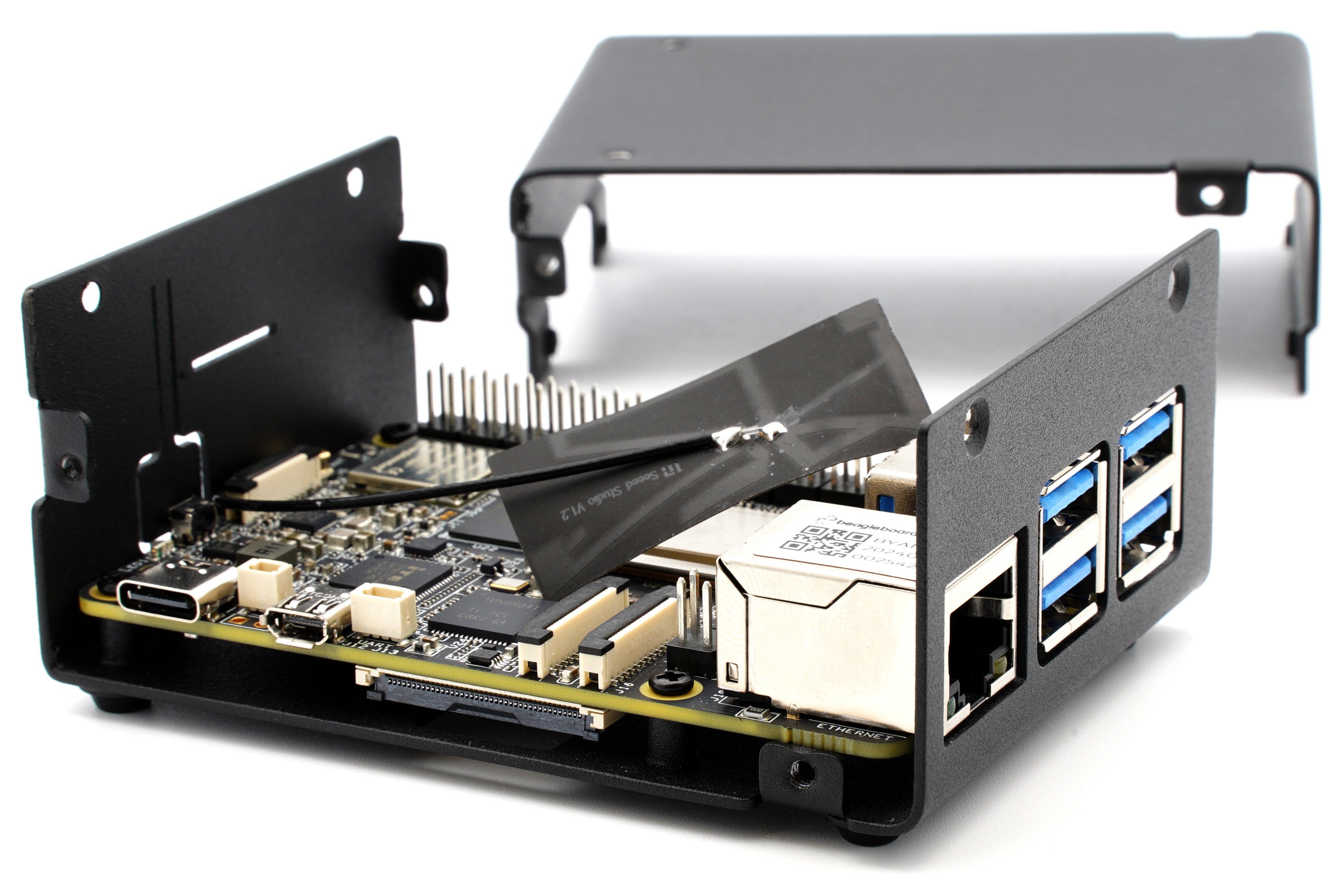

KKSB BeagleY-AI Case – opened with BeagleY-AI board inside and top panel removed

KKSB BeagleY-AI Case – mounted on a tracked robot with camera in a robotics lab

KKSB BeagleY-AI Case – underside with mounting cutouts and rubber feet

Smartly Tailored for BeagleY-AI Developers

Designed specifically for the BeagleY-AI development board, the case features dedicated cutouts for all essential interfaces, ensuring perfect alignment and easy access. The removable top panel makes installing HATs straightforward, providing the flexibility needed for dynamic projects. With long and short spacers included, the case accommodates HATs with different GPIO header lengths, supporting various configurations.

Durability and Expandability

The case is made from sandblasted black anodized aluminum with a powder-coated steel frame, offering a robust and stylish enclosure.
Features like an external start button, rubber feet for grip, and wall-mount keyholes make the case both practical and versatile.
Compatible with KKSB Camera Holders, KKSB DIN Rail Clips, and KKSB VESA Brackets, the case integrates effortlessly into various mounting systems.

Assembly is straightforward, with detailed instructions accessible via a QR code on the product packaging, saving you time and effort.

KKSB BeagleY-AI Case – on a white desk next to a monitor and breadboard

Some Examples of Possible Applications

Artificial intelligence development and deployment using the BeagleY-AI’s 4 TOPS co-processor.
Real-time I/O control projects leveraging the dedicated 800MHz microcontroller.
High-performance computing for robotics, vision systems, and multimedia.
Networking and IoT projects utilizing WiFi 6, Bluetooth 5.4, and Gigabit Ethernet.
Classroom and professional prototyping applications.

Accessibility and Ventilation Support

Plenty of ventilation slots on both side panels ensure adequate airflow, helping to keep the BeagleY-AI and its components cool during intensive tasks.
The ventilation slots are removable, allowing easy access for HATs with connectors in unique positions.
Space for low-profile heatsinks or coolers and an included 40-pin stackable header enhances airflow between the HAT and the cooler, ensuring efficient performance.
