KKSB Pi 5 Display 2 (5") Panel Mount Case – front view in portrait orientation with mounting ears

KKSB Panel Mount Case for Raspberry Pi 5 & Display 2 (5inch)

Name: KKSB Panel Mount Case for Raspberry Pi 5 & Display 2 (5inch)
Brand: KKSB Cases
SKU: 7350001162232
Price: 21.3 EUR
Availability: InStock

€21,30

SKU 7350001162232

The KKSB Panel Mount Case for Raspberry Pi 5 & Display 2 (5 inch) is a slim, metal enclosure designed exclusively for flush installation into panels or walls. Ideal for control panels, dashboards, kiosks, and industrial interfaces.

In stock.

Quantity Liquid error (snippets/product-form line 68): include usage is not allowed in this context

Technical Details

Compatible board: Raspberry Pi 5
Display: Official 5-inch Raspberry Pi Display 2 (not included)
Compatible HATs: Most Raspberry Pi HATs and add-on boards (third-party HAT compatibility not guaranteed)
Port access: Raspberry Pi 5 sits on the open rear of the housing – its ports are reached directly behind the panel
Cooling: Official Raspberry Pi 5 Active Cooler and low-profile heatsinks
Mounting: Panel mount only: mounting ears with slots on both sides; user makes the panel cutout (drawings and 3D model supplied)
Material: Sandblasted black anodized aluminium and powder-coated steel
Package dimensions: 155 × 101 × 26 mm; shipping weight 140 g
Not included: Raspberry Pi 5, Display 2 (5-inch), HATs, cooler
EAN: 7350001162232

User Manuals

Assembly Instruction KKSB Panel Mount Case for Raspberry Pi 5 & Display 2 (5inch) NL-USER_MANUAL_AND_SAFETY_DATASHEET-7350001162232.pdf
Nederlands DE-USER_MANUAL_AND_SAFETY_DATASHEET-7350001162232.pdf
Deutsch EN-USER_MANUAL_AND_SAFETY_DATASHEET-7350001162232.pdf
English ES-USER_MANUAL_AND_SAFETY_DATASHEET-7350001162232.pdf
Español FR-USER_MANUAL_AND_SAFETY_DATASHEET-7350001162232.pdf
Français IT-USER_MANUAL_AND_SAFETY_DATASHEET-7350001162232.pdf
Italiano JP-USER_MANUAL_AND_SAFETY_DATASHEET-7350001162232.pdf
日本語 (Nihongo)

Download 3D model

Worldwide shipping
EU delivery: ~ 3-8 days,
Outside the EU: ~ 7-15 days.

Pay using Paypal or Bank Card
We also accept bank payment for larger orders

AI-generated backgrounds are used in some images · Learn more

3D model / Dimensions

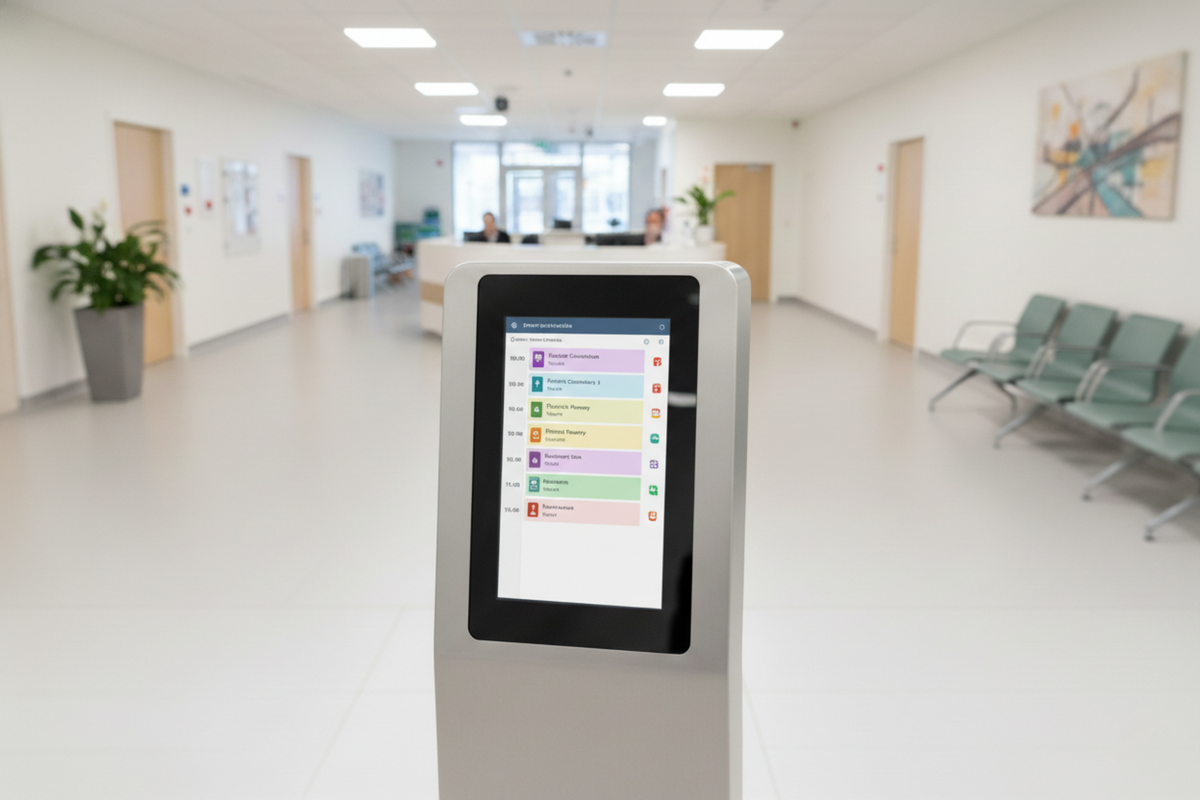

KKSB Pi 5 Display 2 (5") Panel Mount Case – kiosk in a hospital corridor

KKSB Pi 5 Display 2 (5") Panel Mount Case – built into a supermarket self-checkout counter

KKSB Pi 5 Display 2 (5") Panel Mount Case – angled view with mounting ears

KKSB Pi 5 Display 2 (5") Panel Mount Case – rear view with Raspberry Pi 5 and HAT mounted

KKSB Pi 5 Display 2 (5") Panel Mount Case – flush-mounted in a pharmacy counter

Durable & Sleek Sandblasted Aluminum

The KKSB Panel Mount Case for Raspberry Pi 5 & Display 2 (5 inch) is a slim, metal enclosure designed exclusively for flush installation into panels or walls. With a flat front profile and integrated mounting ears, the case is intended for professional, fixed installations where the display becomes part of a larger system or surface.

Designed for Panel and Wall Integration

The case is specifically made for panel mounting applications and cannot be used as a standalone enclosure. Installation requires the user to create a cutout in the panel or wall. To ensure a precise fit, drawings and a 3D model are provided, allowing accurate preparation before installation.

The front-facing design ensures the display sits cleanly and securely once mounted, with mounting slots on both sides for firm attachment.

Slim Profile with Room for Expansion

Despite its compact depth, the case offers generous internal space for Raspberry Pi HATs, add-on boards, and low-profile cooling solutions. This makes it suitable for both simple display projects and more advanced system integrations.

Support is provided for:

Raspberry Pi HATs
Low-profile heatsinks
Official Raspberry Pi cooler

Some Examples of Possible Applications

Home & Maker Applications
Home automation dashboards
Media player interfaces
3D printer or CNC controller panels
Industrial & Commercial Applications
Kiosk systems
Point-of-sale (POS) terminals
Network monitoring panels
Access control systems
Interfaces for RFID, NFC, or biometric entry systems

Access and Cooling

Cutouts and internal spacing provide access to most common Raspberry Pi interfaces, supporting connectivity without compromising the clean front-facing installation. The metal construction helps maintain structural rigidity while allowing airflow for stable operation.

Industrial-Grade Materials

The enclosure is manufactured from sandblasted black anodized aluminum combined with powder-coated steel, delivering a durable, professional finish suitable for both home automation and industrial environments.
