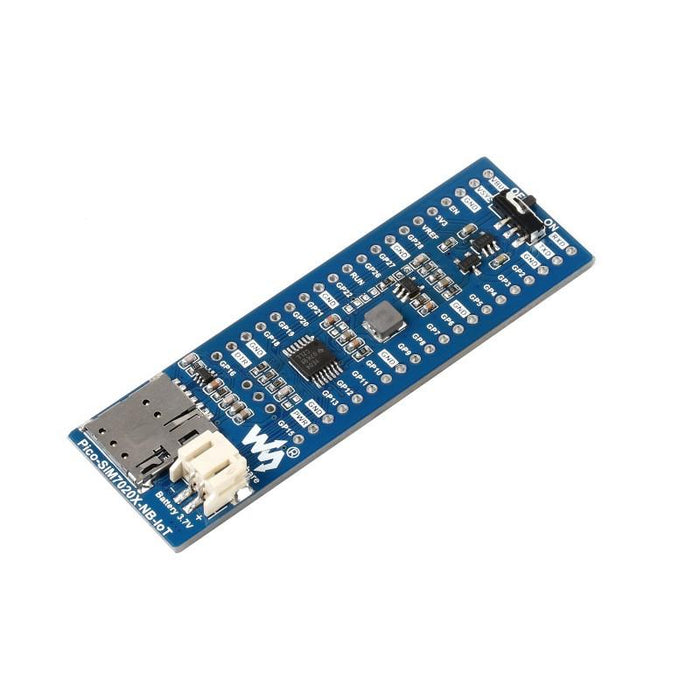

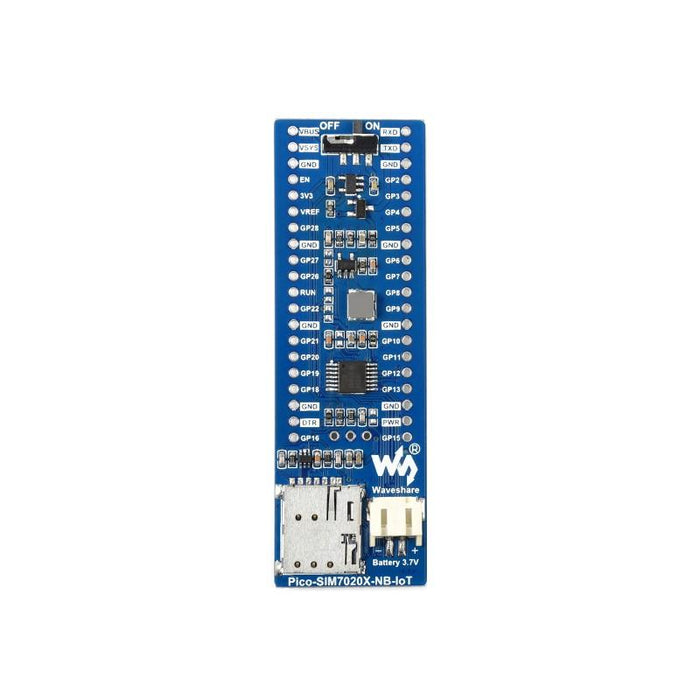

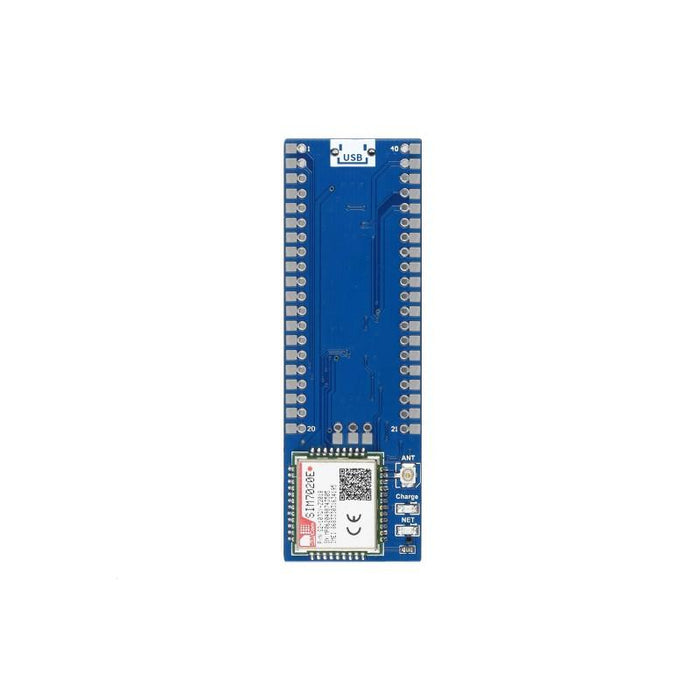

SIM7020E NB IoT Module for Raspberry Pi Pico Works in Australia, Africa, Europe, and Asia

€37,38 €29,90

Download Resources for SIM7020E NB-IoT Module

Note: This product cannot be shipped to Iran, Syria, North Korea, Sudan, and Cuba

This NB-IoT Module is designed for Raspberry Pi Pico. It is on the SIM7020E Narrow Band Internet of Things. The module supports B28, B20, B8, B5, B3, and B1 LTE-FDD frequency bands. it is suitable for use in Europe, Asia, Australia, and Africa. You can use the serial AT commands to control this NB-IoT module. It is compatible with multiple communication protocols including HTTP, COAP, LWM2M, and MQTT. It is a low-power, cost-efficient, and low-delay module with wide coverage. The SIM7020E module is suitable for various IoT applications including remote monitoring, asset tracking, and intelligent instruments.

Features of SIM7020E NB IoT Module for Raspberry Pi Pico

  • Board Compatibility: Has standard header to support Raspberry Pi Pico
  • Communication Interface: UART
  • Control: Serial AT Commands
  • Communication Protocols: COAP, LWM2M, HTTP, MQTT, and more
  • Supports multiple cloud platforms
  • Battery (Included): Li-Po 3.7V rechargeable battery
  • Indicators: 2x LED status indicators
  • Card Slot: Nano SIM Card Slot Compatible with NB-IoT Card

Specifications of SIM7020E NB IoT Module for Raspberry Pi Pico

  • Frequency Band: B1 / B3 / B5 / B8 / B20 / B28 LTE-FDD
  • Interface: UART
  • Data Rate (UL): 82.5 kbps
  • Data Rate (DL): 26.15 kbps
  • Baud Rate: From 300 bps to 921600 bps (by default set at 115200 bps)
  • Communication Protocols: Supports NTP, DNS, DTLS, TLS, COAP, LWM2M, TCP, HTTPS, HTTP, TCP, MQTT, and UDP
  • Compatible Regions: Australia, Africa, Europe, and Asia
  • Compatible Power Supply: Li-Po battery (external) and the USB port of Raspberry Pi Pico supported
  • Battery Interface: 3.7V to 4.2V compatible
  • Logic Voltage: 3.3V
  • Standalone Current: 5.6mA (Idle Mode) | 0.4mA (Sleep Mode) | 3.4uA (PSM Mode)
  • Weight: 6 Grams
  • Dimensions: 7.35cm x 2.4cm | 73.5mm x 24mm

Note:

  • You can SMD-Mount the Raspberry Pi Pico to the left side or use the female header to attach Pico to the right side
  • The offer DOES NOT include the Raspberry Pi Pico
  • This module does not come with soldered pin headers

The Narrow Band IoT Network is useful for various projects including weather updates by HTTP GET and temperature updates through HTTP POST and displaying the real-time information on a webpage.

Items Included

  • 1x SIM7020E NB-IoT for RPi Pico
  • 1x Antenna
  • 1x Male Pin Header 40 PIN
  • 2x Female Pin Headers 20 PIN
  • 1x Rechargeable 3.7V Li-Po Battery
