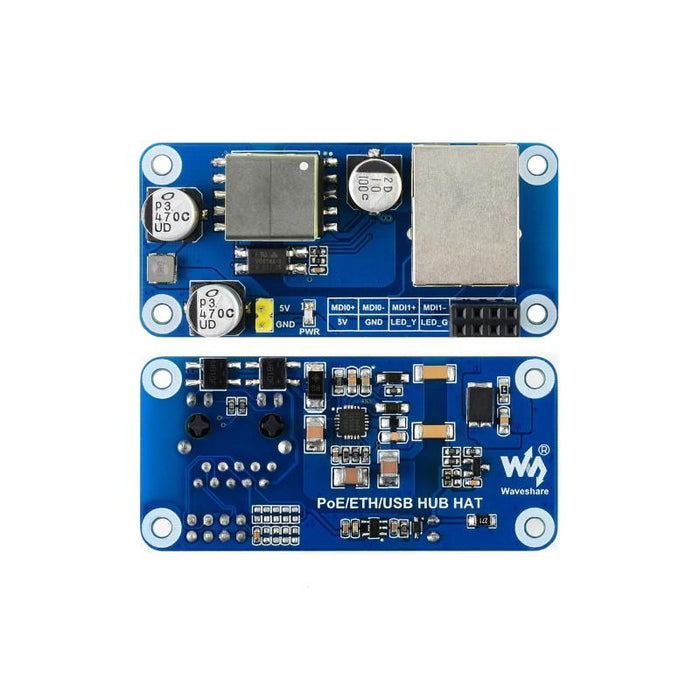

Power over Ethernet PoE USB HUB HAT for Raspberry Pi Zero, W and WH 802.3af Compatible
€36,90
This PoE plus USB HUB HAT works with Raspberry Pi Zero, Zero W, and Zero WH. It has 3x USB 2.0 ports and an RJ45 port. This HAT supports IEEE 802.3af. With this HAT, you can supply power and provide a network connection to the compatible Raspberry Pi board by using just one Ethernet cable.
Note: The power sourcing equipment is not included.
Features of PoE USB HUB HAT for Raspberry Pi Zero, W, and WH
- Compatible with Raspberry Pi Zero, Zero W, and Zero WH
- Features TRL8152B Ethernet chip
- Auto-negotiation 10M / 100M RJ45 port
- IEEE 802.3af compliant
- Switch Mode Power Supply (SMPS) fully isolated
- USB HUB (3x USB 2.0 / 1.1 compatible ports
Compatible with Raspberry Pi Zero, Zero W, and Zero WH
3x Extended USB 2.0 Ports
Auto-Negotiation 10M / 100M RTL8152B Chip
USB to Ethernet Conversion
Demonstration of Usability
Specifications of PoE USB HUB HAT for Raspberry Pi Zero, W, and WH
- Power Input: DC IN 37V to 57V
- Power Output: 5V/ 2.5A DC OUT
- Ethernet Chip: TRL8152B
- Network Standard: PoE IEEE 802.3af
- Weight: 63 Grams | 0.063 Kg
- Dimensions: 2.31cm x 6.5cm | 23.1mm x 65mm
Items Included
- 1x PoE HAT
- 1x USB HUB Board
- 1x Screwdriver
- 1x Pack of Screws
