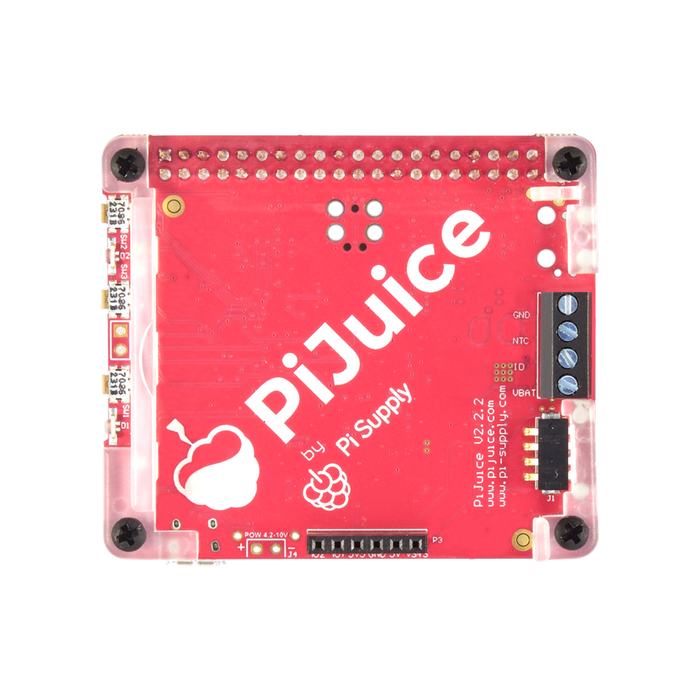

PiJuice HAT (Raspberry Pi Compatible)

€65,90

Mini PCs need extensions for added functionality and it is good to see more and more compatible HATs hitting the marketing. The PiJuice HAT for Raspberry Pi uses the PiAnywhere technology for a fully uninterruptible power supply. The PiJuice HAT also contains a Real Time Clock to help the board stay updated with the exact time without requiring the Internet connection. The Soft-Shutdown function is also available in this HAT thanks to the integrated MCU. The expansion also features 2x RGB LEDs to keep you updated about the scripts, events, and charging levels. The PiJuice HAT for Raspberry Pi needs 5 GPIO Pins (max.) and thanks to the stacking header, you can also use the add-ons with PiJuice HAT.

Features of PiJuice HAT (Raspberry Pi Compatible)

  • PiJuice HAT is a reliable and fully uninterruptable UPS
  • Compatible with the 1820mAh Lipo/LiIon (onboard off the shelf) battery
  • The battery timing is up to 6 hours
  • Comes with an integrated Real Time Clock
  • ON/OFF Switch onboard
  • 2x Tri-Color programmable LEDs
  • Deep-Sleep / Low Power (calendar event / interrupt)
  • 2x User-configurable buttons
  • Features hardware watchdog timer to support mission-critical remote applications
  • PiAnywhere technology is used in PiJuice HAT for Raspberry Pi
  • Full-power management API to Raspberry Pi OS
  • The layout is compatible with EEPROM
  • The design of PiJiuce HAT is compact enough to fit inside the case for Raspberry Pi
  • You can charge PiJuice HAT with Micro USB on Raspberry Pi or the onboard pin headers
  • The HAT is compatible with the single-cell LiPo or LiIon battery
  • CE & FCC Certified

Specs of PiJuice HAT for Raspberry Pi

  • The I2C address is changeable
  • You can make it compatible with different boards by disabling the EEPROM

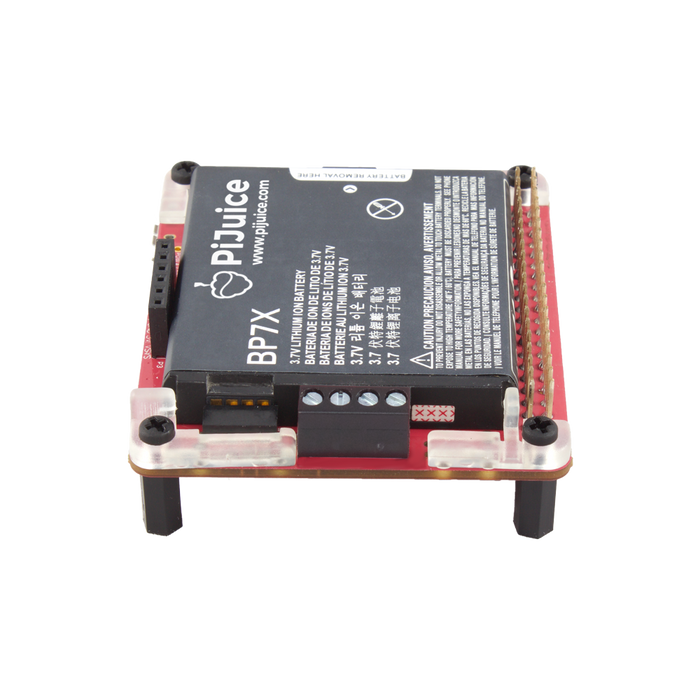

  • BP7X (A955/180mAh) Original Motorola Droid 2
  • Cortex-M0 STM32F030CCT6 ARM (F64KB/48MHz) microcontroller
  • Optional Spring Pi Mil-Max 0929-7-15-77-14-11-0
  • Also compatible with large batteries using the onboard screw terminal block (4-Pin)
  • Supports 3.3V/5V voltage output
  • The input voltage ranges from 4.2V to 10V
  • PiJuice HAT for Raspberry Pi weighs only 57 grams
  • The dimensions of the PiJuice HAT are 6.5mm x 5.6mm x 2.0mm

Raspberry Pi Boards Compatible with PiJuice HAT

Following Raspberry Pi PCs are compatible with PiJuice HAT:

  • Raspberry Pi ZERO v1.3
  • Raspberry Pi ZERO W
  • Raspberry Pi 4 Model B
  • Raspberry Pi 3 Model B
  • Raspberry Pi 3 Model B+
  • Raspberry Pi 2 Model B
  • Raspberry Pi 2 Model B+
  • Raspberry Pi A+

Items Included

  • 1x Pogo Pin
  • 1x Guide for PiJuice HAT
  • 1x Battery with the battery surround
  • 3x Stickers
  • 8x Mounting screws (4 of these screws are already assembled on the board)
  • 4x Pre-Attached mounting posts
  • 1x Pi Juice HAT for Raspberry Pi
