Coin Shaped UART All in One Capacitive Fingerprint Sensor

€37,38 €29,90

Download User Manual for UART Fingerprint Sensor

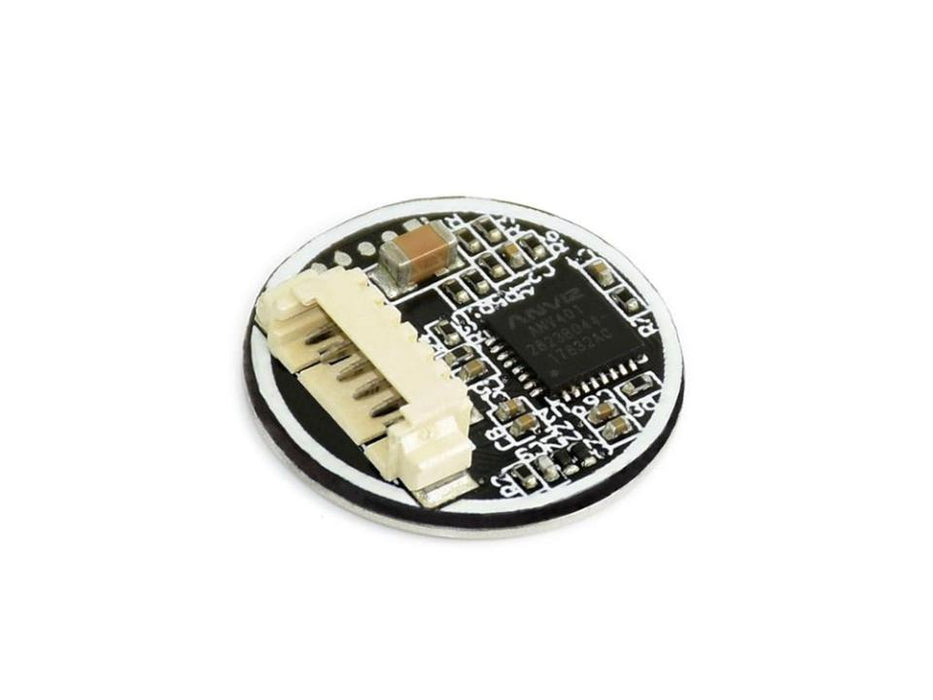

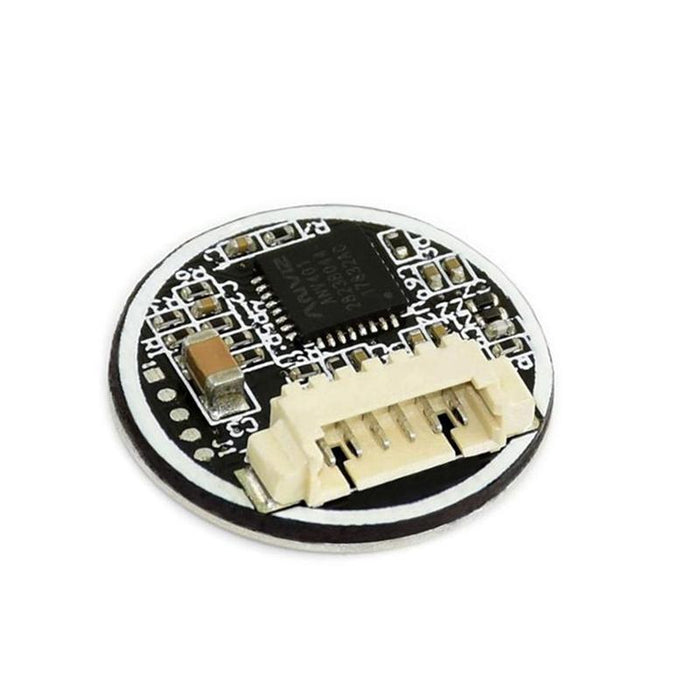

This is a circular (coin-shaped) small-sized UART capacitive fingerprint sensor. It features a high-performance Cortex processor with a commercial high-security fingerprint algorithm. You can control the sensor by using UART commands. Its features include fast processing, low-power consumption, high stability, and omni-directional 360o verification.

Functions of Coin Shaped UART All in One Capacitive Fingerprint Sensor

  • Image acquisition
  • Fingerprint enrollment
  • Template generation
  • Template storage
  • Fingerprint matching
  • Feature uploading

Features of Coin Shaped UART All in One Capacitive Fingerprint Sensor

  • No prior knowledge of fingerprint technology and structure is required
  • High-security commercial fingerprint algorithm
  • Fast verification, matching, enrolling, image collection, and feature upload
  • Capacitive detection panel
  • Cortex processor and integrated sensor suitable for small applications
  • Stainless steel rim
  • 360o verification (omni-directional)
  • Human sensor (low-power consumption since the processor goes to sleep mode and wakes up only when the capacitive panel is touched)
  • UART connector onboard – Compatible with MCUs with UART support

Specifications of Coin Shaped UART All in One Capacitive Fingerprint Sensor

  • Image quality: 192 x 192 pixels
  • Resolutions: 508DPI
  • Sensor: Capacitive touch sensor
  • Sensor Size (Radius): 1.55cm | 15.15mm
  • Image GreyScale: 8
  • Capacity: 500 fingerprints
  • False acceptance rate is less than 0.001%
  • False rejection rate is less than 0.1%
  • Matching time is less than 500ms (1:N | N≤100)
  • 7V ~ 3.3V Operating Voltage
  • Less than 50mA Operating Current
  • Less than 16uA Sleep Current
  • 8KV anti-electrostatic contact discharge | 15KV aerial discharge
  • UART interface
  • 19200 bps baud rate
  • -20°C~70°C operating temperature
  • -40°C~85°C storage temperature
  • 40% RH to 85% RH operating humidity (non-condensing)
  • Less than 0% to 85% storage humidity (non-condensing)
  • Weighs just 7 grams

Applications of Coin Shaped UART All in One Capacitive Fingerprint Sensor

  • Clock IN and OUT
  • Fingerprint lock
  • Smart access
  • Smart safe deposit box

Items Included

  • 1x UART Fingerprint Sensor
  • 1x Squid Wire 6-PIN
