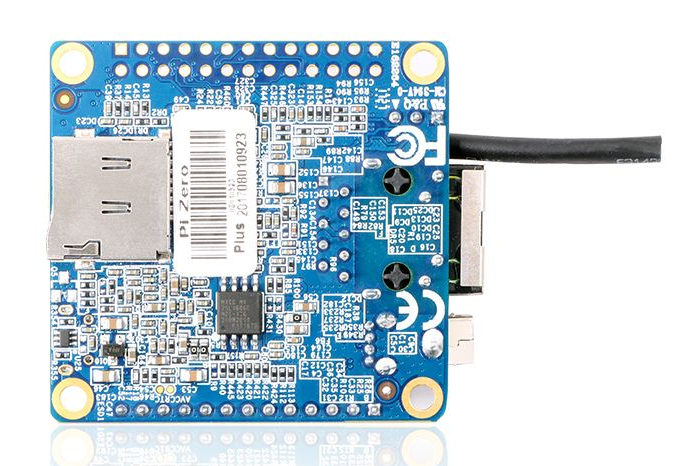

Orange Pi Zero Plus
Download Orange Pi Zero Plus User Manual
Orange Pi Zero Plus is an improved version of Orange Pi Zero. Zero Plus has Allwinner H5 SoC. The 1.2GHz 64-bit Quad-Core Cortex-A53 accompanies the Mali450 Hexa-Core GPU. WiFi is upgraded as well as now we have Realtek RTL8189FTV. Zero Plus features a 512MB DDR3 RAM and TF Card slot.
Specifications of Orange Pi Zero Plus
- Processor: Quad-Core H4 Cortex-A53 1.2GHz
- Architecture: 64-Bit
- Graphics Processing Unit: Mali450 (Hexa-Core)
- GPU supports EGL 40 Gflops, OpenVG 1.1, OpenGL ES 2.0/1.1/1.0
- GPU Pixel Fill Rate: Over 2.7 GPixel/s
- RAM: 512MB DDR3 (Shared with Graphics Processing Unit)
- Storage: 2MB SPI Flash and TF Card Slot compatible with up to 32GB Card
- WiFi: Realtek RTL8189FTV / IEEE 802.11 b/g/n
- Ethernet: RJ45 1000M/100M/10M
- The external board supported via 13Pins for Video Output
- Power Supply: OTG USB is compatible with Power Supply
- (1x3)pin GROUND, UART
- 1x Power Button SW602
- 1x OTG USB 2.0
- 1x HOST USB 2.0
- 26 Pin Expansion Header
- 13 Pin Function Interface AV/MIC, IR Pin, 2x USB
- 1x Status LED
- 1x Power LED
- Compatible with Armbian, Debian, Lubuntu, Android
- Weight: 26 grams
- Dimensions: 45mm x 48mm



Items Included
- Orange Pi Zero Plus 512MB RAM (x1)
